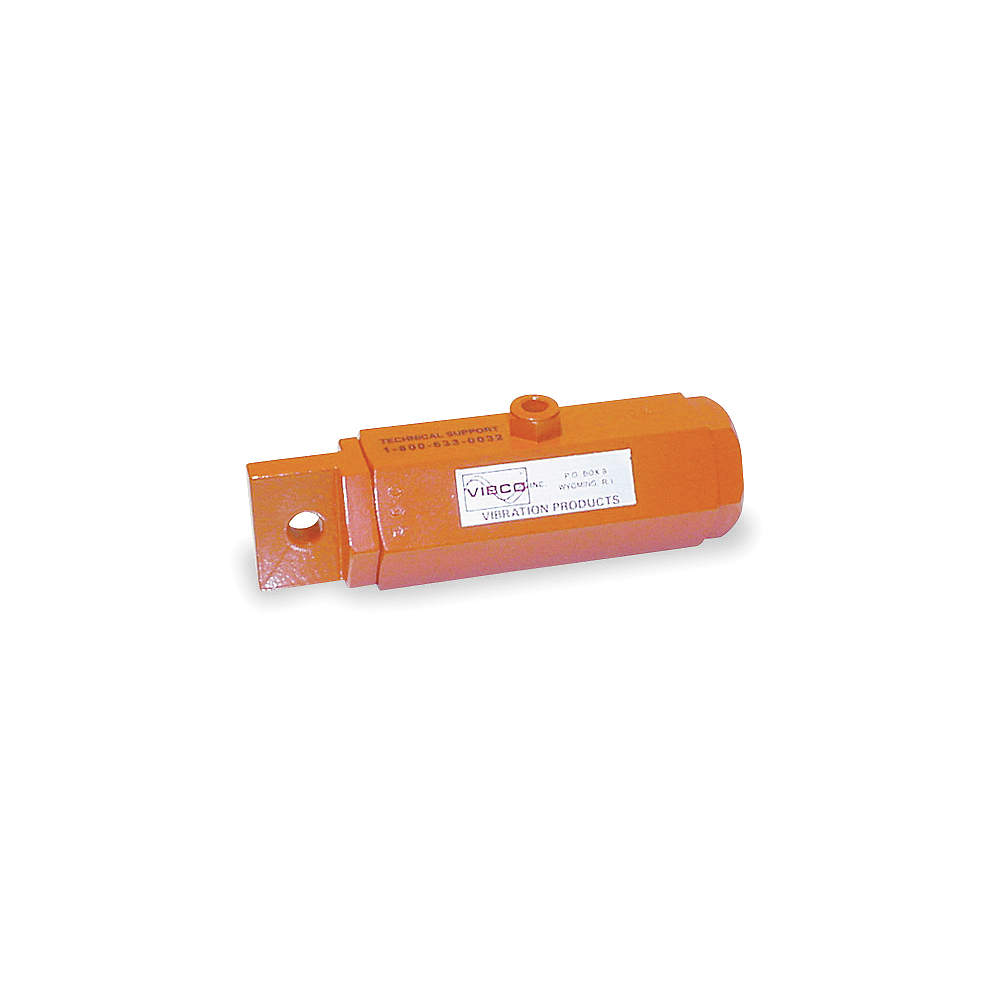

VIBCO 10 Series Pneumatic Piston Vibrators
Item: AD8BFB
Model: 10-1
Cross Ref: 4HT24
Check Availability
In Stock
Get it by Dec 30, Tuesday
10% off
€317.91 /unit (ex. VAT)
Add To Cart
Request Quote
Payment
Delivery
- Specifications
- Shipping Information
Specifications
| Item | Pneumatic Vibrator |
|---|---|
| Air Flow Rate | 3.5 CFM @ 40 psi, 4 CFM @ 60 psi, 5 CFM @ 80 psi |
| Application | Chemical Plants, Foundries And Paper Plants, Manufacturing, Mining, Plastics |
| Bin Weight Capacity | 200 lbs. to 400 lbs. |
| Compatible Muffler Grainger Part Number | 1A325 |
| Duty | Continuous |
| Duty Cycle | Continuous |
| Force @ Psi | 242 lbf. @ 80 psi |
| Force Rating | 242 lbs. |
| Housing Material | Steel |
| Inlet Connection Size | 1/8" |
| Inlet Connection Type | NPT |
| Max. Pressure | 80 psi |
| Maximum Force | 242 lbf. |
| Maximum Inlet Pressure | 80 psi |
| Maximum Vibration Speed | 11000 VPM |
| Mount Plate Included | No |
| Mount Plate Required | Yes |
|---|---|
| Mount Type | End |
| Mounting | End |
| Mounting Plate | Sold Separately |
| Outlet Connection Size | 1/8" |
| Outlet Connection Type | NPT |
| Outlet Port | 1/8" NPT |
| Overall Height | 5.63" |
| Overall Length | 1.89" |
| Overall Width | 1.89" |
| Pneumatic Vibrator Type | Piston |
| Sound Level | 93 dBA |
| Speed @ 60 Psi | 9000 VPM |
| Speed @ 80 Psi | 11000 VPM |
| Standards | Ce Certified |
| Vibration Speeds @ Psi | 11000 VPM @ 80 psi, 6500 VPM @ 40 psi, 9000 VPM @ 60 psi |
| Vibrator Type | Piston |
Shipping Information
| Height (cm) | 4.92 |
|---|---|
| Length (cm) | 14.13 |
| Width (cm) | 4.13 |
| HS Code | 8479899895 |
|---|---|
| Country Of Origin | US |
| Weight (kg) | 1.42 |
