ACCURIDE 2907 Series Light Duty And Low Profile Slides with Over Travel
Item: AD8KMD
Model: C 2907-18D
Check Availability
In Stock
Get it by Mar 3, Tuesday
€188.21 /unit (ex. VAT)
Add To Cart
Request Quote
Payment
Delivery
- Specifications
- Shipping Information
Specifications
| Item | Drawer Slide |
|---|---|
| Closed Length | 18" |
| Closure Type | Non Self Closing |
| Color | Silver |
| Cycle Life | 2000 |
| Detent Type | Lock Out |
| Disconnect Method | Lever |
| Duty Rating | Light Duty (<140 lbs.) |
| Extended Length | 38" |
| Extension Type | Over Travel |
| Finish | Zinc Plated |
| For Use With | Drawers |
| Glide Mechanism | Ball Bearing |
| Hardware | Not Included |
| Height | 1 13/16" |
| Includes Hardware | Hardware Not Included |
| Load Capacity | 115 lbs. |

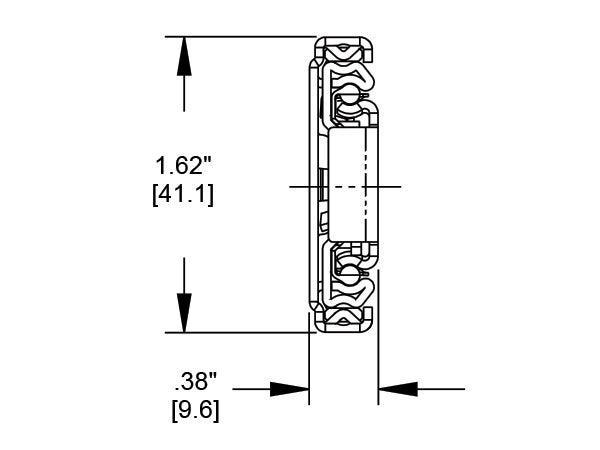

| Low Profile Height | 1.62" |
| Material | Steel |
|---|---|
| Mounting Type | Bracket |
| Over Travel | 2" |
| Over Travel Distance | 2" |
| Over Travel Length | 2" |
| Overall Height | 1 5/8" |
| Overall Width | 3/8" |
| Product Type | Drawer Slide |
| Screw Head Type | Pan |
| Screw Size | #8 |
| Screw Type | Pan Head |
| Side Space | 0.38" |
| Side Space - Maximum | 3/8" |
| Side Space - Minimum | 1/32" |
| Standards | RoHS |
| Tested Drawer Width | 16" |
| Travel Length | 20" |
| Width | 1/2" |
Shipping Information
| Height (cm) | 5.08 |
|---|---|
| Length (cm) | 45.72 |
| Width (cm) | 15.24 |
| HS Code | 8302423015 |
|---|---|
| Country Of Origin | CN |
| Weight (kg) | 1.67 |
