WIDIA Indexable Chamfer Mills
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Shank Dia. | Radial Rake Angle | Min. Cutting Dia. | Max. Cutting Dia. | Cutting Depth | Insert Size | Toolholder Style | No. Of Inserts | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3953896 | 1" | -10.7° | 1 1/4" | 1.593" | 0.138" | 0704 | HN0704 | 4 | €675.59 | |
| B | 3953905 | 1.1417" | -9° | 1 1/2" | 1.843" | 0.138" | 0704 | HN0704 | 4 | €660.30 | |
| B | 3953682 | 1.1417" | -13° | 1" | 1.343" | 0.138" | 0704 | HN0704 | 3 | €663.67 | |
| C | M1200D150Z04S050HN07 | 1/2" | -9° | 1 1/2" | 1.813" | 0.136" | 0704 | HN0704 | 4 | €771.26 | |
| C | M1200D150Z05S050HN07 | 1/2" | -9° | 1 1/2" | 1.813" | 0.136" | 0704 | HN0704 | 5 | €883.52 | |
| A | M1200D100Z02W075HN07 | 3/4" | -13° | 1" | 1.343" | 0.138" | 0704 | HN0704 | 2 | €573.97 | |
| A | 3953894 | 3/4" | -13° | 1" | 1.343" | 0.138" | 0704 | HN0704 | 3 | €639.70 | |
| D | M1200HF100Z02C075HN07L480 | 3/4" | -11.3° | 1" | 1.556" | 0.068" | 0704 | HN0704 | 2 | €621.07 | |
| E | M1200D025Z02A20HN07L120 | 20 mm | -13.1° | 25 mm | 33.72 mm | 3.5 mm | 0704 | HN0704 | 2 | €621.07 | |
| A | M1200D025Z03B20HN07 | 20 mm | -13.1° | 25 mm | 33.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €633.93 | |
| E | M1200D025Z03A20HN07L120 | 20 mm | -13.1° | 25 mm | 33.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €663.95 | |
| A | 3958023 | 25 mm | -10.7° | 32 mm | 40.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €663.95 | |
| A | 3958024 | 25 mm | -10.7° | 32 mm | 40.72 mm | 3.5 mm | 0704 | HN0704 | 4 | €675.59 | |
| E | M1200D032Z03A25HN07L130 | 25 mm | -10.7° | 32 mm | 40.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €693.59 | |
| F | 2002370 | 25 mm | -24.64° | 25 mm | 38.7 mm | 6.35 mm | 1205 | SN1205 | 2 | €682.21 | |
| D | M1200HF032Z04A25HN07L130 | 25 mm | -10.1° | 32 mm | 46.14 mm | 1.7 mm | 0704 | HN0704 | 4 | €703.61 | |
| E | 3958029 | 25 mm | -13.1° | 25 mm | 33.72 mm | 3.5 mm | 0704 | HN0704 | 2 | €715.57 | |
| E | 3958030 | 25 mm | -13.1° | 25 mm | 33.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €759.57 | |
| G | 3325311 | 25 mm | -7.6° | 40 mm | 51 mm | 4.5 mm | 0905 | HN0905 | 4 | €694.77 | |
| E | 3958028 | 25 mm | -10.7° | 32 mm | 40.72 mm | 3.5 mm | 0704 | HN0704 | 4 | €703.61 | |
| D | M1200HF032Z03A25HN07L130 | 25 mm | -10.1° | 32 mm | 46.14 mm | 1.7 mm | 0704 | HN0704 | 3 | €693.59 | |
| B | M1200D025Z03M16HN07 | 29 mm | -13.1° | 25 mm | 33.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €663.95 | |
| H | M1200HF025Z03M16HN07 | 29 mm | -11.2° | 25 mm | 39.13 mm | 1.7 mm | 0704 | HN0704 | 3 | €663.95 | |
| B | 3957841 | 29 mm | -10.7° | 32 mm | 40.72 mm | 3.5 mm | 0704 | HN0704 | 3 | €693.59 | |
| B | 3957842 | 29 mm | -10.7° | 32 mm | 40.72 mm | 3.5 mm | 0704 | HN0704 | 4 | €703.61 | |

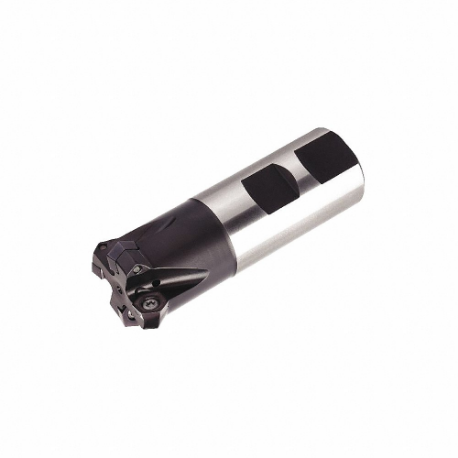

| I | 2263165 | 32 mm | -1.93° | 32 mm | 38.4 mm | 4.8 mm | 06T3 | HP06T3 | 4 | €1,005.29 |
