WIDIA Hexagon Indexable Milling Inserts
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | Inscribed Circle | Corner Radius | Thickness | Iso Number | Ansi Number | Mounting Style | Style | Lead Angle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3564085 | - | - | - | - | - | Screw Clamp | HNGJ | 30°, 60° | €47.41 | |
| B | 5895786 | - | - | - | - | - | Screw Clamp | HPGT | 30°, 60° | €30.63 | |
| C | 2957583 | - | - | - | - | - | Screw Clamp | HPPT | 30°, 60° | €26.18 | |
| D | 3954414 | - | - | - | - | - | Screw Clamp | HNGJ | 15°, 75° | €39.20 | |
| E | 3954483 | - | - | - | - | - | Screw Clamp | HNPJ | 45° | €22.77 | |
| F | 3093559 | - | - | - | - | - | Screw Clamp | HNGJ | 15°, 75° | €48.35 | |
| A | 3563902 | - | - | - | - | - | Screw Clamp | HNGJ | 15°, 75° | €47.91 | |
| A | 3563902 | - | - | - | - | - | Screw Clamp | HNGJ | 15°, 75° | €49.01 | |
| G | HNMF110710ZNSNMM WK15CM | 0.423" | 1" | 0.046" | HNMF110710ZNSNMM | HNMF110710ZNSNMM | Wedge Clamp | HNMF | - | €34.59 | |
| C | 6180315 | 0.432" | 0.98 mm | 0.1563" | HPPT06T3DZENGD | - | Screw Clamp | HPPT | 30° ANSI, 60° ISO | €26.40 | |
| C | 2957552 | 0.432" | 0.98 mm | 0.1563" | HPPT06T3DZENGD | - | Screw Clamp | HPPT | 30° ANSI, 60° ISO | €26.18 | |
| C | 5895788 | 0.432" | 0.98 mm | 0.1563" | HPPT06T3DZENGD | - | Screw Clamp | HPPT | 30° ANSI, 60° ISO | €26.79 | |
| C | 5895789 | 0.432" | 0.98 mm | 0.1563" | HPPT06T3DZENGD | - | Screw Clamp | HPPT | 30° ANSI, 60° ISO | €26.79 | |
| C | 2957586 | 0.432" | 0.98 mm | 0.1563" | HPPT06T3DZENGD | - | Screw Clamp | HPPT | 30° ANSI, 60° ISO | €25.95 | |
| H | 5895784 | 0.4291" | 0.98 mm | 0.1571" | HPGT06T3DZERLD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.63 | |
| H | 6180312 | 0.4291" | 0.98 mm | 0.1571" | HPGT06T3DZERLD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.20 | |
| H | 5895785 | 0.4291" | 0.98 mm | 0.1571" | HPGT06T3DZERLD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.63 | |
| H | 2957585 | 0.4291" | 0.98 mm | 0.1571" | HPGT06T3DZERLD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.27 | |
| H | 2957547 | 0.4291" | 0.98 mm | 0.1571" | HPGT06T3DZERLD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.27 | |
| C | 5427387 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.27 | |
| C | 5528978 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €32.08 | |
| C | 2957589 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.27 | |
| C | 6180313 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.22 | |
| C | 2957588 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.27 | |
| C | 5895783 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.63 | |
| C | 5895782 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.63 | |
| C | 2957546 | 0.4321" | 0.98 mm | 0.1563" | HPGT06T3DZENGD | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.51 | |

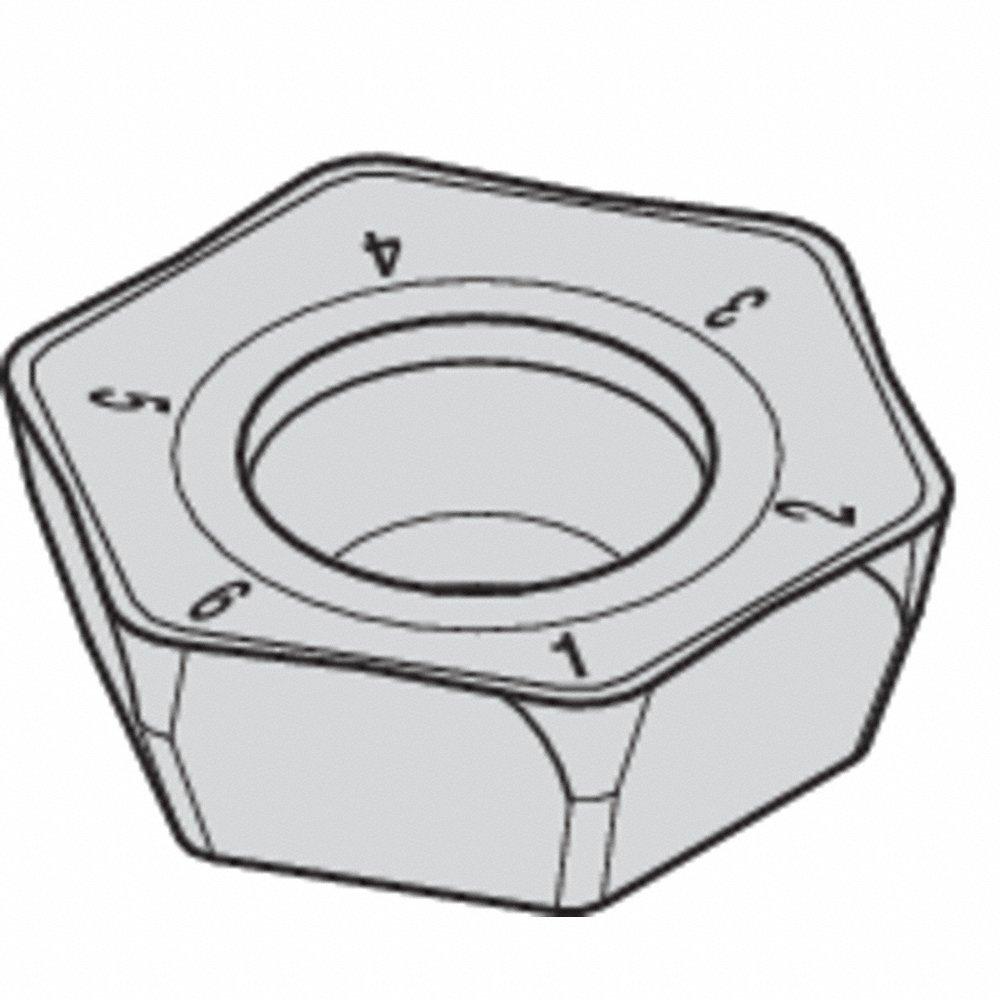

| I | 2288106 | 0.4332" | 0.9 mm | 0.1575" | HPGT06T3DZFRLDAL | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €22.94 | |
| I | 2288106 | 0.4332" | 0.9 mm | 0.1575" | HPGT06T3DZFRLDAL | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.51 | |
| B | 5427388 | 0.4385" | 0.98 mm | 0.1575" | HPGT06T3DZERGD3W | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €32.17 | |
| B | 2957549 | 0.4385" | 0.98 mm | 0.1575" | HPGT06T3DZERGD3W | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.27 | |
| B | 2957584 | 0.4385" | 0.98 mm | 0.1575" | HPGT06T3DZERGD3W | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €28.51 | |
| B | 5895787 | 0.4385" | 0.98 mm | 0.1575" | HPGT06T3DZERGD3W | - | Screw Clamp | HPGT | 30° ANSI, 60° ISO | €30.63 | |

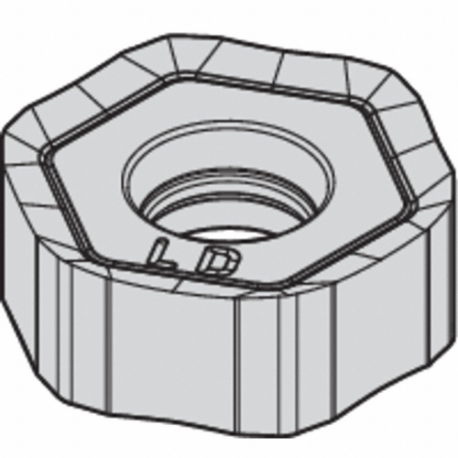

| J | 3954420 | 1/2" | 3/64" | 0.1763" | HNGJ0704ANENLD | - | Screw Clamp | HNGJ | 15° ANSI, 75° ISO | €42.16 | |
| J | 3954420 | 1/2" | 3/64" | 0.1763" | HNGJ0704ANENLD | - | Screw Clamp | HNGJ | 15° ANSI, 75° ISO | €39.20 | |
| J | 3954420 | 1/2" | 3/64" | 0.1763" | HNGJ0704ANENLD | - | Screw Clamp | HNGJ | 15° ANSI, 75° ISO | €42.08 | |

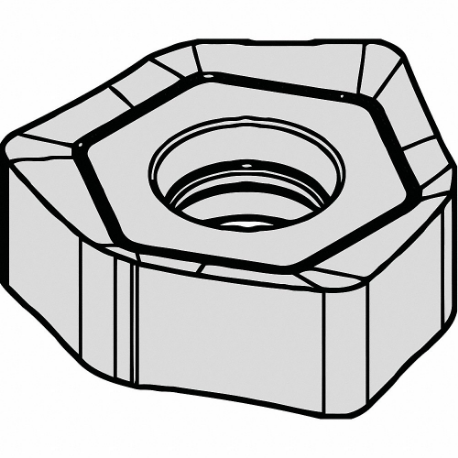

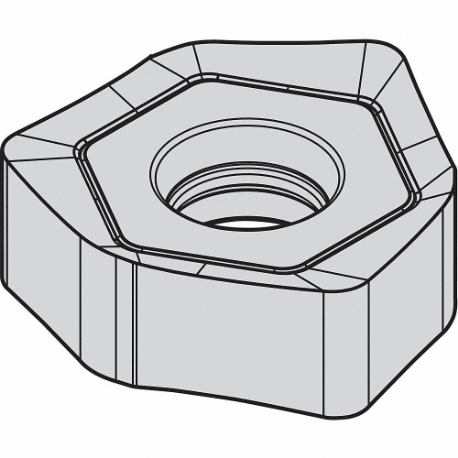

| K | 3954425 | 1/2" | 0.051" | 0.1758" | XNGJ0704ANENLD3W | - | Screw Clamp | XNGJ | 45° | €46.27 | |
| K | 3954425 | 1/2" | 0.051" | 0.1758" | XNGJ0704ANENLD3W | - | Screw Clamp | XNGJ | 45° | €47.36 | |

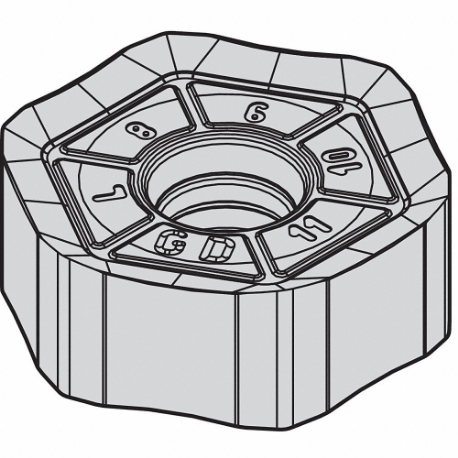

| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €31.35 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €31.21 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.35 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.50 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €31.35 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.92 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €31.79 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.35 | |
| E | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.46 | |
| K | 3954433 | 1/2" | 0.051" | 0.1758" | XNGJ0704ANFNLDJ3W | - | Screw Clamp | XNGJ | 45° | €49.44 | |
| E | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.35 | |
| M | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Taper Screw | HNPJ | 13.7° ANSI, 76.3° ISO | €31.38 | |
| E | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.35 | |
| E | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.79 | |
| E | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.50 | |
| E | 3954478 | 1/2" | 3/64" | 0.1735" | HNPJ0704ANSNHD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €30.46 | |
| E | 3954483 | 1/2" | 0.126" | 0.1741" | HNPJ070432ANSNHD | - | Screw Clamp | HNPJ | 45° | €30.50 | |
| J | HNGJ070432ANENLD | 1/2" | 0.126" | 0.176" | - | - | Screw Clamp | - | 15°, 75° | €40.89 | |
| L | 3954473 | 1/2" | 3/64" | 0.1753" | HNPJ0704ANSNGD | - | Screw Clamp | HNPJ | 13.7° ANSI, 76.3° ISO | €32.68 | |
| J | 3954420 | 1/2" | 3/64" | 0.1763" | HNGJ0704ANENLD | - | Screw Clamp | HNGJ | 15° ANSI, 75° ISO | €41.47 | |
| K | 3954425 | 1/2" | 0.051" | 0.1758" | XNGJ0704ANENLD3W | - | Screw Clamp | XNGJ | 45° | €46.27 | |
| K | 3954425 | 1/2" | 0.051" | 0.1758" | XNGJ0704ANENLD3W | - | Screw Clamp | XNGJ | 45° | €46.27 | |
| E | 3954483 | 1/2" | 0.126" | 0.1741" | HNPJ070432ANSNHD | - | Screw Clamp | HNPJ | 45° | €31.38 |
