WIDIA Hand Tap Sets
Filter
A
B
C
D
E
F
G
H| Style | Model | Pitch Dia. Limits | Finish | Thread Length | Pitch | Shank Dia. | Tap Thread Size | No. Of Pieces | Tap Chamfer | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 2750906 | 2B | Uncoated | 2" | 10 | 37/64" | 3/4"-10 | 3 | Bottom | €243.54 | |
| A | 2750893 | 2B | Uncoated | 2 7/32" | 9 | - | 7/8"-9 | 3 | Bottom | €328.87 | |
| A | 2750915 | 2B | Uncoated | 1 13/16" | 18 | 15/32" | 5/8"-18 | 3 | Bottom | €177.28 | |
| A | 2750920 | 2B | Uncoated | 1 13/16" | 11 | 15/32" | 5/8"-11 | 3 | Bottom | €175.20 | |
| A | 2750932 | 2B | Uncoated | 1 21/32" | 18 | 27/64" | 9/16"-18 | 3 | Bottom | €141.50 | |
| B | 2750939 | 2B | Uncoated | 1 21/32" | 12 | 27/64" | 9/16"-12 | 3 | Bottom | €140.54 | |
| B | 2750945 | 2B | Uncoated | 1 21/32" | 20 | 23/64" | 1/2"-20 | 3 | Bottom | €100.62 | |
| B | 2750953 | 2B | Uncoated | 1 21/32" | 13 | 23/64" | 1/2"-13 | 3 | Bottom | €90.05 | |
| B | 2750965 | 2B | Uncoated | 1 7/16" | 20 | 5/16" | 7/16"-20 | 3 | Bottom | €82.77 | |
| B | 2885052 | 2B | Uncoated | 7/8" | 32 | 3/16" | #10-32 | 3 | Bottom | €37.74 | |
| B | 2751048 | 2B | Uncoated | 7/8" | 24 | 3/16" | #10-24 | 3 | Bottom | €37.80 | |
| C | 2750879 | 2B | Uncoated | 2 1/2" | 8 | 3/8" | 1"-8 | 3 | Bottom | €468.03 | |
| A | 2750900 | 2B | Uncoated | 2" | 16 | 37/64" | 3/4"-16 | 3 | Bottom | €243.28 | |
| B | 2751086 | 2B | Uncoated | 9/16" | 40 | 9/64" | #4-40 | 3 | Bottom | €44.58 | |
| B | 2751020 | 2B | Uncoated | 1" | - | 1/4" | 1/4"-20 | 3 | Bottom | €36.03 | |
| B | 2750975 | 2B | Uncoated | 1 7/16" | 14 | 5/16" | 7/16"-14 | 3 | Bottom | €83.87 | |
| A | 2750985 | 2B | Uncoated | 1 1/4" | 24 | 3/8" | - | 3 | Bottom | €53.37 | |
| A | 2750991 | 2B | Uncoated | 1 1/4" | 16 | 3/8" | 3/8"-16 | 3 | Bottom | €49.84 | |
| B | 2750998 | 2B | Uncoated | 1 1/8" | 24 | 5/16" | 5/16"-24 | 3 | Bottom | €43.98 | |
| B | 2751004 | 2B | Uncoated | 1 1/8" | 18 | 5/16" | 5/16"-18 | 3 | Bottom | €43.80 | |
| B | 2751011 | 2B | Uncoated | 1" | 28 | 1/4" | 1/4"-28 | 3 | Bottom | €36.03 | |
| B | 2751036 | 2B | Uncoated | 15/16" | 24 | 7/32" | #12-24 | 3 | Bottom | €36.01 | |
| B | 2751058 | 2B | Uncoated | 3/4" | 32 | 5/32" | #8-32 | 3 | Bottom | €34.83 | |
| B | 2751070 | 2B | Uncoated | 11/16" | 32 | 9/64" | #6-32 | 3 | Bottom | €36.36 | |
| B | 2751077 | 2B | Uncoated | 5/8" | 40 | 9/64" | #5-40 | 3 | Bottom | €45.33 | |
| D | 2749153 | D5 | Uncoated | 1 1/8" | 1.25 mm | 5/16" | M8 x 1.25 | 3 | Bottoming, Plug, Taper | €57.58 | |
| D | 14816 | D6 | Uncoated | 1 1/4" | 1.5 mm | 3/8" | M10 x 1.5 | 3 | Bottoming, Plug, Taper | €72.25 | |
| D | 2749136 | D6 | Uncoated | 1 21/32" | 1.75 mm | 23/64" | M12 x 1.75 | 3 | Bottoming, Plug, Taper | €126.49 | |
| E | 14848 | D7 | Bright | 1 21/32" | 2 mm | 27/64" | M14 x 2 | 3 | Bottoming, Plug, Taper | €172.64 | |
| E | 14880 | D7 | Bright | 1 13/16" | 2.5 mm | 17/32" | M18 x 2.5 | 3 | Bottoming, Plug, Taper | €307.16 | |
| E | 14864 | D7 | Bright | 1 13/16" | 2 mm | 15/32" | M16 x 2 | 3 | Bottoming, Plug, Taper | €199.31 | |
| E | 14896 | D7 | Bright | 2" | 2.5 mm | 5/8" | M20 x 2.5 | 3 | Bottoming, Plug, Taper | €365.28 | |
| E | 14912 | D8 | Bright | 2 7/32" | 3 mm | 3/4" | M24 x 3 | 3 | Bottoming, Plug, Taper | €565.76 | |

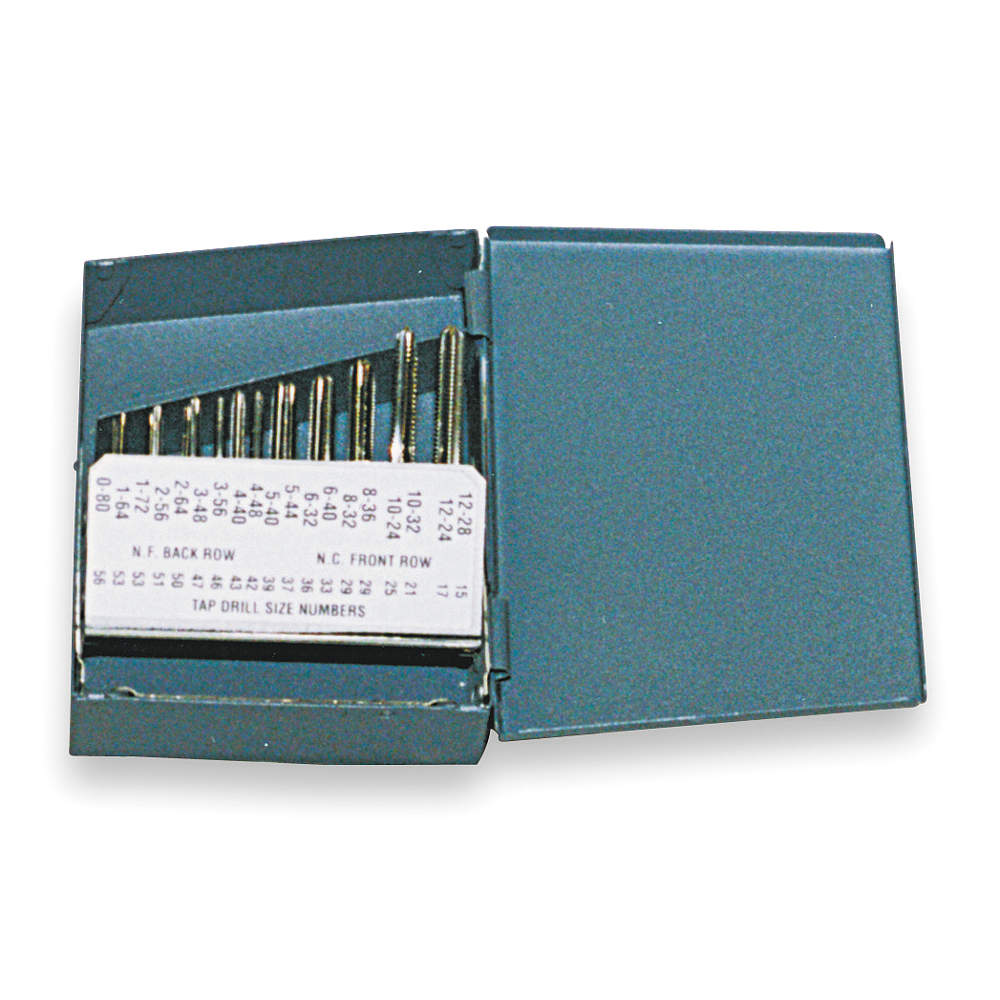

| F | 16451 | H1 H2 H2 H3 H2 H3 H2 H3 | Uncoated | 5/16", 3/8", 7/16", 1/2", 9/16", 5/8", 11/16", 3/4", 7/8", 15/16" | - | - | #0-80, #1-64, #1-72, #10-24, #10-32, #12-24, #12-28, #2-56, #2-64, #3-48, #3-56, #4-40, #4-48, #5-40, #5-44, #6-32, #6-40, #8-32, #8-36 | 19 | Plug | €310.26 | |
| D | 2748880 | H2 | Uncoated | 9/16" | 40 | 9/64" | #4-40 | 3 | Bottom | €39.43 | |
| D | 2748945 | H2 | Uncoated | 7/16" | 56 | 9/64" | - | 3 | Bottom | €60.43 | |
| D | 2748918 | H2 | Uncoated | 1/2" | 48 | 9/64" | #3-48 | 3 | Bottom | €45.83 | |
| D | 2865313 | H2 | Uncoated | 5/8" | 40 | 9/64" | #5-40 | 3 | Bottom | €38.11 | |
| D | 2749368 | H3 | Uncoated | 2" | 16 | 37/64" | - | 3 | Bottom | €239.54 | |
| D | 2749605 | H3 | Uncoated | 1 1/4" | 24 | 3/8" | 3/8"-24 | 3 | Bottom | €46.37 | |
| D | 2749644 | H3 | Uncoated | 1 1/4" | 16 | 3/8" | 3/8"-16 | 3 | Bottom | €54.09 | |
| D | 2748670 | H3 | Uncoated | 7/8" | 32 | 3/16" | #10-32 | 3 | Bottom | €31.95 | |
| D | 2749680 | H3 | Uncoated | 1 1/8" | 24 | 5/16" | 5/16"-24 | 3 | Bottom | €43.00 | |
| D | 2749729 | H3 | Uncoated | 1 1/8" | 18 | 5/16" | 5/16"-18 | 3 | Bottom | €47.95 | |
| D | 2749764 | H3 | Uncoated | 1" | 28 | 1/4" | 1/4"-28 | 3 | Bottom | €37.06 | |
| D | 2748731 | H3 | Uncoated | 7/8" | 24 | - | #10-24 | 3 | Bottom | €31.95 | |
| D | 2865185 | H3 | Uncoated | 3/4" | 32 | 5/32" | #8-32 | 3 | Bottom | €31.48 | |

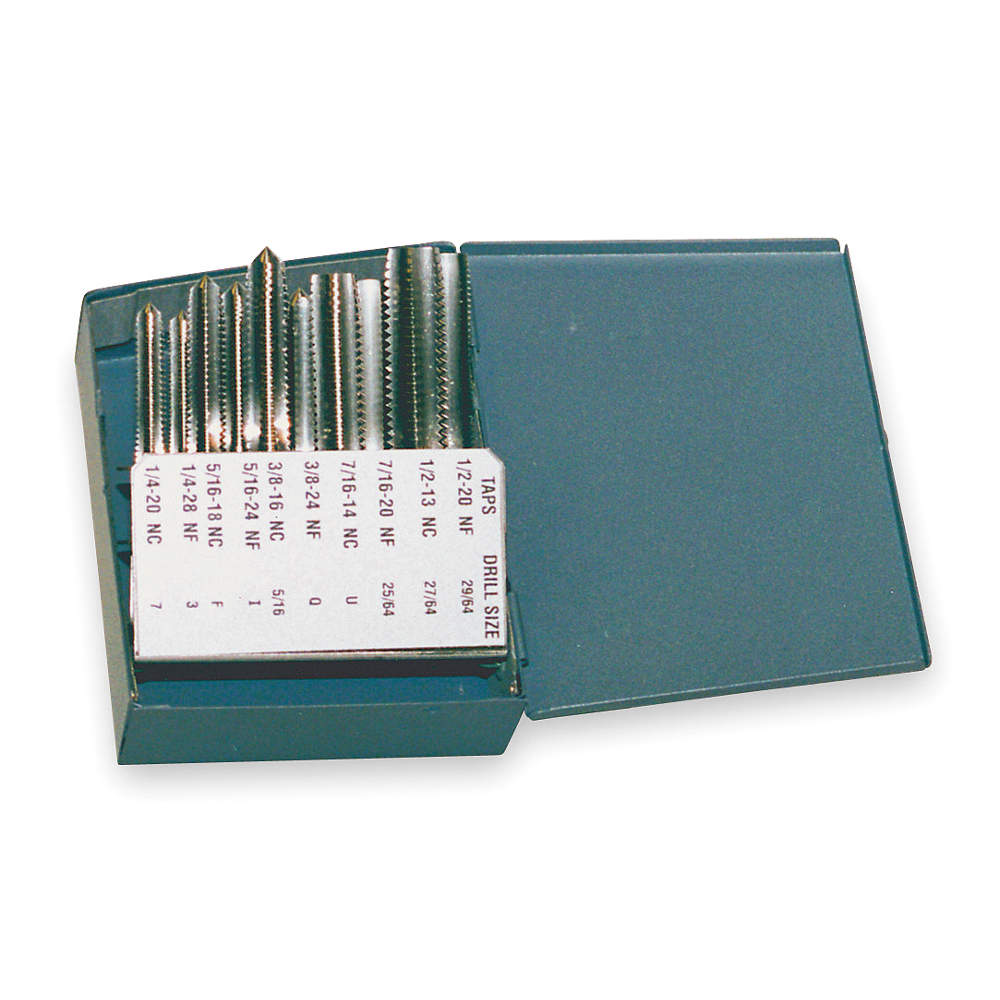

| G | 16401 | H3 | Uncoated | 1", 1 1/8", 1 1/4", 1 7/16", 1 21/32" | - | - | - | 10 | Plug | €245.51 | |
| B | 2749538 | H3 | Uncoated | 1 21/32" | 13 | 23/64" | 1/2"-13 | 3 | Bottom | €97.94 | |
| D | 2749503 | H3 | Uncoated | 1 21/32" | 20 | 23/64" | 1/2"-20 | 3 | Bottom | €94.85 | |
| D | 2749388 | H3 | Uncoated | 2" | 10 | 37/64" | 3/4"-10 | 3 | Bottom | €239.54 | |
| D | 2749560 | H3 | Uncoated | 1 7/16" | 20 | 5/16" | 7/16"-20 | 3 | Bottom | €76.71 | |
| D | 2749581 | H3 | Uncoated | 1 7/16" | 14 | 5/16" | 7/16"-14 | 3 | Bottom | €80.06 | |

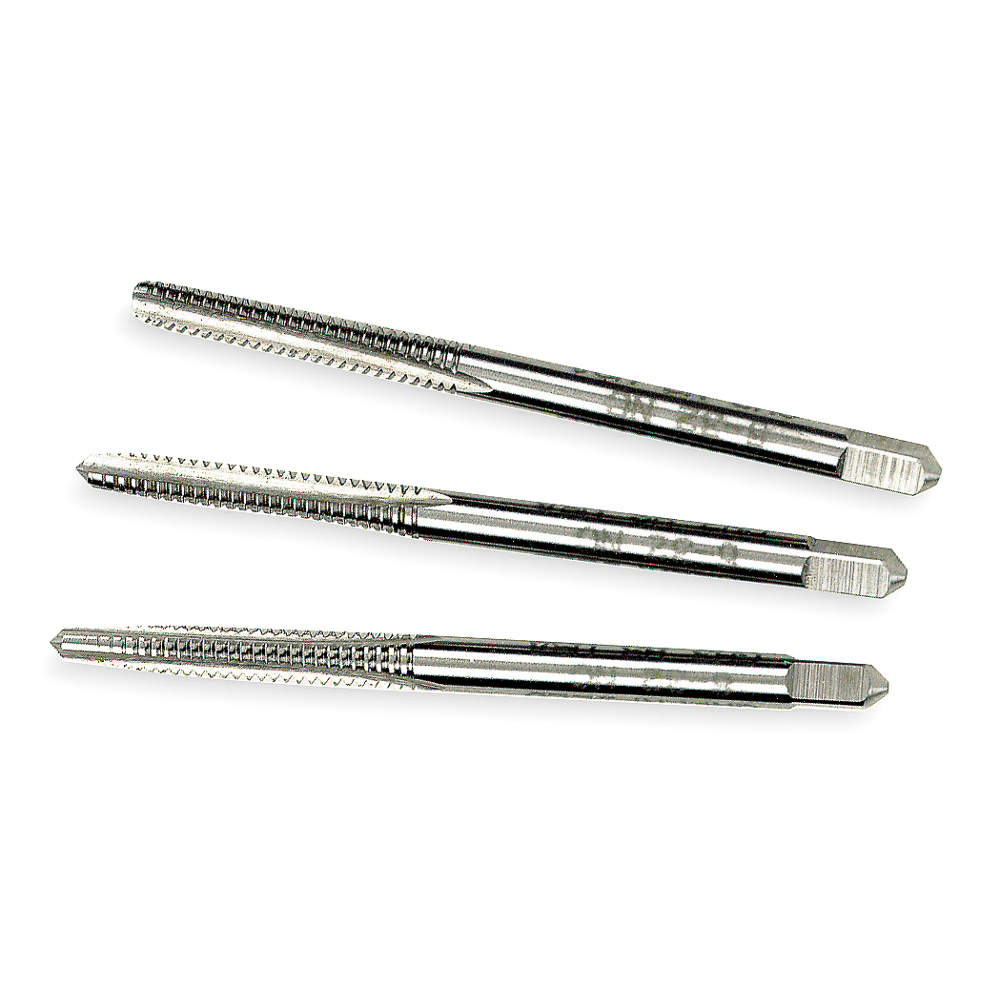

| H | 2748838 | H3 | Uncoated | 11/16" | 32 | 9/64" | #6-32 | 3 | Bottom | €30.04 | |
| D | 2749488 | H3 | Uncoated | 1 21/32" | 12 | 27/64" | 9/16"-12 | 3 | Bottom | €144.74 | |
| D | 2749472 | H3 | Uncoated | 1 21/32" | 18 | 27/64" | 9/16"-18 | 3 | Bottom | €145.07 | |
| D | 2749454 | H3 | Uncoated | 1 13/16" | 11 | 15/32" | 5/8"-11 | 3 | Bottom | €171.41 | |
| D | 2749426 | H3 | Uncoated | 1 13/16" | 18 | 15/32" | 5/8"-18 | 3 | Bottom | €177.25 | |
| D | 2749231 | H4 | Bright | 3" | 12 | 1 7/32" | 1 1/2"-12 | 2 | Bottom | €1,527.79 | |
| D | 2749237 | H4 | Bright | 3" | 6 | 1 7/32" | 1 1/2"-6 | 3 | Bottom | €1,668.73 | |
| D | 2749254 | H4 | Bright | 2 9/16" | 12 | 1 1/64" | 1 1/4"-12 | 3 | Bottom | €1,020.29 |
