WIDIA General Purpose Roughing Carbide Corner Radius End Mills
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Milling Dia. | Shank Dia. | Helix Angle | Overall Length | Cutting Direction | Corner Radius | List Number | Grade | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 6441862 | 0.188" | 0.312" | 45° | 2 1/2" | Right Hand | 0.03" | 4U80 | - | €104.70 | |
| A | 6441868 | 1" | 1" | 45° | 4" | Right Hand | 0.05" | 4U80 | - | €616.62 | |
| B | 5577382 | 1" | 1" | 45° | 4" | Right Hand | 0.05" | 4M0R | - | €538.43 | |
| A | 6441869 | 1" | 1" | 45° | 4" | Right Hand | 0.05" | 4U80 | - | €588.49 | |
| C | 3099533 | 1" | 1" | 40° | 5" | Right Hand | 0.05" | 4M0R | - | €586.81 | |
| B | 5577383 | 1" | 1" | 45° | 4" | Right Hand | 0.05" | 4M0R | - | €775.04 | |
| D | 6441875 | 1" | 1" | 45° | 5 1/2" | Right Hand | 0.05" | 4U50 | - | €616.54 | |
| A | 6441864 | 1/2" | 1/2" | 45° | 3" | Right Hand | 0.03" | 4U80 | - | €157.42 | |
| B | 5577386 | 1/2" | 1/2" | 45° | 2 1/2" | Right Hand | 1/25" | 4M0R | - | €152.69 | |
| D | 6441872 | 1/2" | 1/2" | 45° | 3 1/2" | Right Hand | 0.03" | 4U50 | - | €178.89 | |
| B | 5577317 | 1/2" | 1/2" | 45° | 3" | Right Hand | 1/25" | 4M0R | - | €176.54 | |
| B | 5577384 | 1/4" | 1/4" | 45° | 2" | Right Hand | 0.03" | 4M0R | - | €97.94 | |
| B | 5577315 | 1/4" | 1/4" | 45° | 2 1/2" | Right Hand | 0.03" | 4M0R | - | €98.35 | |
| A | 6441861 | 1/4" | 1/4" | 45° | 2 1/2" | Right Hand | 0.03" | 4U80 | - | €88.81 | |
| D | 6441870 | 1/4" | 1/4" | 45° | 2 1/2" | Right Hand | 0.03" | 4U50 | - | €99.50 | |
| B | 5577388 | 3/4" | 3/4" | 45° | 3 1/2" | Right Hand | 0.05" | 4M0R | - | €280.72 | |
| B | 5577380 | 3/4" | 3/4" | 45° | 4" | Right Hand | 0.05" | 4M0R | - | €295.50 | |
| A | 6441867 | 3/4" | 3/4" | 45° | 4" | Right Hand | 0.05" | 4U80 | - | €292.00 | |
| B | 5577381 | 3/4" | 3/4" | 45° | 4" | Right Hand | 0.05" | 4M0R | - | €562.39 | |
| D | 6441874 | 3/4" | 3/4" | 45° | 4 1/2" | Right Hand | 0.05" | 4U50 | Grade AlTiN MT | €369.48 | |
| A | 6441866 | 3/4" | 3/4" | 45° | 4" | Right Hand | 0.05" | 4U80 | - | €280.56 | |
| C | 3321507 | 3/4" | 3/4" | 40° | 5" | Right Hand | 0.05" | 4M0R | - | €456.36 | |
| B | 5577385 | 3/8" | 3/8" | 45° | 2" | Right Hand | 0.03" | 4M0R | - | €128.89 | |
| A | 6441863 | 3/8" | 3/8" | 45° | 2 1/2" | Right Hand | 0.03" | 4U80 | - | €106.61 | |
| D | 6441871 | 3/8" | 3/8" | 45° | 3" | Right Hand | 0.03" | 4U50 | - | €141.41 | |
| B | 5577316 | 3/8" | 3/8" | 45° | 2 1/2" | Right Hand | 0.03" | 4M0R | - | €121.00 | |
| E | 5560535 | 4 mm | 6 mm | 35° | 57 mm | Right Hand | 0.25 mm | DQ13 | - | €113.45 | |
| E | 5560538 | 5 mm | 6 mm | 35° | 57 mm | Right Hand | 0.25 mm | DQ13 | - | €123.95 | |
| D | 6441873 | 5/8" | 5/8" | 45° | 4" | Right Hand | 0.03" | 4U50 | - | €287.40 | |
| B | 5577319 | 5/8" | 5/8" | 45° | 3 1/2" | Right Hand | 1/25" | 4M0R | - | €275.87 | |
| A | 6441865 | 5/8" | 5/8" | 45° | 4" | Right Hand | 0.03" | 4U80 | - | €228.84 | |

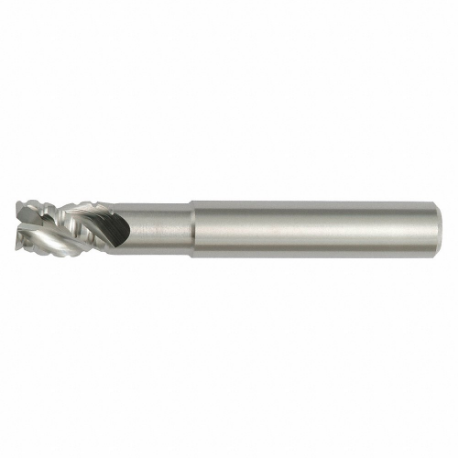

| F | 49N906002.. | 6 mm | 6 mm | 40° | 57 mm | Right | 0.25 mm | 49N9 | Bright Uncoated | €71.26 | |
| E | 5560539 | 6 mm | 6 mm | 35° | 57 mm | Right Hand | 0.45 mm | DQ13 | - | €123.95 | |
| G | 1846543 | 6 mm | 6 mm | 45° | 57 mm | Right Hand | 0.75 mm | 4940 | - | €70.45 | |
| G | 1846544 | 8 mm | 8 mm | 45° | 63 mm | Right Hand | 0.75 mm | 4940 | - | €79.02 | |
| H | 49G908003CT | 8 mm | 8 mm | 40° | 63 mm | Right Hand | 0.25 mm | 49G9 | - | €112.09 | |
| E | 5560701 | 8 mm | 8 mm | 35° | 63 mm | Right Hand | 0.45 mm | - | - | €138.59 | |

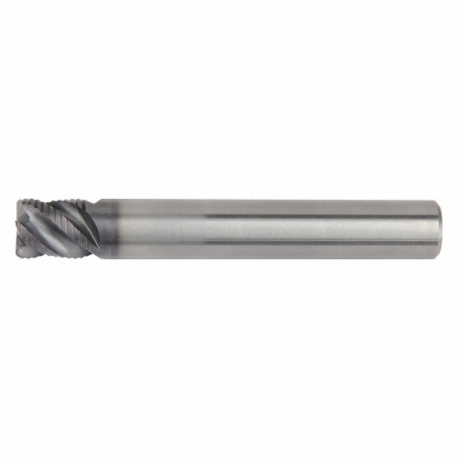

| I | 5583420 | 8 mm | 8 mm | 45° | 63 mm | Right Hand | 0.75 mm | 4U40 | - | €82.67 | |
| F | 49N908003.. | 8 mm | 8 mm | 40° | 63 mm | Right | 0.25 mm | 49N9 | Bright Uncoated | €98.24 | |
| H | 49G908003CW | 8 mm | 8 mm | 40° | 63 mm | Right Hand | 0.25 mm | 49G9 | - | €118.80 | |
| H | 49G910004CT | 10 mm | 10 mm | 40° | 72 mm | Right Hand | 0.5 mm | 49G9 | - | €140.43 | |
| E | 5560702 | 10 mm | 10 mm | 35° | 72 mm | Right Hand | 0.45 mm | DQ13 | - | €174.32 | |
| H | 49G910004CW | 10 mm | 10 mm | 40° | 72 mm | Right Hand | 0.5 mm | 49G9 | - | €161.93 | |
| F | 49N910004.. | 10 mm | 10 mm | 40° | 72 mm | Right | 0.5 mm | 49N9 | Bright Uncoated | €127.53 | |
| G | 1846545 | 10 mm | 10 mm | 45° | 72 mm | Right Hand | 0.75 mm | 4940 | - | €110.32 | |
| F | 49N912005.. | 12 mm | 12 mm | 40° | 83 mm | Right | 0.5 mm | 49N9 | Bright Uncoated | €150.45 | |
| G | 1846546 | 12 mm | 12 mm | 45° | 83 mm | Right Hand | 1 mm | 4940 | - | €155.00 | |
| H | 49G912005CT | 12 mm | 12 mm | 40° | 83 mm | Right Hand | 0.5 mm | 49G9 | - | €253.10 | |
| E | 5560703 | 12 mm | 12 mm | 35° | 83 mm | Right Hand | 0.45 mm | DQ13 | - | €228.98 | |
| J | 497912005CT | 12 mm | 12 mm | 40° | 83 mm | Right Hand | 0.5 mm | 4979 | - | €175.54 | |
| E | 5560704 | 14 mm | 14 mm | 35° | 83 mm | Right Hand | 0.45 mm | DQ13 | - | €281.57 | |
| G | 1846547 | 16 mm | 16 mm | 45° | 92 mm | Right Hand | 1 mm | 4940 | - | €242.29 | |
| H | 49G916006CW | 16 mm | 16 mm | 40° | 92 mm | Right Hand | 1 mm | 49G9 | - | €410.00 | |
| H | 49G916006CT | 16 mm | 16 mm | 40° | 92 mm | Right Hand | 1 mm | 49G9 | - | €272.24 | |
| E | 5560705 | 16 mm | 16 mm | 35° | 92 mm | Right Hand | 0.45 mm | DQ13 | - | €332.56 | |
| F | 49N916006.. | 16 mm | 16 mm | 40° | 92 mm | Right Hand | 1 mm | 49N9 | Bright Uncoated | €233.94 | |
| E | 5560706 | 18 mm | 18 mm | 35° | 92 mm | Right Hand | 0.45 mm | DQ13 | - | €422.87 | |
| F | 49N920007.. | 20 mm | 20 mm | 40° | 104 mm | Right | 1 mm | 49N9 | Bright Uncoated | €334.53 | |
| H | 49G920007CT | 20 mm | 20 mm | 40° | 104 mm | Right Hand | 1 mm | 49G9 | - | €426.21 | |
| J | 497920007.. | 20 mm | 20 mm | 40° | 104 mm | Right | 1 mm | 4979 | Bright Uncoated | €326.87 |
