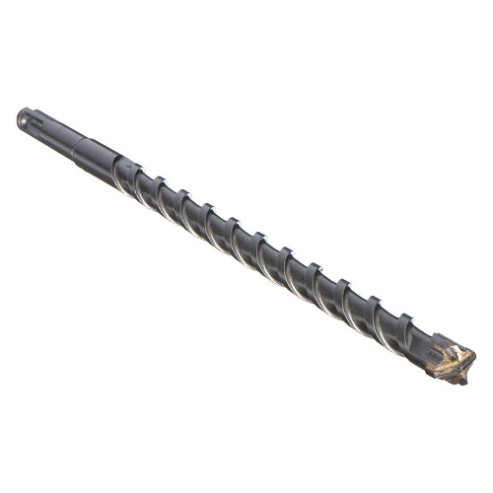

WESTWARD Hammer Drill Bit
Filter
A
B
C
D
E| Style | Model | Number Of Cutter Heads | Overall Length | Drill Bit Size | Decimal Equivalent | Drilling Length | Shank Size | Max. Drilling Depth | Impact Rated | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 22UV58 | 2 | 12" | - | - | 10" | 25/64" | - | - | €24.72 | |
| B | 22UV79 | 2 | 18" | 5/8" | 0.625 | 16" | 25/64" | 16" | No | €70.76 | |
| C | 22UV47 | 2 | 6" | 5/32" | 0.1563 | 4" | 25/64" | 4" | No | €12.58 | |
| A | 22UV61 | 2 | 12" | - | - | 10" | 25/64" | - | - | €28.22 | |
| C | 22UV69 | 2 | 6" | 1/2" | 0.5 | 4" | - | 4" | No | €13.07 | |
| C | 22UV62 | 2 | 6" | 3/8" | 0.375 | 4" | 25/64" | 4" | No | €9.61 | |
| A | 22UV64 | 2 | 12" | 3/8" | 0.375 | 10" | 25/64" | 10" | No | €18.05 | |
| B | 22UW53 | 2 | - | - | - | 16" | - | 20" | No | €98.99 | |
| B | 22UV65 | 2 | 18" | 3/8" | 0.375 | 16" | 25/64" | 16" | No | €24.81 | |
| A | 22UV78 | 2 | 12" | 5/8" | 0.625 | 10" | 25/64" | 10" | No | €75.08 | |
| A | 22UV87 | 2 | 12" | 7/8" | 0.875 | 10" | 25/64" | 10" | No | €96.63 | |
| C | 22UV56 | 2 | 6" | 1/4" | 0.25 | 4" | - | 4" | No | €7.34 | |
| B | 22UV91 | 2 | 18" | - | - | 16" | 25/64" | - | - | €136.71 | |
| D | 22UW52 | 2 | 13 1/2" | 1/2" | 0.5 | 8" | 45/64" | 11" | No | €70.70 | |
| A | 22UV83 | 2 | 12" | 3/4" | 0.75 | 10" | 25/64" | 10" | No | €79.46 | |
| B | 22UV72 | 2 | 18" | 1/2" | 0.5 | 16" | 25/64" | 16" | No | €31.51 | |
| A | 22UV71 | 2 | 12" | 1/2" | 0.5 | 10" | 25/64" | 10" | No | €24.42 | |
| A | 22UV52 | 2 | 12" | - | - | 10" | 25/64" | - | - | €23.29 | |
| B | 22UW08 | 4 | 18" | 3/8" | 0.375 | 16" | 25/64" | 16" | No | €39.51 | |
| B | 22UW24 | 4 | 18" | 1 1/8" | 1.125 | 16" | 25/64" | 16" | No | €127.37 | |
| D | 22UW59 | 4 | 13 1/2" | 3/4" | 0.75 | 8" | 45/64" | 11" | No | €79.60 | |
| D | 22UW64 | 4 | 13 1/2" | 1" | 1 | 8" | 45/64" | 11" | No | €103.23 | |
| B | 22UW65 | 4 | 22 1/2" | - | - | 16" | 45/64" | - | - | €98.41 | |
| B | 22UW57 | 4 | 22 1/2" | - | - | 16" | 45/64" | - | - | €100.75 | |
| D | 22UW56 | 4 | 13 1/2" | 5/8" | 0.625 | 8" | 45/64" | 11" | No | €74.72 | |
| B | 22UW22 | 4 | 18" | 1" | 1 | 16" | 25/64" | 16" | No | €91.58 | |
| B | 22UW18 | 4 | 18" | 3/4" | 0.75 | 16" | 25/64" | 16" | No | €70.70 | |
| B | 22UW13 | 4 | 18" | 1/2" | 0.5 | 16" | 25/64" | 16" | No | €46.42 | |
| E | 22UW12 | 4 | 12" | 1/2" | 0.5 | 10" | 25/64" | 10" | No | €53.52 | |
| C | 22UW10 | 4 | 6" | 1/2" | 0.5 | 4" | 25/64" | 4" | No | €15.68 | |
| C | 22UW06 | 4 | 6" | 3/8" | 0.375 | 4" | 25/64" | 4" | No | €10.33 | |
| E | 22UW05 | 4 | 12" | 5/16" | 0.3125 | 10" | 25/64" | 10" | No | €20.93 | |
| C | 22UW01 | 4 | 6" | 1/4" | 0.25 | 4" | 25/64" | 4" | No | €8.38 | |
| C | 22UV94 | 4 | 6 1/2" | 3/16" | 0.1875 | 4" | 25/64" | 4" | No | €9.56 | |
| B | 22UW60 | 4 | 22 1/2" | 3/4" | 0.75 | 16" | 45/64" | 20" | No | €96.50 |
