USA SEALING Vacuum Tube Fittings
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | Specific Fitting Shape | Vacuum Rating | Fitting Side A Tube Outer Diameter | Flange O.d. | Trade Number | Fitting Side B Tube Outer Diameter | Fitting Side B Connection Type | Overall Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | ZUSA-TF-VAC-59 | 45° Elbow | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | NW | - | €534.11 | |
| A | ZUSA-TF-VAC-57 | 45° Elbow | 10-7 torr @ 72°F | 1" | - | 25 | 1" | NW | - | €319.47 | |
| A | ZUSA-TF-VAC-58 | 45° Elbow | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | - | NW | - | €495.85 | |
| A | ZUSA-TF-VAC-56 | 90° Elbow | 10-7 torr @ 72°F | 3/4" | 1.18" | 16 | 3/4" | NW | - | €362.33 | |
| B | ZUSA-TF-VAC-55 | 90° Elbow | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | NW | - | €483.48 | |
| B | ZUSA-TF-VAC-52 | 90° Elbow | 10-7 torr @ 72°F | 3/4" | 1.18" | 16 | 3/4" | NW | - | €245.55 | |
| B | ZUSA-TF-VAC-53 | 90° Elbow | 10-7 torr @ 72°F | 1" | - | 25 | 1" | NW | - | €266.11 | |
| B | ZUSA-TF-VAC-54 | 90° Elbow | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | 1 1/2" | NW | - | €396.89 | |
| C | ZUSA-TF-VAC-69 | Cross | 10-7 torr @ 72°F | 3/4" | 1.18" | - | 3/4" | - | - | €528.08 | |
| C | ZUSA-TF-VAC-71 | Cross | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | - | - | - | €727.26 | |
| C | ZUSA-TF-VAC-70 | Cross | 10-7 torr @ 72°F | 1" | - | 25 | 1" | - | - | €615.48 | |
| C | ZUSA-TF-VAC-72 | Cross | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | - | - | €963.60 | |
| D | ZUSA-TF-VAC-65 | Reducing Tee | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 16, 40 | 3/4" | - | - | €678.24 | |
| D | ZUSA-TF-VAC-64 | Reducing Tee | 10-7 torr @ 72°F | 1" | 1.562" | 16, 25 | 3/4" | - | - | €641.36 | |
| D | ZUSA-TF-VAC-66 | Reducing Tee | 10-7 torr @ 72°F | - | 2.156" | 25, 40 | 1" | - | - | €716.68 | |
| D | ZUSA-TF-VAC-67 | Reducing Tee | 10-7 torr @ 72°F | 2" | 2.953" | 25, 50 | 1" | - | - | €844.11 | |
| D | ZUSA-TF-VAC-68 | Reducing Tee | 10-7 torr @ 72°F | 2" | 2.953" | 40, 50 | 1 1/2" | - | - | €915.78 | |
| E | ZUSA-TF-VAC-2 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | - | - | - | - | €271.78 | |
| F | ZUSA-TF-VAC-32 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 40, 50 | - | NW | - | €281.46 | |
| F | ZUSA-TF-VAC-31 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 25, 50 | 1" | NW | - | €265.66 | |
| G | ZUSA-TF-VAC-41 | Straight Adapter | 10 torr to 7 torr | 2" | 2.953" | 50 | 2" | Butt Weld | 3/4" | €113.64 | |
| G | ZUSA-TF-VAC-42 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | Butt Weld | 1 9/16" | €163.61 | |

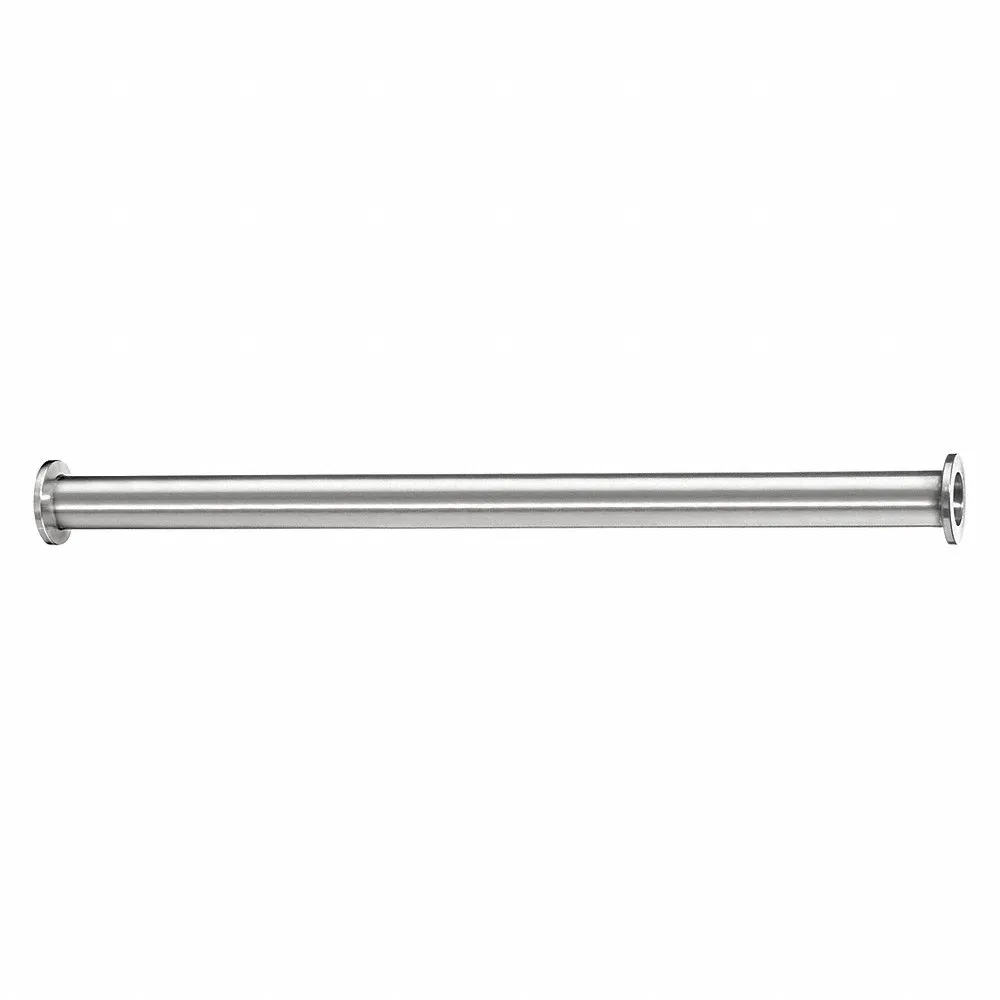

| H | ZUSA-TF-VAC-26 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | NW | 6" | €379.97 | |
| I | ZUSA-TF-VAC-10 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | - | - | - | €102.13 | |
| J | ZUSA-TF-VAC-48 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | 3/4" | Barbed | - | €91.58 | |
| J | ZUSA-TF-VAC-47 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | - | Barbed | - | €89.44 | |
| I | ZUSA-TF-VAC-14 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | - | FNPT | - | €225.95 | |
| G | ZUSA-TF-VAC-36 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | 3/4" | Butt Weld | 1 9/16" | €79.41 | |
| G | ZUSA-TF-VAC-35 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | 3/4" | Butt Weld | 1/2" | €51.64 | |
| K | ZUSA-TF-VAC-23 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | 3/4" | NW | 6" | €225.95 | |
| K | ZUSA-TF-VAC-16 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | 3/4" | NW | 12 1/2" | €265.48 | |
| J | ZUSA-TF-VAC-50 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | 1 5/8" | Barbed | - | €154.61 | |
| F | ZUSA-TF-VAC-29 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 25, 40 | 1" | NW | - | €245.55 | |
| G | ZUSA-TF-VAC-38 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | - | 1" | Butt Weld | 1 9/16" | €90.95 | |
| G | ZUSA-TF-VAC-37 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | 1" | Butt Weld | 1/2" | €59.60 | |
| E | ZUSA-TF-VAC-7 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | - | - | - | €324.25 | |
| G | ZUSA-TF-VAC-33 | Straight Adapter | 10-7 torr @ 72°F | 1/2" | 1.172" | 10 | 1/2" | Butt Weld | 1/2" | €52.10 | |
| F | ZUSA-TF-VAC-28 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 16, 40 | 3/4" | NW | - | €255.08 | |
| G | ZUSA-TF-VAC-40 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | - | Butt Weld | 1 9/16" | €102.97 | |
| E | ZUSA-TF-VAC-5 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | - | - | - | €450.12 | |
| F | ZUSA-TF-VAC-27 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 16, 25 | 3/4" | NW | - | €226.38 | |
| K | ZUSA-TF-VAC-25 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | 1 1/2" | NW | 6" | €316.61 | |
| K | ZUSA-TF-VAC-20 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | 1 1/2" | NW | 12 1/2" | €375.17 | |
| L | ZUSA-TF-VAC-44 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | 1" | Socket | - | €53.06 | |
| L | ZUSA-TF-VAC-46 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | Socket | - | €113.03 | |
| L | ZUSA-TF-VAC-43 | Straight Adapter | 10-7 torr @ 72°F | 3/4" | 1.172" | 16 | 3/4" | Socket | - | €50.39 | |
| I | ZUSA-TF-VAC-13 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | - | FNPT | - | €173.24 | |
| G | ZUSA-TF-VAC-34 | Straight Adapter | 10-7 torr @ 72°F | 1/2" | 1.172" | 10 | 1/2" | Butt Weld | 1 9/16" | €77.45 | |
| G | ZUSA-TF-VAC-39 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | 1 1/2" | Butt Weld | 3/4" | €70.84 | |
| J | ZUSA-TF-VAC-51 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 1 5/8" | Barbed | - | €203.48 | |
| L | ZUSA-TF-VAC-45 | Straight Adapter | 10-7 torr @ 72°F | - | 2.156" | 40 | 1 1/2" | Socket | - | €66.63 | |
| I | ZUSA-TF-VAC-12 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | - | FNPT | - | €121.02 | |
| E | ZUSA-TF-VAC-4 | Straight Adapter | 10 torr to 7 torr | 1" | 1.562" | - | - | - | - | €294.52 | |
| K | ZUSA-TF-VAC-18 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | 1" | NW | 12 1/2" | €292.32 | |
| K | ZUSA-TF-VAC-24 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | 1" | NW | 6" | €265.48 | |
| E | ZUSA-TF-VAC-6 | Straight Adapter | 10-7 torr @ 72°F | 1 1/2" | 2.156" | 40 | - | - | - | €294.03 | |
| F | ZUSA-TF-VAC-30 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 16, 50 | 3/4" | NW | - | €281.46 | |
| J | ZUSA-TF-VAC-49 | Straight Adapter | 10-7 torr @ 72°F | 1" | 1.562" | 25 | 7/8" | Barbed | - | €101.71 | |
| K | ZUSA-TF-VAC-22 | Straight Adapter | 10-7 torr @ 72°F | 2" | 2.953" | 50 | 2" | NW | 12 1/2" | €433.69 | |
| M | ZUSA-TF-VAC-60 | Tee | 10-7 torr @ 72°F | 3/4" | 1.18" | 16 | 3/4" | - | - | €340.39 | |
| M | ZUSA-TF-VAC-62 | Tee | 10-7 torr @ 72°F | - | 2.156" | 40 | 1 1/2" | - | - | €498.82 |
