USA SEALING Flange Gaskets
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Outside Dia. | Color | Inside Dia. | Min. Operating Temp. | Max. Operating Temp. | Gasket Material | Gasket Type | Hardness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BULK-FG-706 | 1 7/8" | Black | 0.844" | -30°F | 250°F | Buna N | Ring Gasket | Shore 60A | €2.51 | |
| A | BULK-FG-707 | 2 1/4" | Black | 1.062" | -30°F | 250°F | Buna N | Ring Gasket | Shore 60A | €2.64 | |
| B | BULK-FG-798 | 3 1/2" | Black | 0.812" | -30°F | 250°F | Buna N | Full Face Gasket | Shore 60A | €2.54 | |
| C | BULK-FG-103 | 3 1/2" | Red | 0.812" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €1.19 | |
| B | BULK-FG-430 | 3 1/2" | Black | 0.812" | -20°F | 450°F | FKM | Full Face Gasket | Not Rated | €26.15 | |
| B | BULK-FG-614 | 3 1/2" | Black | 0.812" | -30°F | 250°F | EPDM | Full Face Gasket | Shore 60A | €4.30 | |

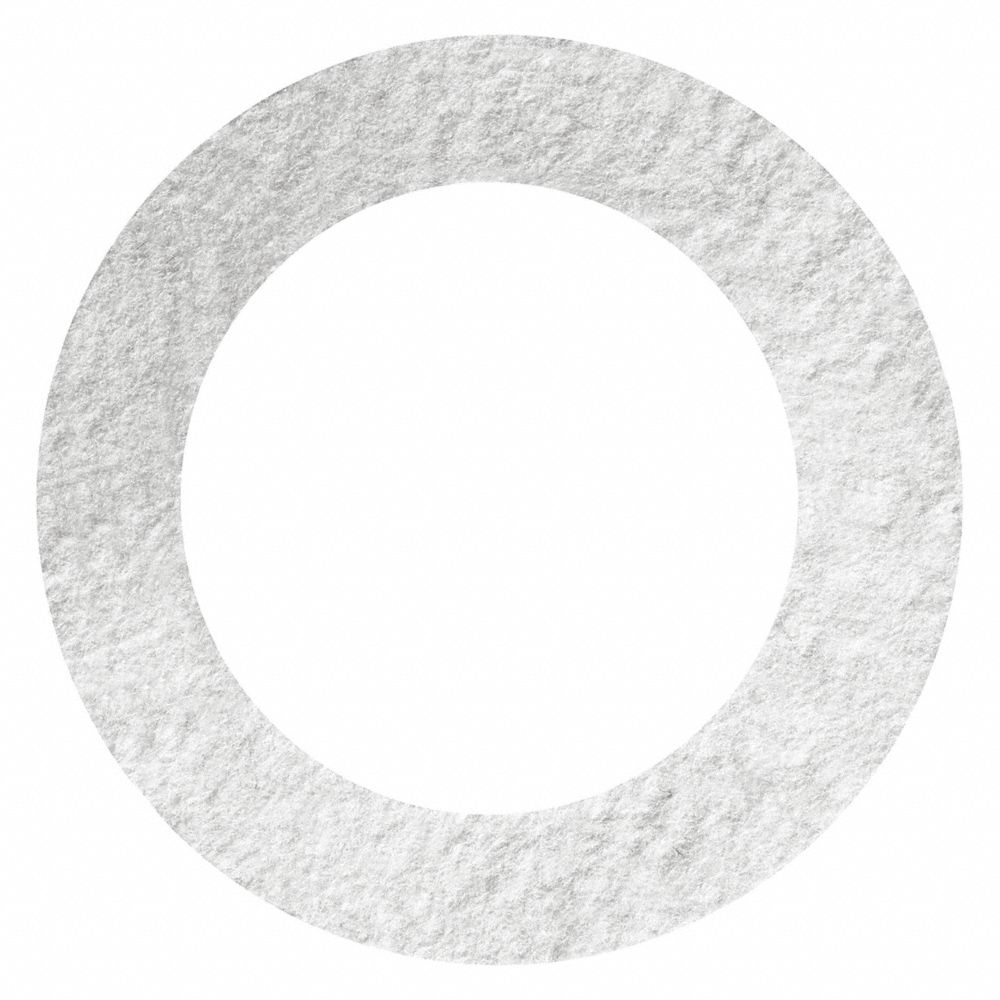

| D | BULK-FG-4878 | 3 3/8" | White | 1.906" | -80°F | 200°F | Felt | Ring Gasket | - | €8.08 | |
| A | BULK-FG-526 | 3 3/8" | Black | 1.906" | -30°F | 250°F | EPDM | Ring Gasket | Shore 60A | €4.15 | |
| B | BULK-FG-615 | 3 7/8" | Black | 1.062" | -30°F | 250°F | EPDM | Full Face Gasket | Shore 60A | €4.68 | |
| B | BULK-FG-431 | 3 7/8" | Black | 1.062" | -20°F | 450°F | FKM | Full Face Gasket | Not Rated | €31.40 | |
| B | BULK-FG-799 | 3 7/8" | Black | 1.062" | -30°F | 250°F | Buna N | Full Face Gasket | Shore 60A | €3.32 | |
| C | BULK-FG-104 | 3 7/8" | Red | 1.062" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €1.19 | |
| E | BULK-FG-1077 | 3" | White | 1.656" | -450°F | 500°F | PTFE | Ring Gasket | Not Rated | €14.02 | |
| B | BULK-FG-616 | 4 1/4" | Black | 1.312" | -30°F | 250°F | EPDM | Full Face Gasket | Shore 60A | €5.77 | |
| F | BULK-FG-4784 | 4 1/4" | White | 1.312" | -80°F | 200°F | Felt | Full Face Gasket | - | €2.31 | |
| C | BULK-FG-105 | 4 1/4" | Red | 1.312" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €1.23 | |
| D | BULK-FG-4879 | 4 1/8" | White | 2 3/8" | -80°F | 200°F | Felt | Ring Gasket | - | €9.00 | |
| A | BULK-FG-527 | 4 1/8" | Black | 2 3/8" | -30°F | 250°F | EPDM | Ring Gasket | Shore 60A | €5.49 | |
| A | BULK-FG-529 | 5 3/8" | Black | 3 1/2" | -30°F | 250°F | EPDM | Ring Gasket | Shore 60A | €7.61 | |
| F | BULK-FG-4786 | 5" | White | 1 29/32" | -80°F | 200°F | Felt | Full Face Gasket | - | €3.46 | |
| C | BULK-FG-107 | 5" | Red | 1 7/8" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €1.89 | |
| B | BULK-FG-618 | 5" | Black | 1 7/8" | -30°F | 250°F | EPDM | Full Face Gasket | Shore 60A | €7.06 | |
| A | BULK-FG-531 | 6 7/8" | Black | 4 1/2" | -30°F | 250°F | EPDM | Ring Gasket | Shore 60A | €11.50 | |
| C | BULK-FG-108 | 6" | Red | 2 3/8" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €2.42 | |
| B | BULK-FG-619 | 6" | Black | 2 3/8" | -30°F | 250°F | EPDM | Full Face Gasket | Shore 60A | €9.89 | |
| F | BULK-FG-4787 | 6" | White | 2 3/8" | -80°F | 200°F | Felt | Full Face Gasket | - | €4.45 | |
| C | BULK-FG-109 | 7" | Red | 2 7/8" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €2.26 | |
| F | BULK-FG-4788 | 7" | White | 2 7/8" | -80°F | 200°F | Felt | Full Face Gasket | - | €5.87 | |
| B | BULK-FG-620 | 7" | Black | - | - | - | - | - | - | €13.42 | |
| D | BULK-FG-4886 | 8 3/4" | White | 6 5/8" | -80°F | 200°F | Felt | Ring Gasket | - | €31.07 | |
| A | BULK-FG-534 | 8 3/4" | Black | 6 5/8" | -30°F | 250°F | EPDM | Ring Gasket | Shore 60A | €17.88 | |
| G | BULK-FG-1638 | 8 3/4" | Gray | 6 5/8" | -400°F | 975°F | Graphite | Ring Gasket | Not Rated | €26.05 | |
| H | BULK-FG-1454 | 8 3/4" | Red | 6 5/8" | -80°F | 500°F | Silicone | Ring Gasket | Shore 60A | €31.26 | |

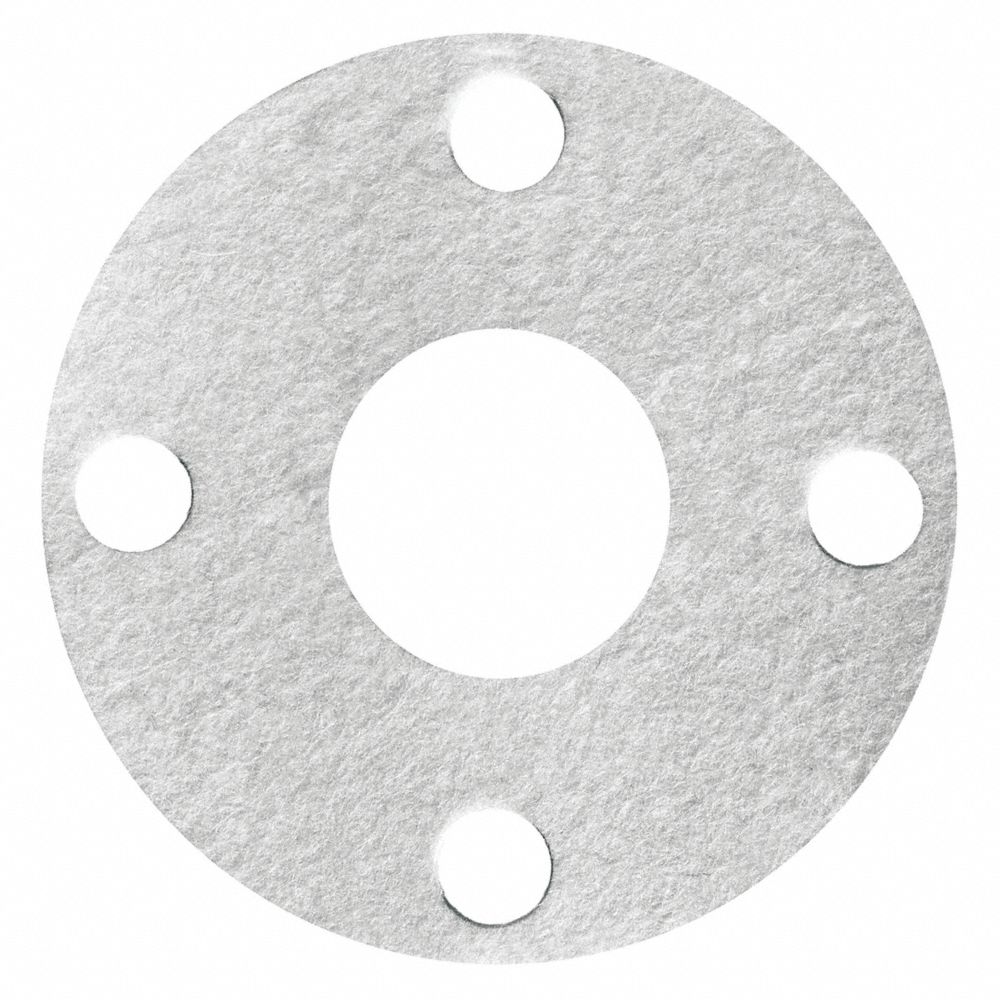

| F | BULK-FG-4791 | 9" | White | 4 1/2" | -80°F | 200°F | Felt | Full Face Gasket | - | €10.69 | |
| B | BULK-FG-623 | 9" | Black | 4 1/2" | -30°F | 250°F | EPDM | Full Face Gasket | Shore 60A | €19.63 | |
| C | BULK-FG-112 | 9" | Red | 4 1/2" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €5.52 | |
| I | BULK-FG-1177 | 10" | White | 5.562" | - | - | - | - | - | €137.91 | |
| C | BULK-FG-115 | 11" | Red | 6 5/8" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €6.71 | |
| C | BULK-FG-117 | 13 1/2" | Red | 8 5/8" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €9.37 | |
| B | BULK-FG-813 | 16" | Black | 10 3/4" | - | - | - | - | - | €55.47 | |
| C | BULK-FG-119 | 16" | Red | 10 3/4" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €15.53 | |
| B | BULK-FG-814 | 19" | Black | 12 3/4" | -30°F | 250°F | Buna N | Full Face Gasket | Shore 60A | €72.02 | |
| C | BULK-FG-120 | 19" | Red | 12 3/4" | -45°F | 200°F | Sbr | Full Face Gasket | Shore 60A | €24.34 |
