TECHNIKS Tapping Heads
Filter
A
B
C
D
E
F| Style | Model | Mounting Size | Max. Tap Capacity | Min. Tap Capacity | Clockwise Compression | For Shank Type | Projection | Coolant Fed | For Collet Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 32400/30BT | 30BT | 0.562" | Not Rated | 0.35" | Taper | - | Coolant Through | ANSI Tap Collet | €632.02 | |
| A | 32600/30BT | 30BT | 7/8" | 0.312" | 0.59" | Taper | 3 25/32" | Coolant Through | ANSI Tap Collet | €691.13 | |
| B | 21480/30BT | 30BT | 0.562" | Not Rated | - | Taper | 2 51/64" | Coolant Through | ANSI Tap Collet | €473.94 | |
| B | 21680/30BT | 30BT | 7/8" | 0.312" | - | Taper | 3 45/64" | Coolant Through | ANSI Tap Collet | €460.93 | |
| B | 21680/40BT | 40BT | 7/8" | 0.312" | - | Taper | 3 35/64" | Coolant Through | ANSI Tap Collet | €439.49 | |
| A | 32600/40BT | 40BT | 7/8" | 0.312" | 0.59" | Taper | 3 21/32" | Coolant Through | ANSI Tap Collet | €655.04 | |
| B | 21880/40BT | 40BT | 1 3/8" | 1/2" | - | Taper | 4 39/64" | Coolant Through | ANSI Tap Collet | €686.57 | |
| A | 32800/40BT | 40BT | 1 3/8" | 1/2" | 0.94" | Taper | 5 7/16" | Coolant Through | ANSI Tap Collet | €1,191.49 | |
| B | 21480/40BT | 40BT | 0.562" | Not Rated | - | Taper | 2 5/8" | Coolant Through | ANSI Tap Collet | €449.96 | |
| A | 32400/40BT | 40BT | 0.562" | Not Rated | 0.35" | Taper | 2 11/16" | Coolant Through | ANSI Tap Collet | €534.14 | |
| B | 21680/40CAT | 40CAT | 7/8" | 0.312" | - | Taper | 3 15/64" | Coolant Through | ANSI Tap Collet | €401.75 | |
| B | 21480/40CAT | 40CAT | 0.562" | Not Rated | - | Taper | 2 19/32" | Coolant Through | ANSI Tap Collet | €361.28 | |
| A | 32900/40CAT | 40CAT | 1 7/8" | 1.438" | 1.02" | Taper | 6 1/16" | Coolant Through | ANSI Tap Collet | €1,519.73 | |
| A | 32800/40CAT | 40CAT | 1 3/8" | 1/2" | 0.94" | Taper | 5 7/16" | Coolant Through | ANSI Tap Collet | €1,138.26 | |
| A | 32600/50BT | 50BT | 7/8" | 0.312" | 0.59" | Taper | 4 1/64" | Coolant Through | ANSI Tap Collet | €848.36 | |
| A | 32400/50BT | 50BT | 0.562" | Not Rated | 0.35" | Taper | 3 5/32" | Coolant Through | ANSI Tap Collet | €787.17 | |
| A | 32800/50BT | 50BT | 1 3/8" | 1/2" | 0.94" | Taper | - | Coolant Through | ANSI Tap Collet | €1,247.20 | |
| A | 32900/50BT | 50BT | 1 7/8" | 1.438" | 1.02" | Taper | - | Coolant Through | ANSI Tap Collet | €1,711.85 | |
| B | 21480/50BT | 50BT | 0.562" | Not Rated | - | Taper | 3 1/16" | Coolant Through | ANSI Tap Collet | €532.10 | |
| B | 21880/50BT | 50BT | 1 3/8" | 1/2" | - | Taper | 4 51/64" | Coolant Through | ANSI Tap Collet | €724.69 | |
| B | 21680/50BT | 50BT | 7/8" | 0.312" | - | Taper | 3 31/32" | Coolant Through | ANSI Tap Collet | €698.47 | |
| A | 32600/50CAT | 50CAT | 7/8" | 0.312" | - | Taper | 3 17/64" | Coolant Through | ANSI Tap Collet | €758.45 | |
| B | 21480/50CAT | 50CAT | 0.562" | Not Rated | - | Taper | 2 61/64" | Coolant Through | ANSI Tap Collet | €523.11 | |
| C | 34400/H40A | H40A | 0.562" | Not Rated | 0.295" | Taper | - | Coolant Through | ANSI Tap Collet | €1,561.64 | |
| D | 21480/H50A | H50A | 0.562" | Not Rated | - | Taper | - | Coolant Through | ANSI Tap Collet | €698.47 | |
| D | 21680/H50A | H50A | 7/8" | 0.312" | - | Taper | - | Coolant Through | ANSI Tap Collet | €666.74 | |
| C | 34600/H50A | H50A | 7/8" | 0.312" | 0.393" | Taper | - | Coolant Through | ANSI Tap Collet | €946.85 | |
| C | 34400/H50A | H50A | 0.562" | Not Rated | 0.295" | Taper | - | Coolant Through | ANSI Tap Collet | €1,188.32 | |
| D | 21480/H63A | H63A | 0.562" | Not Rated | - | Taper | - | Coolant Through | ANSI Tap Collet | €785.70 | |
| D | 21680/H63A | H63A | 7/8" | 0.312" | - | Taper | - | Coolant Through | ANSI Tap Collet | €837.46 | |
| C | 34600/H63A | H63A | 7/8" | - | 0.393" | Taper | - | Coolant Through | ANSI Tap Collet | €1,092.37 | |
| D | 21480/H100A | H100A | 0.562" | Not Rated | - | Taper | - | Coolant Through | ANSI Tap Collet | €1,280.85 | |
| D | 21680/H100A | H100A | 7/8" | 0.312" | - | Taper | - | Coolant Through | ANSI Tap Collet | €1,529.90 | |
| C | 34400/H100A | H100A | 0.562" | Not Rated | 0.295" | Taper | - | Coolant Through | ANSI Tap Collet | €1,332.62 | |
| C | 34600/H100A | H100A | 7/8" | 0.312" | 0.393" | Taper | - | Coolant Through | ANSI Tap Collet | €1,334.08 | |

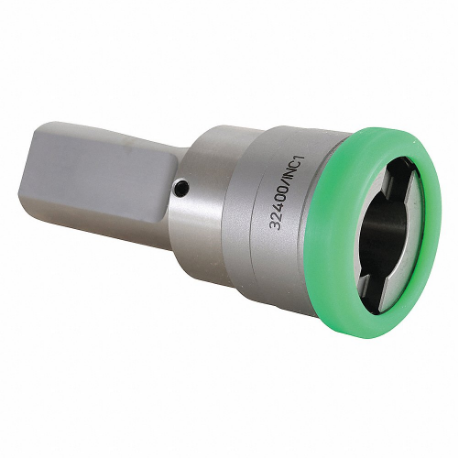

| E | 32400/INC1 | INC1 | 0.562" | Not Rated | 0.35" | Straight | 1 49/64" | Coolant Through | ANSI Tap Collet | €468.74 | |

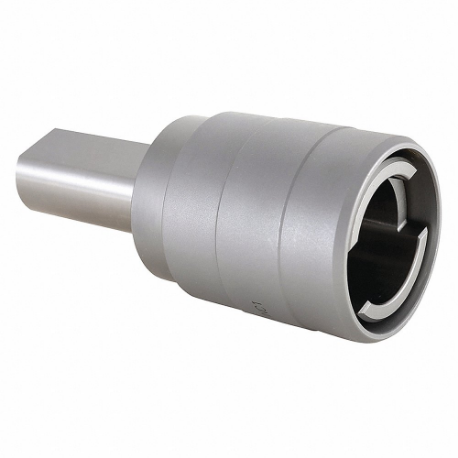

| F | 21680/INC1 | INC1 | 7/8" | 3/8" | - | Straight | 2 1/2" | Coolant Through | ANSI Tap Collet | €377.52 |
