SQUARE D Molded Case Circuit Breakers, Bgl Type

Filter

Style	Model	No. Of Poles	Amps	Voltage	Phase	Ac Voltage Rating	Mechanical Durability	Phase Connection	Ac Voltage	Price
A	BGL16040	1 , 1P	40A	347V AC	1	240V AC	15000 Cycles IEC 947-1 Annex F ed 5.2	Any	240V AC	€859.76
A	BGL16020	1 , 1P	20A	-	1	240V AC	15000 Cycles IEC 947-1 Annex F ed 5.2	Any	240V AC	€759.08
A	BGL16050	1 , 1P	50A	-	1	240V AC	15000 Cycles IEC 947-1 Annex F ed 5.2	Any	240V AC	€929.02
A	BGL16015	1 , 1P	15A	-	1	240V AC	15000 Cycles IEC 947-1 Annex F ed 5.2	Any	240V AC	€662.99
A	BGL16060	1 , 1P	60A	-	1	240V AC	15000 Cycles IEC 947-1 Annex F ed 5.2	Any	240V AC	€918.43
A	BGL16030	1 , 1P	30A	-	1	240V AC	15000 Cycles IEC 947-1 Annex F ed 5.2	Any	240V AC	€1,084.52
B	BGL26100	2 , 2P	100A	525V	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,679.09
B	BGL26050	2 , 2P	50A	-	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,601.20
B	BGL26125	2 , 2P	125A	-	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€2,771.40
C	BGL26030LU	2 , 2P	30A	-	1	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,970.45
C	BGL26025LU	2 , 2P	25A	525V	1	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,945.15
B	BGL26025	2 , 2P	25A	600/347V AC	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€875.41
C	BGL26020LU	2 , 2P	20A	-	1	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,970.45

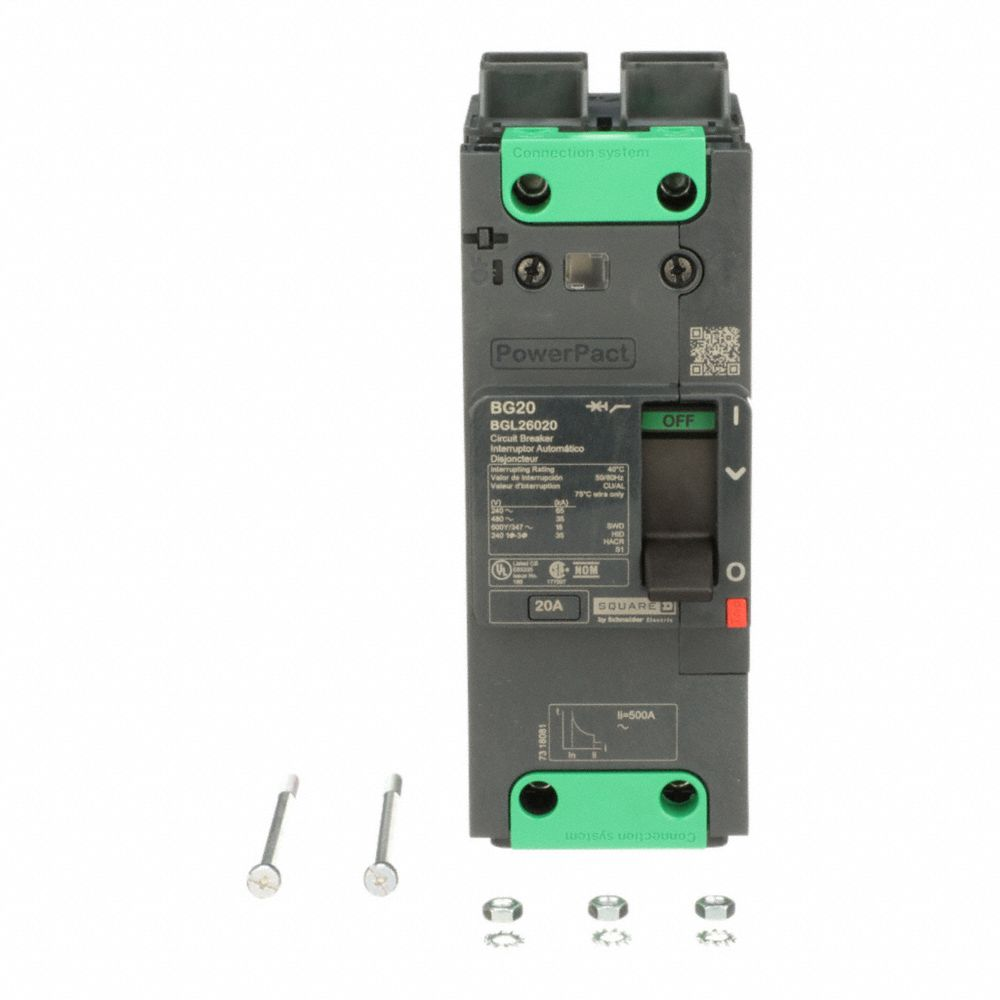

D	BGL26020	2 , 2P	20A	525V	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,915.11
B	BGL26015	2 , 2P	15A	-	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€2,050.88
B	BGL26060	2 , 2P	60A	-	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,798.32

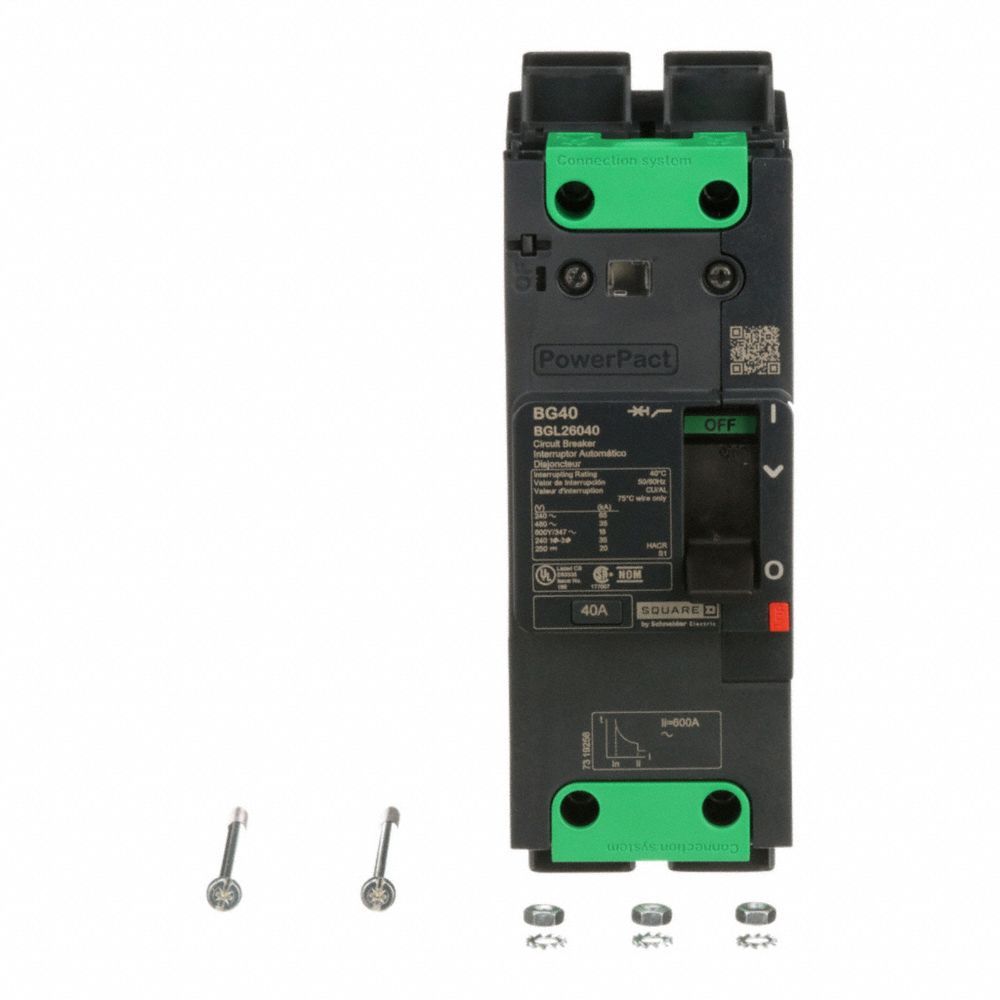

E	BGL26040	2 , 2P	40A	-	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€1,575.13
C	BGL26050LU	2 , 2P	50A	-	1	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	Not Applicable	525V AC	€2,013.18
B	BGL26080	2 , 2P	80A	-	1	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	-	-	€1,930.45
F	BGL36125LU	3 , 3P	125A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€3,765.80
F	BGL36040LU	3 , 3P	40A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,772.47
F	BGL36025LU	3 , 3P	25A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€3,235.90

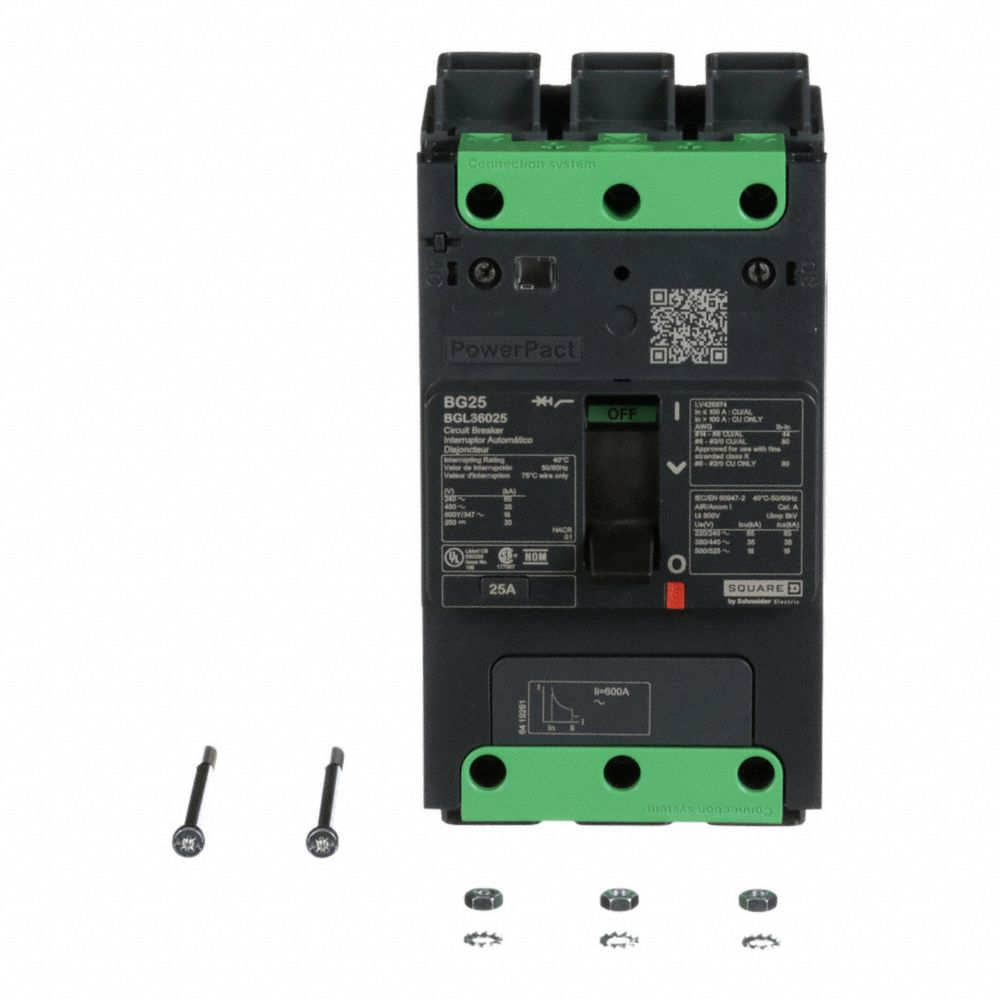

G	BGL36025	3 , 3P	25A	600/347V AC	3	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,097.13
F	BGL36020LU	3 , 3P	20A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,772.47
F	BGL36015LU	3 , 3P	15A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,752.28
F	BGL36030LU	3 , 3P	30A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€3,235.90
F	BGL36035LU	3 , 3P	35A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,329.24
H	BGL36045	3 , 3P	45A	-	3	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€1,836.14
F	BGL36110LU	3 , 3P	110A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€4,640.76
F	BGL36045LU	3 , 3P	45A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,360.29
F	BGL36050LU	3 , 3P	50A	525V	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,158.59
F	BGL36060LU	3 , 3P	60A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€3,214.86
F	BGL36070LU	3 , 3P	70A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,576.69
F	BGL36080LU	3 , 3P	80A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,575.70
F	BGL36090LU	3 , 3P	90A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,767.44
F	BGL36100LU	3 , 3P	100A	-	3	525V AC	15000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,576.69

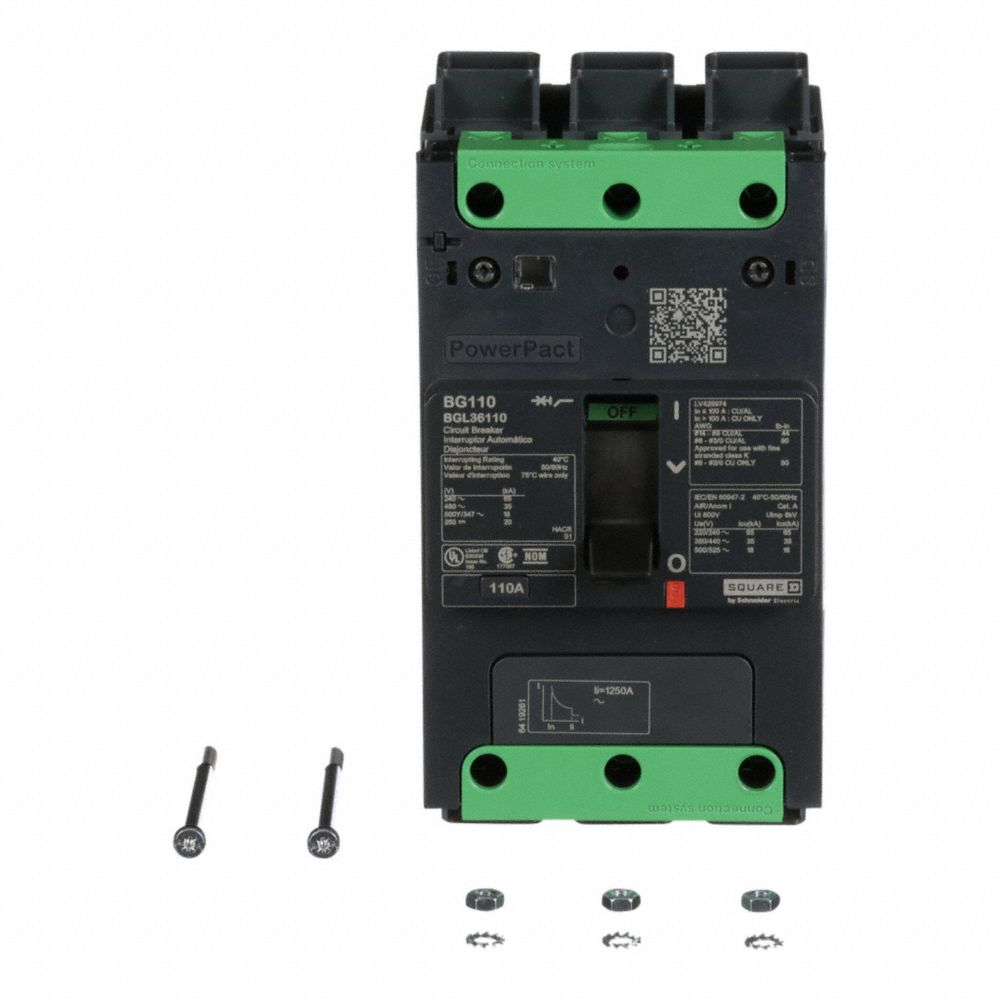

I	BGL36110	3 , 3P	110A	-	3	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€2,723.57

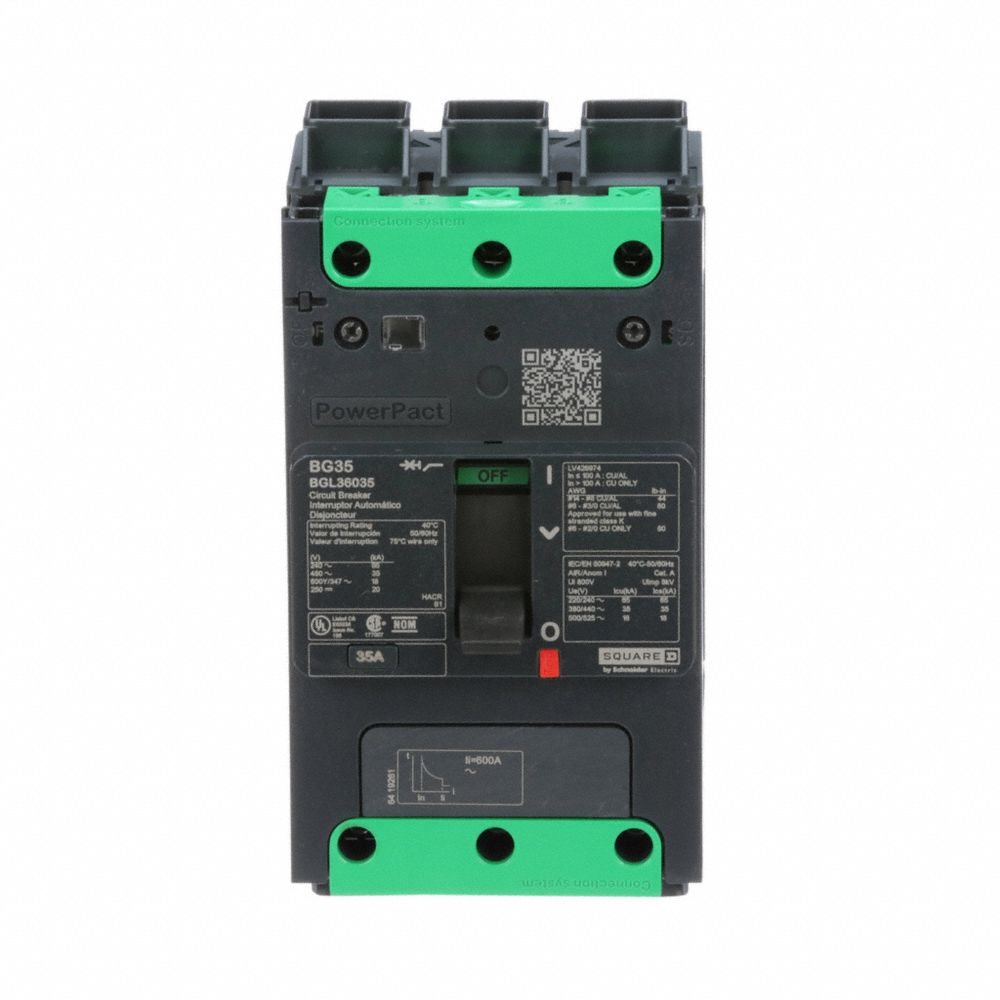

J	BGL36035	3 , 3P	35A	525V	3	525V AC	20000 Cycles IEC 947-1 Annex K ed 5.2	ABC	525V AC	€1,970.90
