SPENCE Steam Traps
Filter
A
B
C
D
E
F
G
H| Style | Model | Steam Trap Type | Body Material | Distance Between Inlet And Outlet Port | Max. Operating Pressure | Max. Operating Temp. | Condensate Capacity | Type | Pipe Configuration | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 85-C0G9 | Inverted Bucket | Cast Iron | 10 1/4" | 100 psi | 450°F | 10400 lbs./hr. | Inverted Bucket | Straight | €1,873.24 | |
| A | 85-CSG9 | Inverted Bucket | Cast Iron | 10 1/4" | 250 psi | 450°F | 7000 lbs./hr. | Inverted Bucket | Straight | €1,804.61 | |
| A | 80S-CNC9 | Inverted Bucket | Cast Iron | 5 1/16" | 150 psi | 450°F | 570 lbs./hr. | Inverted Bucket | Straight | €282.39 | |
| A | 80S-C2C9 | Inverted Bucket | Cast Iron | 5 1/16" | 20 psi | 450°F | 690 lbs./hr. | Inverted Bucket | Straight | €282.39 | |
| A | 85-C1H9 | Inverted Bucket | Cast Iron | 10 1/4" | 15 psi | 450°F | 10000 lbs./hr. | Inverted Bucket | Straight | €1,828.09 | |

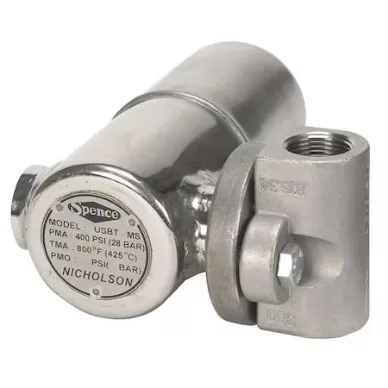

| B | USBT-TQXULS | Inverted Bucket | Stainless Steel | 4" | 200 psi | 800°F | 500 lbs./hr. | Inverted Bucket | Straight | €511.12 | |
| A | 81S-C7E9 | Inverted Bucket | Cast Iron | 5 1/16" | 70 psi | 450°F | 950 lbs./hr. | Inverted Bucket | Straight | €379.16 | |
| C | 81S-CSD9 | Inverted Bucket | Cast Iron | 5 1/16" | - | 450°F | - | Inverted Bucket | Straight | €379.16 | |
| D | 81S-C9E9 | Inverted Bucket | Cast Iron | 5 1/16" | 125 psi | 450°F | 950 lbs./hr. | Inverted Bucket | Straight | €379.16 | |
| A | 85-CMG9 | Inverted Bucket | Cast Iron | 10 1/4" | 130 psi | 450°F | 11000 lbs./hr. | Inverted Bucket | Straight | €1,804.61 | |
| E | TSBT-TUC9MS | Inverted Bucket | Stainless Steel | 4 5/16" | 400 psi | 800°F | 580 lbs./hr. | Inverted Bucket | Straight | €577.69 | |
| A | 80S-C2D9 | Inverted Bucket | Cast Iron | 5 1/16" | 20 psi | 450°F | 690 lbs./hr. | Inverted Bucket | Straight | €282.39 | |
| A | 84-C9F9 | Inverted Bucket | Cast Iron | 9" | 125 psi | 450°F | 6700 lbs./hr. | Inverted Bucket | Straight | €1,444.06 | |
| A | 81S-CSE9 | Inverted Bucket | Cast Iron | 5 1/16" | 250 psi | 450°F | 760 lbs./hr. | Inverted Bucket | Straight | €379.16 | |
| A | 85-CPH9 | Inverted Bucket | Cast Iron | 10 1/4" | 180 psi | 450°F | 10000 lbs./hr. | Inverted Bucket | Straight | €1,882.20 | |
| B | USBT-TUXUMS | Inverted Bucket | Stainless Steel | 4" | 400 psi | 800°F | 580 lbs./hr. | Inverted Bucket | Straight | €646.32 | |
| A | 85S-CRH9 | Inverted Bucket | Cast Iron | 10 1/4" | 225 psi | 450°F | 9800 lbs./hr. | Inverted Bucket | Straight | €1,804.61 | |
| A | 80S-C9C9 | Inverted Bucket | Cast Iron | 5 1/16" | 125 psi | 450°F | 680 lbs./hr. | Inverted Bucket | Straight | €282.39 | |
| A | 81S-C1E9 | Inverted Bucket | Cast Iron | 5 1/16" | 15 psi | 450°F | 1060 lbs./hr. | Inverted Bucket | Straight | €379.16 | |
| A | 85-C4G9 | Inverted Bucket | Cast Iron | 10 1/4" | 30 psi | 450°F | 9800 lbs./hr. | Inverted Bucket | Straight | €1,804.61 | |
| C | 85-CMH9 | Inverted Bucket | Cast Iron | 10 1/4" | 130 psi | 450°F | - | Inverted Bucket | Straight | €1,804.61 | |
| A | 84-C1F9 | Inverted Bucket | Cast Iron | 9" | 15 psi | 450°F | 6500 lbs./hr. | Inverted Bucket | Straight | €1,552.84 | |
| A | 81S-C4E9 | Inverted Bucket | Cast Iron | 5 1/16" | 30 psi | 450°F | 1000 lbs./hr. | Inverted Bucket | Straight | €379.16 | |
| C | 81S-CSC9 | Inverted Bucket | Cast Iron | 5 1/16" | 250 psi | 450°F | - | Inverted Bucket | Straight | €379.16 | |
| A | 85-CPG9 | Inverted Bucket | Cast Iron | 10 1/4" | 180 psi | 450°F | 10000 lbs./hr. | Inverted Bucket | Straight | €1,804.61 | |
| A | 84-C4F9 | Inverted Bucket | Cast Iron | 9" | 30 psi | 450°F | 6800 lbs./hr. | Inverted Bucket | Straight | €1,444.06 | |
| E | TSBT-TQC9LS | Inverted Bucket | Stainless Steel | 4 5/16" | 200 psi | 800°F | 500 lbs./hr. | Inverted Bucket | Straight | €567.12 | |
| A | 80S-CND9 | Inverted Bucket | Cast Iron | 5 1/16" | 150 psi | 450°F | 570 lbs./hr. | Inverted Bucket | Straight | €282.39 | |
| E | TSBT-TVE9HS | Inverted Bucket | Stainless Steel | 5" | 650 psi | 800°F | 1300 lbs./hr. | Inverted Bucket | Straight | €1,815.95 | |
| A | 85-C1G9 | Inverted Bucket | Cast Iron | 10 1/4" | 15 psi | 450°F | 10000 lbs./hr. | Inverted Bucket | Straight | €1,873.24 | |
| A | 84-CSF9 | Inverted Bucket | Cast Iron | 9" | 250 psi | 450°F | 5700 lbs./hr. | Inverted Bucket | Straight | €1,444.06 | |
| A | 80S-C8C9 | Inverted Bucket | Cast Iron | 5 1/16" | 80 psi | 450°F | 690 lbs./hr. | Inverted Bucket | Straight | €282.39 | |
| A | 80S-C9D9 | Inverted Bucket | Cast Iron | 5 1/16" | 125 psi | 450°F | 680 lbs./hr. | Inverted Bucket | Straight | €285.45 | |
| E | TSBT-TUD9MS | Inverted Bucket | Stainless Steel | 4 5/16" | 400 psi | 800°F | 580 lbs./hr. | Inverted Bucket | Straight | €577.69 | |
| A | 80S-C8D9 | Inverted Bucket | Cast Iron | 5 1/16" | 80 psi | 450°F | 690 lbs./hr. | Inverted Bucket | Straight | €282.39 | |

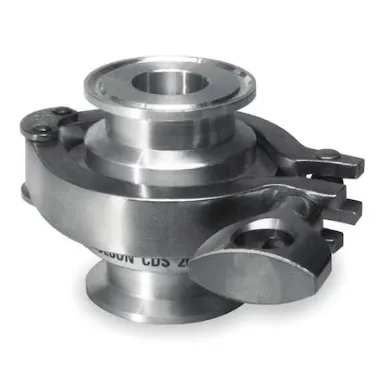

| F | CDS-T4G1A4M | Thermostatic | Stainless Steel | 2 5/8" | 100 psi | - | - | Thermostatic | Straight | €2,734.18 | |

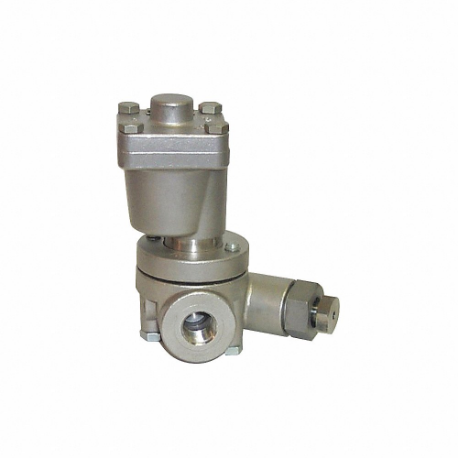

| G | UMT450-T3XU2A0 | Thermostatic | Stainless Steel | 2 13/16" | 450 psi | - | 4600 lbs./hr. | Steam Trap (No Connector Block) | UMC | €538.25 | |

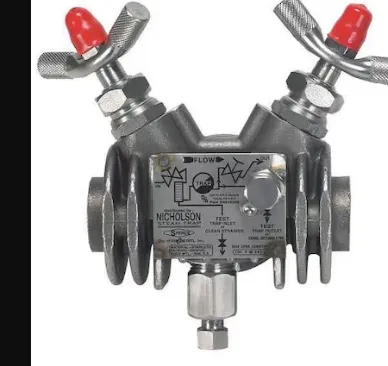

| H | UMTC-T0C9A | Thermostatic | Stainless Steel | 2 13/16" | 75 psi | - | 1800 lbs./hr. | Inverted Bucket | Straight | €262.03 |
