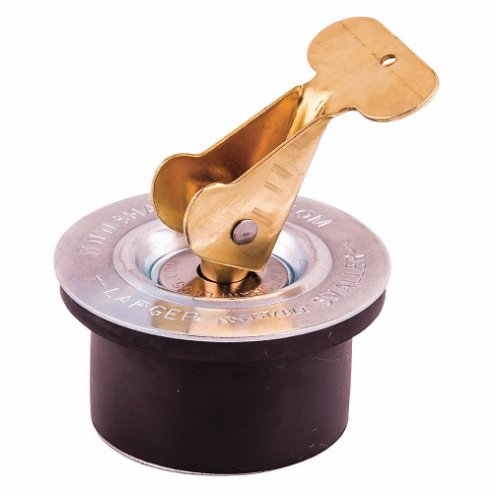

SHAW PLUGS Snap-Tite Mechanical Expansion Plugs, 2 to 3 Inch
Shaw Snap-Tite plugs are designed for ensuring seal in circular openings and pipelines for maintenance, plating & painting applications. These 2 to 3 inches expansion plugs have a thread-free sealing end and are installed into the pipes by just pushing the plug into the opening. Shaw Plugs also offers T Handle expansion plugs that are ideal for applications that require precise sealing....Read more
A| Style | Model | For Pipe Size | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Nominal Size | Inside Dia. | Head Type | Plug Seal Location | Plug Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 51023 | 2 1/2" | 2.47" | 2.74" | 2 1/2" | 2.470" to 2.742" | Snap Handle | End Of Pipe | Neoprene | €109.21 | |
| A | 51021 | 2 1/4" | 2 1/4" | 2 1/2" | 2 1/4" | 2.250" to 2.498" | Snap Handle | End Of Pipe | Neoprene | €95.33 | |
| A | 51025 | 2 3/4" | 2.69" | 2.99" | 2 3/4" | - | Snap Handle | End Of Pipe | Neoprene | €107.88 | |
| A | 51027 | 3" | 2.94" | 3.26" | 3" | 2.940" to 3.263" | Snap Handle | End Of Pipe | Neoprene | €126.06 |
Features
- These Snap-Tite expansion plugs have plated steel construction for preventing the plug from getting deformed from repeated usage or under high pressure.
- These plugs feature a mechanical handle for latching / sealing the plug after installation into the pipe.
- They have a neoprene sealing end for gripping the inside of the pipe securely, ensuring leak tight seal.
Frequently Asked Questions
How to install Snap-Tite mechanical expansion plugs?
The Snap-Tite plug's thread free design enables the user to directly push the plug into the hole that needs to be sealed. Once the plug is inside, the lever is actuated to lock the expansion plug in place.
How to disengage Shaw Plugs mechanical expansion plugs?
These plugs can be disengaged by pulling / actuating the lever. This action disengages the expansion plug and allows the user to open the sealed pipe instantly.
What is the maximum supported air pressure by Snap-Tite mechanical expansion plugs?
These plugs can handle up to 10 psi air pressure.
