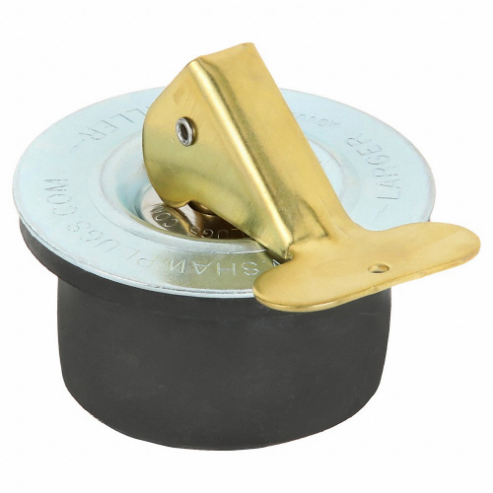

SHAW PLUGS Snap-Tite Mechanical Expansion Plugs, 1 to 2 Inch
Shaw Plugs Snap-Tite mechanical expansion plugs ensure a low-pressure seal in circular openings and pipelines for pipeline plating & painting and maintenance applications. These 1 to 2-inch expansion plugs have no threads and are installed into the pipes by just pushing the plug into the op...ening. Shaw T handle expansion plugs are also suitable for applications requiring precise sealing.Read more
A
B
C| Style | Model | For Pipe Size | For Minimum Pipe Inside Diameter | For Maximum Pipe Inside Diameter | Inside Dia. | Nominal Size | Head Type | Plug Seal Location | Plug Seal Material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 51015 | 1 1/2" | 1.38" | 1.52" | 1.380" to 1.518" | - | Snap Handle | End Of Pipe | Neoprene | €76.92 | |
| B | 51013 | 1 1/4" | 1.11" | 1.31" | 1.190" to 1.309" | 1 1/4" | Snap Handle | End Of Pipe | Neoprene | €72.96 | |
| A | 51017 | 1 3/4" | 1.63" | 1.79" | 1.630" to 1.793" | 1 3/4" | Snap Handle | End Of Pipe | Neoprene | €84.74 | |
| C | 51019 | 2" | 1.95" | 2.17" | 1.950" to 2.165" | - | Snap Handle | End Of Pipe | Neoprene | €100.92 |
Features
- These expansion plugs have zinc plated steel construction for preventing the plug from getting damaged / deformed under high pressure and repeated usage.
- They feature a neoprene sealing end for gripping the inside of the pipe securely, ensuring a leak-tight seal.
- These plugs come with a mechanical handle for latching / sealing the plug after installation into the pipe.
Frequently Asked Questions
How to install Shaw Snap-Tite mechanical expansion plugs?
The thread-free design of these plugs allows the user to directly push them into the hole that needs to be sealed. Once the plug is inside, the lever is actuated to lock the expansion plug in place.
How to remove / disengage Shaw Snap-Tite mechanical expansion plugs?
These plugs can be unlatched / disengaged by pulling the lever, this action disengages the expansion plug and allows the user to open the sealed pipe instantly.
