SCHNEIDER ELECTRIC LRD Overload Relay
Filter
A
B
C
D| Style | Model | Amps | Max. Overload Relay Amps Setting | Height | Body Height | Body Width | Body Depth | Min. Overload Relay Amps Setting | Max. Voltage | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | LRD01 | 0.1-0.16A | 0.16A | 3.62" | 2.6" | 1.77" | 2.76" | 0.1A | 690V AC | €86.02 | |
| A | LRD04 | 0.4-0.63A | 0.63A | 3.62" | 2.6" | 1.77" | 2.76" | 0.4A | 690V AC | €79.00 | |
| A | LRD02 | 0.16-0.25A | 0.25A | 3.62" | 2.6" | 1.77" | 2.76" | 0.16A | 690V AC | €79.00 | |
| A | LRD03 | 0.25-0.4A | 0.4A | 3.62" | 2.6" | 1.77" | 2.76" | 0.25A | 690V AC | €79.00 | |
| A | LRD05 | 0.63-1A | 1A | 3.62" | 2.6" | 1.77" | 2.76" | 0.63A | 690V AC | €79.00 | |
| A | LRD06 | 1-1.6A | 1.6A | 3.62" | 2.6" | 1.77" | 2.76" | 1A | 690V AC | €79.00 | |
| A | LRD07 | 1.6-2.5A | 2.5A | 3.62" | 2.6" | 1.77" | 2.76" | 1.6A | 690V AC | €79.00 | |
| A | LRD08 | 2.5-4A | 4A | 3.62" | 2.6" | 1.77" | 2.76" | 2.5A | 690V AC | €79.00 | |
| A | LRD10 | 4-6A | 6A | 3.62" | 2.6" | 1.77" | 2.76" | 4A | 690V AC | €79.00 | |
| A | LRD12 | 5.5-8A | 8A | 3.62" | 2.6" | 1.77" | 2.76" | 5.5A | 690V AC | €79.00 | |
| A | LRD14 | 7-10A | 10A | 3.62" | 2.6" | 1.77" | 2.76" | 7A | 690V AC | €79.00 | |
| A | LRD16 | 9-13A | 13A | 3.62" | 2.6" | 1.77" | 2.76" | 9A | 690V AC | €79.00 | |
| A | LRD21 | 12-18A | 18A | 3.62" | 2.6" | 1.77" | 2.76" | 12A | 690V AC | €79.00 | |
| A | LRD22 | 16-24A | 24A | 3.62" | 2.6" | 1.77" | 2.76" | 16A | 690V AC | €79.00 | |
| A | LRD32 | 23-32A | 32A | 3.62" | 2.6" | 1.77" | 2.76" | 23A | 690V AC | €114.01 | |
| B | LRD332 | 23-32A | 32A | 4 21/25" | 4 21/25" | 2.17" | 4 21/25" | 23A | 690V AC | €220.93 | |
| C | LRD3353 | 23-32A | 32A | - | 3.19" | 2.76" | 4.53" | 23A | 1000V AC | €243.98 | |
| B | LRD332L | 23-32A | 32A | 4 21/25" | 4 21/25" | 2.17" | 4 21/25" | 23A | 690V AC | €197.42 | |
| A | LRD35 | 30-38A | 38A | 2 3/4" | 2.6" | 1.77" | 2.76" | 30A | 690V AC | €116.98 | |
| C | LRD3355 | 30-40A | 40A | - | 3.19" | 2.76" | 4.53" | 30A | 1000V AC | €253.42 | |
| B | LRD340L | 30-40A | 40A | 2 19/25" | 2 19/25" | 2.17" | 4 21/25" | 30A | 690V AC | €216.99 | |
| B | LRD340 | 30-40A | 40A | 2 19/25" | 2 19/25" | 2.17" | 4 21/25" | 30A | 690V AC | €211.66 | |
| B | LRD350 | 37-50A | 50A | - | 2 19/25" | 2.17" | 4 21/25" | 37A | 690V AC | €243.98 | |
| C | LRD3357 | 37-50A | 50A | 4 21/25" | 3.19" | 2.76" | 4.53" | 37A | 1000V AC | €243.98 | |
| B | LRD350L | 37-50A | 50A | 2 19/25" | 2 19/25" | 2.17" | 4 21/25" | 37A | 690V AC | €226.78 | |

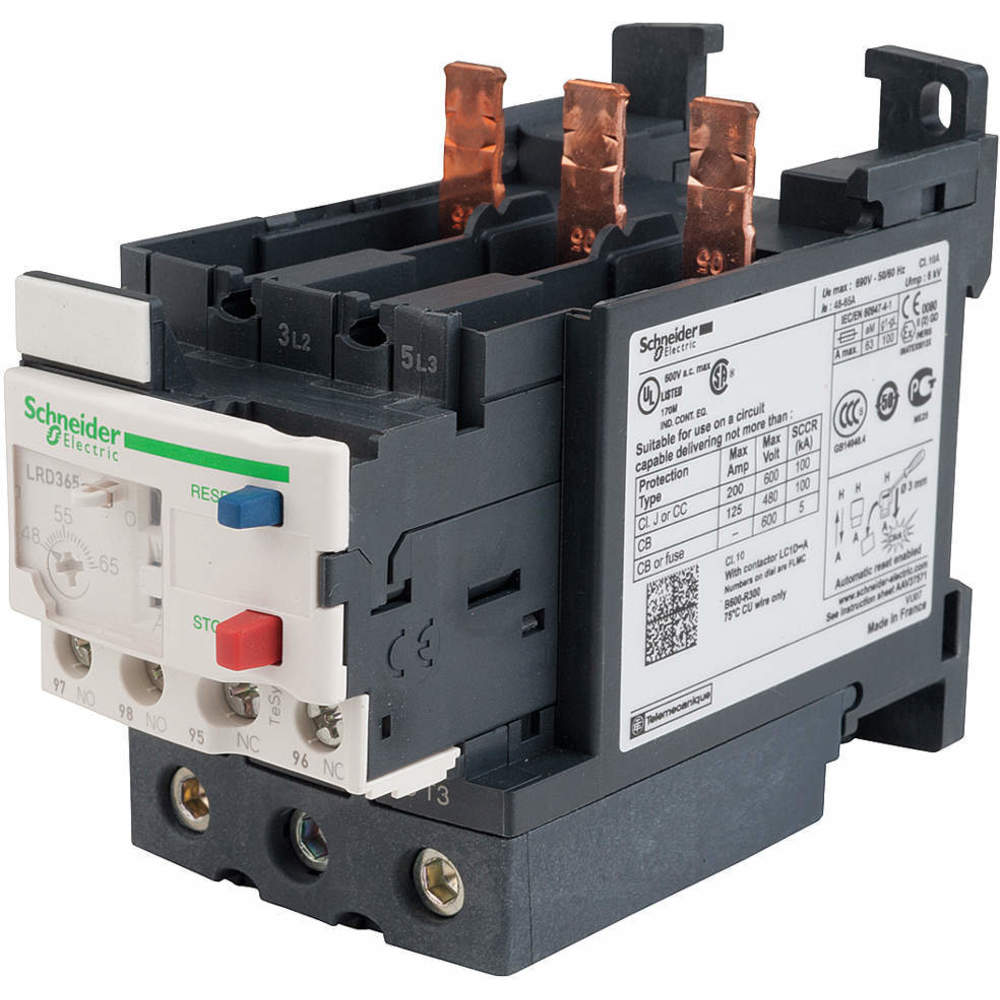

| D | LRD365 | 48-65A | 65A | 2 19/25" | 2 19/25" | 2.17" | 4 21/25" | 48A | 690V AC | €243.98 | |
| B | LRD365L | 48-65A | 65A | 2 19/25" | 2 19/25" | 2.17" | 4 21/25" | 48A | 690V AC | €199.05 | |
| C | LRD3359 | 48-65A | 65A | 4 21/25" | 3.19" | 2.76" | 4.53" | 48A | 1000V AC | €205.72 | |
| C | LRD3361 | 55-70A | 70A | 4 21/25" | 3.19" | 2.76" | 4.53" | 55A | 1000V AC | €258.74 | |
| C | LRD3363 | 63-80A | 80A | 4 21/25" | 3.19" | 2.76" | 4.53" | 63A | 1000V AC | €270.16 | |
| C | LRD4365 | 80-104A | 104A | - | 4.29" | 2.92" | 5.2" | 80A | 1000V AC | €745.86 | |
| C | LRD4367 | 95-120A | 120A | - | 4.29" | 2.92" | 5.2" | 90A | 1000V AC | €573.73 |
