S & W Tapped Style Leveling Mount
Filter
A
B
C
D
E
F
G
H| Style | Model | Load Capacity | Finish | Thread Size | Thrust Pad Material | Bolt Length | Construction | Hex | Height | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | DTS-0 | 200 lbs. | Yellow Zinc Plated | 1/4"-20 | - | 2 1/2" | Steel | 1/2" | 11/16" | €7.88 | |
| A | SDTS-0 | 200 lbs. | Plain | 1/4"-20 | - | - | Stainless Steel | 1/2" | 0.81" | €14.13 | |
| B | TSW-1L | 200 lbs. | Yellow Zinc Plated | 3/8"-16 | - | 2" | Steel | 5/8" | 1 1/2" | €15.01 | |
| A | DTS-1 | 300 lbs. | Yellow Zinc Plated | 3/8"-16 | - | - | Steel | 5/8" | 7/8" | €9.84 | |
| C | NDTS-1 | 300 lbs. | Yellow Zinc Plated | 3/8"-16 | - | - | Steel | 5/8" | 1" | €12.22 | |
| D | NSDTS-1 | 300 lbs. | Plain | 3/8"-16 | Elastomer | - | Stainless Steel | 5/8" | 1" | €19.18 | |
| B | TSW-1M | 400 lbs. | Yellow Zinc Plated | 3/8"-16 | - | - | Steel | 5/8" | 1 1/2" | €18.64 | |
| B | TSW-2L | 500 lbs. | Yellow Zinc Plated | 1/2"-13 | - | 2" | Steel | 3/4" | 1 3/4" | €22.27 | |
| C | NDTS-2 | 700 lbs. | Yellow Zinc Plated | 1/2"-13 | Elastomer | - | Steel | 3/4" | 1 1/4" | €14.99 | |
| A | DTS-2 | 700 lbs. | Yellow Zinc Plated | 1/2"-13 | - | - | Steel | 3/4" | 1.13" | €12.22 | |
| D | NSDTS-2 | 700 lbs. | Plain | 1/2"-13 | Elastomer | - | Stainless Steel | 3/4" | 1 1/4" | €22.40 | |
| E | NTS-0 | 750 lbs. | Yellow Zinc Plated | 1/4"-20 | Elastomer | - | Steel | 1/2" | 0.81" | €9.11 | |
| E | NTS-0N | 750 lbs. | Nickel Plated | 1/4"-20 | Elastomer | - | Steel | 1/2" | 0.81" | €9.71 | |
| F | TSW-0N | 1000 lbs. | Nickel Plated | 1/4"-20 | - | 1 1/4" | Steel | 1/2" | 11/16" | €7.65 | |
| A | SDTS-3 | 1200 lbs. | Plain | 5/8"-11 | - | - | Stainless Steel | 7/8" | 1 3/8" | €31.38 | |
| D | NSDTS-3 | 1200 lbs. | Stainless Steel | 5/8"-11 | - | - | Stainless Steel | 7/8" | 1.38" | €34.05 | |
| A | SDTS-4 | 1800 lbs. | Plain | 3/4"-10 | - | - | Stainless Steel | 1 1/16" | 1 5/8" | €43.93 | |
| A | DTS-4 | 1800 lbs. | Yellow Zinc Plated | 3/4"-10 | - | - | Steel | 1 1/16" | 1 1/2" | €28.74 | |
| D | NSDTS-4 | 1800 lbs. | Plain | 3/4"-10 | Elastomer | - | Stainless Steel | 1 1/16" | 1 5/8" | €47.38 | |
| G | BNYLA1-TEL | 2500 lbs. | Clear Zinc | 3/8"-16 | Rubber | - | Steel | 5/8" | 1 7/16" | €12.22 | |
| G | BSNYLA1-TEL | 2500 lbs. | Plain | 3/8"-16 | Rubber | - | Stainless Steel | 3/4" | 1 7/16" | €18.37 | |
| B | TSW-4M | 2500 lbs. | Yellow Zinc Plated | 3/4"-10 | - | 2" | Steel | 1.062" | - | €60.40 | |
| G | BNYLA1-T | 2500 lbs. | Clear Zinc | 3/8"-16 | - | - | Steel | 5/8" | 1 3/8" | €10.10 | |
| E | NTS-1 | 2800 lbs. | Yellow Zinc Plated | 3/8"-16 | Elastomer | - | Steel | 5/8" | 1" | €12.70 | |
| E | NTS-1N | 2800 lbs. | Nickel Plated | 3/8"-16 | Elastomer | - | Steel | 5/8" | 1" | €13.37 | |
| D | NSTS-1 | 2800 lbs. | Plain | 3/8"-16 | Elastomer | - | Steel | 5/8" | 1" | €21.45 | |
| G | BNYLA4-T | 3500 lbs. | Clear Zinc | 3/8"-16 | - | - | Steel | 5/8" | 1 5/8" | €12.68 | |
| G | BSNYLA4-TEL | 3500 lbs. | Plain | 3/8"-16 | Rubber | - | Stainless Steel | 3/4" | 1.69" | €27.10 | |
| G | BSNYLA4-T | 3500 lbs. | Plain | 3/8"-16 | - | - | Stainless Steel | 3/4" | 1 5/8" | €24.03 | |
| G | BNYLA4-TEL | 3500 lbs. | Clear Zinc | 3/8"-16 | Rubber | - | Steel | 5/8" | 1 3/4" | €15.85 | |
| F | TSW-1Z | 3750 lbs. | Yellow Zinc Plated | 3/8"-16 | - | 2" | Steel | 5/8" | 22/25" | €10.92 | |
| E | NTS-2 | 3750 lbs. | Yellow Zinc Plated | 1/2"-13 | Elastomer | - | Steel | 3/4" | 1 1/4" | €17.27 | |
| F | TSW-1N | 3750 lbs. | Nickel Plated | 3/8"-16 | - | 2" | Steel | 5/8" | 22/25" | €11.65 | |
| D | NSTS-2 | 3750 lbs. | Plain | 1/2"-13 | Elastomer | - | Steel | 3/4" | 1 1/4" | €31.08 | |
| E | NTS-2N | 3750 lbs. | Nickel Plated | 1/2"-13 | Elastomer | - | Steel | 3/4" | 1 1/4" | €18.03 | |
| G | BNYLC2-T | 4000 lbs. | Clear Zinc | 5/8"-11 | - | - | Steel | 7/8" | 1 11/16" | €11.62 | |
| G | BSNYLB2-TEL | 4000 lbs. | Plain | 1/2"-13 | Rubber | - | Stainless Steel | 3/4" | 1 11/16" | €24.89 | |
| G | BSNYLC2-TEL | 4000 lbs. | Plain | 5/8"-11 | Rubber | - | Stainless Steel | 7/8" | 1 3/4" | €30.73 | |
| G | BNYLB2-TEL | 4000 lbs. | Clear Zinc | 1/2"-13 | Rubber | - | Steel | 3/4" | 1 11/16" | €14.13 | |
| G | BNYLC2-TEL | 4000 lbs. | Clear Zinc | 5/8"-11 | Rubber | - | Steel | 7/8" | 1 3/4" | €15.31 | |
| G | BNYLA2-TEL | 4000 lbs. | Clear Zinc | 3/8"-16 | Rubber | - | Steel | 3/4" | 1 1/2" | €13.20 | |
| G | BSNYLA2-T | 4000 lbs. | Plain | 3/8"-16 | - | - | Stainless Steel | 3/4" | 1 11/25" | €17.12 | |
| G | BSNYLA2-TEL | 4000 lbs. | Plain | 3/8"-16 | Rubber | - | Stainless Steel | 3/4" | 1 1/2" | €19.10 | |
| G | BNYLA2-T | 4000 lbs. | Clear Zinc | 3/8"-16 | - | - | Steel | 5/8" | 1 11/25" | €10.69 | |
| G | BNYLB2-T | 4000 lbs. | Clear Zinc | 1/2"-13 | - | - | Steel | 3/4" | 1 5/8" | €10.96 | |
| B | TSW-3H | 4400 lbs. | Yellow Zinc Plated | 5/8"-11 | - | - | Steel | 7/8" | 1 7/8" | €69.33 | |
| G | BNYLC4-TEL | 4500 lbs. | Clear Zinc | 5/8"-11 | - | - | Steel | 7/8" | 1.94" | €20.60 | |
| E | NTS-3 | 4500 lbs. | Yellow Zinc Plated | 5/8"-11 | Elastomer | - | Steel | 7/8" | 1.38" | €24.98 | |
| F | TSW-2N | 5000 lbs. | Nickel Plated | 1/2"-13 | - | 2" | Steel | 3/4" | 1.13" | €14.95 | |
| F | TSW-2Z | 5000 lbs. | Yellow Zinc Plated | 1/2"-13 | - | 2" | Steel | 3/4" | 1.13" | €12.90 | |
| G | BNYLC3-T | 5000 lbs. | Clear Zinc | 5/8"-11 | - | 4" | Steel | 7/8" | 1.69" | €12.22 | |
| D | NSTS-4 | 5550 lbs. | Plain | 3/4"-10 | Elastomer | - | Steel | 1 1/16" | 1.63" | €77.28 | |
| E | NTS-4 | 5550 lbs. | Yellow Zinc Plated | 3/4"-10 | - | - | Steel | 1 1/16" | 1.63" | €34.66 | |

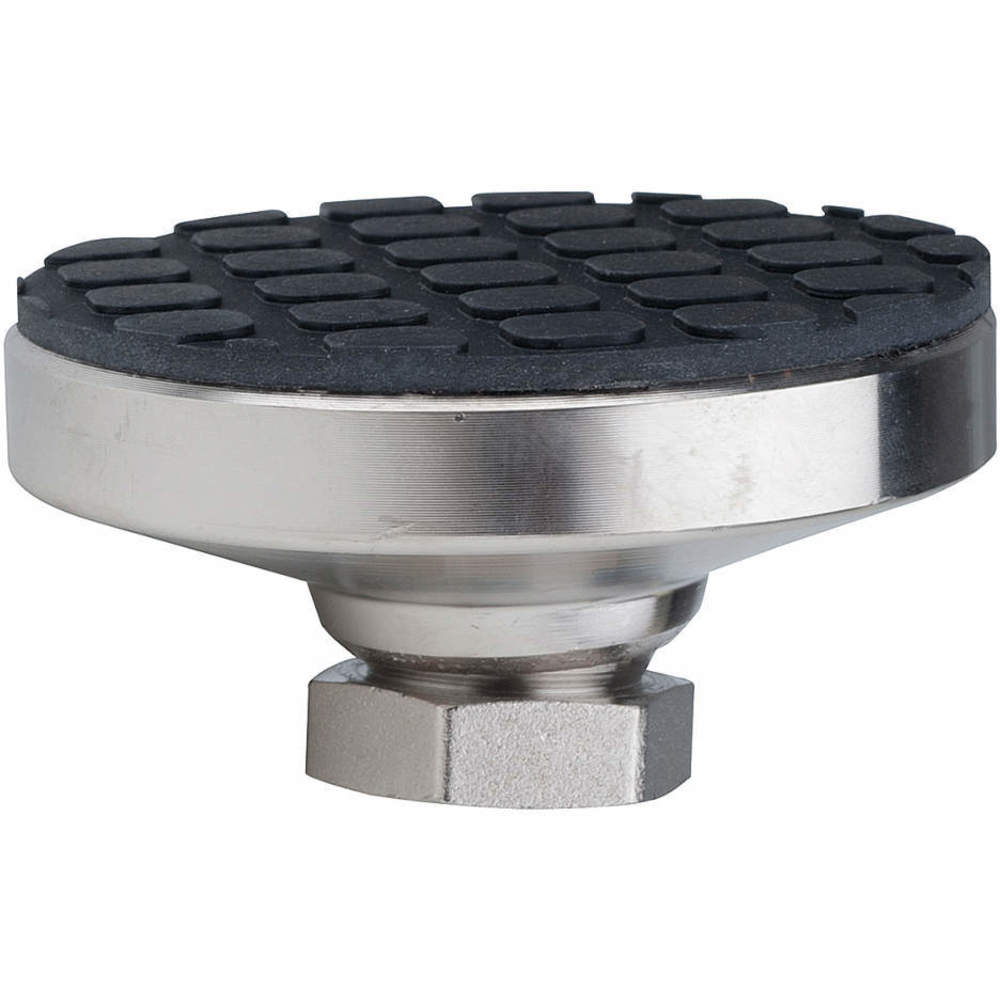

| H | NTS-4N | 5550 lbs. | Nickel Plated | 3/4"-10 | Elastomer | - | Steel | 1 1/16" | 1.63" | €36.90 | |
| G | BNYLC4-T | 6000 lbs. | Clear Zinc | 5/8"-11 | - | - | Steel | 7/8" | 1 22/25" | €18.97 | |
| F | TSW-3Z | 6000 lbs. | Yellow Zinc Plated | 5/8"-11 | - | 2" | Steel | 7/8" | 1 1/4" | €21.26 | |
| F | TSW-3N | 6000 lbs. | Nickel Plated | 5/8"-11 | - | 2" | Steel | 7/8" | 1 1/4" | €24.36 | |
| F | TSW-4N | 7400 lbs. | Nickel Plated | 3/4"-10 | - | 2" | Steel | 1 1/16" | 1 1/2" | €32.97 | |
| F | TSW-4Z | 7400 lbs. | Yellow Zinc Plated | 3/4"-10 | - | 2" | Steel | 1 1/16" | 1 1/2" | €28.08 | |
| G | BSNYLD4-TEL | 7500 lbs. | Plain | 3/4"-10 | Rubber | - | Stainless Steel | 1 1/16" | 2 1/16" | €53.20 | |
| G | BSNYLD4-T | 7500 lbs. | Plain | 3/4"-10 | - | - | Stainless Steel | 1 1/16" | 2" | €50.46 |
