RULAND MANUFACTURING P-Series Beam Couplings, Four-Beam Set Scew, Metric
Filter
A
B
C
D| Style | Model | Overall Length | Axial Motion | Parallel Misalignment | Torsional Stiffness | Different Bore Sizes | Coupling Material | Rated Torque | Max. Temp. Range | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

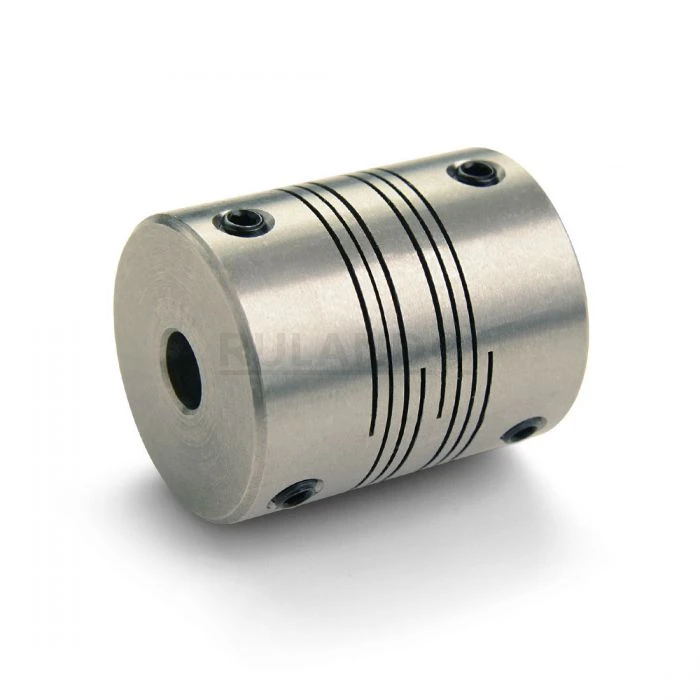

| A | PSMR25-10-9-SS | - | 0.25 mm | 0.38 mm | 8850 N-m/deg. | - | - | - | - | €135.85 | |

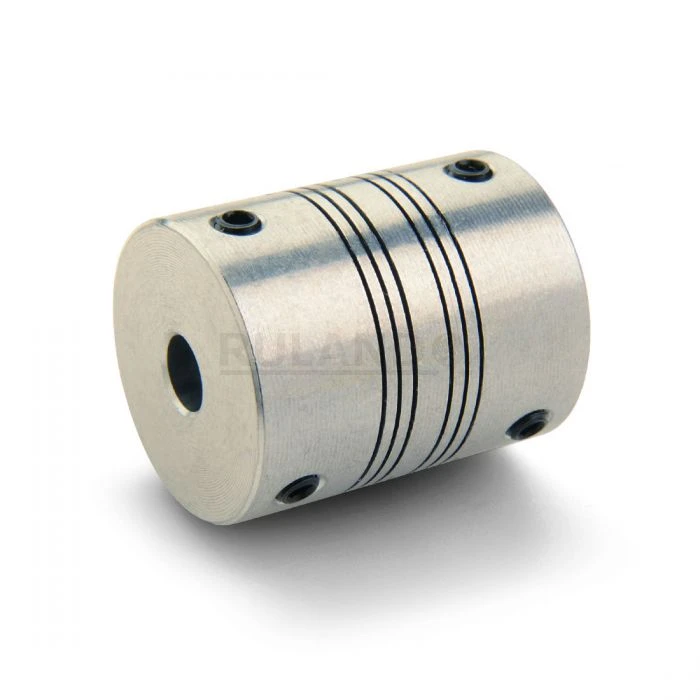

| B | PSMR25-10-7-A | - | 0.25 mm | 0.38 mm | 13275 N-m/deg. | - | - | - | - | €58.32 | |
| B | PSMR25-10-9-A | - | 0.25 mm | 0.38 mm | 13275 N-m/deg. | - | - | - | - | €54.20 | |
| C | PSMR10-3-3-A | 14.3 mm | 0.13 mm | 0.2 mm | 0.08 N-m/deg. | No | Aluminum | 0.62 N-m | 225°F | €75.64 | |
| D | PSMR10-3-3-SS | 14.3 mm | 0.13 mm | 0.2 mm | 0.15 N-m/deg. | No | Stainless Steel | 0.85 N-m | 350°F | €208.01 | |
| D | PSMR13-3-3-SS | 19.1 mm | 0.13 mm | 0.2 mm | 0.31 N-m/deg. | No | Stainless Steel | 1.24 N-m | 350°F | €212.05 | |
| C | PSMR13-3-3-A | 19.1 mm | 0.13 mm | 0.2 mm | 0.15 N-m/deg. | No | Aluminum | 0.9 N-m | 225°F | €84.24 | |
| D | PSMR13-4-4-SS | 19.1 mm | 0.005" | 0.008" | 0.21 N-m/deg. | No | Stainless Steel | 11 lbs.-in. | 350°F | €213.04 | |
| D | PSMR13-5-4-SS | 19.1 mm | 0.005" | 0.008" | 0.21 N-m/deg. | Yes | Stainless Steel | 11 lbs.-in. | 350°F | €212.66 | |
| C | PSMR13-5-4-A | 19.1 mm | 0.005" | 0.008" | 0.15 N-m/deg. | Yes | Aluminum | 8 lbs.-in. | 225°F | €74.45 | |
| C | PSMR13-4-4-A | 19.1 mm | 0.005" | 0.008" | 0.15 N-m/deg. | No | Aluminum | 8 lbs.-in. | 225°F | €74.58 | |
| D | PSMR16-4-3-SS | 20.3 mm | 0.13 mm | 0.2 mm | 0.4 N-m/deg. | Yes | Stainless Steel | 1.81 N-m | 350°F | €209.99 | |
| D | PSMR16-5-5-SS | 20.3 mm | 0.13 mm | 0.2 mm | 0.4 N-m/deg. | No | Stainless Steel | 1.81 N-m | 350°F | €209.99 | |
| C | PSMR16-4-4-A | 20.3 mm | 0.13 mm | 0.2 mm | 0.21 N-m/deg. | No | Aluminum | 1.36 N-m | 225°F | €72.74 | |
| D | PSMR16-4-4-SS | 20.3 mm | 0.13 mm | 0.2 mm | 0.4 N-m/deg. | No | Stainless Steel | 1.81 N-m | 350°F | €209.99 | |
| C | PSMR16-5-5-A | 20.3 mm | 0.13 mm | 0.2 mm | 0.21 N-m/deg. | No | Aluminum | 1.36 N-m | 225°F | €81.80 | |
| C | PSMR16-3-3-A | 20.3 mm | 0.13 mm | 0.2 mm | 0.31 N-m/deg. | No | Aluminum | 1.7 N-m | 225°F | €70.70 | |
| D | PSMR16-3-3-SS | 20.3 mm | 0.13 mm | 0.2 mm | 0.61 N-m/deg. | No | Stainless Steel | 2.26 N-m | 350°F | €209.99 | |
| D | PSMR16-5-3-SS | 20.3 mm | 0.13 mm | 0.2 mm | 0.4 N-m/deg. | Yes | Stainless Steel | 1.81 N-m | 350°F | €209.99 | |
| C | PSMR16-5-4-A | 20.3 mm | 0.13 mm | 0.2 mm | 0.21 N-m/deg. | Yes | Aluminum | 1.36 N-m | 225°F | €70.70 | |
| C | PSMR16-5-3-A | 20.3 mm | 0.13 mm | 0.2 mm | 0.21 N-m/deg. | Yes | Aluminum | 1.36 N-m | 225°F | €72.20 | |
| D | PSMR16-5-4-SS | 20.3 mm | 0.13 mm | 0.2 mm | 0.4 N-m/deg. | Yes | Stainless Steel | 1.81 N-m | 350°F | €209.99 | |
| C | PSMR16-4-3-A | 20.3 mm | 0.13 mm | 0.2 mm | 0.21 N-m/deg. | Yes | Aluminum | 1.36 N-m | 225°F | €81.80 | |
| D | PSMR19-6-6-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.63 N-m/deg. | No | Stainless Steel | 2.15 N-m | 350°F | €191.41 | |
| C | PSMR19-6-6-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.34 N-m/deg. | No | Aluminum | 1.58 N-m | 225°F | €75.63 | |
| C | PSMR19-5-4-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.44 N-m/deg. | Yes | Aluminum | 1.92 N-m | 225°F | €76.16 | |
| D | PSMR19-3-3-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.64 N-m/deg. | No | Aluminum | 2.94 N-m | 225°F | €75.63 | |
| D | PSMR19-4-4-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.75 N-m/deg. | No | Stainless Steel | 2.6 N-m | 350°F | €192.29 | |
| D | PSMR19-4-3-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.75 N-m/deg. | Yes | Stainless Steel | 2.6 N-m | 350°F | €191.41 | |
| D | PSMR19-6-5-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.63 N-m/deg. | Yes | Stainless Steel | 2.15 N-m | 350°F | €191.41 | |
| C | PSMR19-6-3-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.34 N-m/deg. | Yes | Aluminum | 1.58 N-m | 225°F | €85.66 | |
| D | PSMR19-6-3-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.63 N-m/deg. | Yes | Stainless Steel | 2.15 N-m | 350°F | €191.41 | |
| C | PSMR19-6-4-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.34 N-m/deg. | Yes | Aluminum | 1.58 N-m | 225°F | €76.16 | |
| D | PSMR19-5-3-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.75 N-m/deg. | Yes | Stainless Steel | 2.6 N-m | 350°F | €191.41 | |
| C | PSMR19-4-4-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.44 N-m/deg. | No | Aluminum | 1.92 N-m | 225°F | €75.63 | |
| C | PSMR19-5-3-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.44 N-m/deg. | Yes | Aluminum | 1.92 N-m | 225°F | €75.63 | |
| C | PSMR19-6-5-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.34 N-m/deg. | Yes | Aluminum | 1.58 N-m | 225°F | €76.16 | |
| C | PSMR19-5-5-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.44 N-m/deg. | No | Aluminum | 1.92 N-m | 225°F | €76.16 | |
| C | PSMR19-4-3-A | 22.9 mm | 0.13 mm | 0.2 mm | 0.44 N-m/deg. | Yes | Aluminum | 1.92 N-m | 225°F | €76.16 | |
| D | PSMR19-5-4-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.75 N-m/deg. | Yes | Stainless Steel | 2.6 N-m | 350°F | €191.41 | |
| D | PSMR19-3-3-SS | 22.9 mm | 0.13 mm | 0.2 mm | 1.33 N-m/deg. | No | Stainless Steel | 3.95 N-m | 350°F | €191.41 | |
| D | PSMR19-5-5-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.75 N-m/deg. | No | Stainless Steel | 2.6 N-m | 350°F | €191.41 | |
| D | PSMR19-6-4-SS | 22.9 mm | 0.13 mm | 0.2 mm | 0.63 N-m/deg. | Yes | Stainless Steel | 2.15 N-m | 350°F | €191.41 | |
| D | PSMR22-6-5-SS | 27 mm | 0.13 mm | 0.2 mm | 1.05 N-m/deg. | Yes | Stainless Steel | 2.71 N-m | 350°F | €236.58 | |
| D | PSMR22-8-6-SS | 27 mm | 0.13 mm | 0.2 mm | 0.84 N-m/deg. | Yes | Stainless Steel | 2.49 N-m | 350°F | €236.58 | |
| D | PSMR22-7-7-A | 27 mm | 0.13 mm | 0.2 mm | 0.41 N-m/deg. | No | Aluminum | 1.81 N-m | 225°F | €88.55 | |
| D | PSMR22-5-5-A | 27 mm | 0.13 mm | 0.2 mm | 0.67 N-m/deg. | No | Aluminum | 2.26 N-m | 225°F | €87.91 | |
| D | PSMR22-7-5-SS | 27 mm | 0.13 mm | 0.2 mm | 0.84 N-m/deg. | Yes | Stainless Steel | 2.49 N-m | 350°F | €238.25 | |
| D | PSMR22-8-7-A | 27 mm | - | - | - | - | - | - | 225°F | €87.72 | |
| D | PSMR22-7-7-SS | 27 mm | 0.13 mm | 0.2 mm | 0.84 N-m/deg. | No | Stainless Steel | 2.49 N-m | 350°F | €237.94 | |
| D | PSMR22-6-6-SS | 27 mm | 0.13 mm | 0.2 mm | 1.05 N-m/deg. | No | Stainless Steel | 2.71 N-m | 350°F | €236.58 | |
| D | PSMR22-5-5-SS | 27 mm | 0.13 mm | 0.2 mm | 1.23 N-m/deg. | No | Stainless Steel | 3.05 N-m | 350°F | €236.58 | |
| D | PSMR22-8-5-A | 27 mm | 0.13 mm | 0.2 mm | 0.41 N-m/deg. | Yes | Aluminum | 1.81 N-m | 225°F | €87.91 | |
| D | PSMR22-8-6-A | 27 mm | 0.13 mm | 0.2 mm | 0.41 N-m/deg. | Yes | Aluminum | 1.81 N-m | 225°F | €87.91 | |
| D | PSMR22-8-8-A | 27 mm | 0.13 mm | 0.2 mm | 0.41 N-m/deg. | No | Aluminum | 1.81 N-m | 225°F | €87.91 | |
| D | PSMR22-6-6-A | 27 mm | 0.13 mm | 0.2 mm | 0.53 N-m/deg. | No | Aluminum | 2.03 N-m | 225°F | €87.91 | |
| D | PSMR22-7-6-A | 27 mm | 0.13 mm | 0.2 mm | 0.41 N-m/deg. | Yes | Aluminum | 1.81 N-m | 225°F | €87.72 | |
| D | PSMR22-8-8-SS | 27 mm | 0.13 mm | 0.2 mm | 0.84 N-m/deg. | No | Stainless Steel | 2.49 N-m | 350°F | €236.58 | |
| D | PSMR22-8-5-SS | 27 mm | 0.13 mm | 0.2 mm | 0.84 N-m/deg. | Yes | Stainless Steel | 2.49 N-m | 350°F | €236.58 | |
| D | PSMR22-6-5-A | 27 mm | 0.13 mm | 0.2 mm | 0.53 N-m/deg. | Yes | Aluminum | 2.03 N-m | 225°F | €87.91 | |
| D | PSMR22-8-7-SS | 27 mm | 0.13 mm | 0.2 mm | 0.84 N-m/deg. | Yes | Stainless Steel | 2.49 N-m | 350°F | €238.25 |
