RULAND MANUFACTURING P-Series Beam Couplings, Four-Beam Set Scew, Inch To Metric
Filter
A
B| Style | Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Moment Of Inertia | Dynamic Torque Non-reversing | Dynamic Torque Reversing | Max. Speed | Angular Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

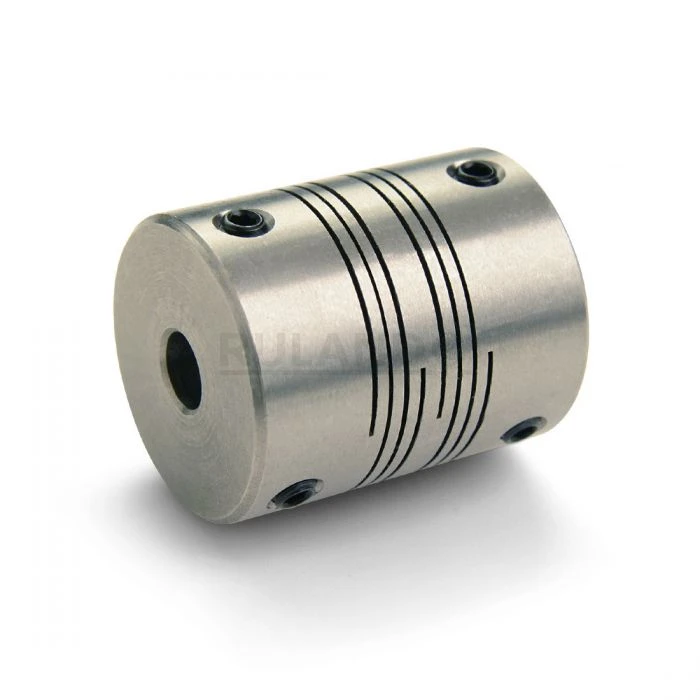

| A | PSR20-7MM-1/4 -SS | 0.031 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 46 lbs.-in. | 23 lbs.-in. | 6000 RPM | 3° | €205.60 | |
| A | PSR20-1/4 -6MM-SS | 0.031 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 46 lbs.-in. | 23 lbs.-in. | 6000 RPM | 3° | €216.27 | |
| A | PSR20-8MM-1/4 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €216.27 | |
| A | PSR20-8MM-5/16 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €216.27 | |
| A | PSR20-5/16 -7MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €251.29 | |
| A | PSR20-5/16 -6MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €226.93 | |
| A | PSR20-3/8 -6MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €248.24 | |
| A | PSR20-9MM-5/16 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-10MM-3/8 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-3/8 -8MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €228.44 | |
| A | PSR20-3/8 -9MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €216.27 | |
| A | PSR20-9MM-1/4 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €248.24 | |
| A | PSR20-3/8 -7MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-10MM-1/4 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €205.60 | |
| A | PSR18-1/4 -6MM-SS | 0.053 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 31.5 lbs.-in. | 15.75 lbs.-in. | 6000 RPM | 3° | €179.70 | |
| A | PSR18-7MM-1/4 -SS | 0.053 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 31.5 lbs.-in. | 15.75 lbs.-in. | 6000 RPM | 3° | €169.04 | |
| A | PSR18-8MM-5/16 -SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €176.67 | |
| A | PSR18-5/16 -6MM-SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €179.70 | |
| A | PSR18-8MM-1/4 -SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €176.67 | |
| A | PSR18-5/16 -7MM-SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €179.70 | |

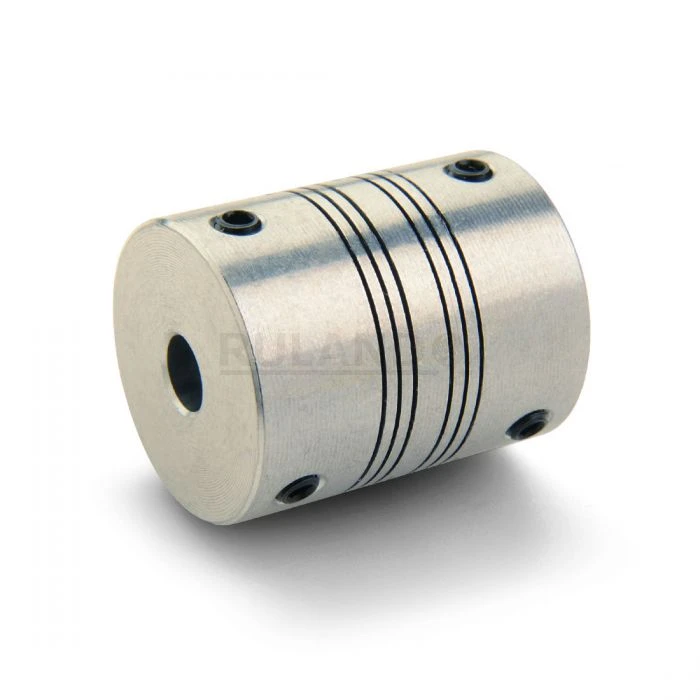

| B | PSR20-8MM-5/16 -A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €85.28 | |
| B | PSR20-8MM-1/4 -A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-1/4 -6MM-A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 34 lbs.-in. | 17 lbs.-in. | 6000 RPM | 3° | €79.79 | |
| B | PSR20-7MM-1/4 -A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 34 lbs.-in. | 17 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-5/16 -6MM-A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €79.79 | |
| B | PSR20-5/16 -7MM-A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| A | PSR20-1/2 -7MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €220.83 | |
| A | PSR20-1/2 -9MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-11MM-1/4 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €226.93 | |
| A | PSR20-1/2 -12MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €216.27 | |
| A | PSR20-12MM-1/4 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €220.83 | |
| A | PSR20-1/2 -11MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €205.60 | |
| A | PSR20-12MM-5/16 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €251.29 | |
| A | PSR20-12MM-3/8 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-1/2 -10MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €216.27 | |
| A | PSR20-11MM-5/16 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-11MM-3/8 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €226.93 | |
| A | PSR20-1/2 -6MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| A | PSR20-1/2 -8MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €231.49 | |
| B | PSR20-9MM-5/16 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-3/8 -6MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €81.01 | |
| B | PSR20-3/8 -8MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-3/8 -7MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.28 | |
| B | PSR20-3/8 -9MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-9MM-1/4 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-10MM-1/4 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €79.79 | |
| B | PSR20-10MM-5/16 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.88 | |
| B | PSR20-10MM-3/8 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €85.28 | |
| A | PSR18-9MM-5/16 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €169.04 | |
| A | PSR18-3/8 -9MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €176.67 | |
| A | PSR18-3/8 -8MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €179.70 | |
| A | PSR18-3/8 -7MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €176.67 | |
| A | PSR18-3/8 -6MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €205.60 | |
| A | PSR18-10MM-5/16 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €185.80 | |
| A | PSR18-10MM-3/8 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €176.67 | |
| A | PSR18-10MM-1/4 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €188.84 | |
| A | PSR18-9MM-1/4 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €185.80 | |
| A | PSR16-1/4 -6MM-SS | 0.079 lbs.-in./deg. | 0.01" | 0.015" | 0.0317 lbs.-in. | 24.5 lbs.-in. | 12.25 lbs.-in. | 6000 RPM | 3° | €153.82 | |
| A | PSR16-7MM-1/4 -SS | 0.079 lbs.-in./deg. | 0.01" | 0.015" | 0.0317 lbs.-in. | 24.5 lbs.-in. | 12.3 lbs.-in. | 6000 RPM | 3° | €167.53 | |
| A | PSR12-1/8 -3MM-SS | 0.085 lbs.-in./deg. | 0.005" | 0.008" | 0.007 lbs.-in. | 17.5 lbs.-in. | 8.75 lbs.-in. | 6000 RPM | 3° | €115.74 | |
| A | PSR14-5MM-3/16 -SS | 0.092 lbs.-in./deg. | 0.005" | 0.008" | 0.0157 lbs.-in. | 13.5 lbs.-in. | 6.7 lbs.-in. | 6000 RPM | 3° | €143.61 |
