RULAND MANUFACTURING P-Series Beam Couplings, Four-Beam Clamp Style, Metric

Filter

Style	Model	Overall Length	Axial Motion	Parallel Misalignment	Torsional Stiffness	Different Bore Sizes	Coupling Material	Rated Torque	Clearance Dia.	Price

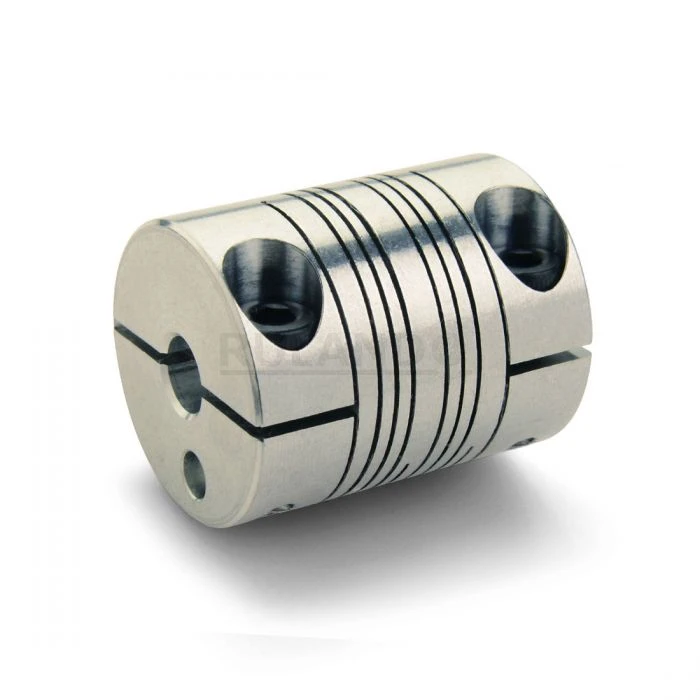

A	PCMR25-10-9-A	-	0.25 mm	0.38 mm	13275 N-m/deg.	-	-	-	-	€64.72

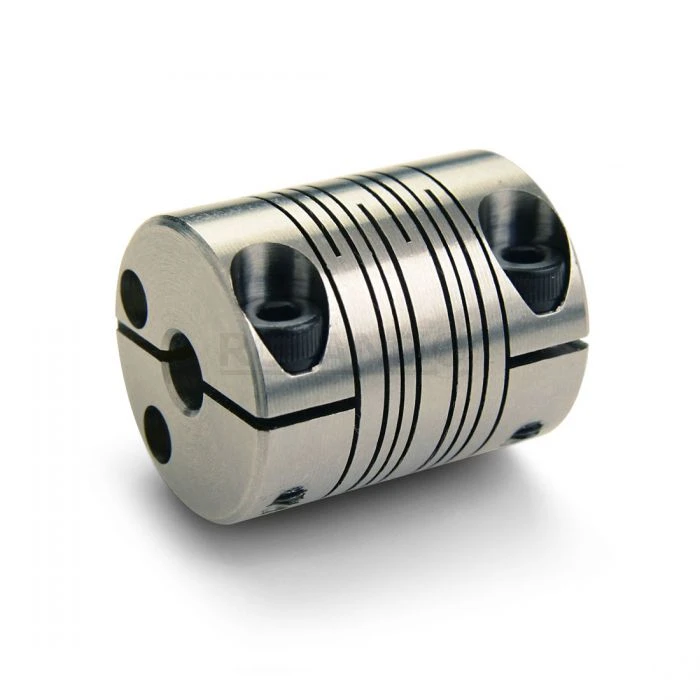

B	PCMR25-10-9-SS	-	0.25 mm	0.38 mm	8850 N-m/deg.	-	-	-	-	€162.95
A	PCMR25-10-7-A	-	0.25 mm	0.38 mm	13275 N-m/deg.	-	-	-	-	€67.00
B	PCMR25-10-7-SS	-	0.25 mm	0.38 mm	8850 N-m/deg.	-	-	-	-	€158.38
B	PCMR13-4-4-SS	-	0.13 mm	0.2 mm	70800 N-m/deg.	-	-	-	-	€140.50
C	PCMR10-3-3-SS	14.3 mm	0.13 mm	0.2 mm	0.15 N-m/deg.	No	Stainless Steel	0.85 N-m	19.1 mm	€227.05
C	PCMR10-3-3-A	14.3 mm	0.13 mm	0.2 mm	0.08 N-m/deg.	No	Aluminum	0.62 N-m	9.5 mm	€98.44
D	PCMR13-4-4-A	19.1 mm	0.13 mm	0.2 mm	0.15 N-m/deg.	No	Aluminum	0.9 N-m	12.7 mm	€81.88
C	PCMR13-3-3-SS	19.1 mm	0.13 mm	0.2 mm	0.31 N-m/deg.	No	Stainless Steel	1.24 N-m	22.2 mm	€231.37
D	PCMR13-3-3-A	19.1 mm	0.13 mm	0.2 mm	0.15 N-m/deg.	No	Aluminum	0.9 N-m	12.7 mm	€89.86
D	PCMR16-5-3-A	20 21/64"	0.13 mm	0.2 mm	0.21 N-m/deg.	Yes	Aluminum	1.36 N-m	15.9 mm	€97.33
D	PCMR16-3-3-A	20 21/64"	0.13 mm	0.2 mm	0.31 N-m/deg.	No	Aluminum	1.7 N-m	15.9 mm	€86.54
D	PCMR16-5-4-A	20.3 mm	0.13 mm	0.2 mm	0.21 N-m/deg.	Yes	Aluminum	1.36 N-m	15.9 mm	€86.54
C	PCMR16-3-3-SS	20.3 mm	0.13 mm	0.2 mm	0.61 N-m/deg.	No	Stainless Steel	2.26 N-m	22.2 mm	€223.31
D	PCMR16-4-4-A	20.3 mm	-	-	-	-	-	-	15.9 mm	€86.00
C	PCMR16-4-3-SS	20.3 mm	0.13 mm	0.2 mm	0.4 N-m/deg.	Yes	Stainless Steel	1.81 N-m	22.2 mm	€235.21
C	PCMR16-5-4-SS	20.3 mm	0.13 mm	0.2 mm	0.4 N-m/deg.	Yes	Stainless Steel	1.81 N-m	22.2 mm	€235.21
C	PCMR16-4-4-SS	20.3 mm	0.13 mm	0.2 mm	-	No	Stainless Steel	1.81 N-m	22.2 mm	€235.21
D	PCMR16-4-3-A	20.3 mm	-	-	-	-	-	-	15.9 mm	€86.54
D	PCMR16-5-5-A	20.3 mm	0.13 mm	0.2 mm	0.21 N-m/deg.	No	Aluminum	1.36 N-m	15.9 mm	€97.33
C	PCMR16-5-3-SS	20.3 mm	-	-	-	-	-	-	22.2 mm	€235.21
C	PCMR16-5-5-SS	20.3 mm	0.13 mm	0.2 mm	0.4 N-m/deg.	No	Stainless Steel	1.81 N-m	22.2 mm	€235.21
D	PCMR19-6-3-A	22.9 mm	0.13 mm	0.2 mm	0.34 N-m/deg.	Yes	Aluminum	1.58 N-m	19.1 mm	€88.50
C	PCMR19-3-3-SS	22.9 mm	0.13 mm	0.2 mm	1.33 N-m/deg.	No	Stainless Steel	3.95 N-m	22.2 mm	€218.30
C	PCMR19-5-5-SS	22.9 mm	0.13 mm	0.2 mm	0.75 N-m/deg.	No	Stainless Steel	2.6 N-m	25.4 mm	€218.30
C	PCMR19-6-5-SS	22.9 mm	0.13 mm	0.2 mm	0.63 N-m/deg.	Yes	Stainless Steel	2.15 N-m	25.4 mm	€219.31
C	PCMR19-4-4-SS	22.9 mm	0.13 mm	0.2 mm	0.75 N-m/deg.	No	Stainless Steel	2.6 N-m	25.4 mm	€218.30
C	PCMR19-5-3-SS	22.9 mm	0.13 mm	0.2 mm	0.75 N-m/deg.	Yes	Stainless Steel	2.6 N-m	25.4 mm	€218.30
C	PCMR19-3-3-A	22.9 mm	0.13 mm	0.2 mm	0.64 N-m/deg.	No	Aluminum	2.94 N-m	22.2 mm	€87.84
D	PCMR19-6-4-A	22.9 mm	0.13 mm	0.2 mm	0.34 N-m/deg.	Yes	Aluminum	1.58 N-m	19.1 mm	€99.53
D	PCMR19-4-3-A	22.9 mm	0.13 mm	0.2 mm	0.44 N-m/deg.	Yes	Aluminum	1.92 N-m	19.1 mm	€88.50
D	PCMR19-5-3-A	22.9 mm	0.13 mm	0.2 mm	0.44 N-m/deg.	Yes	Aluminum	1.92 N-m	19.1 mm	€99.53
C	PCMR19-6-3-SS	22.9 mm	0.13 mm	0.2 mm	0.63 N-m/deg.	Yes	Stainless Steel	2.15 N-m	25.4 mm	€218.30
C	PCMR19-5-4-SS	22.9 mm	0.13 mm	0.2 mm	0.75 N-m/deg.	Yes	Stainless Steel	2.6 N-m	25.4 mm	€218.30
D	PCMR19-5-5-A	22.9 mm	0.13 mm	0.2 mm	0.44 N-m/deg.	No	Aluminum	1.92 N-m	19.1 mm	€88.50
D	PCMR19-4-4-A	22.9 mm	-	-	-	-	-	-	19.1 mm	€88.50
C	PCMR19-4-3-SS	22.9 mm	0.13 mm	0.2 mm	0.75 N-m/deg.	Yes	Stainless Steel	2.6 N-m	22.2 mm	€218.30
D	PCMR19-6-5-A	22.9 mm	0.13 mm	0.2 mm	0.34 N-m/deg.	Yes	Aluminum	1.58 N-m	19.1 mm	€88.50
C	PCMR19-6-6-SS	22.9 mm	0.13 mm	0.2 mm	0.63 N-m/deg.	No	Stainless Steel	2.15 N-m	28.6 mm	€218.30
D	PCMR19-5-4-A	22.9 mm	0.13 mm	0.2 mm	0.44 N-m/deg.	Yes	Aluminum	1.92 N-m	19.1 mm	€88.50
D	PCMR19-6-6-A	22.9 mm	0.13 mm	0.2 mm	0.34 N-m/deg.	No	Aluminum	1.58 N-m	19.1 mm	€88.50
C	PCMR19-6-4-SS	22.9 mm	0.13 mm	0.2 mm	0.63 N-m/deg.	Yes	Stainless Steel	2.15 N-m	25.4 mm	€218.30
C	PCMR22-7-6-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	Yes	Stainless Steel	2.49 N-m	28.6 mm	€259.44
C	PCMR22-8-8-A	27 mm	0.13 mm	0.2 mm	0.41 N-m/deg.	No	Aluminum	1.81 N-m	31.8 mm	€99.01
C	PCMR22-7-7-A	27 mm	0.13 mm	0.2 mm	0.41 N-m/deg.	No	Aluminum	1.81 N-m	28.6 mm	€99.72
C	PCMR22-6-5-A	27 mm	0.13 mm	0.2 mm	0.53 N-m/deg.	Yes	Aluminum	2.03 N-m	28.6 mm	€99.01
C	PCMR22-8-6-A	27 mm	0.13 mm	0.2 mm	0.41 N-m/deg.	Yes	Aluminum	1.81 N-m	28.6 mm	€99.01
C	PCMR22-7-5-A	27 mm	0.13 mm	0.2 mm	0.41 N-m/deg.	Yes	Aluminum	1.81 N-m	28.6 mm	€99.72
C	PCMR22-8-5-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	Yes	Stainless Steel	2.49 N-m	28.6 mm	€257.61
C	PCMR22-8-8-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	No	Stainless Steel	2.49 N-m	31.8 mm	€257.61
C	PCMR22-6-6-SS	27 mm	0.13 mm	0.2 mm	1.05 N-m/deg.	No	Stainless Steel	2.71 N-m	28.6 mm	€257.61
C	PCMR22-8-6-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	Yes	Stainless Steel	2.49 N-m	28.6 mm	€257.61
C	PCMR22-7-5-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	Yes	Stainless Steel	2.49 N-m	28.6 mm	€259.44
C	PCMR22-5-5-SS	27 mm	0.13 mm	0.2 mm	1.23 N-m/deg.	No	Stainless Steel	3.05 N-m	28.6 mm	€257.61
C	PCMR22-8-5-A	27 mm	0.13 mm	0.2 mm	0.41 N-m/deg.	Yes	Aluminum	1.81 N-m	28.6 mm	€99.01
C	PCMR22-6-5-SS	27 mm	0.13 mm	0.2 mm	1.05 N-m/deg.	Yes	Stainless Steel	2.71 N-m	28.6 mm	€257.61
C	PCMR22-6-6-A	27 mm	0.13 mm	0.2 mm	0.53 N-m/deg.	No	Aluminum	2.03 N-m	28.6 mm	€99.01
C	PCMR22-8-7-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	Yes	Stainless Steel	2.49 N-m	28.6 mm	€259.39
C	PCMR22-7-7-SS	27 mm	0.13 mm	0.2 mm	0.84 N-m/deg.	No	Stainless Steel	2.49 N-m	28.6 mm	€259.44
C	PCMR22-5-5-A	27 mm	0.13 mm	0.2 mm	0.67 N-m/deg.	No	Aluminum	2.26 N-m	28.6 mm	€99.01
C	PCMR22-7-6-A	27 mm	0.13 mm	0.2 mm	0.41 N-m/deg.	Yes	Aluminum	1.81 N-m	28.6 mm	€99.01
