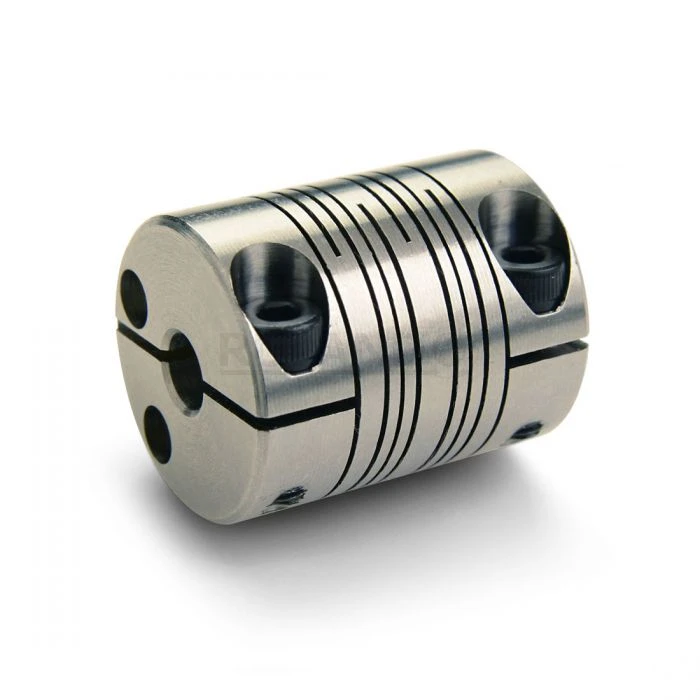

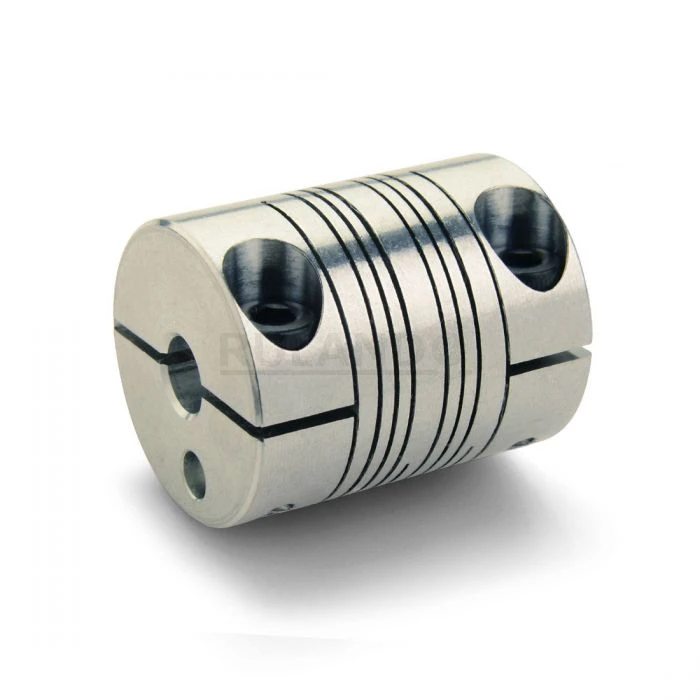

RULAND MANUFACTURING P-Series Beam Couplings, Four-Beam Clamp Style, Inch To Metric
Filter
A
B| Style | Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Moment Of Inertia | Dynamic Torque Non-reversing | Dynamic Torque Reversing | Max. Speed | Angular Misalignment | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PCR20-7MM-1/4 -SS | 0.031 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 46 lbs.-in. | 23 lbs.-in. | 6000 RPM | 3° | €222.35 | |
| A | PCR20-5/16 -7MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-5/16 -6MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-8MM-1/4 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-8MM-5/16 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 43 lbs.-in. | 21.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-9MM-1/4 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €234.54 | |
| A | PCR20-9MM-5/16 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-10MM-1/4 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €271.09 | |
| A | PCR20-10MM-5/16 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €249.77 | |
| A | PCR20-3/8 -9MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-3/8 -8MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €237.58 | |
| A | PCR20-3/8 -6MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €271.09 | |
| A | PCR20-3/8 -7MM-SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €271.09 | |
| A | PCR20-10MM-3/8 -SS | 0.044 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 40.5 lbs.-in. | 20.25 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR18-7MM-1/4 -SS | 0.053 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 31.5 lbs.-in. | 15.75 lbs.-in. | 6000 RPM | 3° | €204.08 | |
| A | PCR18-1/4 -6MM-SS | 0.053 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 31.5 lbs.-in. | 15.75 lbs.-in. | 6000 RPM | 3° | €194.94 | |
| A | PCR18-5/16 -6MM-SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €204.08 | |
| A | PCR18-8MM-5/16 -SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €194.94 | |
| A | PCR18-8MM-1/4 -SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €190.37 | |
| A | PCR18-5/16 -7MM-SS | 0.056 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €204.08 | |
| B | PCR20-8MM-5/16 -A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €98.98 | |
| B | PCR20-8MM-1/4 -A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-7MM-1/4 -A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 34 lbs.-in. | 17 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-5/16 -7MM-A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €94.11 | |
| B | PCR20-5/16 -6MM-A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 32 lbs.-in. | 16 lbs.-in. | 6000 RPM | 3° | €94.11 | |
| B | PCR20-1/4 -6MM-A | 0.06 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 34 lbs.-in. | 17 lbs.-in. | 6000 RPM | 3° | €104.41 | |
| A | PCR20-11MM-3/8 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €271.09 | |
| A | PCR20-1/2 -11MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-1/2 -8MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €237.58 | |
| A | PCR20-1/2 -7MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-12MM-1/4 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-1/2 -10MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €252.82 | |
| A | PCR20-12MM-5/16 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €237.58 | |
| A | PCR20-12MM-3/8 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €233.02 | |
| A | PCR20-1/2 -12MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €271.09 | |
| A | PCR20-1/2 -6MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €222.35 | |
| A | PCR20-11MM-5/16 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €245.20 | |
| A | PCR20-1/2 -9MM-SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €249.77 | |
| A | PCR20-11MM-1/4 -SS | 0.064 lbs.-in./deg. | 0.01" | 0.015" | 0.0922 lbs.-in. | 35 lbs.-in. | 17.5 lbs.-in. | 6000 RPM | 3° | €249.77 | |
| B | PCR20-3/8 -9MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-3/8 -8MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-10MM-5/16 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-3/8 -7MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €97.16 | |
| B | PCR20-3/8 -6MM-A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €97.16 | |
| B | PCR20-10MM-3/8 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-9MM-1/4 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| B | PCR20-9MM-5/16 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.97 | |
| B | PCR20-10MM-1/4 -A | 0.07 lbs.-in./deg. | 0.01" | 0.015" | 0.034 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 6000 RPM | 3° | €107.91 | |
| A | PCR18-10MM-3/8 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €194.94 | |
| A | PCR18-9MM-5/16 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €204.08 | |
| A | PCR18-3/8 -9MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €222.35 | |
| A | PCR18-10MM-1/4 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €181.23 | |
| A | PCR18-3/8 -6MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €190.37 | |
| A | PCR18-3/8 -8MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €181.23 | |
| A | PCR18-3/8 -7MM-SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €222.35 | |
| A | PCR18-9MM-1/4 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €181.23 | |
| A | PCR18-10MM-5/16 -SS | 0.071 lbs.-in./deg. | 0.01" | 0.015" | 0.0603 lbs.-in. | 27 lbs.-in. | 13.5 lbs.-in. | 6000 RPM | 3° | €190.37 | |
| A | PCR16-1/4 -6MM-SS | 0.079 lbs.-in./deg. | 0.01" | 0.015" | 0.0317 lbs.-in. | 24.5 lbs.-in. | 12.25 lbs.-in. | 6000 RPM | 3° | €182.75 | |
| A | PCR16-7MM-1/4 -SS | 0.079 lbs.-in./deg. | 0.01" | 0.015" | 0.0317 lbs.-in. | 24.5 lbs.-in. | 12.3 lbs.-in. | 6000 RPM | 3° | €182.75 | |
| A | PCR12-1/8 -3MM-SS | 0.085 lbs.-in./deg. | 0.005" | 0.008" | 0.007 lbs.-in. | 17.5 lbs.-in. | 8.75 lbs.-in. | 6000 RPM | 3° | €146.20 | |
| A | PCR14-5MM-3/16 -SS | 0.092 lbs.-in./deg. | 0.005" | 0.008" | 0.0157 lbs.-in. | 13.5 lbs.-in. | 6.7 lbs.-in. | 6000 RPM | 3° | €159.90 |
