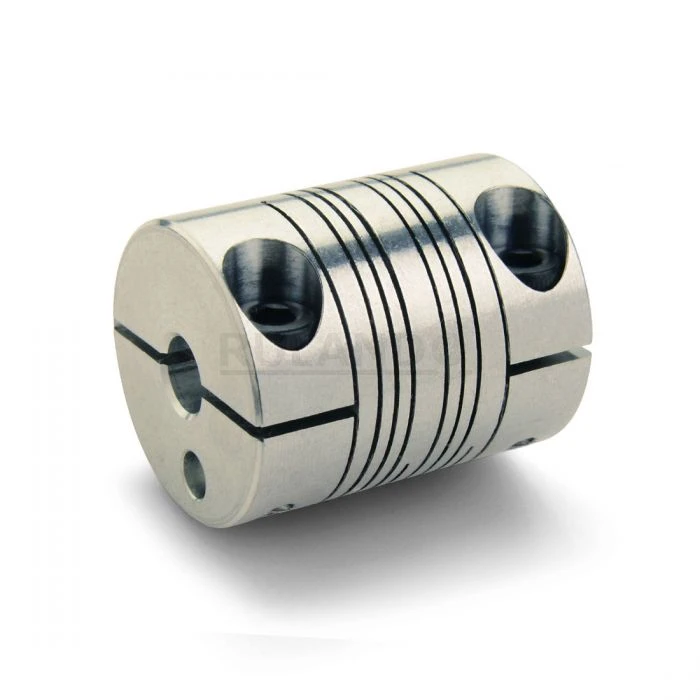

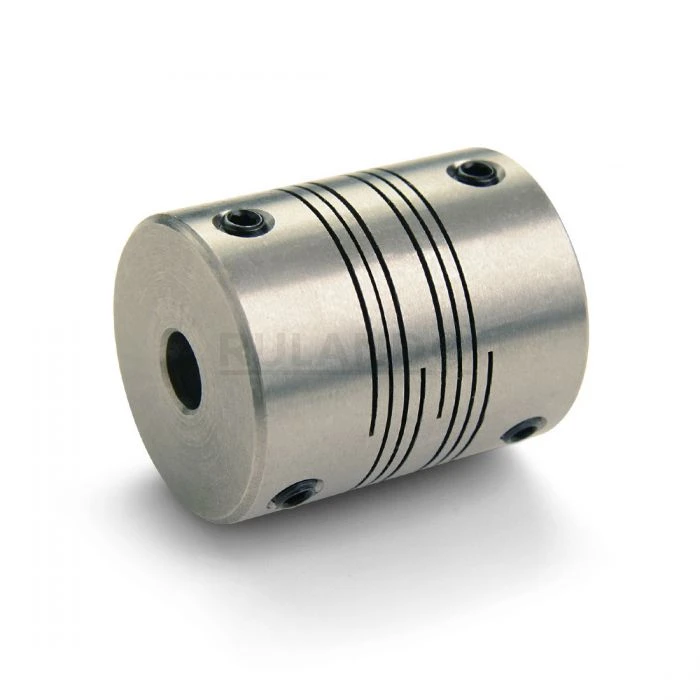

RULAND MANUFACTURING MW Series Beam Couplings, Four-Beam Clamp Style, Inch to Metric


Filter
RULAND MANUFACTURING MWC20-1/4 -5MM-AA
RULAND MANUFACTURING MWC30-5/8 -8MM-AB
RULAND MANUFACTURING MWC20-3/16 -4MM-SSC
RULAND MANUFACTURING MWS20-5MM-3/16 -SSD
RULAND MANUFACTURING MWC30-1/2 -8MM-AE
RULAND MANUFACTURING MWC20-3/16 -3/16 -AF
RULAND MANUFACTURING MWS20-3/16 -4MM-AG
StyleModelTorsional StiffnessAxial MotionParallel MisalignmentOverall LengthRated TorqueMoment Of InertiaBore ToleranceDynamic Torque Non-reversingPrice
A
MWC20-1/4 -5MM-A		---28 mm----€95.76
B
MWC30-5/8 -8MM-A		---38 mm----€156.97
A
MWC20-6MM-3/16 -A		0.4 N-m/deg.0.13 mm0.2 mm28 mm1.15 N-m0.000001053 kgf/sq. m0" to 0.001"0.58 N-m€99.95
A
MWC20-5MM-3/16 -A		0.5 N-m/deg.0.13 mm0.2 mm28 mm1.3 N-m0.000001053 kgf/sq. m0" to 0.001"0.65 N-m€99.95
A
MWC20-1/4 -4MM-A		0.5 N-m/deg.0.13 mm0.2 mm28 mm1.3 N-m0.000001053 kgf/sq. m0" to 0.001"0.65 N-m€99.95
A
MWC20-3/16 -4MM-A		0.5 N-m/deg.0.13 mm0.2 mm28 mm1.3 N-m0.000001053 kgf/sq. m0" to 0.001"0.65 N-m€99.95
A
MWC15-3/16 -3MM-A		0.19 N-m/deg.0.13 mm0.2 mm22 mm0.81 N-m0.000000293 kgf/sq. m0" to 0.001"0.41 N-m€87.59
A
MWC15-3/16 -4MM-A		0.19 N-m/deg.0.13 mm0.2 mm22 mm0.81 N-m0.000000293 kgf/sq. m0" to 0.001"0.41 N-m€87.59
A
MWC25-9MM-1/4 -A		0.57 N-m/deg.0.25 mm0.38 mm30 mm3.1 N-m0.000002955 kgf/sq. m0" to 0.001"1.55 N-m€105.50
A
MWC25-3/8 -9MM-A		0.57 N-m/deg.0.25 mm0.38 mm30 mm3.1 N-m0.000002955 kgf/sq. m0" to 0.001"1.55 N-m€105.50
A
MWC25-3/8 -8MM-A		0.57 N-m/deg.0.25 mm0.38 mm30 mm3.1 N-m0.000002955 kgf/sq. m0" to 0.001"1.55 N-m€105.50
A
MWC25-3/8 -7MM-A		0.57 N-m/deg.0.25 mm0.38 mm30 mm3.1 N-m0.000002955 kgf/sq. m0" to 0.001"1.55 N-m€105.50
A
MWC25-3/8 -6MM-A		0.57 N-m/deg.0.25 mm0.38 mm30 mm3.1 N-m0.000002955 kgf/sq. m0" to 0.001"1.55 N-m€105.50
A
MWC25-10MM-1/4 -A		0.57 N-m/deg.0.25 mm0.38 mm30 mm3.1 N-m0.000002955 kgf/sq. m0" to 0.001"1.55 N-m€105.50
A
MWC25-1/4 -6MM-A		0.82 N-m/deg.0.25 mm0.38 mm30 mm3.42 N-m0.000002955 kgf/sq. m0" to 0.001"1.71 N-m€104.04
A
MWC25-8MM-1/4 -A		0.82 N-m/deg.0.25 mm0.38 mm30 mm3.42 N-m0.000002955 kgf/sq. m0" to 0.001"1.71 N-m€101.08
A
MWC25-7MM-1/4 -A		0.82 N-m/deg.0.25 mm0.38 mm30 mm3.42 N-m0.000002955 kgf/sq. m0" to 0.001"1.71 N-m€105.50
C
MWC20-3/16 -4MM-SS		0.98 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"1.00 N-m€155.34
C
MWC20-3/16 -3/16 -SS		0.98 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"1.00 N-m€143.77
C
MWC20-5MM-3/16 -SS		0.98 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"1.00 N-m€162.95
D
MWS20-5MM-3/16 -SS		0.98 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"1.00 N-m€119.25
D
MWS20-3/16 -3/16 -SS		0.98 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"1.00 N-m€134.02
D
MWS20-3/16 -4MM-SS		0.98 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"1.00 N-m€134.02
E
MWC30-1/2 -8MM-A		1.08 N-m/deg.0.25 mm0.38 mm38 mm6.6 N-m0.000007958 kgf/sq. m0" to 0.001"3.3 N-m€157.24
E
MWC30-1/2 -11MM-A		1.08 N-m/deg.0.25 mm0.38 mm38 mm6.6 N-m0.000007958 kgf/sq. m0" to 0.001"3.3 N-m€157.24
B
MWC30-5/8 -12MM-A		1.08 N-m/deg.0.25 mm0.01"38 mm61 lbs.-in.0.000007958 kgf/sq. m0 mm to 0.025 mm3.45 N-m€156.97
E
MWC30-1/2 -9MM-A		1.08 N-m/deg.0.25 mm0.38 mm38 mm6.6 N-m0.000007958 kgf/sq. m0" to 0.001"3.3 N-m€148.74
E
MWC30-12MM-3/8 -A		1.08 N-m/deg.0.25 mm0.38 mm38 mm6.6 N-m0.000007958 kgf/sq. m0" to 0.001"3.3 N-m€157.24
E
MWC30-11MM-3/8 -A		1.08 N-m/deg.0.25 mm0.38 mm38 mm6.6 N-m0.000007958 kgf/sq. m0" to 0.001"3.3 N-m€157.24
B
MWC30-5/8 -11MM-A		1.08 N-m/deg.0.25 mm0.01"38 mm61 lbs.-in.0.000007958 kgf/sq. m0 mm to 0.025 mm3.45 N-m€156.97
A
MWC30-1/2 -10MM-A		1.08 N-m/deg.0.25 mm0.38 mm38 mm6.6 N-m0.000007958 kgf/sq. m0" to 0.001"3.3 N-m€157.24
E
MWC30-5/8 -10MM-A		1.08 N-m/deg.0.25 mm0.01"38 mm61 lbs.-in.0.000007958 kgf/sq. m0 mm to 0.025 mm3.45 N-m€156.97
B
MWC30-5/8 -9MM-A		1.08 N-m/deg.0.25 mm0.01"38 mm61 lbs.-in.0.000007958 kgf/sq. m0 mm to 0.025 mm3.45 N-m€156.97
D
MWS20-6MM-3/16 -SS		1.29 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"0.85 N-m€135.17
C
MWC20-6MM-3/16 -SS		1.29 N-m/deg.0.13 mm0.2 mm--2.984 x 10-0" to +0.001"0.85 N-m€162.95
E
MWC30-3/8 -9MM-A		1.41 N-m/deg.0.25 mm0.38 mm38 mm6.9 N-m0.000007958 kgf/sq. m0" to 0.001"3.45 N-m€157.24
E
MWC30-3/8 -8MM-A		1.41 N-m/deg.0.25 mm0.38 mm38 mm6.9 N-m0.000007958 kgf/sq. m0" to 0.001"3.45 N-m€157.24
F
MWC20-3/16 -3/16 -A		2.01 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.65 N-m€69.13
G
MWS20-3/16 -4MM-A		2.01 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.65 N-m€52.07
C
MWC20-1/4 -1/4 -SS		2.01 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.65 N-m€143.77
G
MWS20-3/16 -3/16 -A		2.01 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.65 N-m€47.20
G
MWS20-5MM-3/16 -A		2.01 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.65 N-m€47.20
F
MWC20-1/4 -1/4 -A		2.01 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.65 N-m€66.94
D
MWS15-1/8 -3MM-SS		2.23 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.65 N-m€115.74
D
MWS15-4MM-1/8 -SS		2.23 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.65 N-m€113.31
C
MWC15-1/8 -3MM-SS		2.23 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.65 N-m€129.75
C
MWC15-4MM-1/8 -SS		2.23 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.65 N-m€129.75
C
MWC15-1/8 -1/8 -SS		2.23 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.65 N-m€129.75
G
MWS20-6MM-3/16 -A		2.48 N-m/deg.0.13 mm0.2 mm--1.053 x 10-0" to +0.001"0.58 N-m€47.20
C
MWC15-3/16 -1/8 -SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€129.75
C
MWC15-3/16 -4MM-SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€129.75
C
MWC15-5MM-3/16 -SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€129.75
C
MWC15-5MM-1/8 -SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€129.75
D
MWS15-3/16 -3MM-SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€113.31
D
MWS15-5MM-3/16 -SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€107.66
D
MWS15-3/16 -4MM-SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€115.74
C
MWC15-3/16 -3/16 -SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€129.75
D
MWS15-5MM-1/8 -SS		2.52 N-m/deg.0.13 mm0.2 mm--0.731 x 10-0" to +0.001"0.60 N-m€113.31
G
MWS15-3/16 -3MM-A		5.21 N-m/deg.0.13 mm0.2 mm--0.293 x 10-0" to +0.001"0.41 N-m€47.20
F
MWC15-5MM-1/8 -A		5.21 N-m/deg.0.13 mm0.2 mm--0.293 x 10-0" to +0.001"0.41 N-m€60.61
F
MWC15-5MM-3/16 -A		5.21 N-m/deg.0.13 mm0.2 mm--0.293 x 10-0" to +0.001"0.41 N-m€58.72
