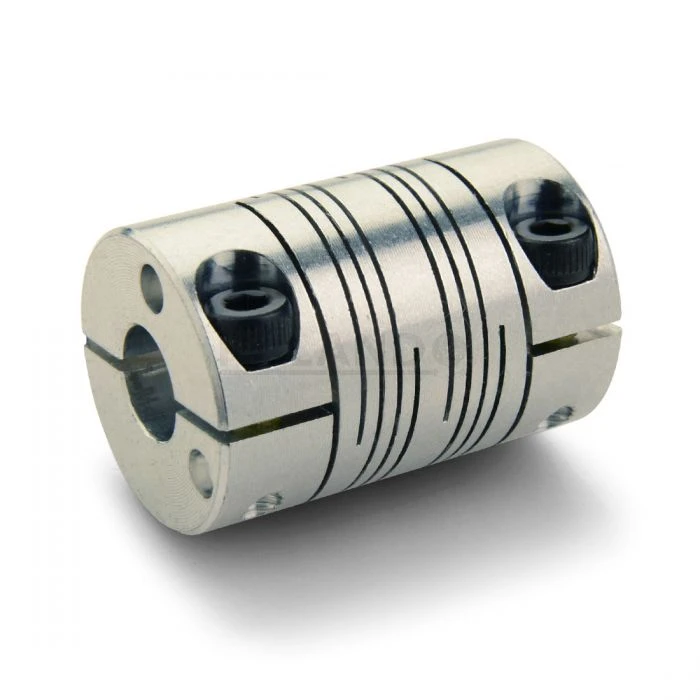

RULAND MANUFACTURING F-Series Beam Couplings, Six-Beam Clamp Style, Inch To Metric
Filter
A
B| Style | Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Rated Torque | Moment Of Inertia | Screw Material | Bore Tolerance | Dynamic Torque Non-reversing | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | FCR24-10MM-3/8 -SS | 0.016 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 104.1 lbs.-in. | €386.84 | |
| A | FCR20-8MM-5/16 -SS | 0.017 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 71.2 lbs.-in. | €255.87 | |
| A | FCR20-10MM-5/16 -SS | 0.017 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 71.2 lbs.-in. | €268.04 | |
| A | FCR20-10MM-3/8 -SS | 0.017 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 71.2 lbs.-in. | €268.04 | |
| A | FCR20-9MM-5/16 -SS | 0.017 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 71.2 lbs.-in. | €268.04 | |
| B | FCR24-10MM-3/8 -A | 0.018 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 60.0 lbs.-in. | €140.10 | |
| A | FCR24-1/2 -12MM-SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95 lbs.-in. | €356.38 | |
| A | FCR24-1/2 -11MM-SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95 lbs.-in. | €408.17 | |
| A | FCR24-13MM-3/8 -SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95.2 lbs.-in. | €368.57 | |
| A | FCR24-14MM-1/2 -SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95.2 lbs.-in. | €408.17 | |
| A | FCR24-13MM-1/2 -SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95.2 lbs.-in. | €368.57 | |
| A | FCR24-11MM-3/8 -SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95.2 lbs.-in. | €408.17 | |
| A | FCR24-1/2 -10MM-SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95 lbs.-in. | €374.67 | |
| A | FCR24-14MM-3/8 -SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95.2 lbs.-in. | €408.17 | |
| A | FCR24-12MM-3/8 -SS | 0.021 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 95.2 lbs.-in. | €368.57 | |
| A | FCR20-12MM-5/16 -SS | 0.023 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 64.6 lbs.-in. | €268.04 | |
| A | FCR20-11MM-3/8 -SS | 0.023 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 64.6 lbs.-in. | €268.04 | |
| A | FCR20-12MM-3/8 -SS | 0.023 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 64.6 lbs.-in. | €301.55 | |
| A | FCR20-3/8 -8MM-SS | 0.023 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 64.5 lbs.-in. | €268.04 | |
| A | FCR20-3/8 -9MM-SS | 0.023 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 64.5 lbs.-in. | €268.04 | |
| A | FCR20-11MM-5/16 -SS | 0.023 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 64.6 lbs.-in. | €255.87 | |
| B | FCR24-11MM-3/8 -A | 0.027 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 55 lbs.-in. | €130.20 | |
| B | FCR24-13MM-3/8 -A | 0.027 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 55 lbs.-in. | €134.78 | |
| B | FCR24-13MM-1/2 -A | 0.027 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 55 lbs.-in. | €140.10 | |
| B | FCR24-12MM-3/8 -A | 0.027 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 55 lbs.-in. | €146.97 | |
| B | FCR24-14MM-3/8 -A | 0.027 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 55 lbs.-in. | €130.20 | |
| A | FCR24-5/8 -12MM-SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.5 lbs.-in. | €306.13 | |
| A | FCR24-5/8 -15MM-SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.5 lbs.-in. | €368.57 | |
| A | FCR24-17MM-3/8 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €374.67 | |
| A | FCR24-16MM-3/8 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €386.84 | |
| A | FCR24-15MM-1/2 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €408.17 | |
| A | FCR24-16MM-5/8 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €408.17 | |
| A | FCR24-17MM-5/8 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €374.67 | |
| A | FCR24-5/8 -10MM-SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.5 lbs.-in. | €408.17 | |
| A | FCR24-5/8 -13MM-SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.5 lbs.-in. | €327.44 | |
| A | FCR24-15MM-3/8 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €356.38 | |
| A | FCR24-5/8 -11MM-SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.5 lbs.-in. | €374.67 | |
| A | FCR24-17MM-1/2 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €408.17 | |
| A | FCR24-16MM-1/2 -SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.7 lbs.-in. | €386.84 | |
| A | FCR24-5/8 -14MM-SS | 0.031 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 87.5 lbs.-in. | €408.17 | |
| A | FCR24-20MM-3/4 -SS | 0.032 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 42.0 lbs.-in. | €374.67 | |
| A | FCR24-20MM-5/8 -SS | 0.032 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 42.0 lbs.-in. | €408.17 | |
| A | FCR24-20MM-1/2 -SS | 0.032 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 42.0 lbs.-in. | €386.84 | |
| A | FCR24-20MM-3/8 -SS | 0.032 lbs.-in./deg. | 0.015" | 0.003" | - | 0.2814 lbs.-in. | Alloy Steel | -0" to +0.001" | 42.0 lbs.-in. | €408.17 | |
| A | FCR16-7MM-1/4 -SS | 0.034 lbs.-in./deg. | 0.01" | 0.015" | - | 0.0381 lbs.-in. | Alloy Steel | -0" to +0.001" | 26.6 lbs.-in. | €167.53 | |
| A | FCR16-1/4 -6MM-SS | 0.034 lbs.-in./deg. | 0.01" | 0.015" | - | 0.0381 lbs.-in. | Alloy Steel | -0" to +0.001" | 26.5 lbs.-in. | €188.84 | |
| B | FCR20-8MM-5/16 -A | 0.035 lbs.-in./deg. | 0.01" | 0.015" | - | 0.0401 lbs.-in. | Alloy Steel | -0" to +0.001" | 35 lbs.-in. | €104.71 | |
| A | FCR20-1/2 -8MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 53.5 lbs.-in. | €272.62 | |
| A | FCR20-1/2 -9MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 53.5 lbs.-in. | €268.04 | |
| A | FCR20-1/2 -12MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 53.5 lbs.-in. | €268.04 | |
| A | FCR20-1/2 -10MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 53.5 lbs.-in. | €255.87 | |
| A | FCR20-14MM-1/2 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €268.04 | |
| A | FCR20-14MM-3/8 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €268.04 | |
| A | FCR20-14MM-5/16 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €284.80 | |
| A | FCR20-1/2 -11MM-SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 53.5 lbs.-in. | €268.04 | |
| A | FCR20-15MM-5/16 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €268.04 | |
| A | FCR20-15MM-3/8 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €255.87 | |
| A | FCR20-15MM-1/2 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €278.70 | |
| A | FCR20-13MM-5/16 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €255.87 | |
| A | FCR20-13MM-3/8 -SS | 0.037 lbs.-in./deg. | 0.01" | 0.015" | - | 0.1094 lbs.-in. | Alloy Steel | -0" to +0.001" | 50.1 lbs.-in. | €268.04 | |
| B | FCR24-5/8 -13MM-A | 0.043 lbs.-in./deg. | 0.015" | 0.003" | - | 0.1023 lbs.-in. | Alloy Steel | -0" to +0.001" | 47.5 lbs.-in. | €130.20 |
