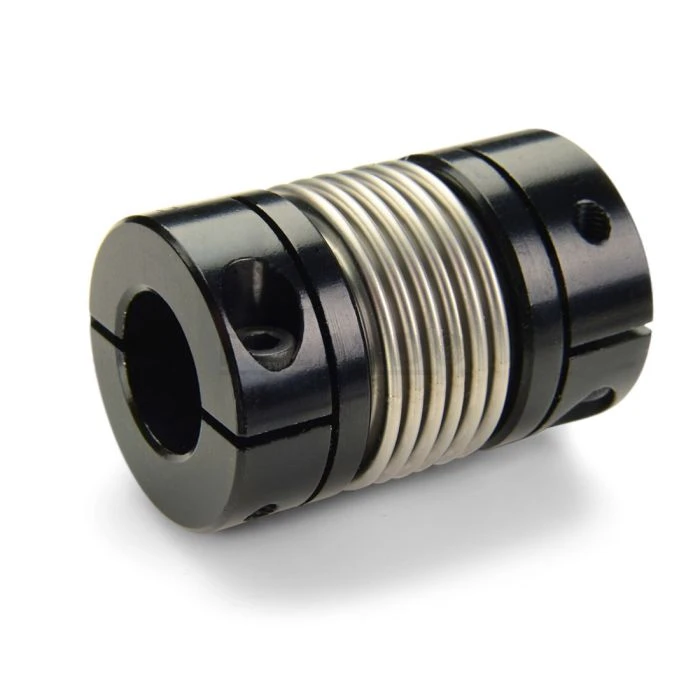

RULAND MANUFACTURING BCL Series Standard Bellow Couplings, Inch To Metric
Filter
A| Style | Model | Torsional Stiffness | Axial Motion | Parallel Misalignment | Moment Of Inertia | Dynamic Torque Non-reversing | Dynamic Torque Reversing | Max. Speed | Zero Backlash | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BCL16-5/16 -6MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009868 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -8MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.00962 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-9MM-1/4 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009841 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-9MM-5/16 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009819 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-8MM-5/16 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009841 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-8MM-1/4 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009864 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-3/8 -8MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.0098 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-11MM-3/8 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009698 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-10MM-1/4 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009806 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -9MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009598 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/4 -6MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.00989 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -6MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009647 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -11MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009518 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-5/16 -7MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009857 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -12MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009455 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-11MM-1/4 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009761 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-10MM-5/16 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009783 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-10MM-3/8 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009742 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -7MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009636 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-1/2 -10MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009562 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-11MM-5/16 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009739 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-12MM-1/4 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009698 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-12MM-3/8 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009635 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-12MM-5/16 -A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009676 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-3/8 -7MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009816 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-3/8 -6MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009827 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL16-3/8 -9MM-A | 185 lbs.-in./deg. | 0.024" | 0.008" | 0.009777 lbs.-in. | 30 lbs.-in. | 15 lbs.-in. | 10000 RPM | Yes | €133.90 | |
| A | BCL21-12MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.164354 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-13MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.164484 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-13MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.162669 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-14MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.162735 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-12MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.166169 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-14MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.160919 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-15MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.158951 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-14MM-1/2 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.156196 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-16MM-1/2 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.152047 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-15MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.160767 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-16MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.158586 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -12MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.15354 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-16MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.15677 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-3/8 -8MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.169672 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -10MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.156482 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-13MM-1/2 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.157945 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-1/2 -8MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.164949 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-15MM-1/2 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.154228 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -9MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.157742 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-9MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.170372 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -11MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.15508 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -13MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.151855 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-16MM-5/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.145957 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -14MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.150106 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -15MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.148138 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-5/8 -8MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.158858 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-11MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.165893 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-8MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.171488 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-1/2 -10MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.162572 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-1/2 -11MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.16117 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-1/2 -12MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.15963 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-10MM-3/8 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.167295 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-1/2 -9MM-A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.163833 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 | |
| A | BCL21-11MM-5/16 -A | 300 lbs.-in./deg. | 0.032" | 0.012" | 0.167709 lbs.-in. | 60 lbs.-in. | 30 lbs.-in. | 10000 RPM | Yes | €144.58 |
