RON-VIK Line Strainers
Ron-Vik in-line strainers are ideal for straining & filtering out the floating debris from pipelines in pressure washers, agricultural sprayers, floor scrubbers & pre-filters to protect valves, pumps & other sensitive equipment from damage. These units have nylon construction to res...ist chemicals, humidity and high temperatures.Read more
A
B
C
D
E
F
G
H
I
J
K| Style | Model | Max. Pressure | Bowl Color | Height | Incoming Tube Size | Outgoing Tube Size | Connection Gender | Dia. | Flow Rate | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 7221890 | 100 psi | White | 2 7/16" | 1/2" | 1/2" | Female | 3" | 2 GPM | €30.31 | |
| B | 5586990 | 100 psi | Clear | 2 7/16" | 1/2" | 1/2" | Male | 2" | 2 GPM | €27.12 | |
| C | 7221790 | 100 psi | Clear | 2 7/16" | 1/2" | 1/2" | Female | 3" | 2 GPM | €31.11 | |
| D | 7221690 | 100 psi | White | 3" | 1/2" | 1/2" | Male | 3" | 2 GPM | €24.13 | |
| C | 5739790 | 100 psi | Clear | 2 7/16" | 3/8" | 3/8" | Female | 3" | 2 GPM | €29.76 | |
| D | 7221490 | 100 psi | White | 2 7/16" | 3/8" | 3/8" | Male | 3" | 1.5 GPM | €24.13 | |
| C | 5583290 | 100 psi | Clear | 2 7/16" | 1/4" | 1/4" | Female | 3" | 0.5 GPM | €40.89 | |
| E | 5587990 | 100 psi | White | 6 7/16" | 1" | 1" | Female | 4" | 8 GPM | €97.36 | |
| E | 7082190 | 100 psi | White | 5 3/8" | 3/4" | 3/4" | Female | 3" | 7 GPM | €54.98 | |
| E | 5731590 | 100 psi | White | 5 3/8" | 1/2" | 1/2" | Female | 3" | 5 GPM | €54.98 | |
| F | 7221390 | 100 psi | White | 2 7/16" | 1/4" | 1/4" | Female | 3" | 0.5 GPM | €30.31 | |

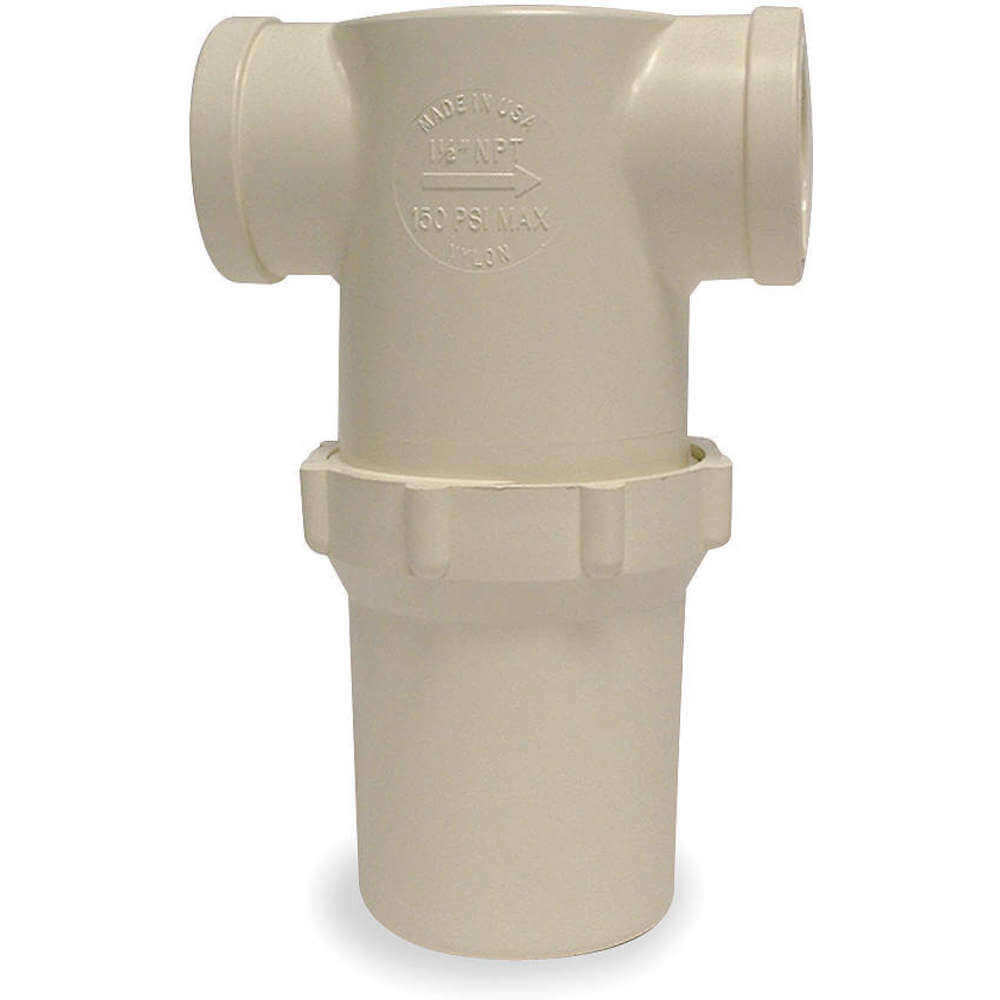

| G | 7222090 | 100 psi | White | 8" | 1 1/2" | 1 1/2" | Female | 5" | 15 GPM | €109.99 | |
| A | 7221590 | 100 psi | White | 2 7/16" | 3/8" | 3/8" | Female | 3" | 1.5 GPM | €30.31 | |
| C | 7222190 | 100 psi | Clear | 8" | 1 1/2" | 1 1/2" | Female | 5" | 15 GPM | €109.99 | |
| C | 7221990 | 100 psi | Clear | 7 1/8" | 1 1/4" | 1 1/4" | Female | 5" | 14.5 GPM | €106.29 | |
| H | 5588590 | 100 psi | Clear | 6 7/16" | 1" | 1" | Female | 4" | 8 GPM | €96.86 | |

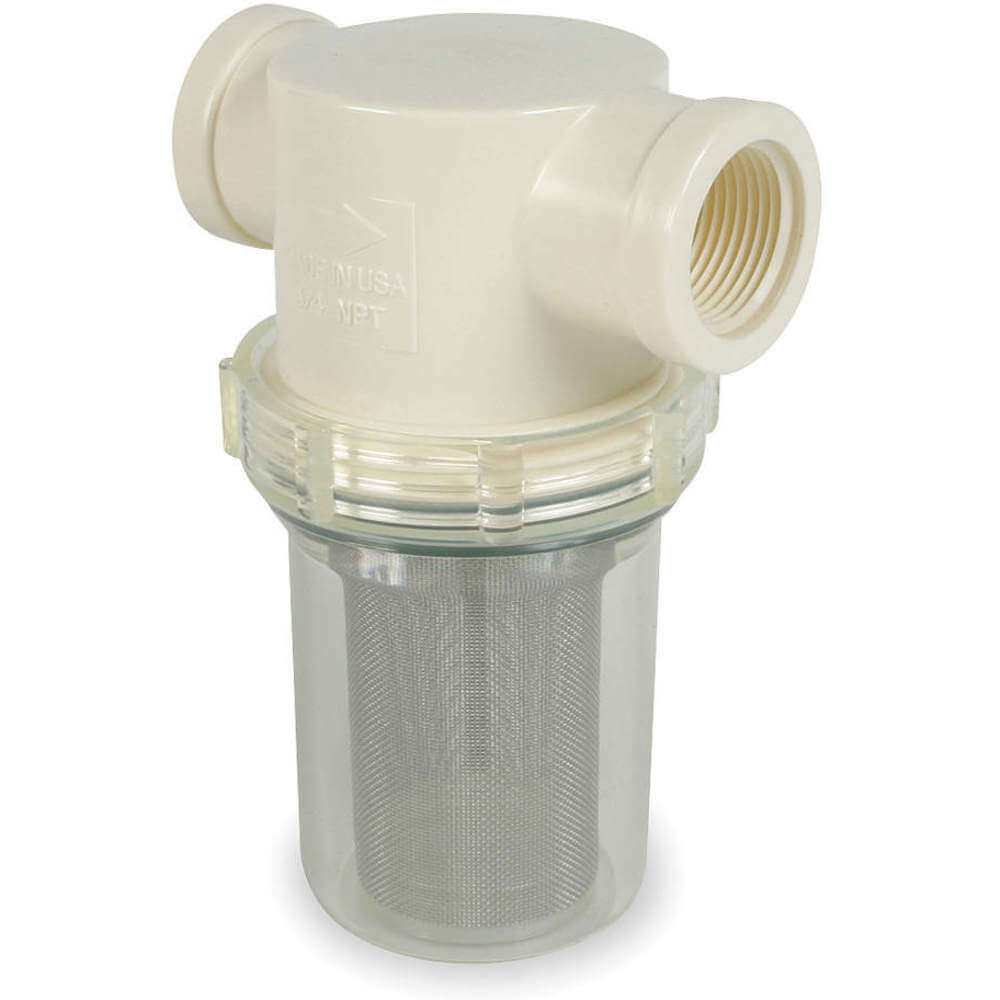

| I | 5733390 | 100 psi | Clear | 5 3/8" | 3/4" | 3/4" | Female | 3" | 7 GPM | €54.98 | |

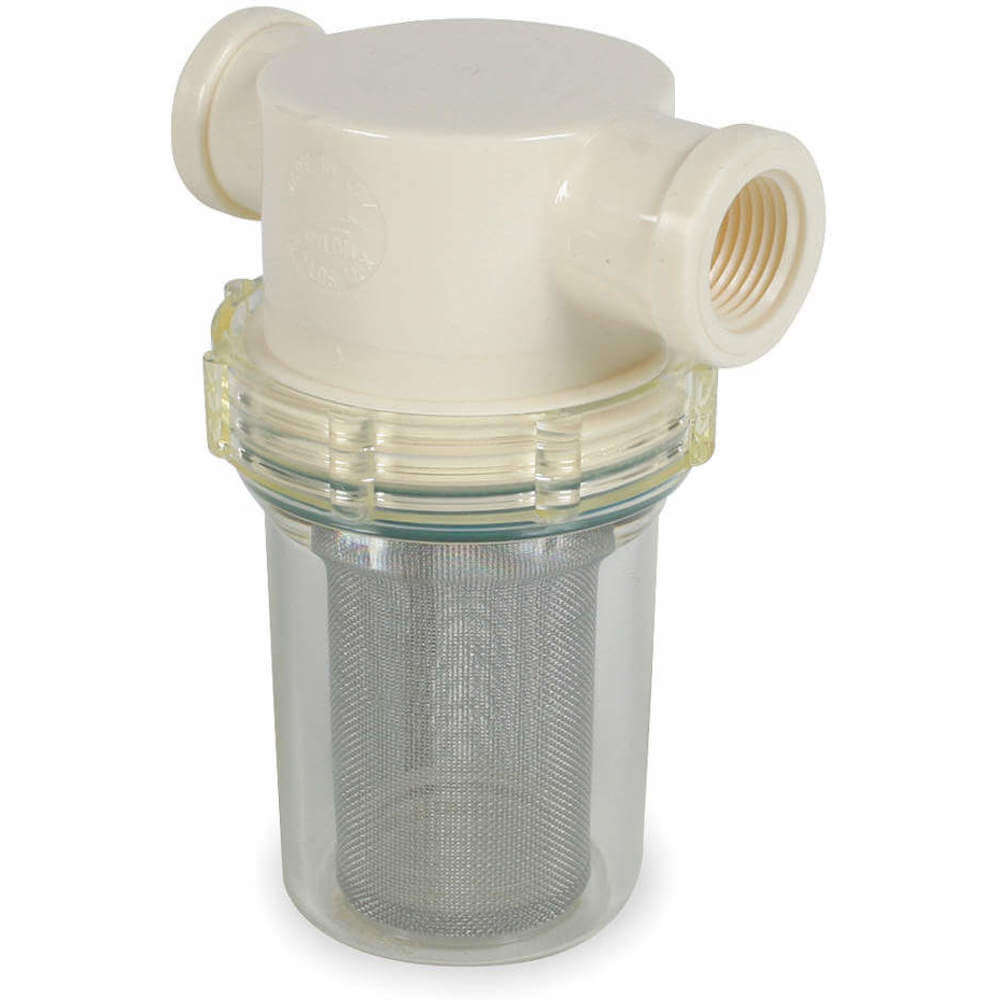

| J | 5732190 | 100 psi | Clear | 5 3/8" | 1/2" | 1/2" | Female | 3" | 5 GPM | €54.98 | |
| E | 5589190 | 100 psi | White | 7 1/8" | 1 1/4" | 1 1/4" | Female | 4" | 14.5 GPM | €106.29 | |
| B | 5586390 | 100 psi | Clear | 2 7/16" | 3/8" | 3/8" | Male | 2" | 1.5 GPM | €27.12 | |
| B | 5585790 | 100 psi | Clear | 2 7/16" | 1/4" | 1/4" | Male | 2" | 0.5 GPM | €27.12 | |
| K | 7221290 | 100 psi | Clear | 2 7/16" | 1/4" | 1/4" | Male | 3" | 0.5 GPM | €24.13 |
Features
- Ron-Vik in-line strainers are an assembly of components like a top, bowl, gasket & wire mesh.
- The top section of these units contains two MNPT / FNPT connections for attaching to 1/4 to 1-1/2 inch pipes and acting as inlet & outlet.
- The bowl section of these units contains the filter for removing debris from the water coming in through the top section.
- The top-bowl connection has a buttress threading to prevent cross-threading during installation.
- They have an EPDM or Viton gasket according to the required temperature & chemical compatibility for a liquid-tight seal. These gaskets are colour coded for easy identification.
- The bowl section contains a stainless steel wire mesh to act as a filter.
- These Ron-Vik inline strainers should be mounted with the necessary support for handling stress & vibrations.
Standards and Approvals
- ISO 9001
Frequently Asked Questions
What are some safety points to follow while operating these Ron-Vik inline strainers?
These Ron-Vik inline strainers should not be used in applications that experience pressure spikes or water hammers. The chemical compatibility of the components should be checked before operating or cleaning these units.
What are the maximum pressure & temperature ratings of these Ron-Vik inline strainers?
Ron-Vik inline strainers can withstand a maximum pressure of 100 psi at a maximum temperature of 125 degrees F and a maximum pressure of 150 psi at 70 degrees F.
How to clean the wire mesh in these Ron-Vik inline strainers?
The attached wire mesh elements can be directly cleaned or replaced by removing the bowl from the top without removing the entire unit from the line.
