ASSOCIATED SPRING RAYMOND Spring Washers
Filter
A
B
C
D
E| Style | Model | Type | Overall Height | Thickness | Max. Outside Dia. | Material | Min. Inside Dia. | Disc Type | Deflection @ Load | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B1750057S | Belleville | 0.11" | 0.057" | 1 3/4" | Stainless Steel | 22/25" | Belleville Spring | 0.029" | 10 | €74.26 | |
| B | U2500110 | Curved | 0.06" | 0.011" | 0.49" | Carbon Steel | 0.265" | Curved Disc Spring | 0.029" | 25 | €49.33 | |
| C | F1555014 | Finger | 0.13" | 0.014" | 1.575" | Carbon Steel | 0.971" | Finger Disc Spring | 0.063" | 25 | €70.70 | |

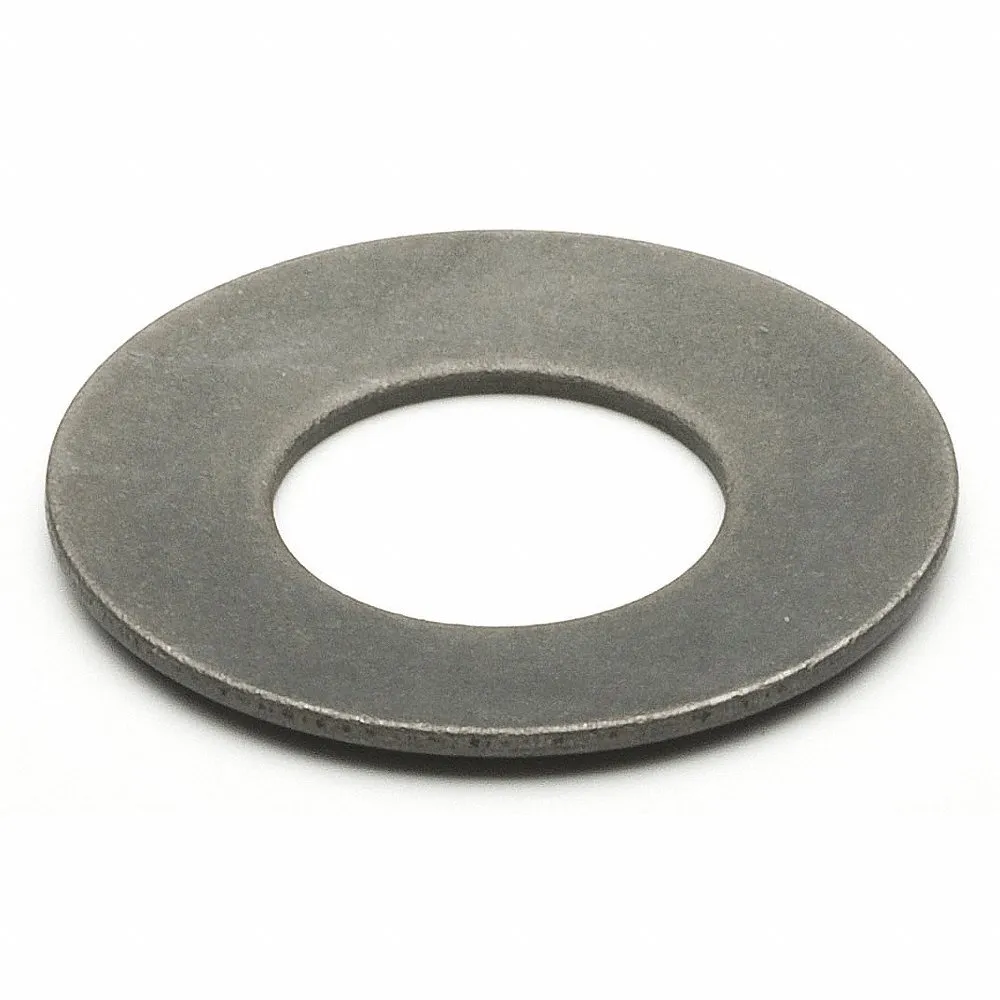

| D | BM990105 | Metric | 2.6 mm | 1 mm | 64 mm | High Carbon Steel | 50 mm | Standard Disc Spring | 1.2 mm | 10 | €137.71 | |
| E | W0608008 | Three Wave Spring Washer | 1/25" | 0.008" | 0.608" | Carbon Steel | 0.459" | Wave Disc Spring | 0.012" | 25 | €49.79 | |
| E | W2132023S | Three Wave Spring Washer | 0.15" | 0.023" | 2.132" | Stainless Steel | 1.658" | Wave Disc Spring | 0.075" | 10 | €50.35 | |
| E | W0367006S | Three Wave Spring Washer | 0.03" | 0.006" | 0.367" | Stainless Steel | 0.265" | Wave Disc Spring | 0.015" | 25 | €40.63 | |
| E | W0734009S | Three Wave Spring Washer | 0.05" | 0.009" | 0.734" | Stainless Steel | 0.531" | Wave Disc Spring | 0.02" | 25 | €49.49 | |
| E | W1102012S | Three Wave Spring Washer | 2/25" | 0.012" | 1.102" | Stainless Steel | 0.856" | Wave Disc Spring | 0.038" | 25 | €63.60 | |
| E | W2132023 | Wave Spring Washer | 0.15" | 0.023" | 2.132" | Carbon Steel | 1.65" | Wave Disc Spring | 0.073" | 15 | €62.78 | |
| E | W1351015S | Wave Spring Washer | 0.1" | 0.015" | 1.351" | Stainless Steel | 1.05" | Wave Disc Spring | 0.049" | 25 | €50.33 |
