RANCO Temperature Controls, SPST Switch, NEMA 1 Enclosure
A
B
C
D
E
F
G
H
I
J
K
L| Style | Model | Voltage | Switch Action | Control Range | Pilot Duty Contacts (va) | Locked Rotor Amps | Capillary Length | Temp. Control Range | Bulb Length | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | o10-1072 | 120/240V | Opens On Rise | -15°F to +40°F | 57.5 VA | 2A | - | - | - | €173.68 | |
| B | o10-1433 | 120/240V AC | Opens On Rise | -35°F to +15°F | 57.5 VA | 144A | 72" | - | 6" | €185.36 | |
| C | O10-1409 | 120/240V AC | Closes On Rise | -15°F to +40°F | 144 VA | - | 72" | - | 1 3/8" | €196.90 | |
| D | o16-263 | 120/240V AC | Opens On Rise Or Fall | 0°F to +55°F | 57.5 VA | 102A | 72" | 0°F to +55°F | 6" | €229.03 | |
| B | o16-104 | 120/240V AC | Opens On Rise Or Fall | 0°F to +55°F | 57.5 VA | 102A | 72" | 0°F to +55°F | - | €172.09 | |
| E | o16-601 | 120/240V AC | Opens On Rise Or Fall | +22.5°F to +47.5°F | 57.5 VA | 102A | 36" | - | 6" | €204.43 | |
| F | o10-1491 | 120/240V AC | Opens On Rise | +25°F to +75°F | 57.5 VA | 144A | 72" | +25°F to +75°F | 6" | €184.14 | |
| B | o10-1473 | 120/240V AC | Opens On Rise | 0°F to +55°F | 57.5 VA | 144A | 72" | 0°F to +55°F | 6" | €161.16 | |
| G | o10-1419 | 120/240V AC | Opens On Rise | -35°F to +15°F | 57.5 VA | 144A | 72" | - | - | €170.48 | |
| H | o10-1010 | 120/240V AC | Opens On Rise | 0°F to +55°F | 55 VA | 144A | 48" | 0°F to +55°F | - | €177.87 | |
| C | O10-1416 | 120/240V AC | Closes On Rise | 0°F to +55°F | 720 VA | 144A | 72" | 0°F to +55°F | - | €200.44 | |
| C | O10-1410 | 120/240V AC | Closes On Rise | +25°F to +75°F | 720 VA | 144A | 72" | +25°F to +75°F | 1 3/8" | €200.48 | |
| C | O10-1408 | 120/240V AC | Closes On Rise | -2°F to +38°F | 144 VA | - | 72" | - | 1 3/8" | €200.77 | |
| B | o16-264 | 120/240V AC | Opens On Rise Or Fall | 0°F to +55°F | 57.5 VA | 102A | 96" | 0°F to +55°F | - | €194.83 | |
| I | o16-111 | 120/240V AC | Opens On Rise Or Fall | 0°F to +55°F | 57.5 VA | 102A | 72" | 0°F to +55°F | - | €191.86 | |

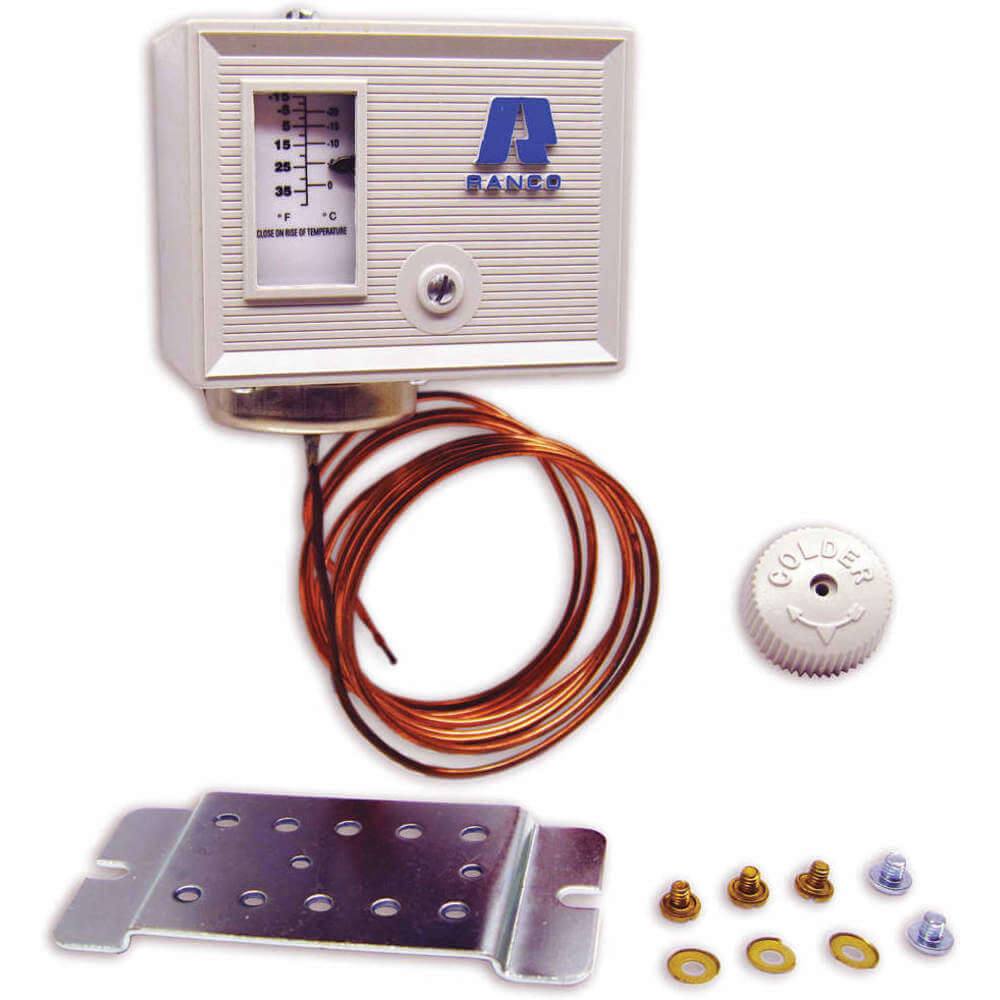

| J | o16-588 | 120/240V AC | Opens On Rise | -15°F to +40°F | 57.5 VA | 102A | 72" | - | - | €208.92 | |
| K | o10-1802 | 120/240V AC | Opens On Rise | +25°F to +75°F | 57.5 VA | 144A | - | +25°F to +75°F | - | €177.91 | |
| L | O10-1418 | 120/240V AC | Closes On Rise | +25°F to +75°F | 720 VA | 144A | - | +25°F to +75°F | 1 1/2" | €196.72 |
Temperature Controls, SPST Switch, NEMA 1 Enclosure
Ranco O Series temperature controls are ideal for heating, air conditioning, ventilating and commercial refrigeration systems. They include heavy-duty, non-corrosive, plated steel frames & raised screw terminals for fully accessible wiring. They feature non-conductive covers with front-located captive cover screws and large easy-to-read scales. The sensing elements comprise refrigerant charges that develop pressures relative to the temperature being sensed and operate the switch located within. These universally mounted, compact design controls meet NEMA 1-rated enclosures to prevent accidental contacts & dust from entering in and have laser-welded bellows for extended life. They further feature SPST (single pole single throw) or SPDT (single pole double throw) switches to adjust temperature settings and are available in extra low, medium, high and low temperature types.
