PNEUMADYNE INC Inline Manifolds
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1| Style | Model | Overall Width | For Fluid Type | Inlet Connection Size | Outlet Spacing | Min. Operating Temp. | Max. Operating Temp. | Max. Operating Pressure | Mounting Hole Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M35-375-6 | 1 1/2" | Fluid, Gas | 3/4" | 1 1/8" | -10°F | 200°F | 3000 psi | 1/5" | €64.85 | |
| B | M30-375-3 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €48.64 | |
| C | M35-375-10 | 1 1/2" | Fluid, Gas | 3/4" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €94.18 | |
| D | M35-375-8 | 1 1/2" | Fluid, Gas | 3/4" | 1 1/8" | -10°F | 200°F | 3000 psi | 1/5" | €91.11 | |
| E | M35-375-5 | 1 1/2" | Fluid, Gas | 3/4" | 1 1/8" | -10°F | 200°F | 3000 psi | 1/5" | €61.02 | |
| F | M35-375-4 | 1 1/2" | Fluid, Gas | 3/4" | 1 1/8" | -10°F | 200°F | 3000 psi | 1/5" | €60.59 | |
| B | M35-375-3 | 1 1/2" | Fluid, Gas | 3/4" | 1 1/8" | -10°F | 200°F | 3000 psi | 1/5" | €57.52 | |
| G | M35-375-2 | 1 1/2" | Fluid, Gas | 3/4" | 1 1/8" | -10°F | 200°F | 3000 psi | 1/5" | €52.47 | |
| C | M30-375-10 | 1 1/2" | - | - | - | - | - | - | - | €79.57 | |
| D | M30-375-8 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €78.73 | |
| H | M30-375-7 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €66.02 | |
| A | M30-375-6 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €56.37 | |
| E | M30-375-5 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €56.39 | |
| F | M30-375-4 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €50.98 | |
| G | M30-375-2 | 1 1/2" | Fluid, Gas | 1/2" | 1" | -10°F | 200°F | 3000 psi | 1/5" | €45.93 | |
| C | M20-250-10 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €47.48 | |

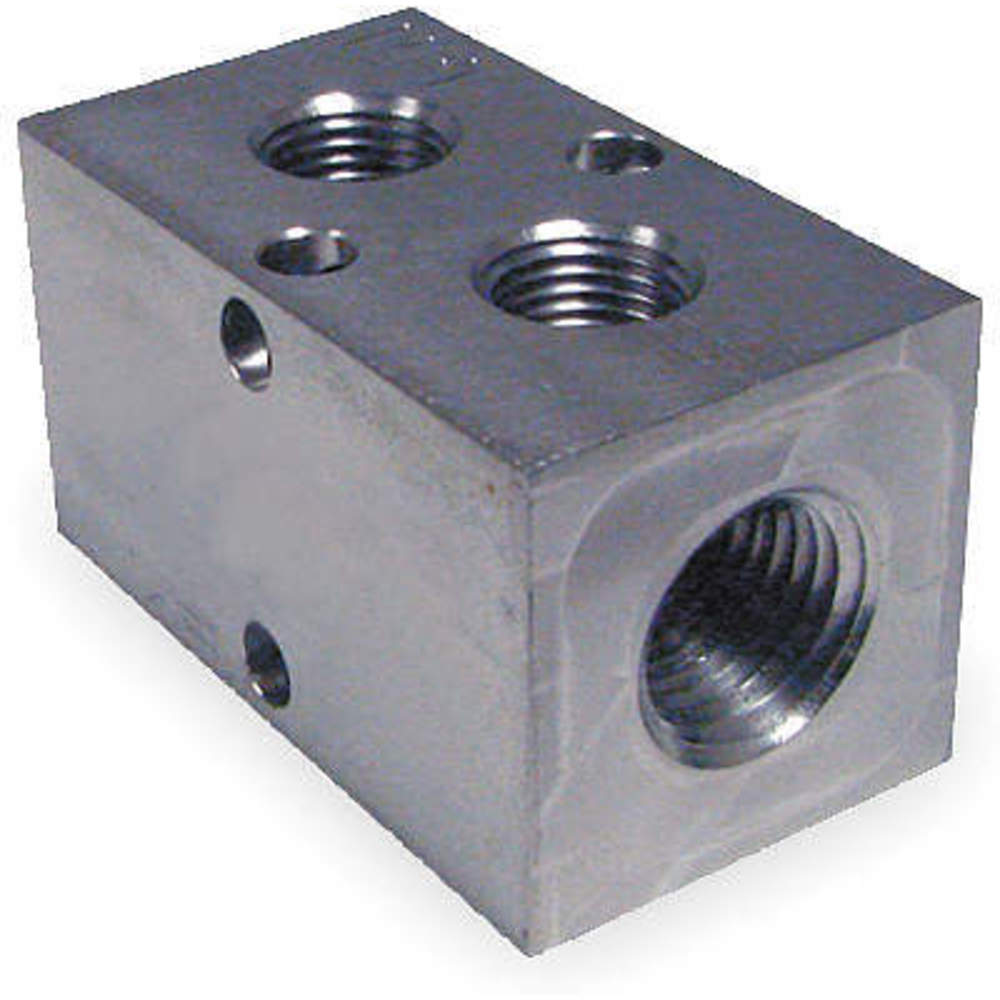

| I | M20-250-2-SS | 1 1/4" | - | - | - | - | - | - | - | €153.84 | |
| J | M20-250-10-SS | 1 1/4" | Air, Hydraulic Oil, Water | 3/8" | 7/8" | -100°F | 500°F | 3500 psi | 1/5" | €288.43 | |
| K | M20-250-8-SS | 1 1/4" | Air, Hydraulic Oil, Water | 3/8" | 7/8" | -100°F | 500°F | 3500 psi | 1/5" | €254.80 | |
| L | M20-250-6-SS | 1 1/4" | Air, Hydraulic Oil, Water | 3/8" | 7/8" | -100°F | 500°F | 3500 psi | 1/5" | €222.76 | |
| M | M20-250-4-SS | 1 1/4" | Air, Hydraulic Oil, Water | 3/8" | 7/8" | -100°F | 500°F | 3500 psi | 1/5" | €173.90 | |
| G | M20-250-2 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €29.01 | |
| B | M20-250-3 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €33.59 | |
| F | M20-250-4 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €36.70 | |
| E | M20-250-5 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €38.20 | |
| A | M20-250-6 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €39.74 | |
| H | M20-250-7 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €42.08 | |
| D | M20-250-8 | 1 1/4" | Fluid, Gas | 3/8" | 7/8" | -10°F | 200°F | 3000 psi | 1/5" | €44.41 | |

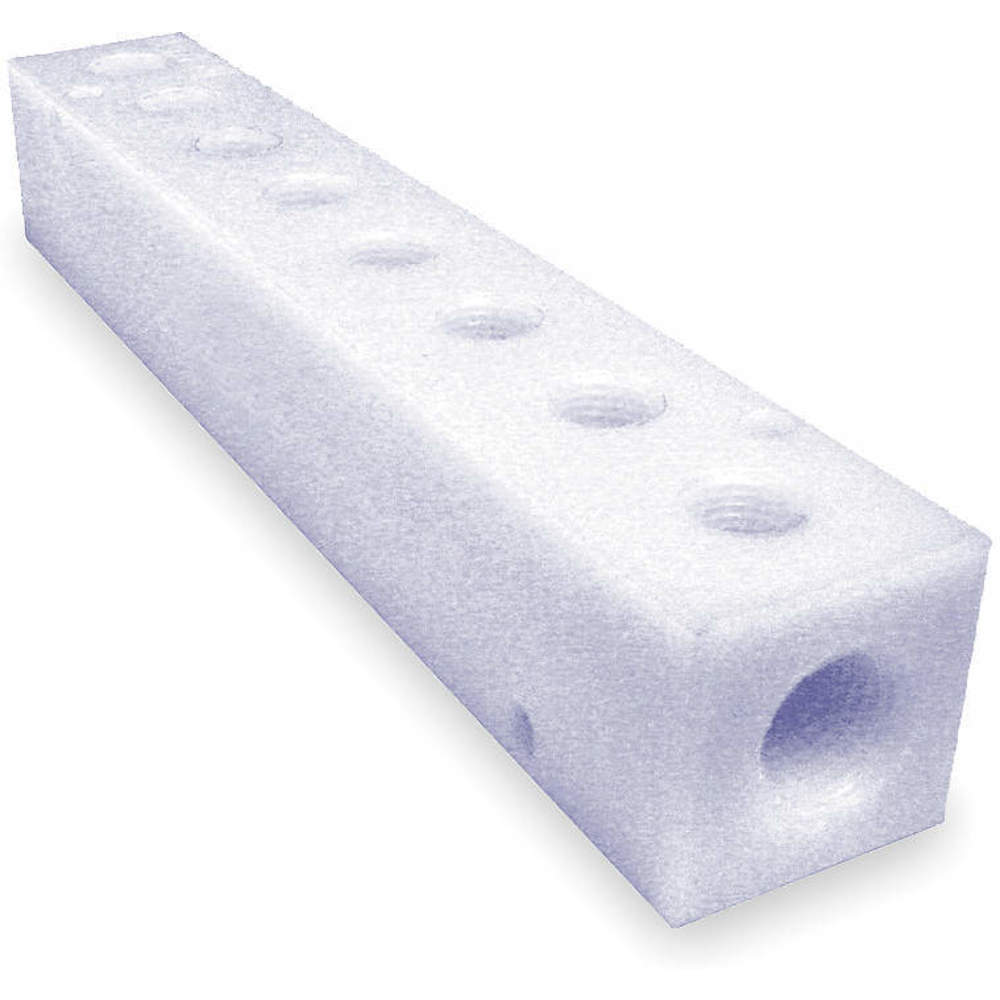

| N | M20-250-8-PPN | 1 1/4" | Air, Water | 3/8" | 7/8" | 32°F | 230°F | 150 psi | 1/5" | - | RFQ
|
| L | M10-125-6-SS | 1" | Air, Hydraulic Oil, Water | 1/4" | 3/4" | -100°F | 500°F | 3500 psi | 0.17" | €165.79 | |

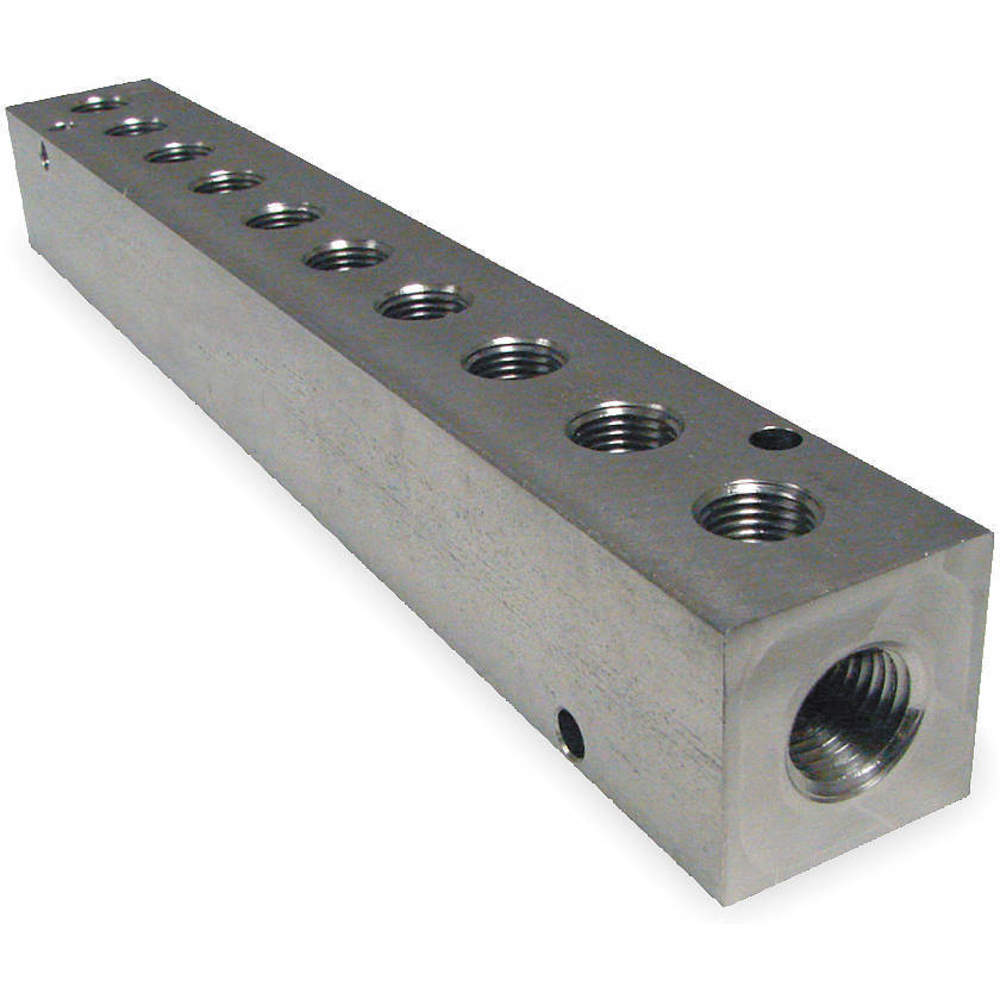

| J | M10-125-10-SS | 1" | Air, Hydraulic Oil, Water | 1/4" | 3/4" | -100°F | 500°F | 3500 psi | 0.17" | €205.95 | |

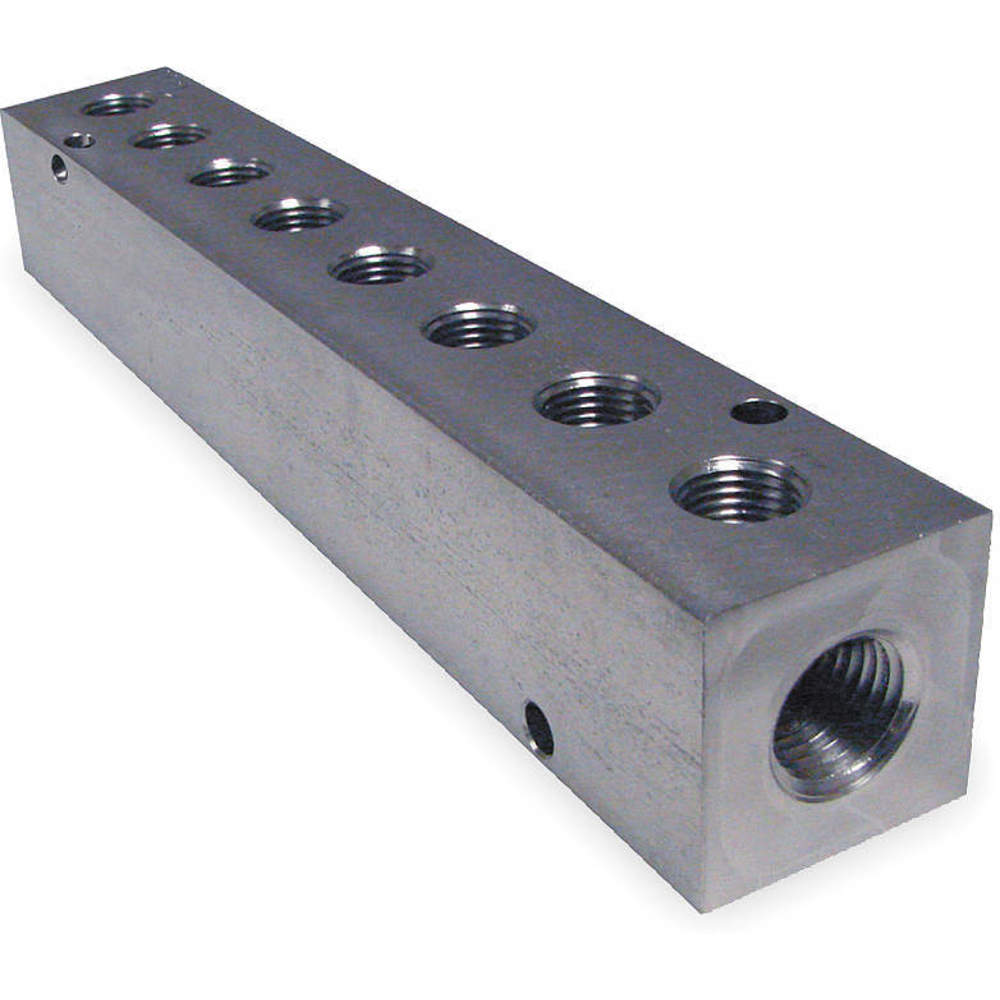

| K | M10-125-8-SS | 1" | Air, Hydraulic Oil, Water | 1/4" | 3/4" | -100°F | 500°F | 3500 psi | 0.17" | €178.39 | |
| G | M10-125-2 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €28.27 | |
| M | M10-125-4-SS | 1" | Air, Hydraulic Oil, Water | 1/4" | 3/4" | -100°F | 500°F | 3500 psi | 0.17" | €147.85 | |
| B | M10-125-3 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €30.36 | |
| C | M10-125-10 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €44.76 | |
| D | M10-125-8 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €41.74 | |
| H | M10-125-7 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €39.01 | |
| A | M10-125-6 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €36.66 | |
| E | M10-125-5 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €34.75 | |
| F | M10-125-4 | 1" | Fluid, Gas | 1/4" | 3/4" | -10°F | 200°F | 3000 psi | 0.17" | €32.46 | |
| I | M10-125-2-SS | 1" | Air, Hydraulic Oil, Water | 1/4" | 3/4" | -100°F | 500°F | 3500 psi | 0.17" | €132.35 | |

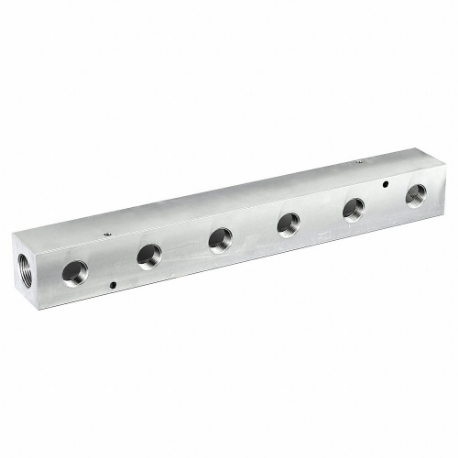

| O | M40-750-6 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €182.75 | |

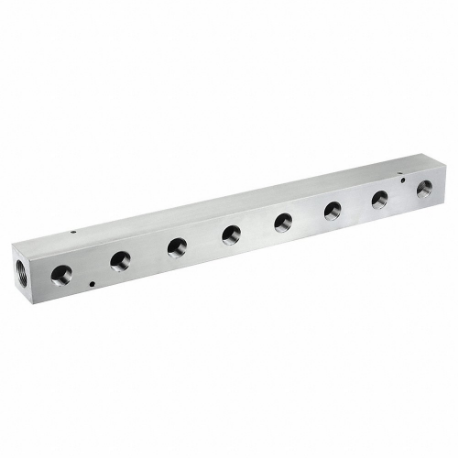

| P | M40-750-8 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €238.88 | |

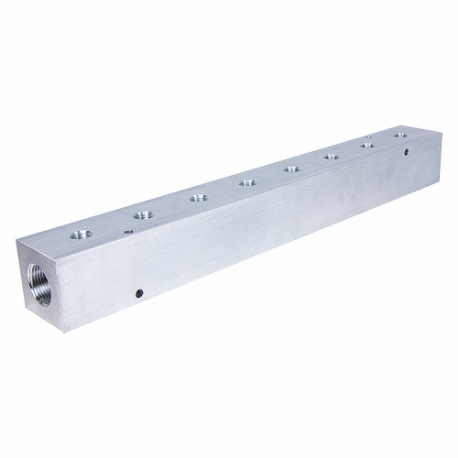

| Q | M40-500-8 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €204.10 | |

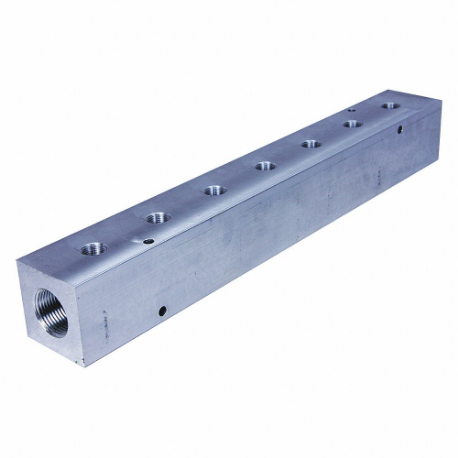

| R | M40-750-7 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €213.53 | |
| R | M40-500-7 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €179.58 | |

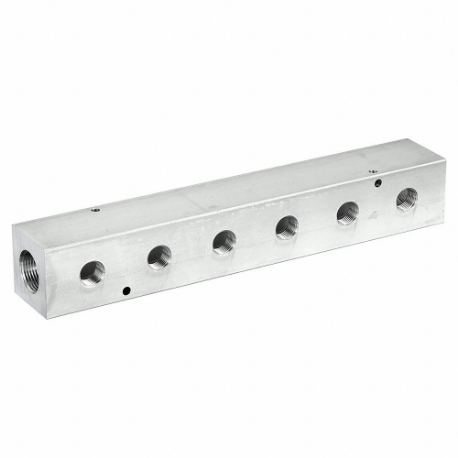

| S | M40-500-6 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €151.91 | |

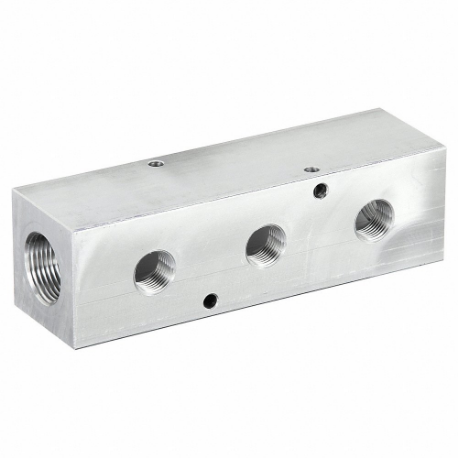

| T | M40-500-3 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €106.00 | |

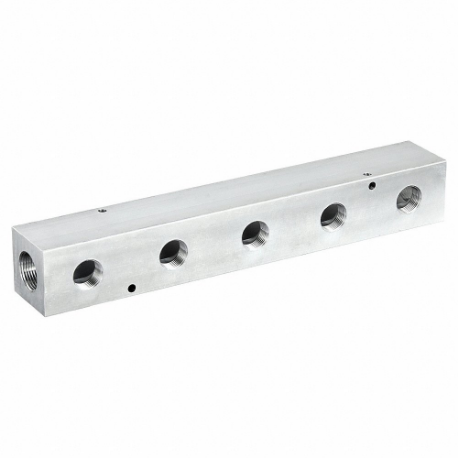

| U | M40-750-5 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €168.50 | |

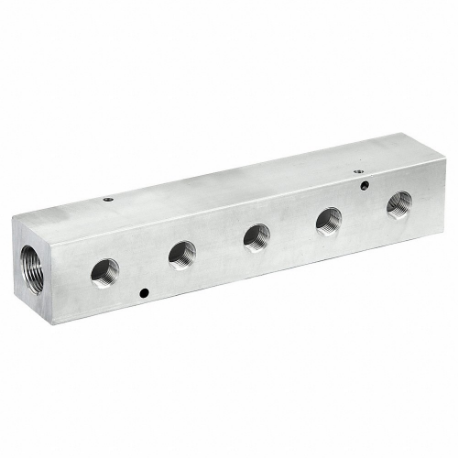

| V | M40-500-5 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €141.41 | |
| W | M40-500-4 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €135.24 | |

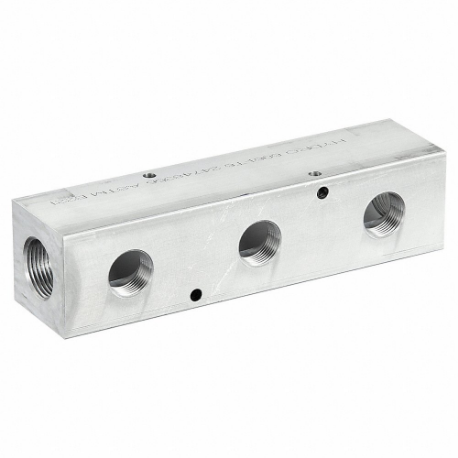

| X | M40-750-3 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €136.06 | |

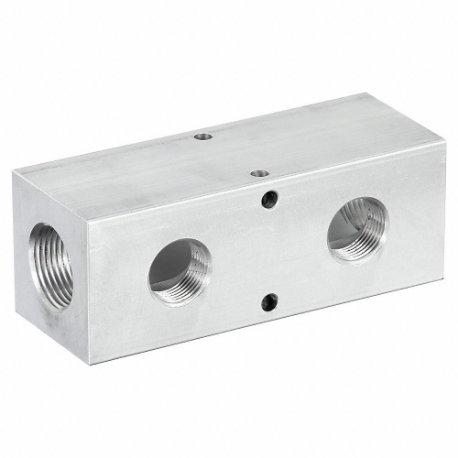

| Y | M40-750-2 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €118.66 | |
| Z | M40-500-2 | 2 1/4" | Fluid, Gas | 1" | 2 1/4" | -10°F | 200°F | 3000 psi | 0.26" | €102.03 | |

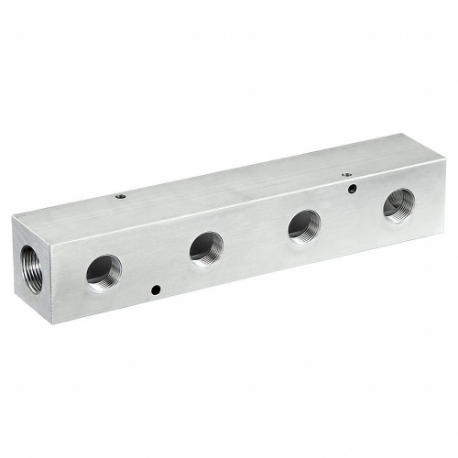

| A1 | M40-750-4 | 2 1/4" | Fluid, Gas | 1" | 3" | -10°F | 200°F | 3000 psi | 0.26" | €163.69 |
