PNEUMADYNE INC 90 Degree Inline Manifolds
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S| Style | Model | Overall Width | Outlet Spacing | Mounting Hole Dia. | Overall Length | Overall Height | Inlet Connection Size | Outlet Connection Size | Inlet Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M30-375-10-90 | 1 1/2" | 1" | 1/5" | 10 3/4" | 1 1/2" | 1/2" | 3/8" | 1/2" | €101.19 | |
| B | M30-375-6-90 | 1 1/2" | 1" | 1/5" | - | 1 1/2" | 1/2" | - | 1/2" | €69.86 | |
| C | M30-375-5-90 | 1 1/2" | 1" | 1/5" | - | 1 1/2" | 1/2" | 3/8" | 1/2" | €70.70 | |
| D | M30-375-4-90 | 1 1/2" | 1" | 1/5" | 4 3/4" | 1 1/2" | 1/2" | 3/8" | 1/2" | €63.72 | |
| E | M30-375-2-90 | 1 1/2" | 1" | 1/5" | 2 3/4" | 1 1/2" | 1/2" | 3/8" | 1/2" | €58.30 | |
| F | M30-375-3-90 | 1 1/2" | 1" | 1/5" | 3 3/4" | 1 1/2" | 1/2" | 3/8" | 1/2" | €64.09 | |
| G | M30-375-8-90 | 1 1/2" | 1" | 1/5" | 8 3/4" | - | 1/2" | 3/8" | 1/2" | €96.52 | |
| D | M20-250-4-90 | 1 1/4" | 7/8" | 1/5" | 3.88" | 1 1/4" | 3/8" | - | 3/8" | €44.28 | |
| C | M20-250-5-90 | 1 1/4" | 7/8" | 1/5" | 4 3/4" | 1 1/4" | 3/8" | - | 3/8" | €46.34 | |
| F | M20-250-3-90 | 1 1/4" | 7/8" | 1/5" | 3" | 1 1/4" | 3/8" | - | 3/8" | €40.56 | |
| B | M20-250-6-90 | 1 1/4" | 7/8" | 1/5" | 5.63" | 1 1/4" | 3/8" | - | 3/8" | €49.44 | |
| G | M20-250-8-90 | 1 1/4" | 7/8" | 1/5" | 7.38" | - | 3/8" | - | 3/8" | €56.37 | |
| E | M20-250-2-90 | 1 1/4" | 7/8" | 1/5" | 2.13" | - | 3/8" | - | 3/8" | €37.06 | |
| A | M20-250-10-90 | 1 1/4" | 7/8" | 1/5" | 9.13" | - | 3/8" | - | 3/8" | €59.46 | |
| G | M10-125-8-90 | 1" | 3/4" | 0.17" | 6 1/4" | 1" | 1/4" | - | 1/4" | €54.76 | |
| B | M10-125-6-90 | 1" | - | - | 4 3/4" | 1" | - | - | 1/4" | €48.25 | |
| C | M10-125-5-90 | 1" | 3/4" | 0.17" | 4" | 1" | 1/4" | 1/8" | 1/4" | €45.55 | |
| F | M10-125-3-90 | 1" | 3/4" | 0.17" | 2 1/2" | 1" | 1/4" | 1/8" | 1/4" | €39.76 | |
| D | M10-125-4-90 | 1" | 3/4" | 0.17" | 3 1/4" | 1" | 1/4" | 1/8" | 1/4" | €42.47 | |
| E | M10-125-2-90 | 1" | 3/4" | 0.17" | 1 3/4" | 1" | 1/4" | 1/8" | 1/4" | €35.50 | |
| H | M40-500-5-90 | 2 1/4" | 2 1/4" | 0.26" | 12" | 2 1/4" | 1" | - | 1" | €158.99 | |
| I | M40-500-8-90 | 2 1/4" | 2 1/4" | 0.26" | 18 3/4" | 2 1/4" | 1" | - | 1" | €227.77 | |
| J | M40-750-7-90 | 2 1/4" | 3" | 0.26" | 21" | 2 1/4" | - | - | 1" | €236.47 | |

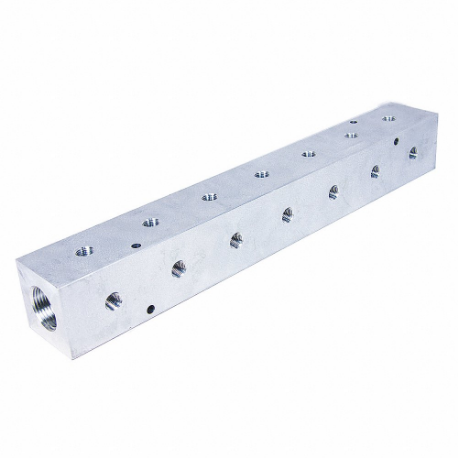

| J | M40-500-7-90 | 2 1/4" | 2 1/4" | 0.26" | 16 1/2" | 2 1/4" | 1" | - | 1" | €196.94 | |
| K | M40-750-6-90 | 2 1/4" | 3" | 0.26" | 18" | 2 1/4" | 1" | - | 1" | €200.11 | |
| K | M40-500-6-90 | 2 1/4" | 2 1/4" | 0.26" | 14 1/4" | 2 1/4" | 1" | - | 1" | €165.32 | |
| L | M40-750-2-90 | 2 1/4" | 3" | 0.26" | 6" | 2 1/4" | 1" | - | 1" | €136.83 | |
| M | M40-750-5-90 | 2 1/4" | 3" | 0.26" | 15" | 2 1/4" | - | - | 1" | €185.09 | |
| N | M40-500-4-90 | 2 1/4" | 2 1/4" | 0.26" | 9 3/4" | 2 1/4" | - | - | 1" | €151.10 | |
| O | M40-750-4-90 | 2 1/4" | 3" | 0.26" | 12" | 2 1/4" | 1" | - | 1" | €181.14 | |
| P | M40-750-3-90 | 2 1/4" | 3" | 0.26" | 9" | 2 1/4" | 1" | - | 1" | €158.99 | |
| Q | M40-500-3-90 | 2 1/4" | 2 1/4" | 0.26" | 7 1/2" | 2 1/4" | 1" | - | 1" | €130.54 | |
| R | M40-500-2-90 | 2 1/4" | 2 1/4" | 0.26" | 5 1/4" | 2 1/4" | - | - | 1" | €115.50 | |

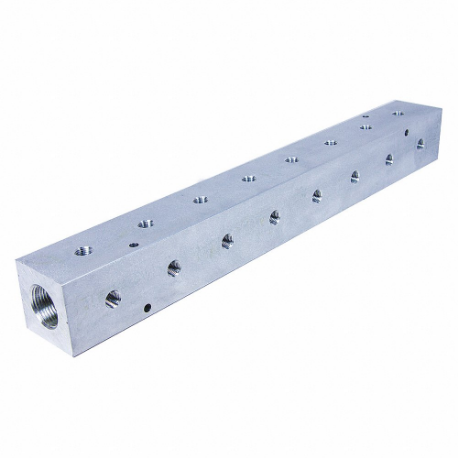

| S | M40-750-8-90 | 2 1/4" | 3" | 0.26" | 24" | 2 1/4" | 1" | - | 1" | €262.58 |
