PETERSEN PRODUCTS 137 Series Pipe Plug
A
B
C
D
E
F| Style | Model | Deflated Dia. | Deflated Diameter | Nominal Size | Plug Length | Deflated Length | Price | |
|---|---|---|---|---|---|---|---|---|
| A | 137-002-MM | 1 2/5" | 1 2/5" | 1.5" to 2.8" | 6.3" | - | €139.31 | |
| B | 137-002-8 | 1 4/5" | 1 4/5" | 2" | 3.1" | - | €168.30 | |
| C | 137-002 | 1 4/5" | 1 4/5" | 2" | 2 4/5" | - | €52.26 | |
| C | 137-003-M | 1 4/5" | 1 4/5" | 2" to 3" | - | - | €67.70 | |
| C | 137-0016 | 1.3" | 1.3" | - | 2 4/5" | - | €49.74 | |
| B | 137-004-8M | 2 4/5" | 2 4/5" | 3" to 4" | 0.5 ft. | - | €236.55 | |
| B | 137-003-8 | 2 4/5" | 2 4/5" | 3" | 3.3" | - | €185.13 | |
| C | 137-003 | 2 4/5" | 2 4/5" | 3" | 3.3" | - | €58.25 | |
| C | 137-004-M | 2 4/5" | 2 4/5" | 3" to 4" | - | - | €74.62 | |
| A | 137-006-MM | 2.7" | 2.7" | 2.8" to 6" | 12" | - | €194.48 | |
| A | 137-008-MM | 3 3/5" | 3 3/5" | 4" to 8" | 20" | - | €277.70 | |
| B | 137-006-8M | 3.3" | 3.3" | 4" to 6" | 0.5 ft. | - | €259.93 | |
| C | 137-006-M | 3.3" | 3.3" | 4" to 6" | - | - | €146.80 | |
| C | 137-004 | 3.3" | 3.3" | 4" | 5.7" | - | €71.99 | |
| B | 137-004-8 | 3.3" | 3.3" | 4" | 5.7" | - | €191.67 | |
| C | 137-0013 | 4/5" | 4/5" | 1" | 2 3/5" | - | €47.97 | |
| A | 137-012-MM | 5 3/5" | 5 3/5" | 6" to 12" | 21" | - | €404.85 | |

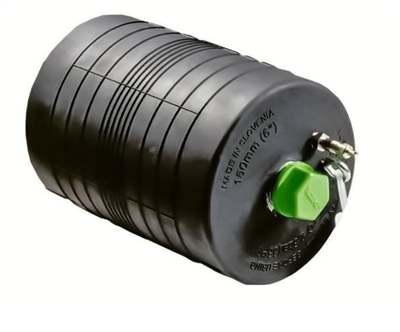

| D | 137-006-8 | 5 3/5" | 5 3/5" | 6" | 7 1/2" | - | €225.33 | |
| C | 137-006 | 5 3/5" | 5 3/5" | 6" | 7 1/2" | - | €132.77 | |
| E | 137-008-M | 5 3/5" | 5 3/5" | 6" to 8" | - | - | €228.14 | |
| B | 137-008-8M | 5 3/5" | 5 3/5" | 6" to 8" | 1 ft. | - | €330.06 | |
| B | 137-008-8 | 6.9" | 6.9" | 8" | 9 1/2" | - | €300.14 | |
| E | 137-008 | 6.9" | 6.9" | 8" | 8.7" | - | €214.12 | |
| A | 137-016 | 7 3/5" | 7 3/5" | 16" | 24" | 25" | €489.94 | |
| E | 137-010 | 8 3/5" | 8 3/5" | 10" | 9 4/5" | - | - | RFQ
|
| B | 137-010-8 | 8 3/5" | 8 3/5" | 10" | 11 4/5" | - | €364.65 | |
| E | 137-012 | 10 4/5" | 10 4/5" | 12" | 10 4/5" | - | - | RFQ
|
| B | 137-012-8 | 10 4/5" | 10 4/5" | 12" | 13.7" | - | €699.60 | |
| A | 137-021 | 10.7" | 10.7" | 12" to 21" | 25" | - | €682.55 | |
| A | 137-024 | 12.7" | 12.7" | 14" to 24" | 33" | - | €758.28 | |
| F | 137-030 | 13 1/2" | 13 1/2" | 15" to 30" | 41" | - | €1,271.60 | |
| F | 137-040 | 18 3/5" | 18 3/5" | 20" to 40" | 45" | - | €1,608.20 | |
| F | 137-048 | 22 3/5" | 22 3/5" | 24" to 48" | 57" | - | €2,664.75 | |
| F | 137-060 | 23 3/5" | 23 3/5" | 30" to 60" | 91" | - | - | RFQ
|
137 Series Pipe Plug
Petersen Products 137 Series plumber / municipal test plugs are suitable for testing and temporary sealing pipes / fixtures during maintenance, repairs or installations. These small-diameter plugs are not supported by a cord, hence they provide excellent stretching and sealing characteristics in pipe diameters ranging from 20 to 305 mm. Selected models have a flow-thru bypass that allows fluid to pass through the plug while it is installed in a pipe. This functionality is used for applications, such as pressure testing, fluid sampling and flow control or diversion. These test plugs are made of NR / BR rubber, providing exceptional tensile strength, abrasion resistance and enhanced flexibility. They are designed to withstand a maximum temperature of 158 degrees F and are available in single or multi-size configuration.
