PARKER SRGM Series Air Cylinders, 3/4 Inch Bore
Filter
A
B
C
D
E
F
G
H
I| Style | Model | Stroke Length | Mounting | Max. Air Service Pressure | Dia. | Bore Size | Pressure | Shape | Price | |
|---|---|---|---|---|---|---|---|---|---|---|
| A | 0.75DXPSRGMY01.00 | 1" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €248.13 | |

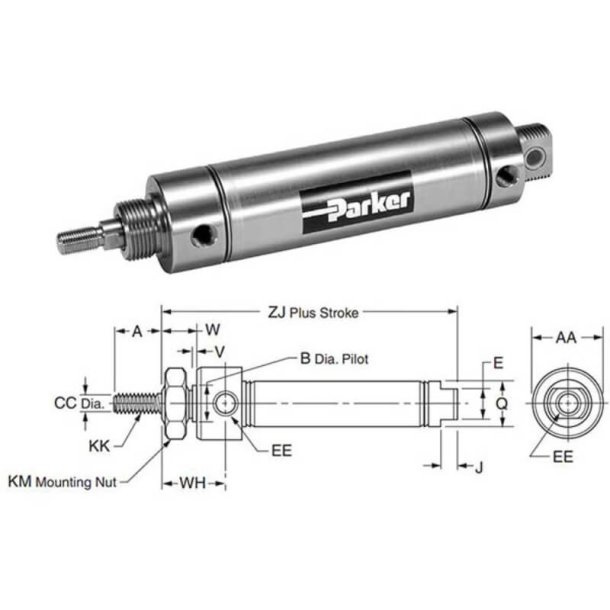

| B | 0.75DSRGMVY00.50 | 1/2" | Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €230.44 | |
| C | 0.75DXPSRGMY03.75 | 3 3/4" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €261.32 | |
| D | 0.75DXPSRGMY03.00 | 3" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €256.12 | |
| E | 0.75DXPSRGMY04.00 | 4" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €261.32 | |
| F | 0.75DXPSRGMVY04.00 | 4" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €282.90 | |
| G | 0.75DXPSRGMY05.00 | 5" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €265.26 | |
| H | 0.75DXPSRGMY06.00 | 6" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €267.88 | |

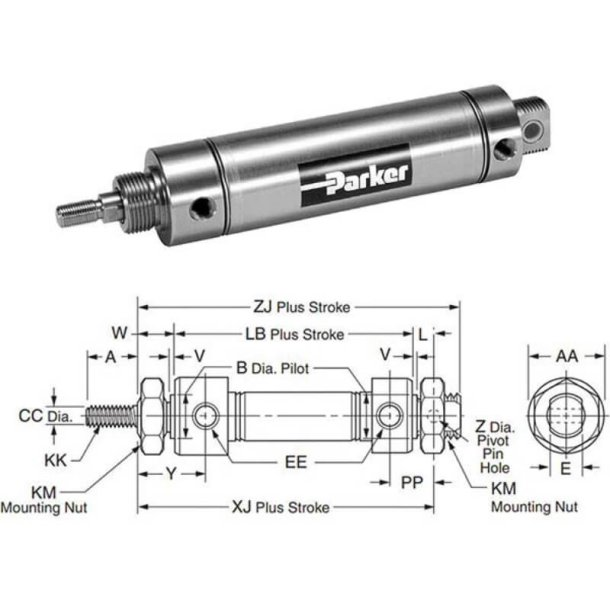

| I | 0.75DXPSRGMY08.00 | 8" | Pivot, Nose Mounting | 250 psig | 1/4" | 3/4" | 250 psig (Max. Air Service) 17 Bar (Max. Air Service) | Cylindrical | €275.85 |
