PARKER Barbed Hydraulic Hose Fittings
Filter
A
B
C
D
E
F
G
H
I
J
K
L| Style | Model | For Hose Dash Size | Fitting Material | For Hose I.d. | Fitting Size | Hose Fitting A Size | Barb Size | Overall Length | Hose Fitting A Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 30682-5-4 | -4 | Steel | 1/4" | - | 1/2" | 5/16" | 1.58" | JIC | €14.13 | |
| A | 30682-4-4 | -4 | Steel | 1/4" | - | 7/16" | 1/4" | 1.52" | JIC | €9.60 | |
| A | 30682-6-4B | -4 | Brass | - | - | 9/16" | 3/8" | 1.61" | JIC | €19.84 | |
| B | 30182-4-4 | -4 | Steel | 1/4" | - | 1/4" | 1/4" | 1.57" | Hose Barb | €10.30 | |
| C | 37982-6-6 | -6 | Steel | 3/8" | - | 5/8" | 3/8" | 1.98" | JIC | €41.65 | |

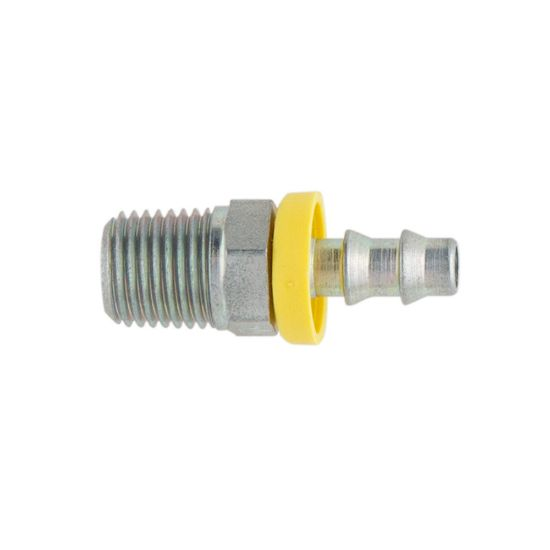

| D | 30182-4-6 | -6 | Steel | 3/8" | - | 3/8" | 3/8" | 1.75" | Hose Barb | €9.83 | |
| E | 30882-6-6B | -6 | Brass | 3/8" | - | 5/8" | 3/8" | 1.81" | SAE | €15.53 | |
| E | 30882-6-6 | -6 | Steel | 3/8" | - | 5/8" | 3/8" | 1.81" | SAE | €12.05 | |
| F | 30182-6-6 | -6 | Steel | 3/8" | - | 3/8" | 3/8" | 1.78" | Hose Barb | €14.88 | |
| G | 37782-6-6 | -6 | Steel | 3/8" | - | 5/16" | 3/8" | 2.08" | JIC | €43.60 | |
| A | 30682-6-6 | -6 | Steel | 3/8" | - | 9/16" | 3/8" | 1.75" | JIC | €12.44 | |
| B | 30182-6-8 | -8 | Steel | 1/2" | - | 3/8" | 3/8" | 1.93" | Hose Barb | €18.41 | |
| A | 30682-10-8B | -8 | Brass | 1/2" | - | 7/8" | 5/8" | 2.14" | JIC | €42.31 | |
| A | 30682-6-8 | -8 | Steel | 1/2" | - | 9/16" | 3/8" | 1.9" | JIC | €18.21 | |
| F | 30182-8-8 | -8 | Steel | - | - | 1/2" | 1/2" | 2.18" | - | €28.27 | |
| F | 30182-4-8 | -8 | Steel | 1/2" | - | 1/2" | 1/2" | 1.93" | Hose Barb | €13.08 | |
| H | 30182-4-8B | -8 | Brass | 1/2" | - | 1/2" | 1/2" | 1.93" | Hose Barb | €49.84 | |
| A | 30682-8-8 | -8 | Steel | 1/2" | - | 3/4" | 1/2" | 2.02" | JIC | €19.44 | |
| A | 30682-6-8B | -8 | Brass | 1/2" | - | 9/16" | 3/8" | 1.9" | JIC | €26.39 | |
| A | 30682-10-10 | -10 | Steel | 5/8" | - | 7/8" | 5/8" | 2.54" | JIC | €38.84 | |
| F | 30182-8-10 | -10 | Steel | 5/8" | - | 5/8" | 5/8" | 2.58" | Hose Barb | €34.09 | |
| I | 33782-12-12 | -10 | Steel | 1/4" | - | 1/2" | 3/4" | 3.48" | JIC | €125.60 | |
| J | 30682-8-10 | -10 | Steel | 5/8" | - | 3/4" | 5/8" | 2.14" | JIC | €39.02 | |
| F | 30182-12-10 | -10 | Steel | 5/8" | - | 5/8" | 5/8" | 2.61" | Hose Barb | €39.74 | |
| E | 30882-12-12B | -12 | Brass | 3/4" | - | 1 1/16" | 3/4" | 2.65" | SAE | €60.79 | |
| F | 30182-12-12 | -12 | Steel | 3/4" | - | 3/4" | 3/4" | 2.61" | - | €42.73 | |
| K | 31382-12-12 | -12 | Steel | 3/4" | - | 3/4" | 3/4" | 3.7" | NPTF | €110.03 | |
| F | 30182-8-12B | -12 | Brass | 3/4" | - | 3/4" | 3/4" | 2.58" | Hose Barb | €48.77 | |
| A | 30682-12-12 | -12 | Steel | 3/4" | - | 1 1/16" | 3/4" | 2.65" | JIC | €44.14 | |
| E | 30882-12-12 | -12 | Steel | 3/4" | - | 1 1/16" | 3/4" | 2.65" | SAE | €48.81 | |

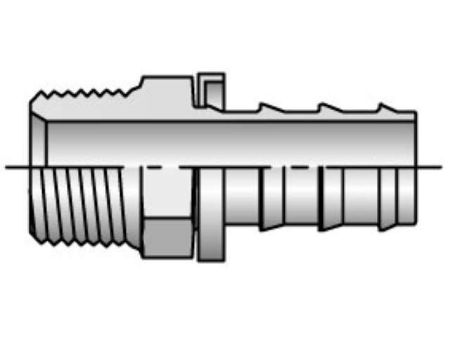

| L | 30182-16-12B | -12 | Brass | 3/4" | - | 3/4" | 3/4" | 1.375" | Hose Barb | €61.98 | |
| A | 30682-16-16B | -16 | Brass | 1" | 1.312" x 1" | 1 5/16" | 1" | 2.65" | JIC | €77.46 | |
| F | 30182-16-16B | -16 | Brass | 1" | 1" x 1" | 1" | 1" | 1.375" | Hose Barb | €62.26 |
