OSG High-Performance Spiral-Flute Taps

Filter

Style	Model	Tap Finish	Thread Length	Overall Length	Thread Limit	75% Thread Drill Size	Thread Size	Thread Standard	Tap Material	Price

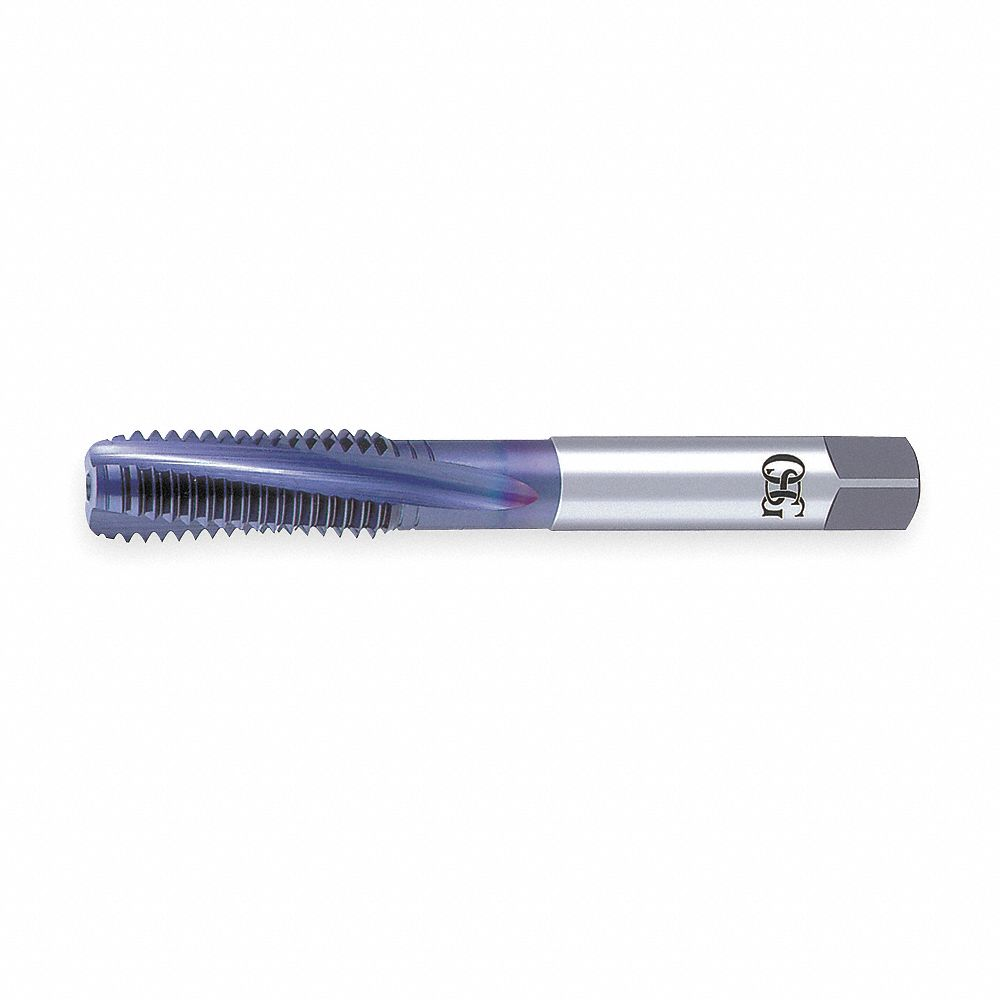

A	0140101	Black Oxide	0.685" , 5/8"	2 1/32" , 2"	H2	#36	-	UNC	Powdered Metal	€60.42
B	0136701	Black Oxide	5/16"	2 11/32"	H3	#25	-	UNC	High Speed Steel	€34.79
B	0139201	Black Oxide	0.728" , 11/16"	3 13/16" , 3 25/32"	H3	13.6 mm	5/8"-11	UNC	High Speed Steel	€146.70
B	0139601	Black Oxide	3/4"	4 1/4"	H3	16.5 mm	3/4"-10	UNC	High Speed Steel	€211.86
B	0139801	Black Oxide	3/4"	4 1/4"	H3	17.5 mm	3/4"-16	UNF	High Speed Steel	€193.71
B	0140001	Black Oxide	0.89" , 7/8"	4 11/16" , 4 21/32"	H4	20.4 mm	7/8"-14	UNF	High Speed Steel	€260.60

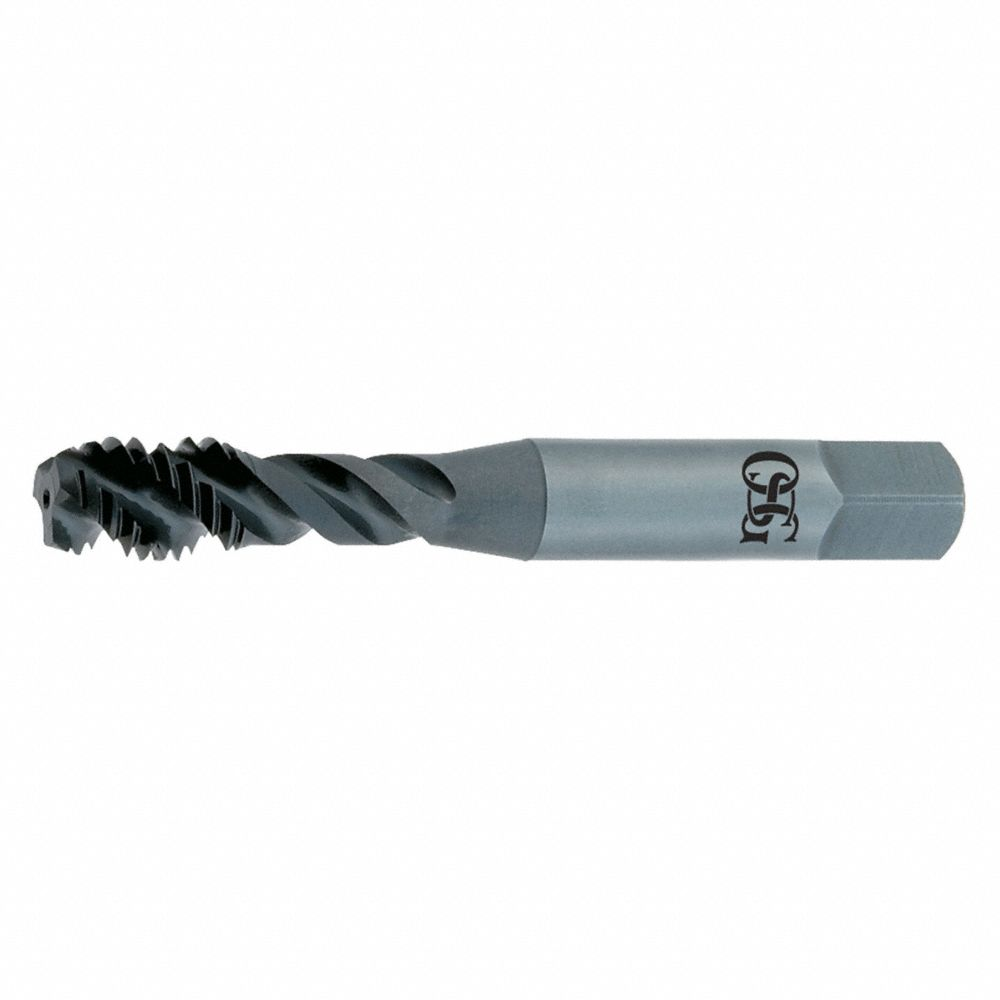

C	0136301	Black Oxide	1/4"	2 3/32"	H2	3.4 mm	-	UNC	High Speed Steel	€40.39
C	0136901	Black Oxide	5/16"	2 11/32" , 2.375"	H3	#21	#10-32 , 32	UNF	High Speed Steel	€42.19
B	1726301	Black Oxide , Oxide	2 7/32" , 7/8"	4 21/32" , 4.6875"	H4	20.4 mm	7/8"-14	UNF	High Speed Steel	€276.90

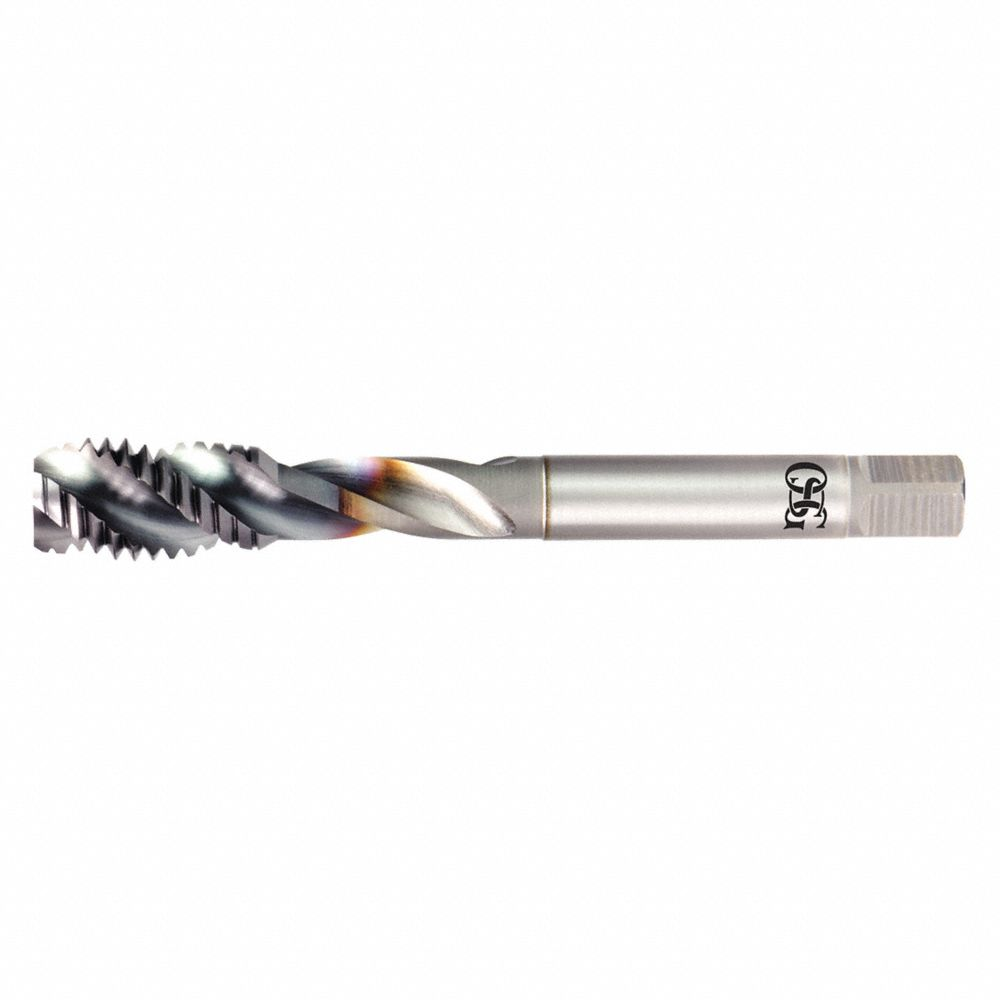

D	1650008108	TiCN , V	36 mm	170 mm	D8	-	M36 x 1.5	Metric Fine	Powdered Metal	€842.13
