MONARCH Hydraulic Power Unit
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1| Style | Model | Overall Height | Overall Width | Voltage | Reservoir Capacity | Mounting Orientation-power Units | Frame Design-hydraulic Power Units | Pressure Port Thread Size | Nominal Flow | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | M-3504-0239 | 7 1/2" | 7 1/8" | 12V DC | 1 gal. | Horizontal Or Vertical | Compact | 9/16"-18 | 2.5 GPM | €905.41 | |
| B | M-3519-0420 | 7 1/2" | 7 1/2" | 12V DC | 0.6 gal. | Horizontal Or Vertical | Compact | 9/16"-18 | 2.5 GPM | €1,010.58 | |
| C | M-3519-0419 | 7 1/2" | 7 1/2" | 12V DC | - | Horizontal Or Vertical | Compact | 9/16"-18 | 2.5 GPM | €1,078.30 | |
| D | M-3519-0421 | 7 1/2" | 7 1/2" | 24V DC | 0.6 gal. | Horizontal Or Vertical | Compact | 9/16"-18 | 3.4 GPM | €1,157.55 | |
| E | M-3326-0218 | 7 9/16" | 5 7/16" | 12V DC | - | Horizontal Or Vertical | Compact | 9/16"-18 | 2.5 GPM | €847.09 | |
| F | B-3530-0104 | 7 13/32" | 8 11/32" | 12V DC | 1 gal. | Horizontal Or Vertical | Compact | 7/16"-20 | 2 GPM | €1,160.53 | |
| G | M-3313-0106 | 7 15/32" | 6 11/16" | 12V DC | 1 gal. | Horizontal Or Vertical | Compact | 9/16"-18 | 2.5 GPM | €1,060.54 | |
| H | M-3554-0157 | 7 19/32" | 8 1/8" | 12V DC | 1 gal. | Horizontal Or Vertical | Compact | 1/4"-18 NPT | 2.5 GPM | €1,185.91 | |
| I | M-4504-0164 | 8 15/16" | 9 3/32" | 230/460V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 1.9 GPM | €1,112.08 | |

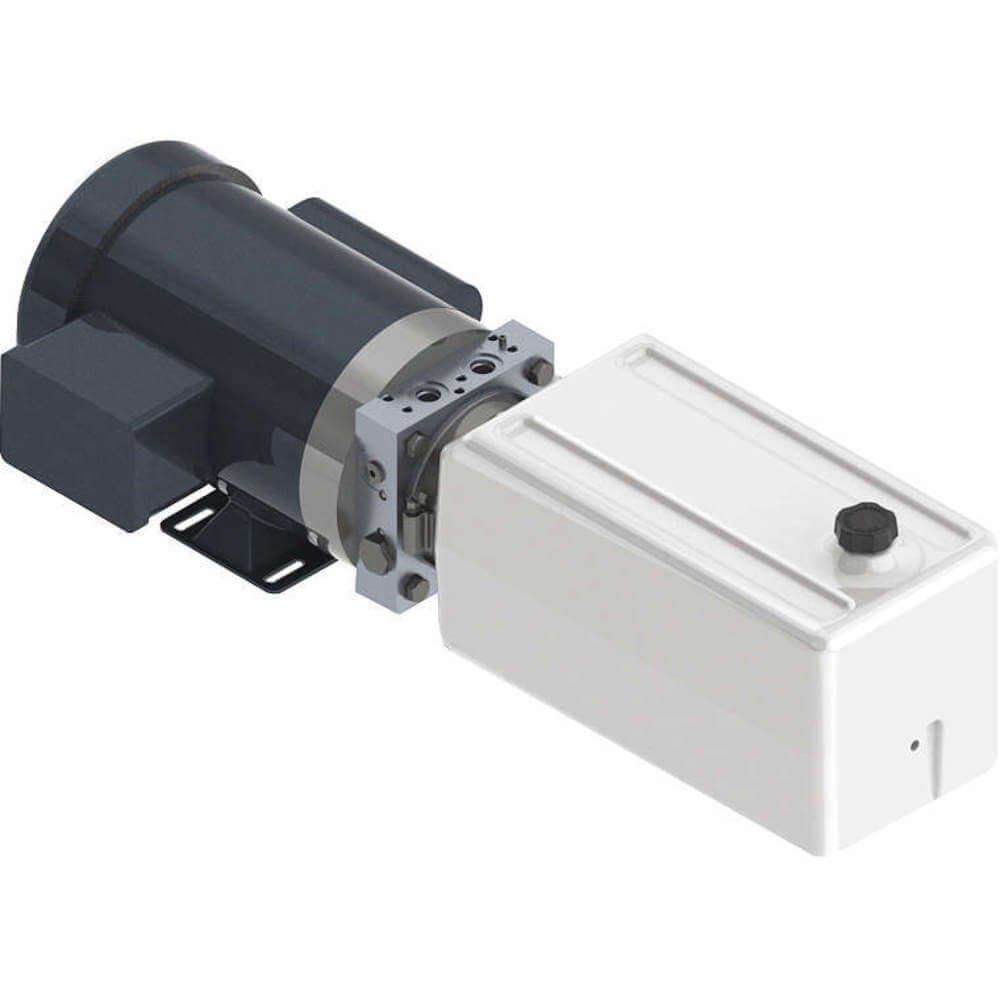

| J | M-4504-0165 | 8 15/16" | 9 3/32" | 230/460V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 2 GPM | €1,150.02 | |
| I | M-4504-0166 | 8 15/16" | 9 3/32" | 230/460V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 3.8 GPM | €1,164.60 | |
| I | M-4504-0158 | 8 15/16" | 10 29/32" | 115/230V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 0.5 GPM | €1,083.22 | |
| K | M-4504-0159 | 8 15/16" | 10 29/32" | 115/208-230V AC | - | Horizontal | Compact | 9/16"-18 | 0.5 GPM | €1,168.95 | |
| L | M-4504-0160 | 8 15/16" | 10 29/32" | 115/208-230V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 1 GPM | €1,191.08 | |
| I | M-4504-0161 | 8 15/16" | 10 29/32" | 115/208-230V AC | - | Horizontal | Compact | 9/16"-18 | 1.4 GPM | €1,202.21 | |
| I | M-4504-0162 | 8 15/16" | 10 29/32" | 115/208-230V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 1.9 GPM | €1,235.33 | |
| I | M-4504-0163 | 8 15/16" | 9 3/32" | 230/460V AC | 1.6 gal. | Horizontal | Compact | 9/16"-18 | 1 GPM | €1,108.91 | |
| M | M-3593-0164 | 9 21/32" | 6 7/32" | 12V DC | 0.5 gal. | Horizontal Or Vertical | Compact | 1/4"-18 NPT | 2 GPM | €1,865.74 | |

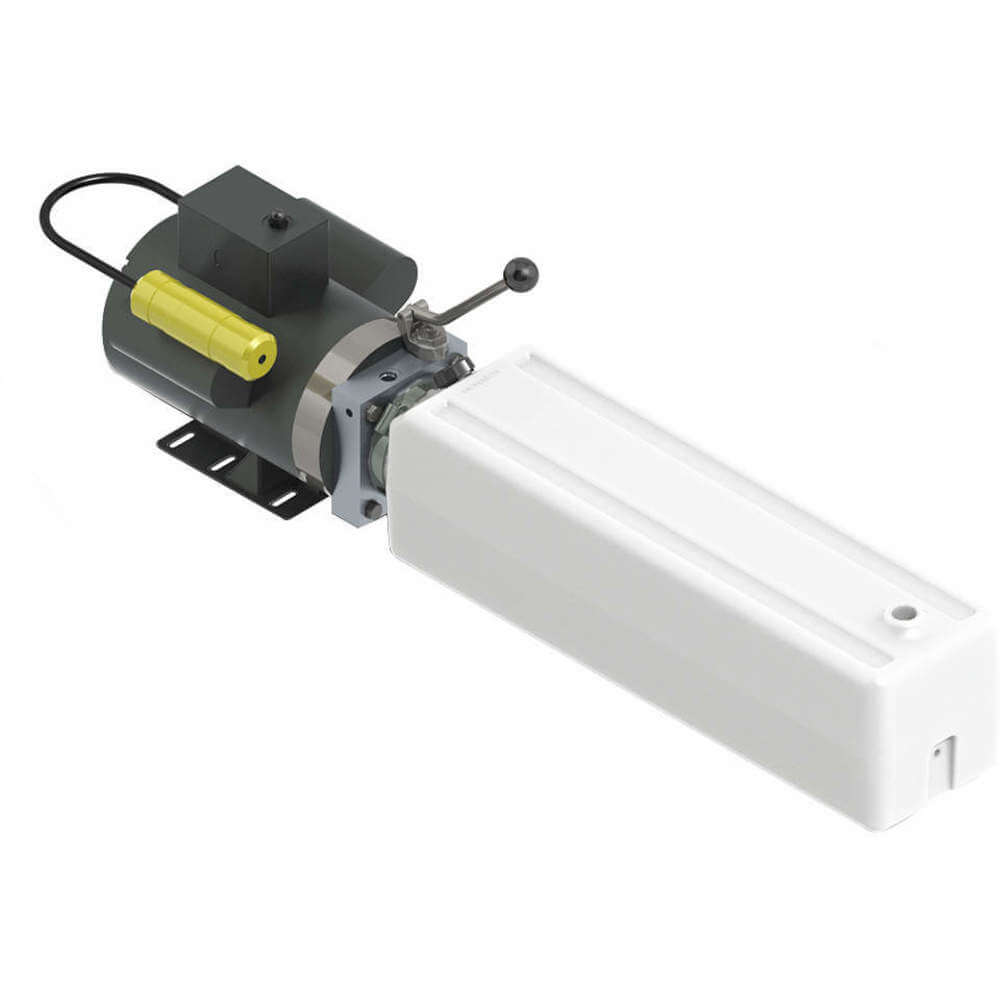

| N | M-4509-0217 | 12 3/16" | 10 5/32" | 208/230V AC | 3.8 gal. | Vertical | Compact | 9/16"-18 | 2 GPM | €1,390.12 | |
| O | M-4505-0150 | 25 15/32" | 12 1/4" | 115/230V AC | 5 gal. | Vertical | Standard | 9/16"-18 | 1 GPM | €2,072.53 | |

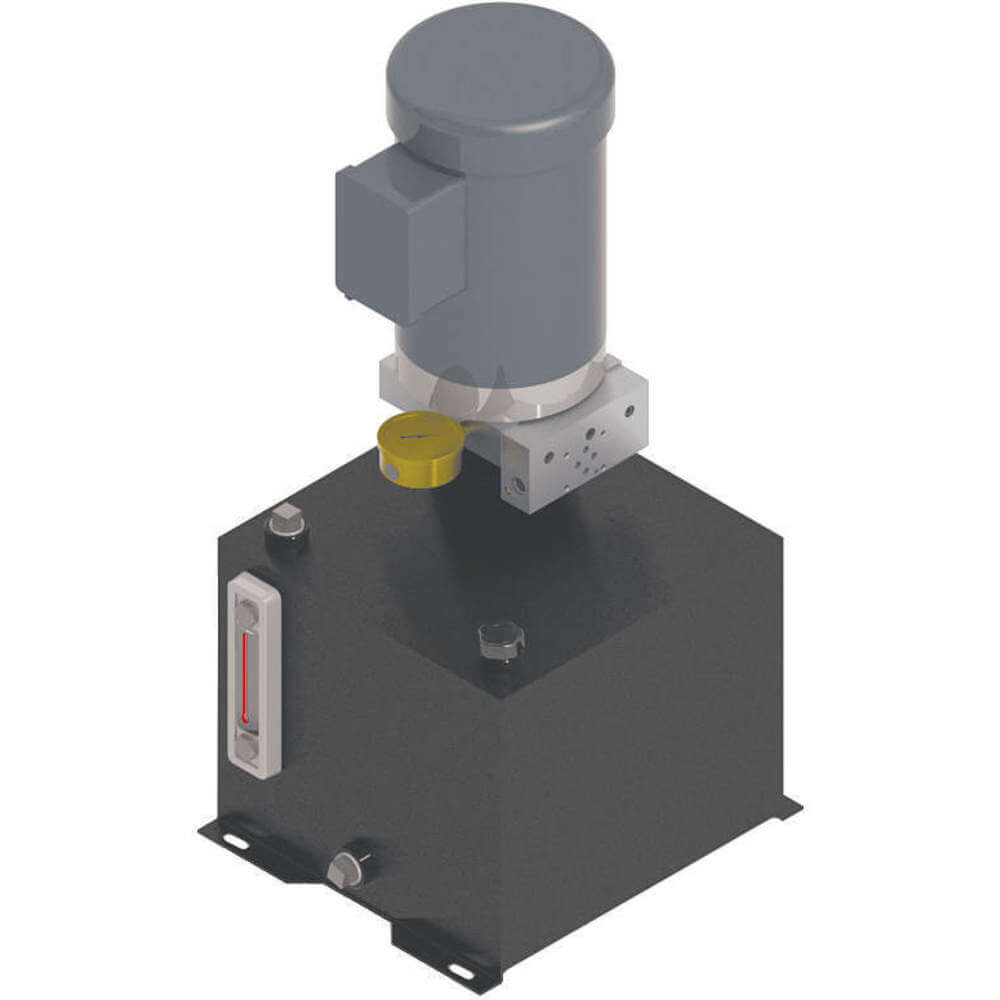

| P | M-4505-0152 | 25 31/32" | 12 1/4" | 230/460V AC | 5 gal. | Vertical | Standard | 9/16"-18 | 1.9 GPM | €2,184.79 | |
| Q | M-4505-0149 | 26 31/32" | 12 1/4" | 115/230V AC | 5 gal. | Vertical | Standard | 9/16"-18 | 1 GPM | €2,427.27 | |
| R | M-4505-0151 | 26.969" | 12 1/4" | - | 5 gal. | Vertical | Standard | - | 1.4 GPM | €2,470.89 | |
| S | ZTJ000646 | 28" | 18" | 208-230/460V AC | 20 gal. | Horizontal | Standard | 1 1/16"-12 | 7.5 GPM | €8,790.66 | |
| T | ZTJ000649 | 28" | 18" | 208-230/460V AC | 30 gal. | Horizontal | Standard | 1 1/16"-12 | 10.5 GPM | €9,254.77 | |
| U | ZTJ000647 | 28" | 18" | 208-230/460V AC | 20 gal. | Horizontal | Standard | 1 1/16"-12 | 7.5 GPM | €9,095.42 | |
| V | ZTJ000648 | 28" | 18" | 208-230/460V AC | 30 gal. | Horizontal | Standard | 1 1/16"-12 | 10 GPM | €10,350.46 | |
| W | T1VA355C02F1-01 | 30" | 17" | 208-230/460V AC | - | Vertical | Standard | 3/4"-16 | 1.5 GPM | €4,683.16 | |
| X | T56C405R02S0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 2.3 GPM | €3,391.72 | |

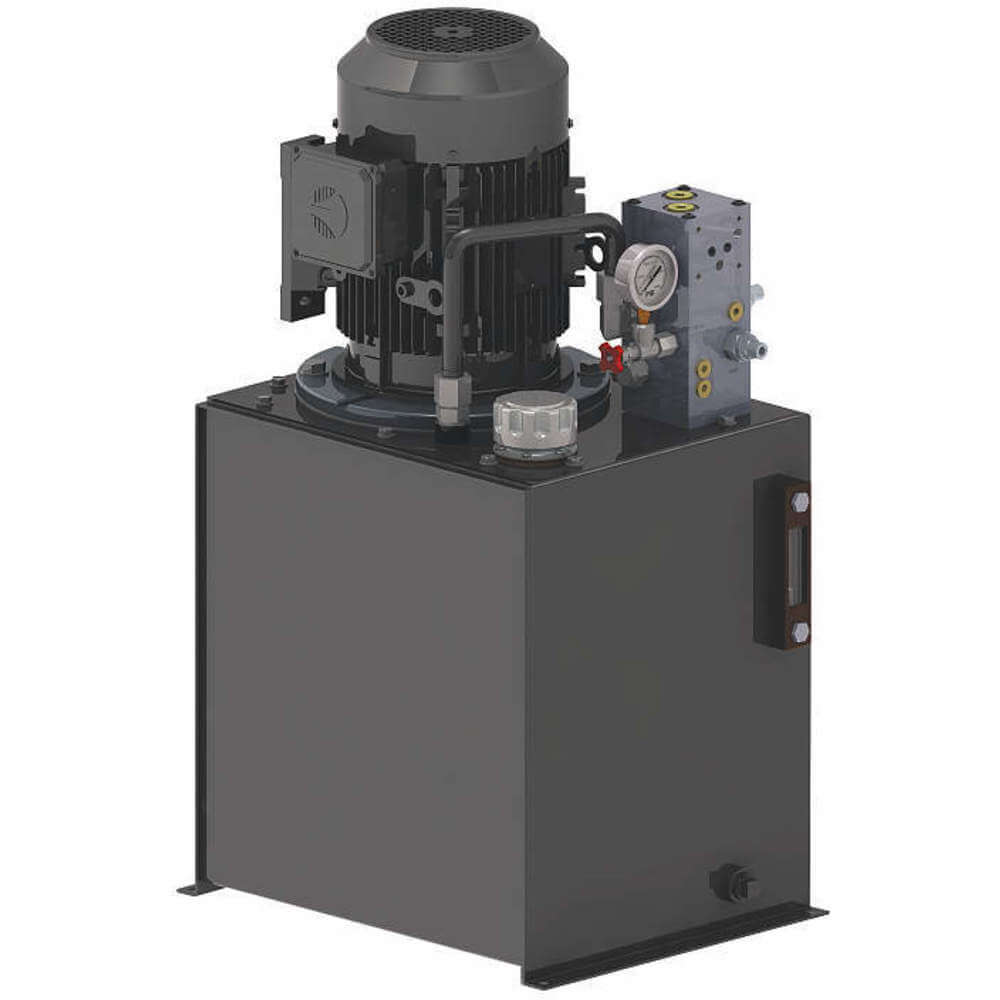

| Y | T94C405C93F0-01 | 35" | - | 208-230/460V AC | - | Vertical | Standard | 7/8"-14 | - | €4,407.72 | |
| Z | T92C355C93F0-01 | 35" | 15" | 208-230/460V AC | 15 gal. | - | - | - | - | €4,206.55 | |
| A1 | T07C405C03B0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 11 GPM | €4,149.87 | |
| B1 | T66C405C03B0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 8.8 GPM | €3,928.07 | |
| B1 | T65C405C03B0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 6.9 GPM | €3,849.20 | |
| B1 | T65C355A03B0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 6.9 GPM | €3,593.80 | |
| C1 | T92C405C93F0-01 | 35" | 15" | 208-230/460V AC | 15 gal. | Vertical | Standard | 7/8"-14 | 2.8/11 GPM | €4,417.09 | |
| D1 | T64C405C02F0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 5 GPM | €3,760.60 | |
| E1 | T16C405C02F0-03 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 4.4 GPM | €3,817.81 | |
| F1 | T58C405R02S0-01 | 35" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 3.7 GPM | €3,454.82 | |
| G1 | T2VC405C02F1-01 | 36" | 17" | 208-230/460V AC | - | Vertical | Standard | 3/4"-16 | 3 GPM | €5,213.20 | |
| H1 | T3VC355C02F1-01 | 36" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 4.5 GPM | €5,545.10 | |
| H1 | T2VC355C02F1-01 | 36" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 3 GPM | €5,669.04 | |
| I1 | T3VC405C02F1-01 | 36" | 17" | 208-230/460V AC | 15 gal. | Vertical | Standard | 3/4"-16 | 4.5 GPM | €5,250.22 |
