MITUTOYO 543 Series Absolute Digimatic Indicators
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y| Style | Model | Type | Range | Stem Size | Max. Permissible Errore Mpe (total Range) | Measurement Frequency (max./min. Range) | Battery Size | Stem Thread Size | Stem Dia. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 543-302b-10 | - | - | - | - | - | - | - | - | €654.71 | RFQ
|
| B | 543-571 | - | 0" to 1/2" | - | - | - | SR44 | #4-48 | 3/8" | €590.61 | |
| C | 543-576 | ASME, ANSI, AGD Standard | 0.5" | 9.52 mm | ±0.00012"/0.003 mm | - | - | - | - | €729.95 | |
| D | 543-581 | Asme, ANSI, AGD Standard | - | - | - | - | Sr44 | #4-48 UNF | 3/8" | €614.88 | |
| E | 543-302 | ASME, ANSI, AGD Standard | 0.5" | 9.52 mm | ±0.0001"/0.003 mm | Standard Mode: 10 Times/S Fast Mode: 50 Times/S (Plunger Speed Max. 50 µm/S For Peak Measurement) | - | - | - | €523.00 | |
| F | 543-792B-10 | Asme, ANSI, AGD Standard | - | - | - | - | Sr44 | #4-48 UNF | - | €517.52 | |
| G | 543-507 | ASME, ANSI, AGD Standard | 0.5" | 9.52 mm | ±0.001"/0.02 mm | - | - | - | - | €298.40 | |
| C | 543-586 | ASME, ANSI, AGD Standard | 0.2" | 9.52 mm | ±0.00012"/0.003 mm | - | - | - | - | €793.31 | |
| H | 543-737B | Asme, ANSI, AGD Standard | - | - | - | - | CR2032 | #4-48 UNF | 9.52 mm | €890.69 | |
| I | 543-727B | Asme, ANSI, AGD Standard | - | - | - | - | CR2032 | #4-48 UNF | - | €680.11 | |
| A | 543-702 | Asme, ANSI, AGD Standard | - | - | - | - | Sr44 | #4-48 UNF | 3/8" | €648.10 | RFQ
|
| J | 543-792-10 | ASME, ANSI, AGD Standard | 0.5" | 9.52 mm | ±0.0001"/0.003 mm | - | - | - | - | €348.00 | |

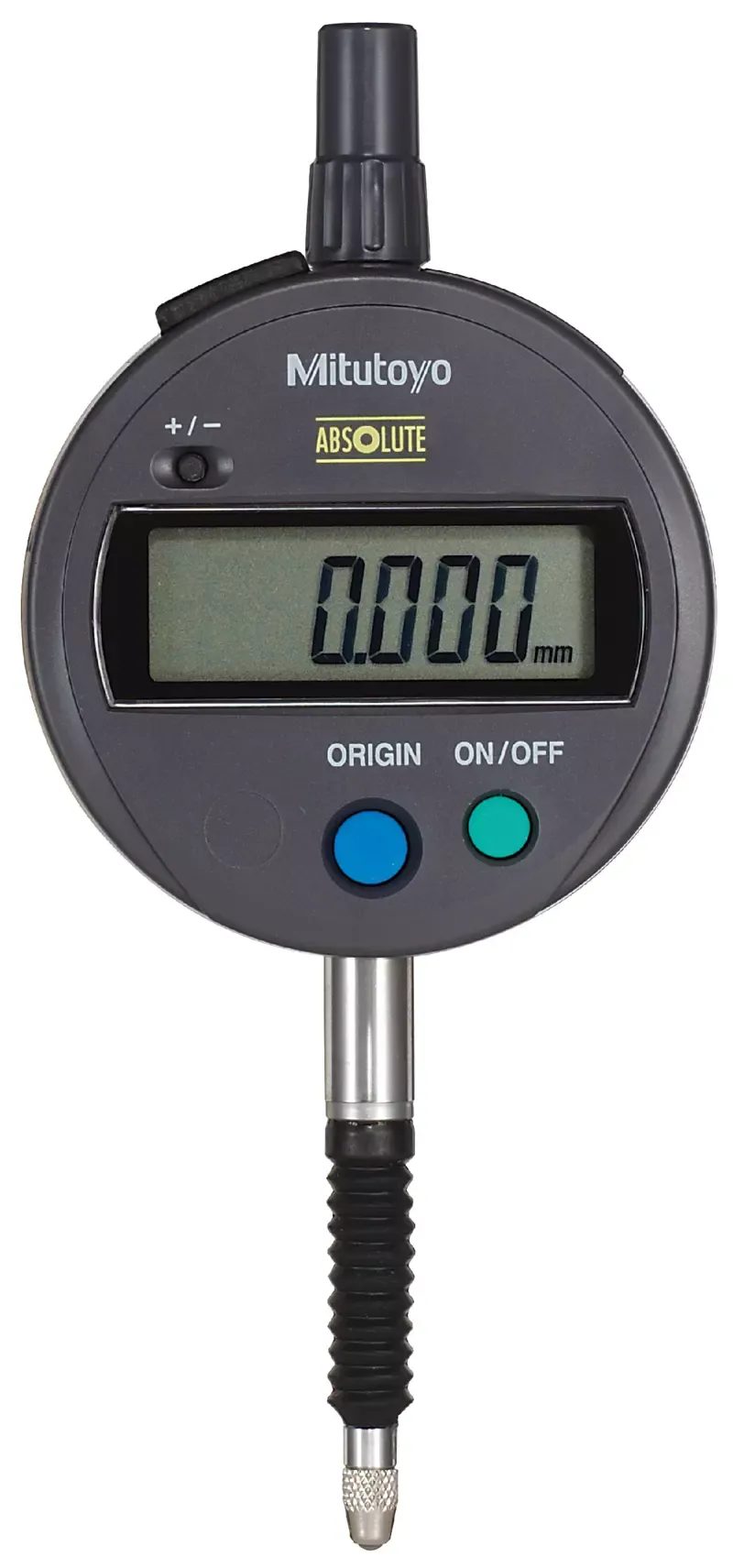

| K | 543-794B-10 | EN ISO Standard | 12.7 mm | 8 mm | 0.003 mm | - | - | - | - | €401.00 | |
| L | 543-736B | EN ISO Standard | 2" | 8 mm | ±0.0015"/0.04 mm | 50 Times/S | - | - | - | €702.00 | |

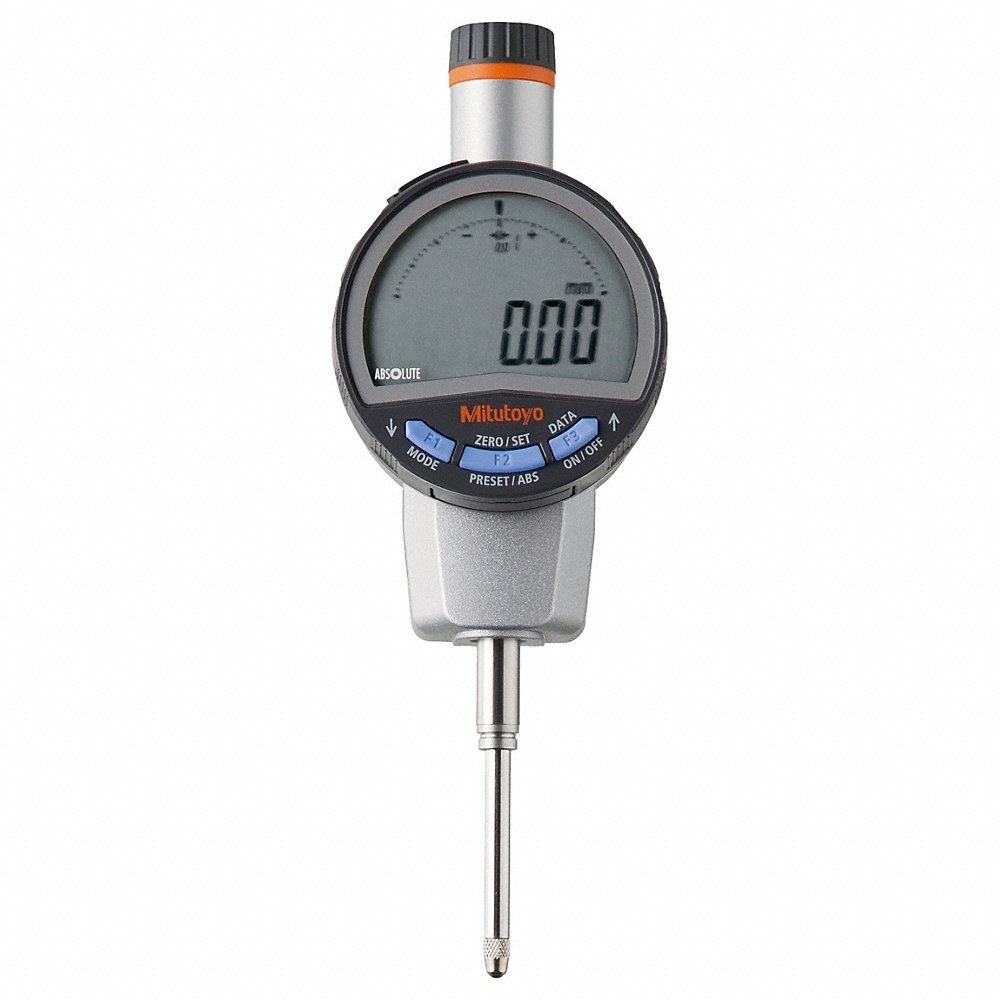

| M | 543-725B | EN ISO Standard | 25.4 mm | 8 mm | 0.02 mm | 50 Times/S | - | - | - | €680.11 | |
| N | 543-706B | EN ISO Standard | 0.5" | 8 mm | ±0.00012"/0.003 mm | 50 Times/S | - | - | - | €540.00 | |
| A | 543-721b | EN ISO Standard | - | - | - | - | Sr44 | #4-48 UNF | 3/8" | €828.95 | RFQ
|
| N | 543-706 | EN ISO Standard | 0.5" | 8 mm | ±0.00012"/0.003 mm | 50 Times/S | - | - | - | €540.00 | |
| O | 543-711B | EN ISO Standard | 0.5" | 8 mm | ±0.001"/0.02 mm | 50 Times/S | - | - | - | €333.00 | |

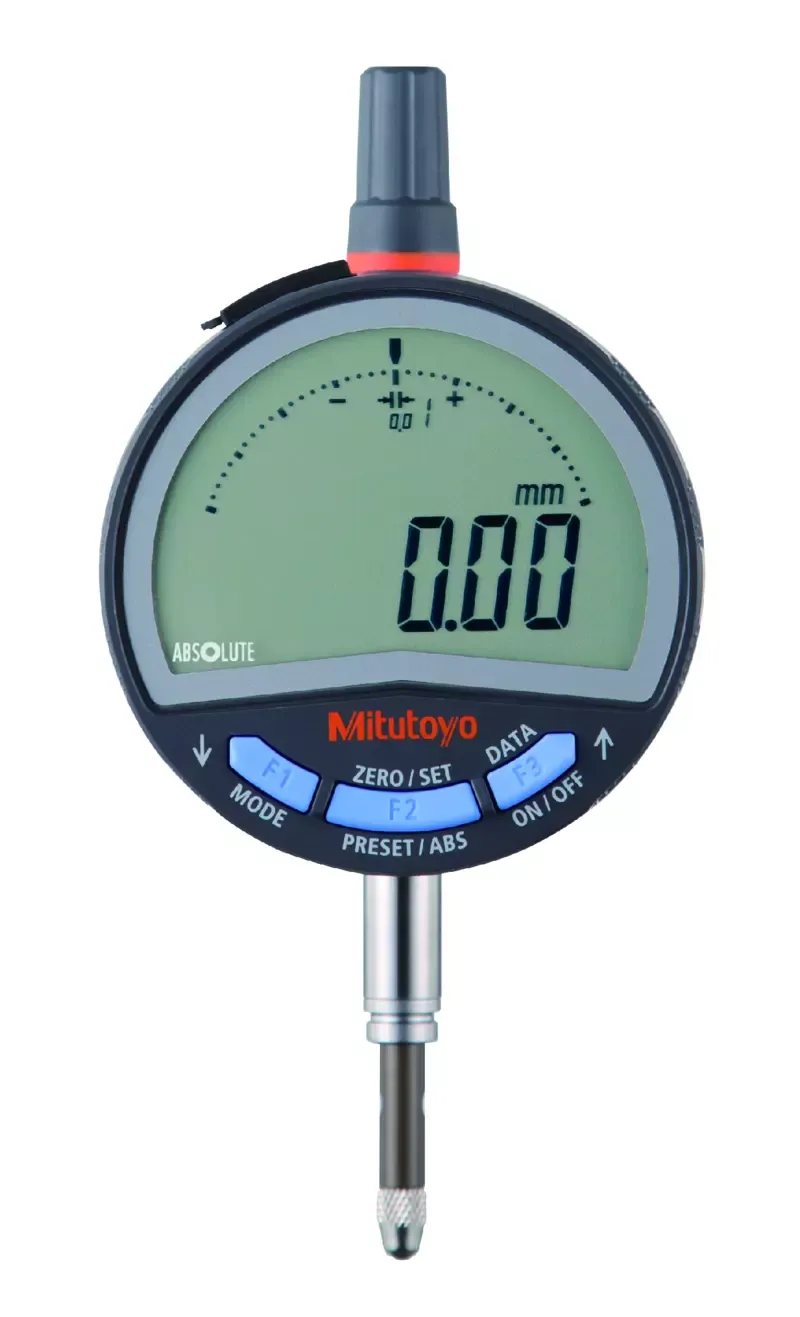

| P | 543-715B | EN ISO Standard | 12.7 mm | 8 mm | 0.02 mm | 50 Times/S | - | - | - | €394.00 | |
| C | 543-575 | EN ISO Standard | 12.7 mm | 8 mm | 0.003 mm | - | - | - | - | €769.55 | |
| C | 543-580 | EN ISO Standard | 5 mm | 8 mm | 0.02 mm | - | - | - | - | €592.57 | |
| C | 543-585 | EN ISO Standard | 5 mm | 8 mm | 0.003 mm | - | - | - | - | €900.23 | |
| Q | 543-716B | EN ISO Standard | 0.5" | 8 mm | ±0.001"/0.02 mm | 50 Times/S | - | - | - | €394.00 | |
| A | 543-730B | EN ISO Standard | 50.8 mm | 8 mm | 0.005 mm | 50 Times/S | - | - | - | €848.00 | |

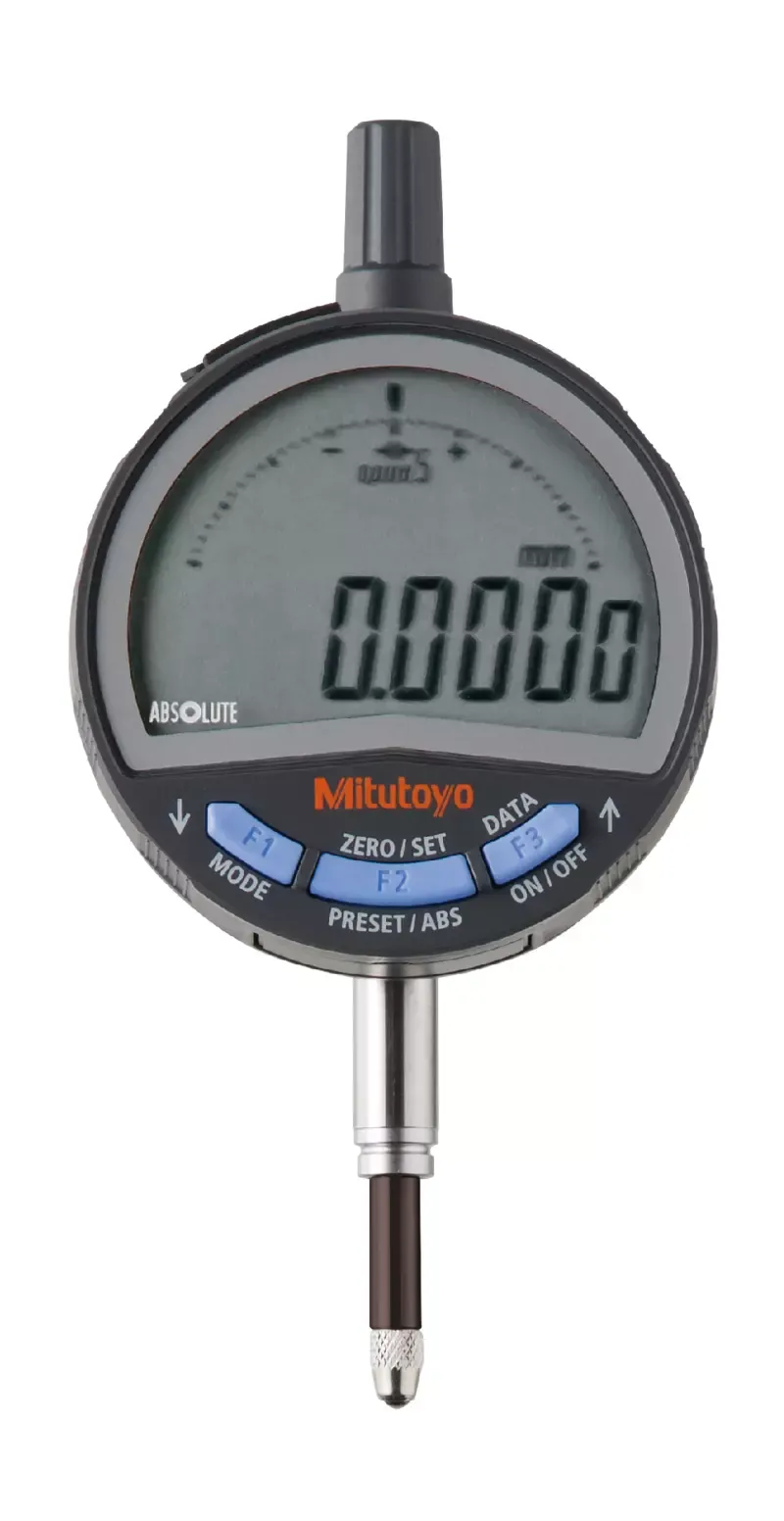

| R | 543-705B | EN ISO Standard | 12.7 mm | 8 mm | 0.003 mm | 50 Times/S | - | - | - | €871.20 | |
| O | 543-711 | EN ISO Standard | 0.5" | 8 mm | ±0.001"/0.02 mm | 50 Times/S | - | - | - | €333.00 | |

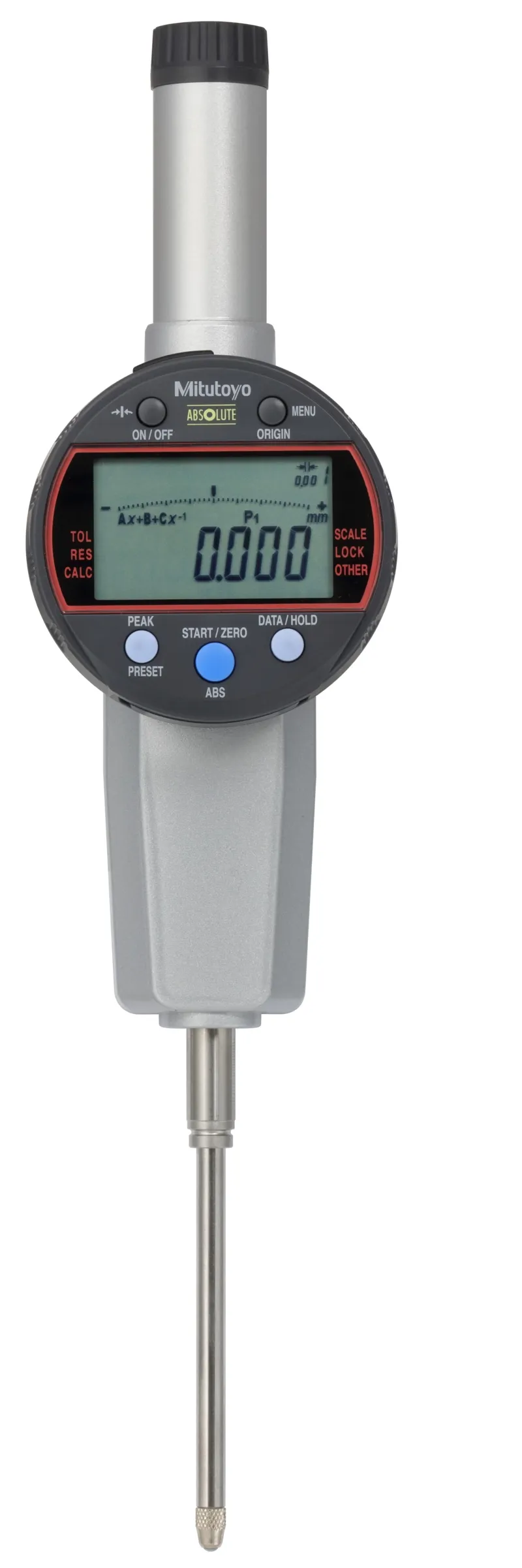

| S | 543-595B-10 | EN ISO Standard | 50.8 mm | 8 mm | 0.006 mm | Standard Mode: 10 Times/S Fast Mode: 50 Times/S (Plunger Speed Max. 50 µm/S For Peak Measurement) | - | - | - | €848.00 | |
| C | 543-570 | EN ISO Standard | 12.7 mm | 8 mm | 0.02 mm | - | - | - | - | €598.23 | |
| A | 543-726b | EN ISO Standard | - | - | - | - | Sr44 | #4-48 UNF | 3/8" | €699.58 | RFQ
|
| T | 543-701 | EN ISO Standard | 0.5" | 8 mm | ±0.00012"/0.003 mm | 50 Times/S | - | - | - | €446.00 | |

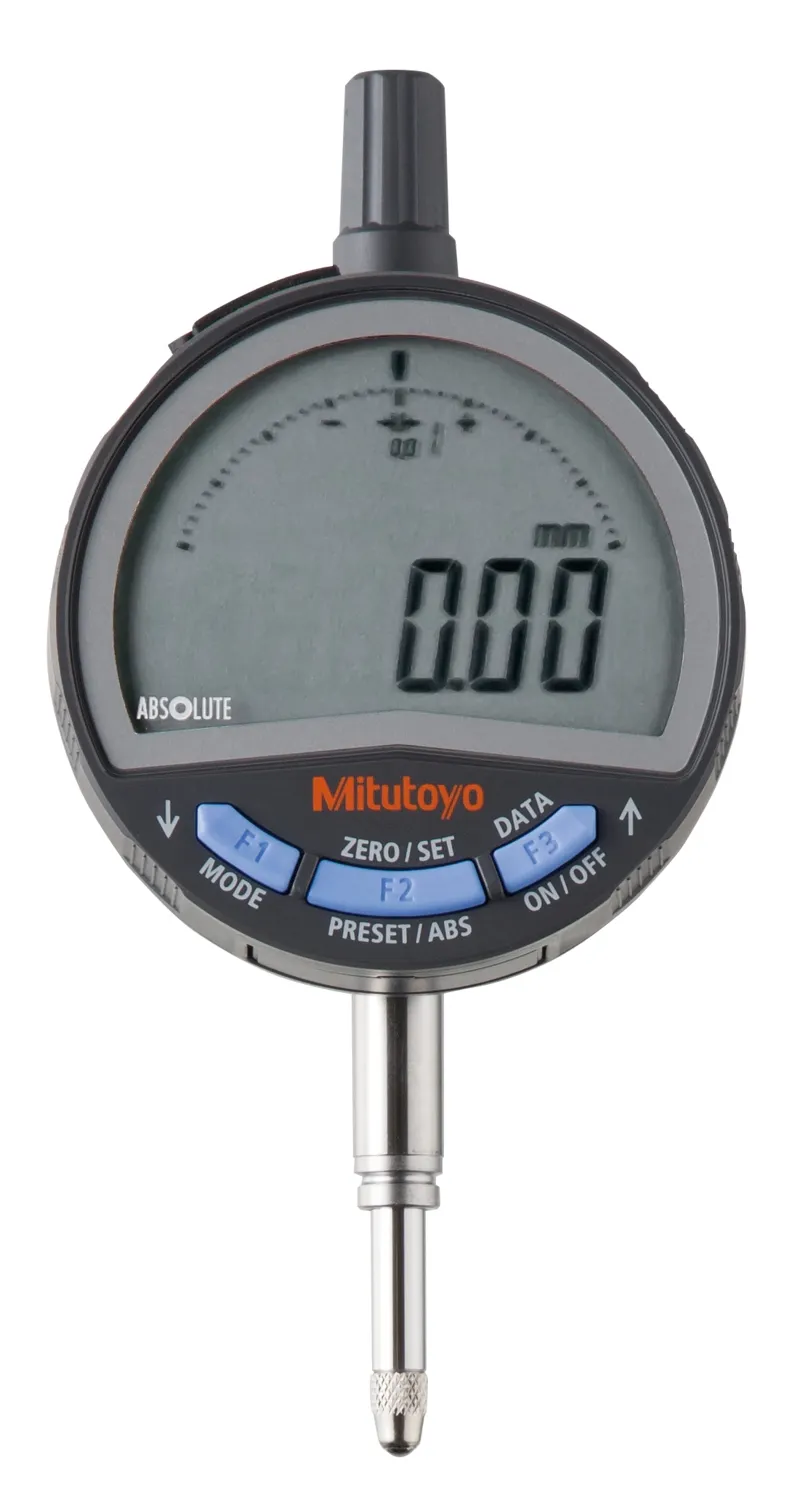

| U | 543-715 | EN ISO Standard | 12.7 mm | 8 mm | 0.02 mm | 50 Times/S | - | - | - | €394.00 | |
| Q | 543-716 | EN ISO Standard | 0.5" | 8 mm | ±0.001"/0.02 mm | 50 Times/S | - | - | - | €394.00 | |
| A | 543-720B | EN ISO Standard | 25.4 mm | 8 mm | 0.003 mm | 50 Times/S | - | - | - | €567.00 | |

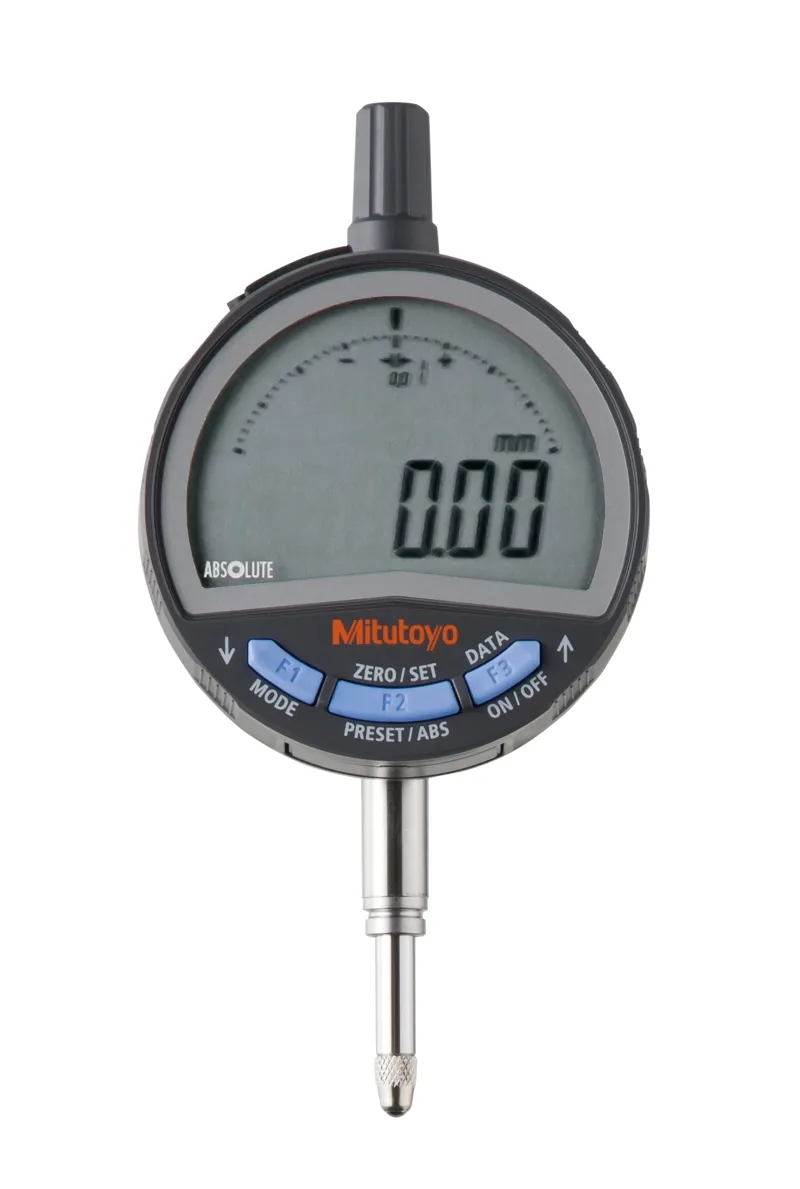

| V | 543-710 | EN ISO Standard | 12.7 mm | 8 mm | 0.02 mm | 50 Times/S | - | - | - | €333.00 | |

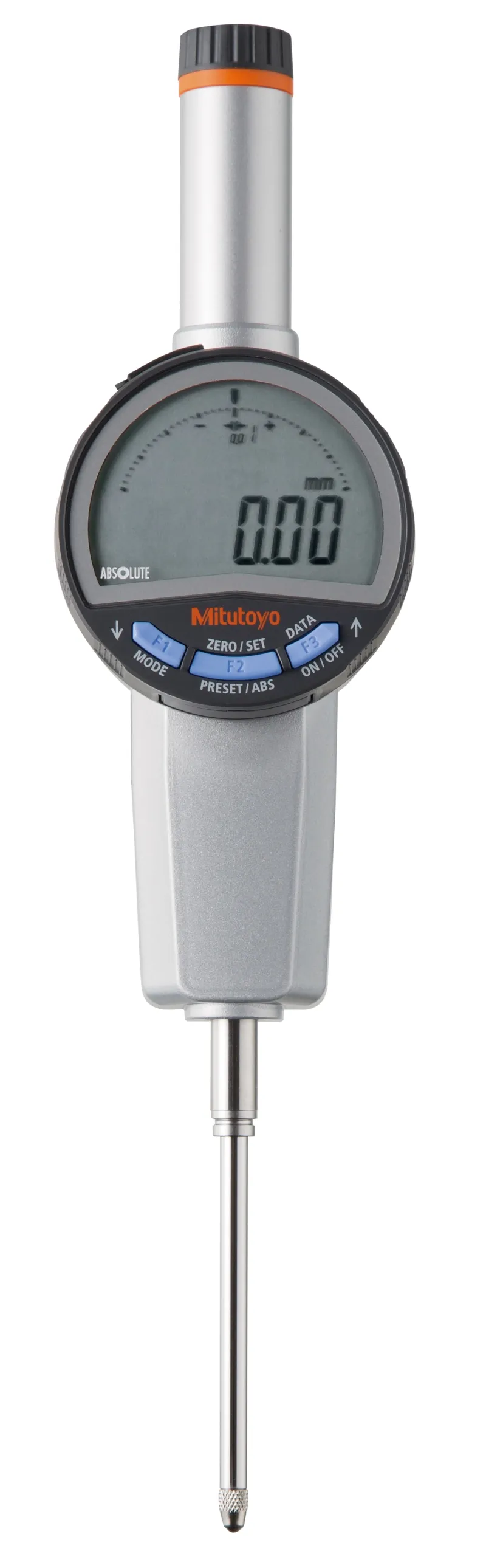

| W | 543-735B | EN ISO Standard | 50.8 mm | 8 mm | 0.04 mm | 50 Times/S | - | - | - | €702.00 | |
| X | 543-311B-10 | EN ISO Standard | 0.5" | 8 mm | ±0.0001"/0.003 mm | Standard Mode: 10 Times/S Fast Mode: 50 Times/S (Plunger Speed Max. 50 µm/S For Peak Measurement) | - | - | - | €563.00 | |
| R | 543-705 | EN ISO Standard | 12.7 mm | 8 mm | 0.003 mm | 50 Times/S | - | - | - | €540.00 | |
| Y | 543-700B | EN ISO Standard | 12.7 mm | - | - | - | Sr44 | M2.5 x 0.45 | 8 mm | €634.08 | |
| A | 543-710B | EN ISO Standard | 12.7 mm | 8 mm | 0.02 mm | 50 Times/S | - | - | - | €333.00 |
