MITUTOYO 515 Series Check Masters
Filter
A
B
C
D
E
F| Style | Model | Range | Inch-metric | Block Step | Block Pitch Accuracy | Mass | Anvil Block Accuracy | Type | Hardness | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

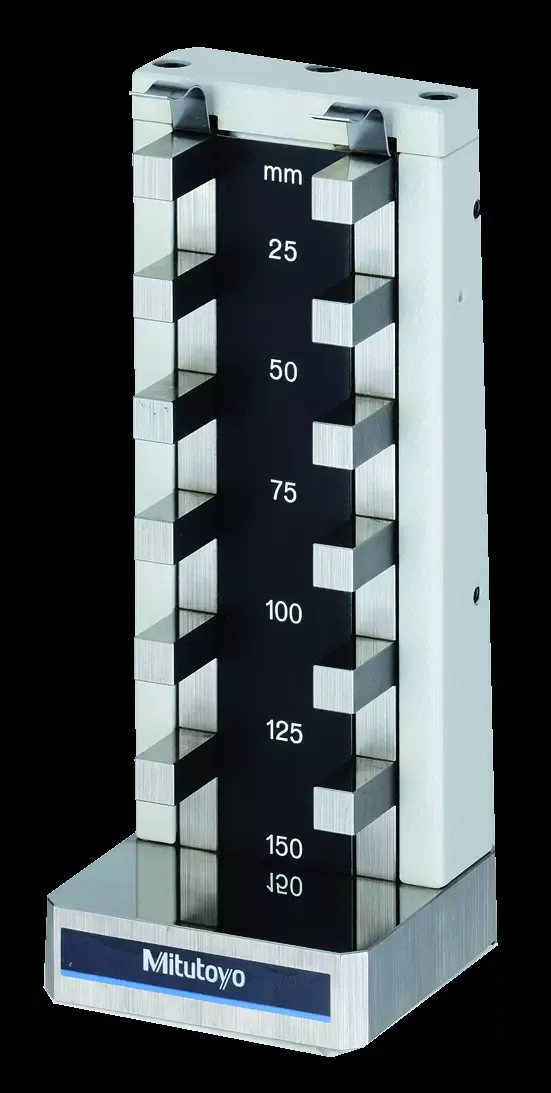

| A | 515-570 | 0 mm to 150 mm | Metric | - | ±(1+L/150)µm L= Lenght To Check (Mm) | - | -0.5 µm to +0.5 µm | - | - | €1,503.00 | |
| B | 515-571 | 0 mm to 300 mm | - | - | ±(1+L/150)µm L= Lenght to Check (mm) | 17 Kg | ±0.5 µm | Depth Micrometer Checker | - | €5,826.47 | RFQ
|

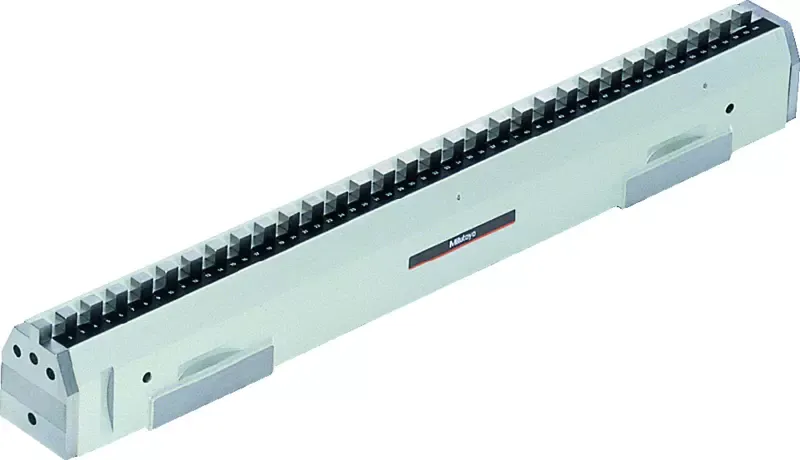

| C | 515-720 | 0 mm to 310 mm | Metric | 10 mm | - | - | - | - | Greater Than 64 HRC | €2,575.00 | |
| C | 515-721 | 0 mm to 450 mm | Metric | 10 mm | - | - | - | - | Greater Than 64 HRC | €2,713.00 | |
| D | 515-556-2 | 0 mm to 600 mm | Metric | - | -0.007 mm to +0.007 mm | - | - | - | - | €5,018.00 | |
| C | 515-722 | 0 mm to 610 mm | Metric | 10 mm | - | - | - | - | Greater Than 64 HRC | €3,176.00 | |

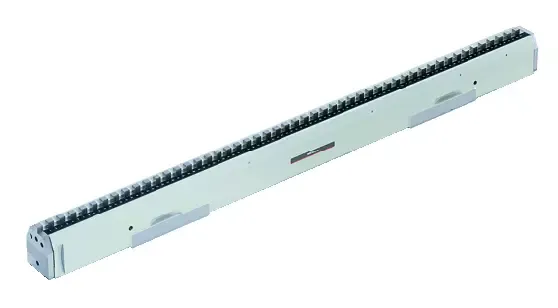

| E | 515-723 | 0 mm to 1010 mm | Metric | 10 mm | - | - | - | - | Greater Than 64 HRC | €6,861.00 | |

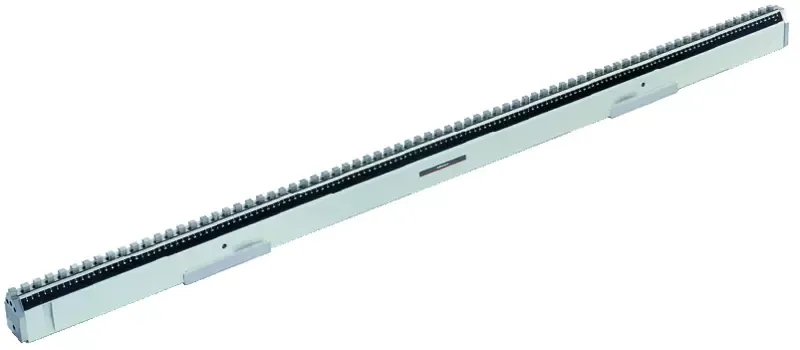

| F | 515-724 | 0 mm to 1510 mm | Metric | 10 mm Straight | - | - | - | - | Greater Than 64 HRC | €11,503.00 | |
| C | 515-710 | 0" to 12.5" | Inch | 0.5" Straight | - | - | - | - | Greater Than 64 HRC | €3,461.04 | |
| C | 515-711 | 0" to 18.5" | Inch | 0.5" Straight | - | - | - | - | Greater Than 64 HRC | €2,713.00 | |
| C | 515-712 | 0" to 24.5" | Inch | 0.5" Straight | - | - | - | - | Greater Than 64 HRC | €3,176.00 | |
| E | 515-713 | 0" to 40.5" | Inch | 0.5" Straight | - | - | - | - | Greater Than 64 HRC | €6,861.00 | |
| B | 515-586 | 25 mm to 600 mm | - | - | ±(1+L/150) µmL = Length to check (mm) | 7 Kg | - | - | - | €5,916.23 | RFQ
|
