MITUTOYO 103 Series Outside Micrometers, Metric
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1| Style | Model | Range | Inch-metric | Graduation | Flatness | Measuring Force | Parallelism | Max. Permissible Errorj Mpe | Included | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

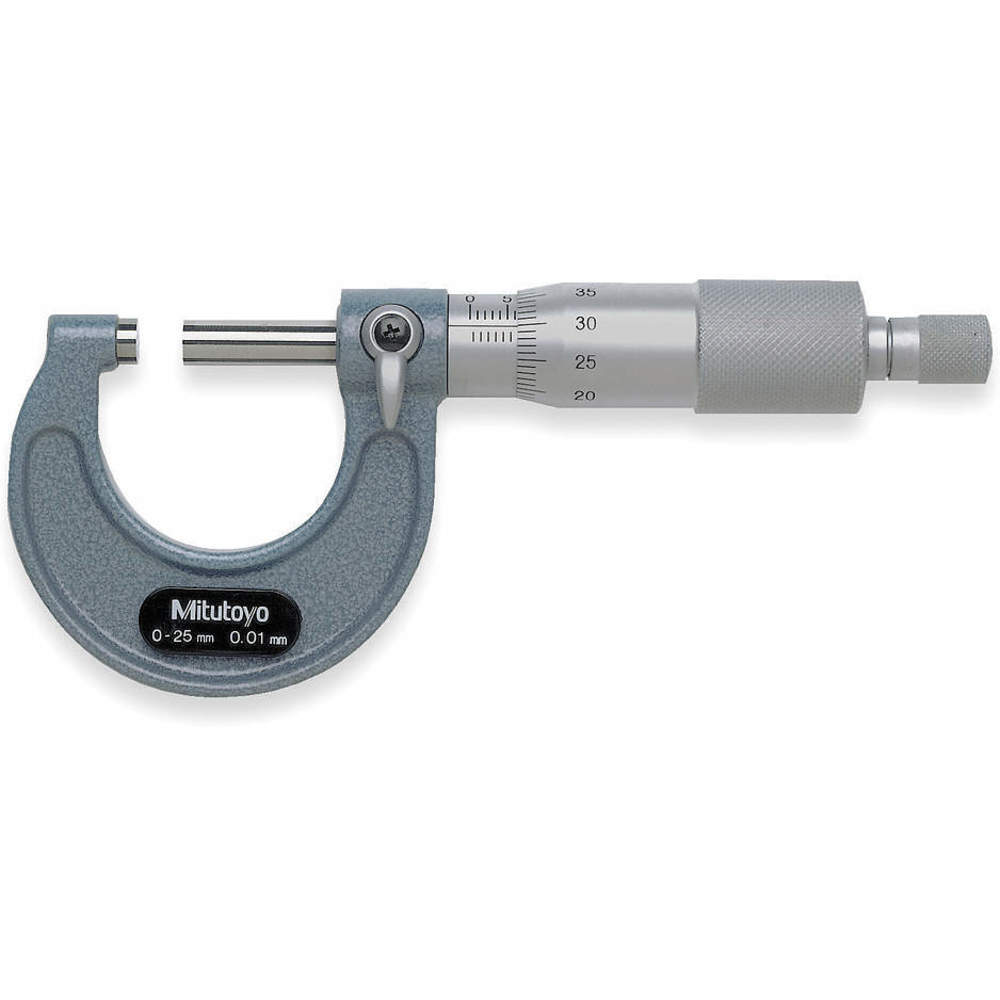

| A | 103-137 | 0 mm to 25 mm | - | - | - | - | - | - | Fitted Carrying Case | €185.06 | |
| B | 103-129 | 0 mm to 25 mm | Metric | 0.001 mm | 0.6 µm | 5N to 10N | 2 µm | -2 µm to +2 µm | - | €189.11 | |
| C | 103-927-10 | 0 mm to 75 mm | Metric | 0.01 mm | - | - | - | - | - | €515.17 | |

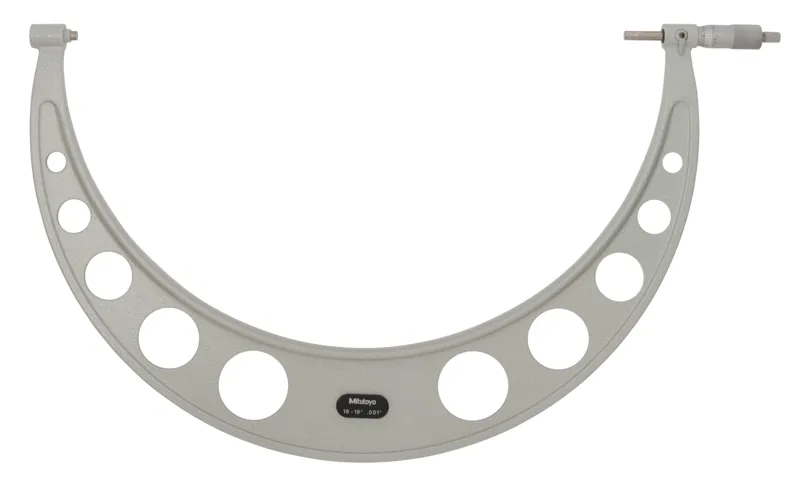

| D | 103-195 | 18" to 19" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00024" | -0.0004" to +0.0004" | - | €660.00 | |

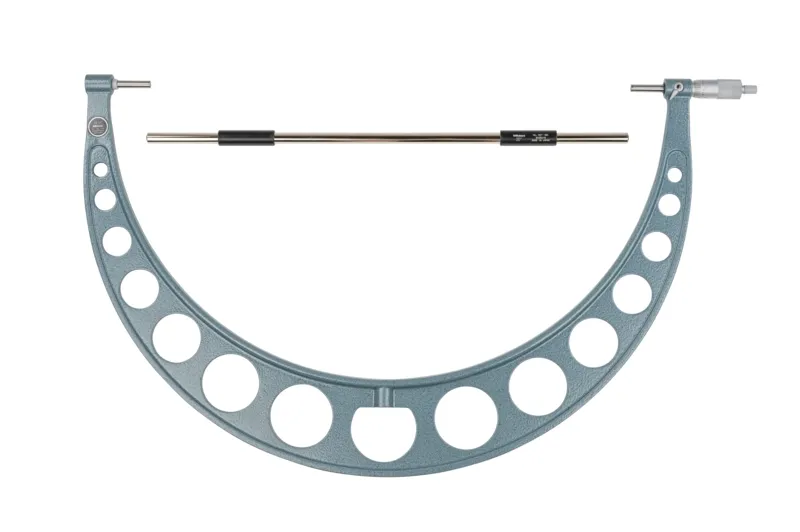

| E | 103-196 | 19" to 20" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00028" | -0.0004" to +0.0004" | - | €712.00 | |

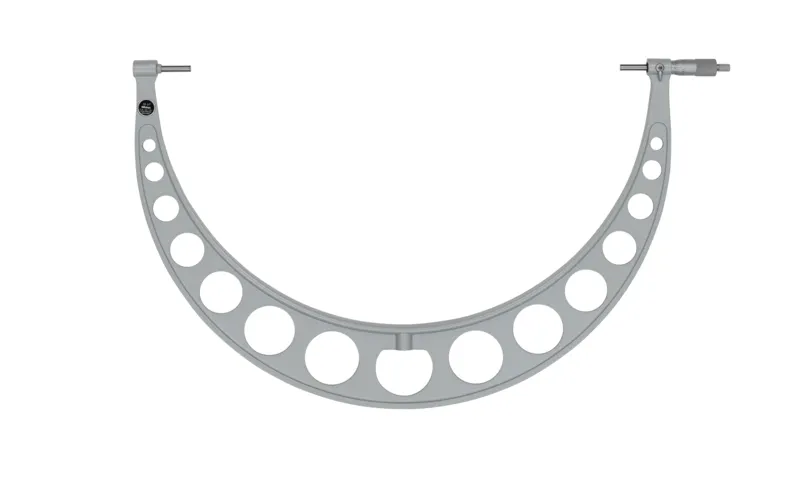

| F | 103-197 | 20" to 21" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00028" | -0.0004" to +0.0004" | - | €798.00 | |

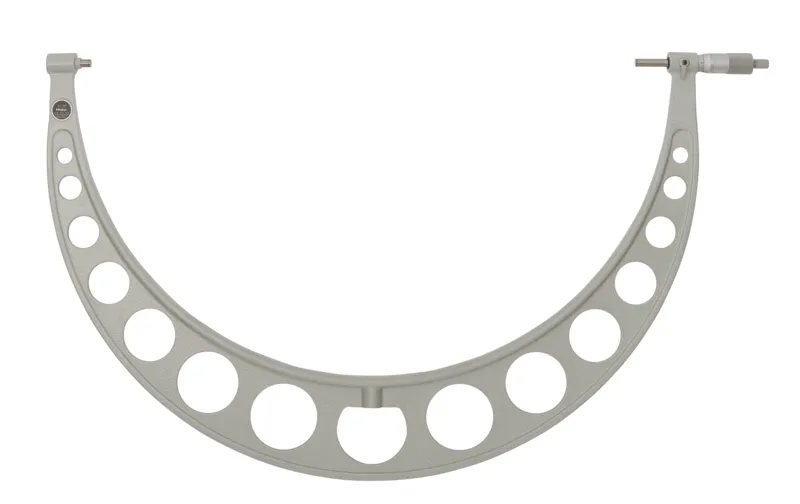

| G | 103-198 | 21" to 22" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00028" | -0.00045" to +0.00045" | - | €831.00 | |

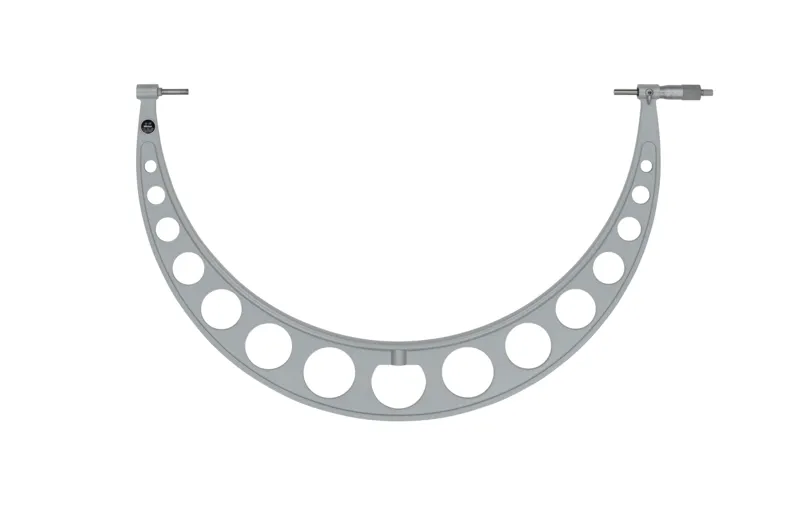

| H | 103-199 | 22" to 23" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00028" | -0.00045" to +0.00045" | - | €880.00 | |
| I | 103-200 | 23" to 24" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00032" | -0.00045" to +0.00045" | - | €915.00 | |
| I | 103-201 | 24" to 25" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00032" | -0.0005" to +0.0005" | - | €982.00 | |
| J | 103-138 | 25 mm to 50 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 2 µm | -2 µm to +2 µm | Standard Bar | €195.58 | |

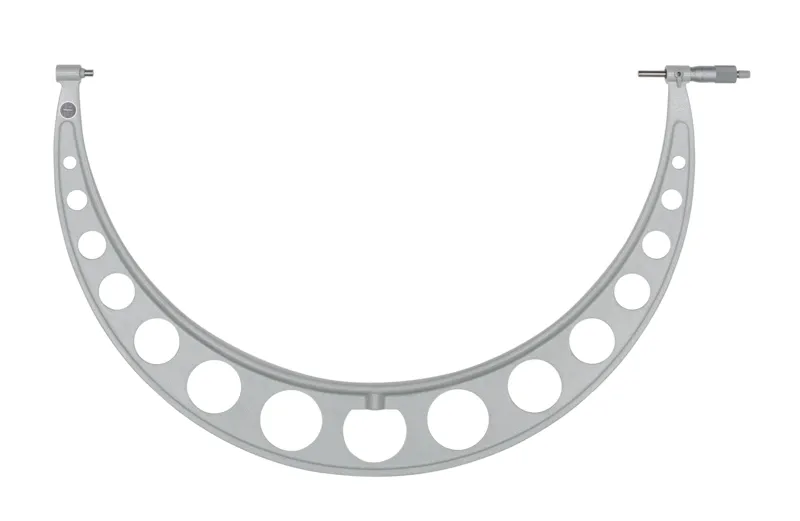

| K | 103-202 | 25" to 26" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00032" | -0.0005" to +0.0005" | - | €1,023.00 | |

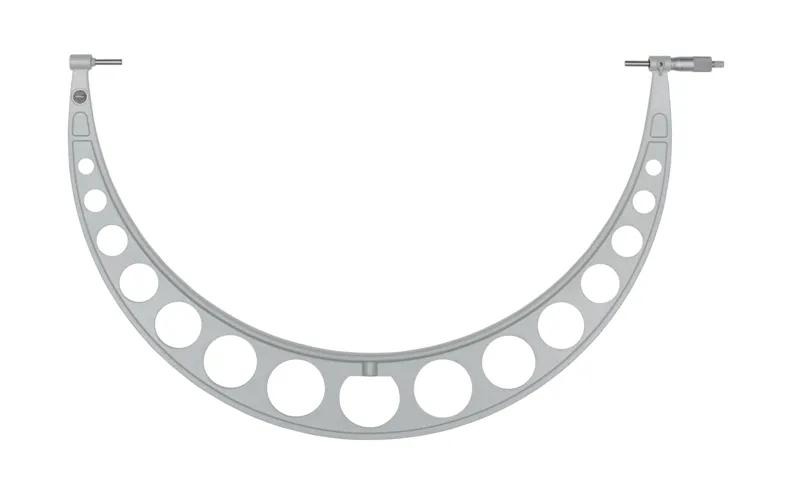

| L | 103-203 | 26" to 27" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00032" | -0.0005" to +0.0005" | - | €1,071.00 | |

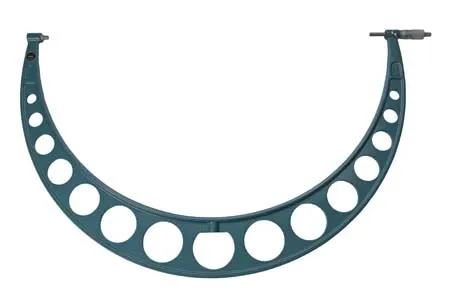

| I | 103-204 | 27" to 28" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00036" | -0.00055" to +0.00055" | - | €1,121.00 | |

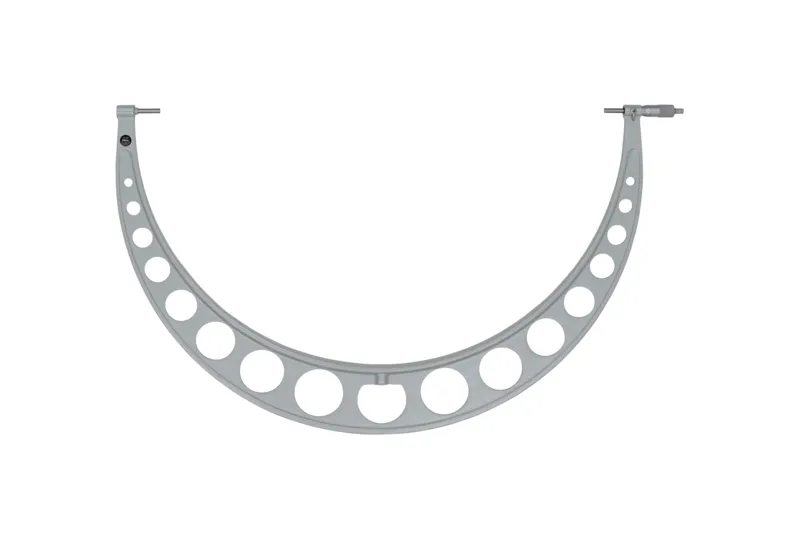

| M | 103-205 | 28" to 29" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00036" | -0.00055" to +0.00055" | - | €1,172.00 | |
| I | 103-206 | 29" to 30" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00036" | -0.00055" to +0.00055" | - | €1,212.00 | |

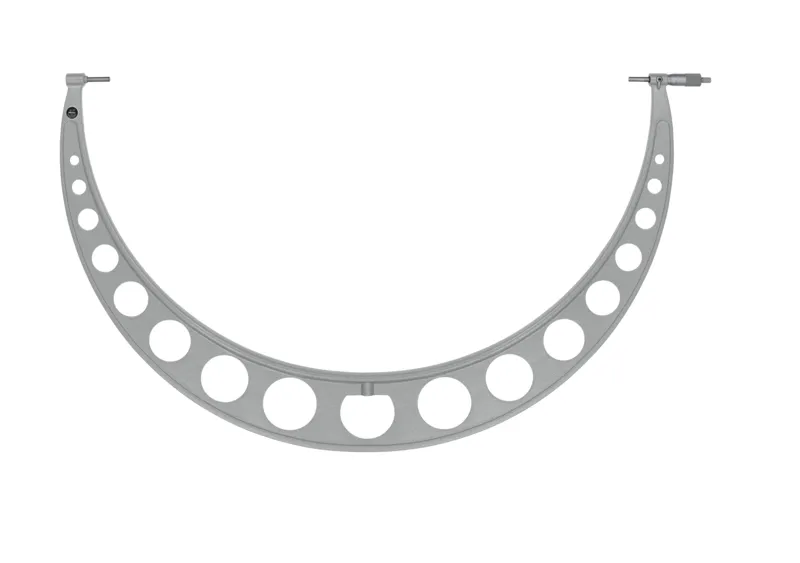

| N | 103-209 | 32" to 33" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.0004" | -0.0006" to +0.0006" | - | €1,367.00 | |

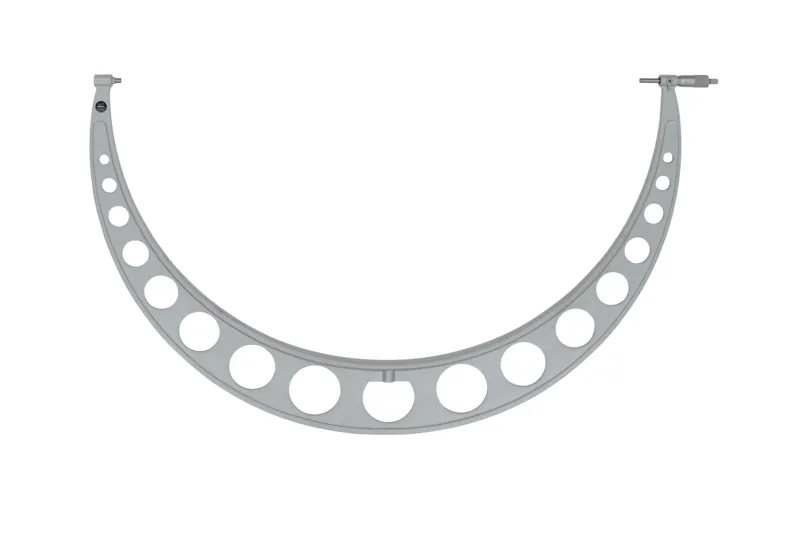

| O | 103-210 | 33" to 34" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.0004" | -0.00065" to +0.00065" | - | €1,405.00 | |

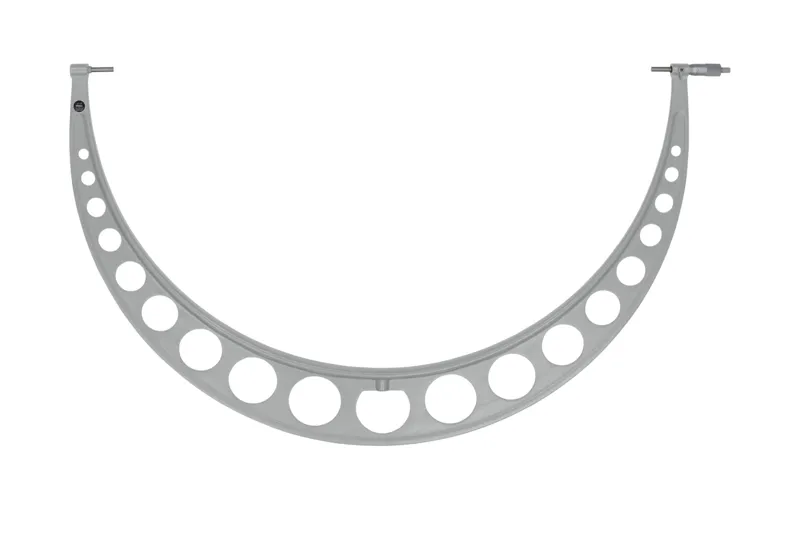

| P | 103-211 | 34" to 35" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.0004" | -0.00065" to +0.00065" | - | €1,460.00 | |

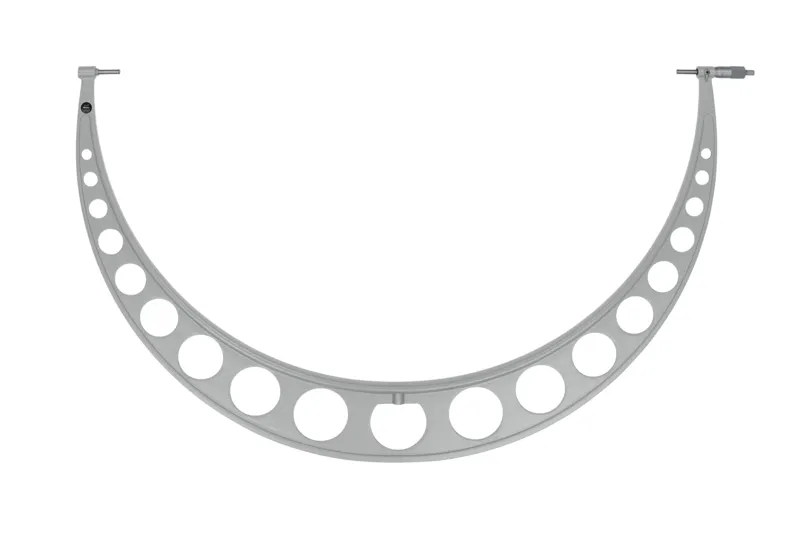

| Q | 103-213 | 36" to 37" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00044" | -0.0007" to +0.0007" | - | €1,572.00 | |

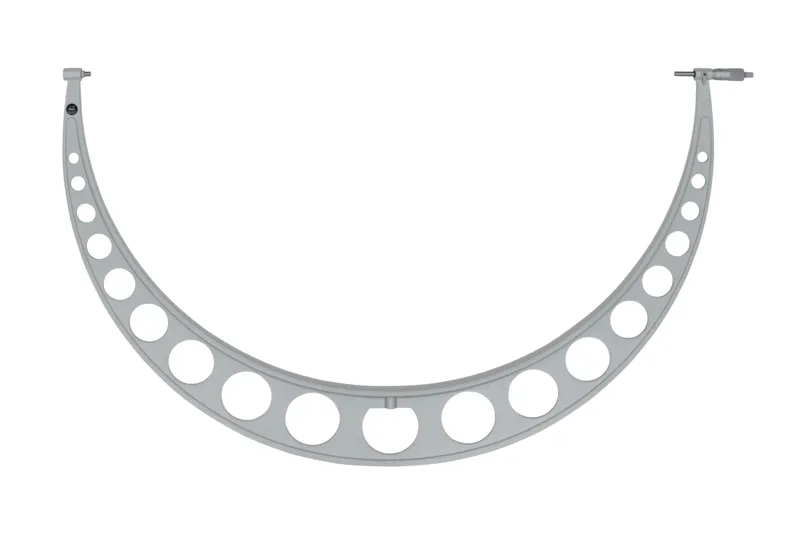

| R | 103-214 | 37" to 38" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00044" | -0.0007" to +0.0007" | - | €1,634.00 | |

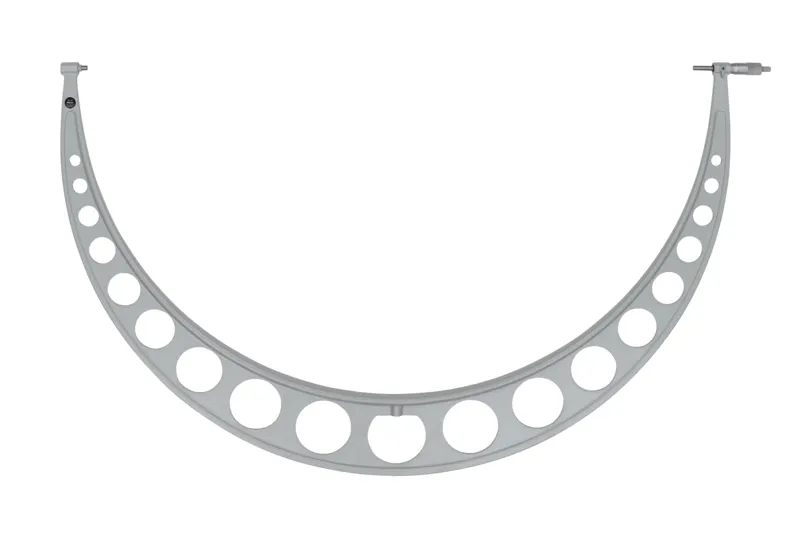

| S | 103-216 | 39" to 40" | Inch | 0.001" | 0.00004" | 10N to 15N | 0.00048" | -0.00075" to +0.00075" | - | €1,749.00 | |

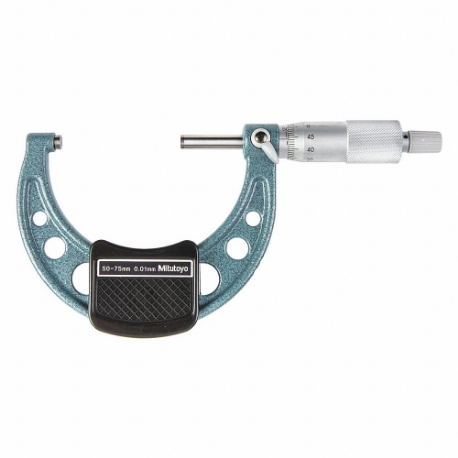

| T | 103-139-10 | 50 mm to 75 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 2 µm | -2 µm to +2 µm | Standard Bar | €227.69 | |
| U | 103-140-10 | 75 mm to 100 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 3 µm | -3 µm to +3 µm | Standard Bar | €261.61 | |
| V | 103-141-10 | 100 mm to 125 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 3 µm | -3 µm to +3 µm | Standard Bar | €289.85 | |
| W | 103-142-10 | 125 mm to 150 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 3 µm | -3 µm to +3 µm | Standard Bar | €313.36 | |
| X | 103-143-10 | 150 mm to 175 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 3 µm | -4 µm to +4 µm | Standard Bar | €354.47 | |
| Y | 103-915-10 | 150 mm to 300 mm | Metric | 0.01 mm | - | - | - | - | - | €2,110.05 | |

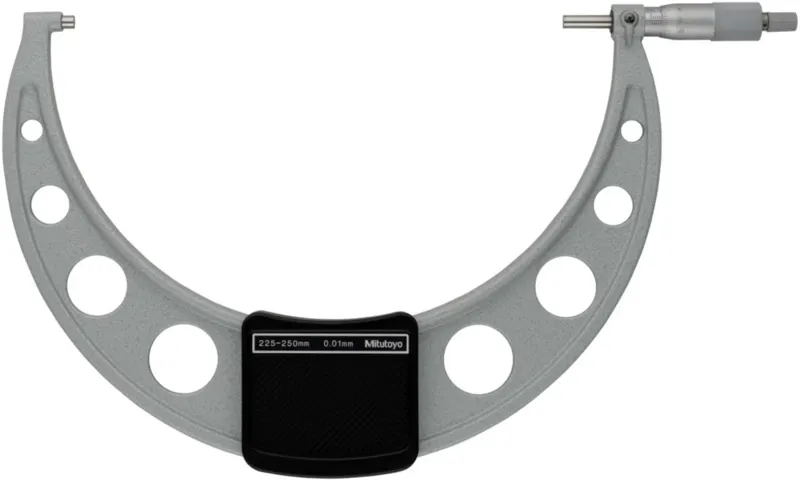

| Z | 103-146-10 | 225 mm to 250 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 4 µm | -5 µm to +5 µm | - | €303.00 | |

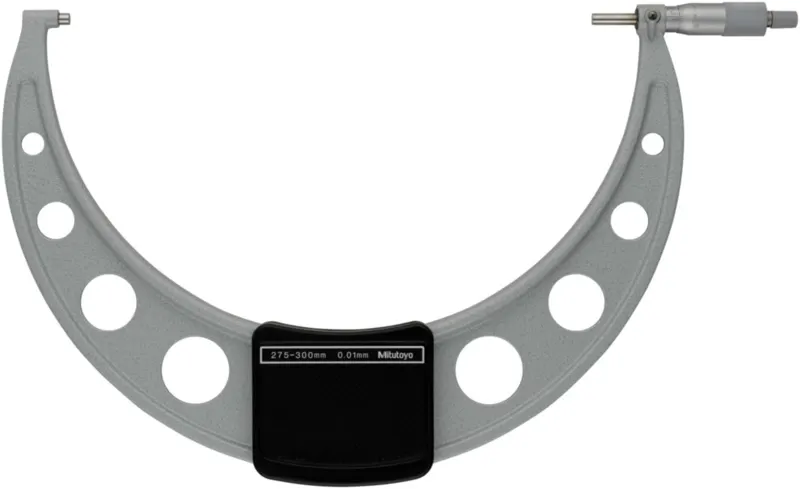

| A1 | 103-148-10 | 275 mm to 300 mm | Metric | 0.01 mm | 0.6 µm | 5N to 10N | 5 µm | -5 µm to +5 µm | - | €341.00 | |
| B1 | 103-149 | 300 mm to 325 mm | - | - | 1 ?m | 10N to 15N | 5 mm | +/-6 ?M | Standard Bar | €586.21 | |

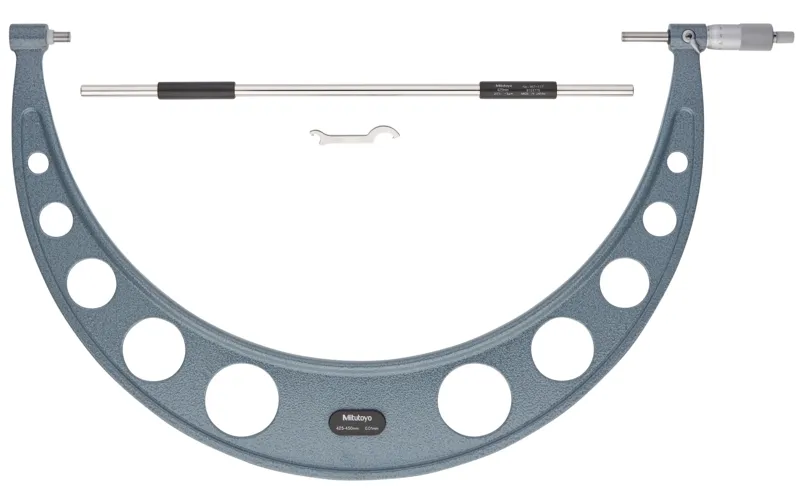

| C1 | 103-154 | 425 mm to 450 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 6 µm | -7 µm to +7 µm | - | €623.00 | |

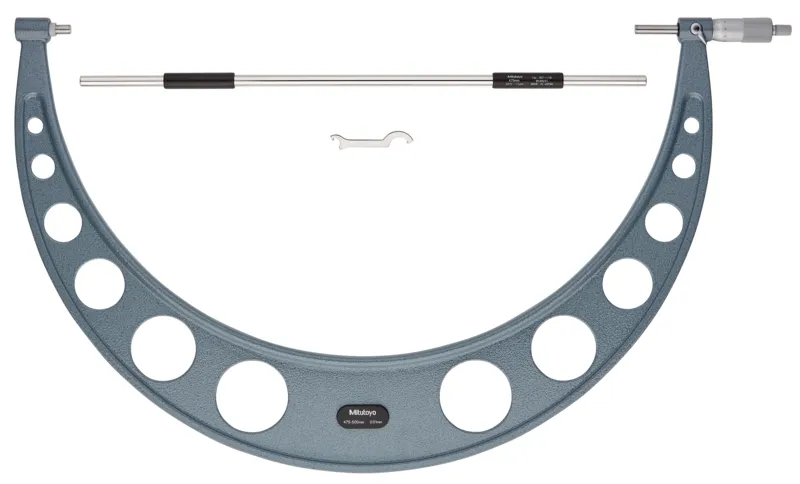

| D1 | 103-156 | 475 mm to 500 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 7 µm | -8 µm to +8 µm | - | €712.00 | |

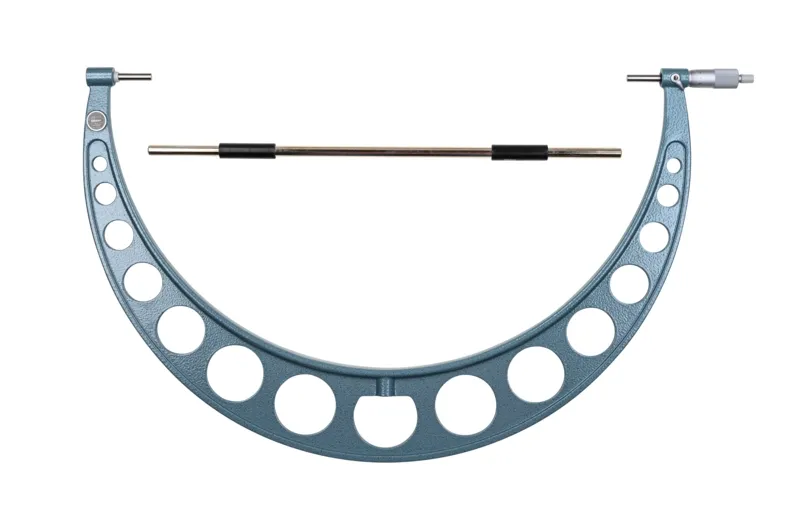

| E1 | 103-157 | 500 mm to 525 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 7 µm | -9 µm to +9 µm | - | €798.00 | |

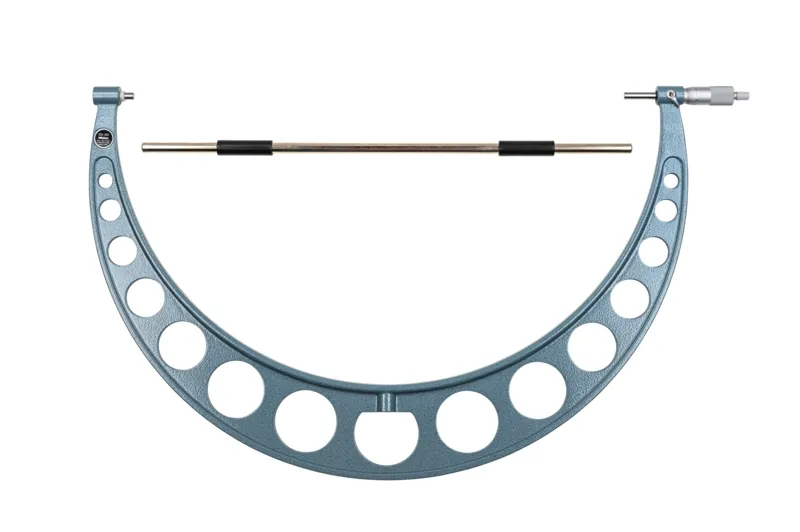

| F1 | 103-158 | 525 mm to 550 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 7 µm | -9 µm to +9 µm | - | €831.00 | |

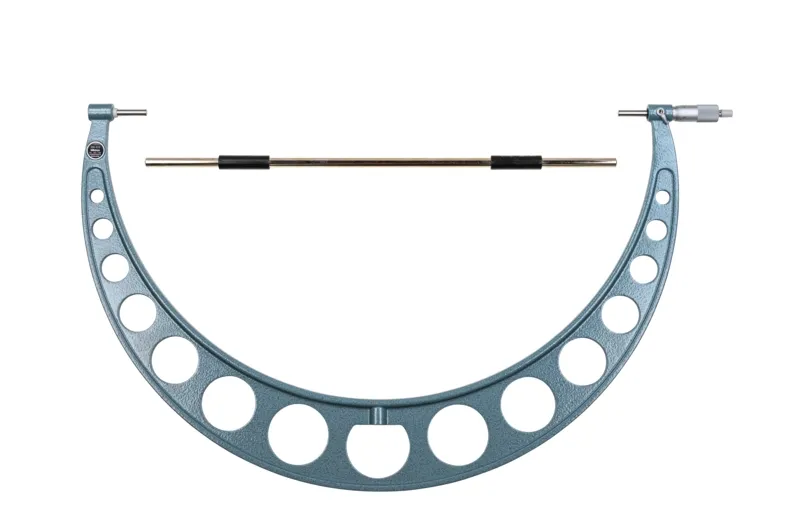

| G1 | 103-159 | 550 mm to 575 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 7 µm | -9 µm to +9 µm | - | €880.00 | |

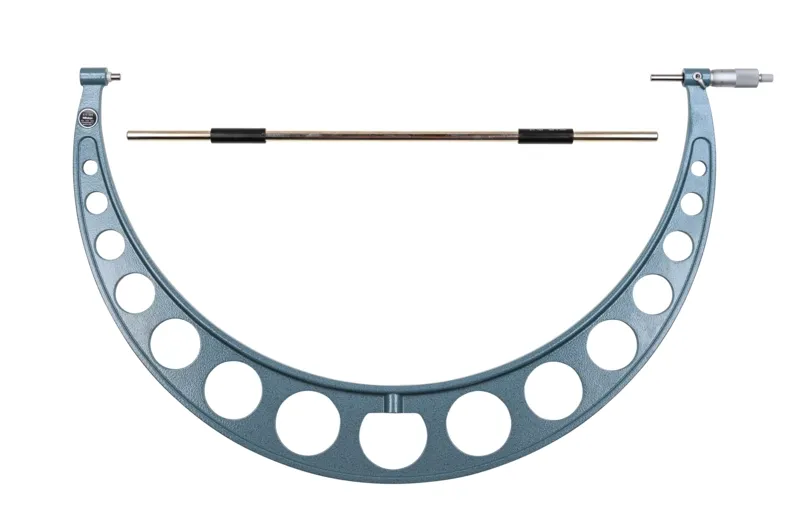

| H1 | 103-160 | 575 mm to 600 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 8 µm | -9 µm to +9 µm | - | €915.00 | |

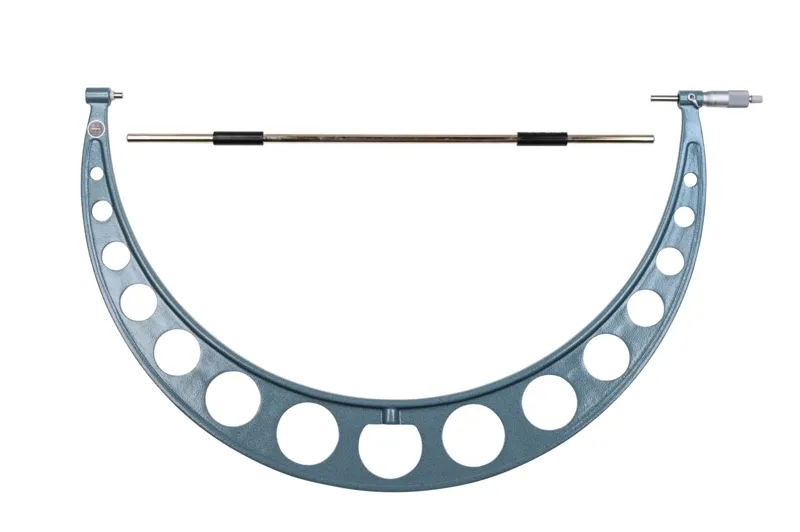

| I1 | 103-162 | 625 mm to 650 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 8 µm | -9 µm to +9 µm | - | €1,023.00 | |

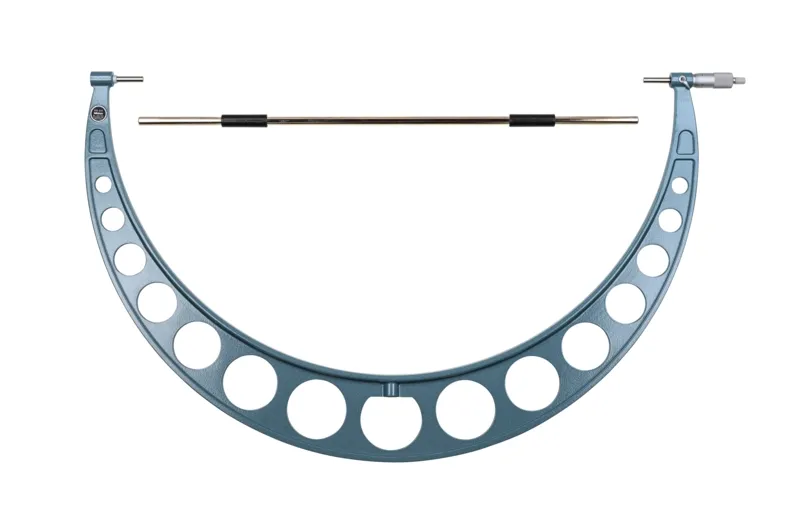

| J1 | 103-163 | 650 mm to 675 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 8 µm | -9 µm to +9 µm | - | €1,071.00 | |

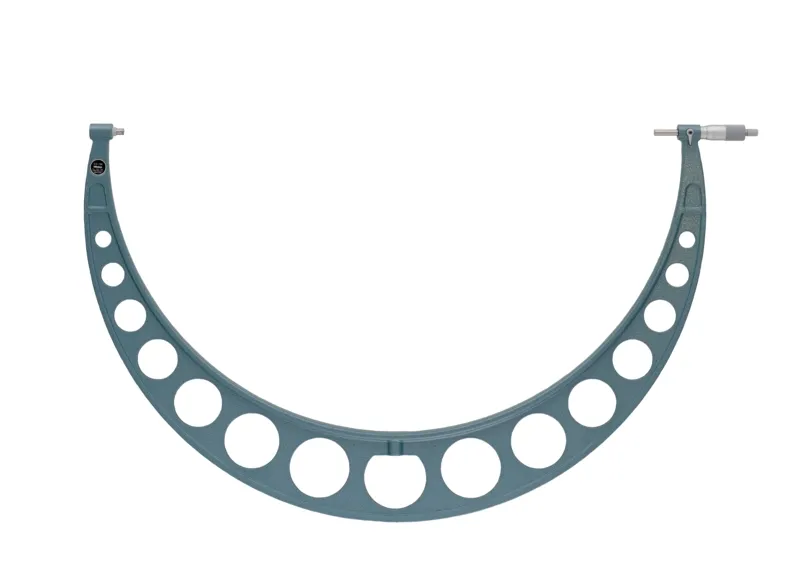

| K1 | 103-164 | 675 mm to 700 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 9 µm | -9 µm to +9 µm | - | €1,121.00 | |

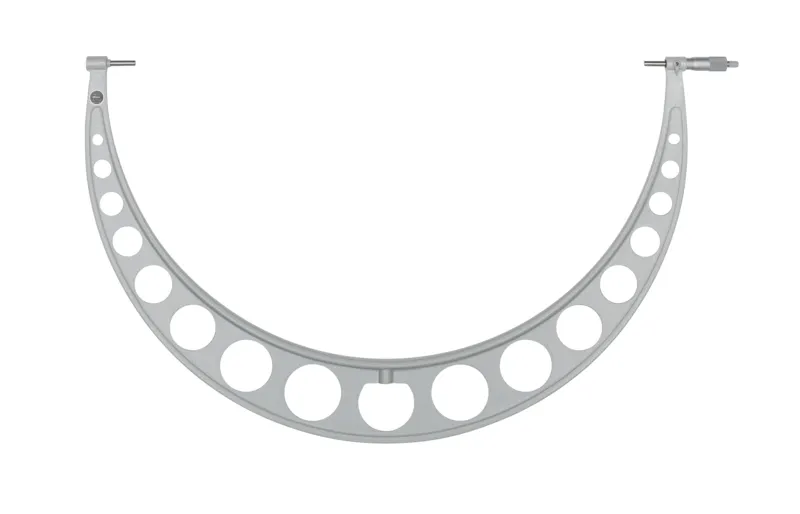

| L1 | 103-165 | 700 mm to 725 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 9 µm | -9 µm to +9 µm | - | €1,172.00 | |

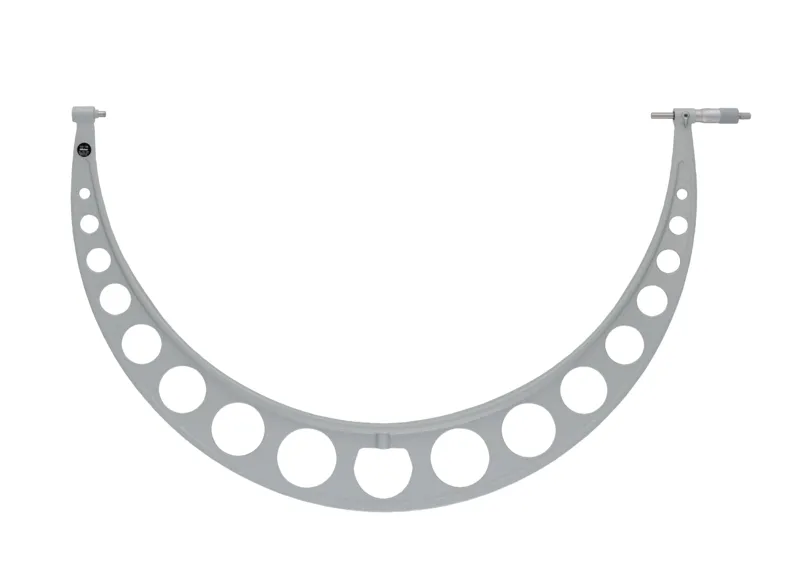

| M1 | 103-166 | 725 mm to 750 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 9 µm | -9 µm to +9 µm | - | €1,212.00 | |

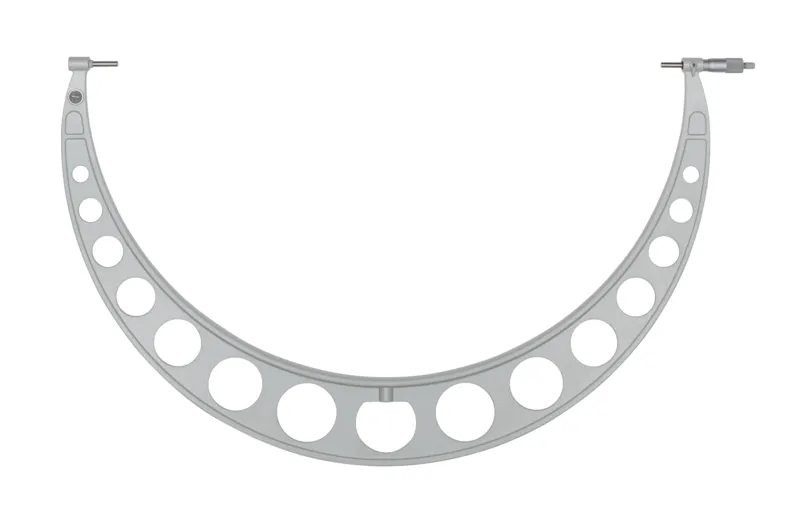

| N1 | 103-167 | 750 mm to 775 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 9 µm | -9 µm to +9 µm | - | €1,277.00 | |

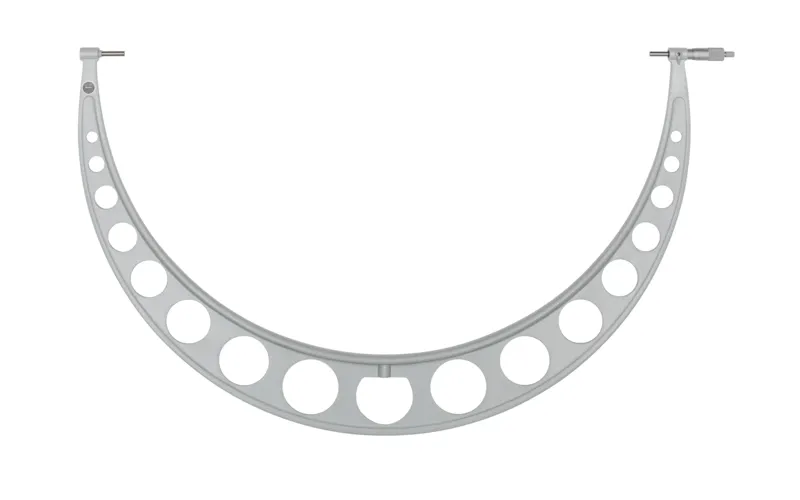

| O1 | 103-169 | 800 mm to 825 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 10 µm | -9 µm to +9 µm | - | €1,367.00 | |

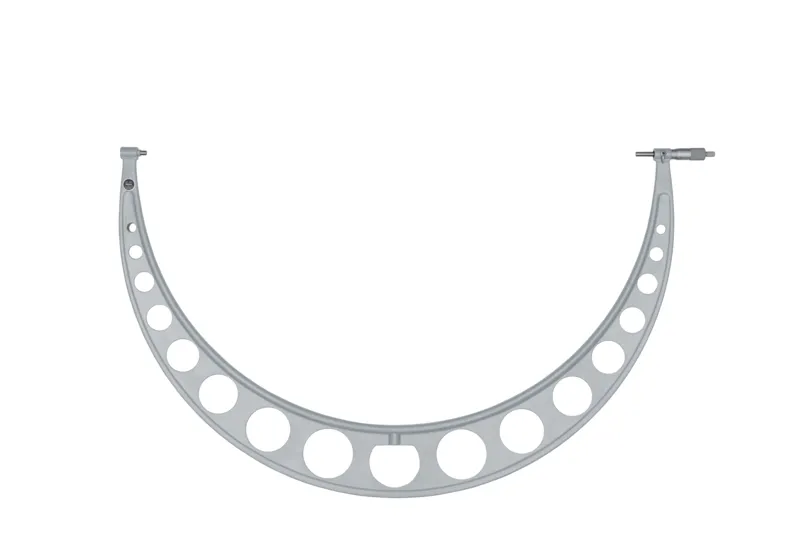

| P1 | 103-170 | 825 mm to 850 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 10 µm | -9 µm to +9 µm | - | €1,405.00 | |

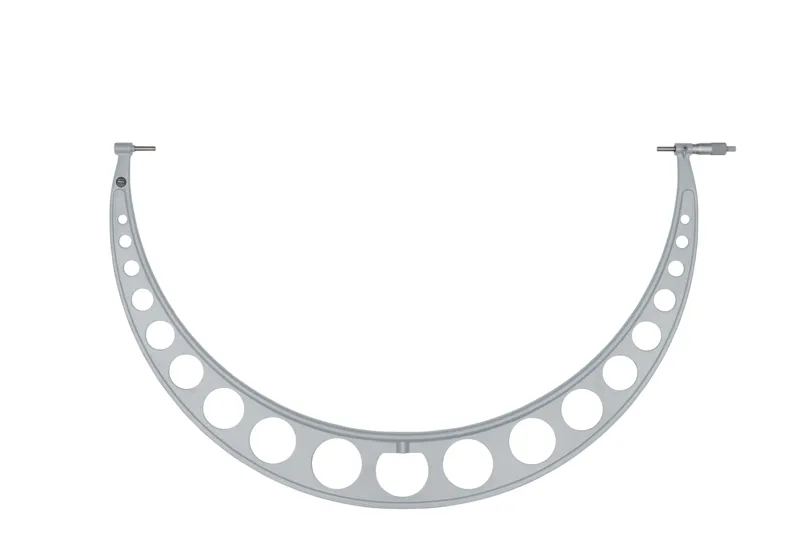

| Q1 | 103-171 | 850 mm to 875 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 10 µm | -9 µm to +9 µm | - | €1,460.00 | |

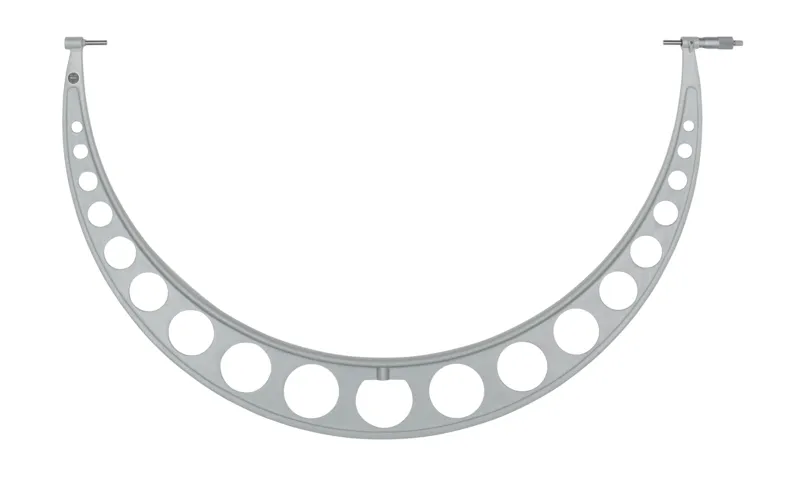

| R1 | 103-173 | 900 mm to 925 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 11 µm | -9 µm to +9 µm | - | €1,572.00 | |

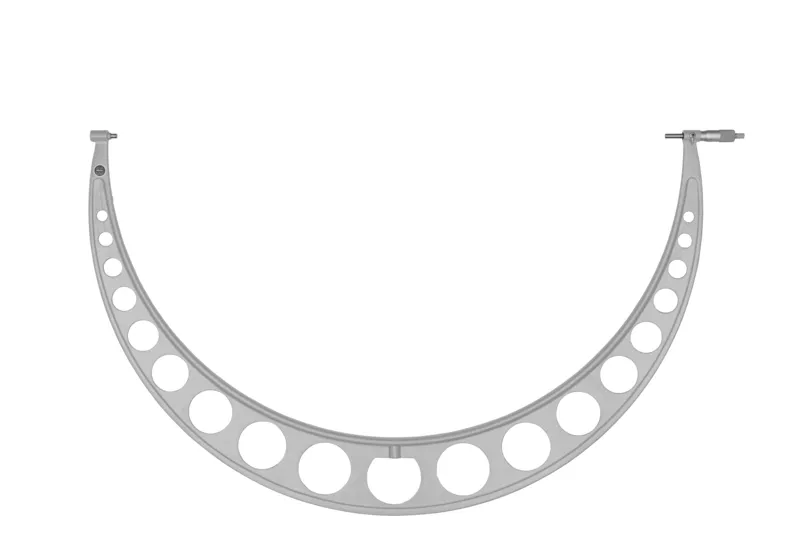

| S1 | 103-174 | 925 mm to 950 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 11 µm | -9 µm to +9 µm | - | €1,634.00 | |

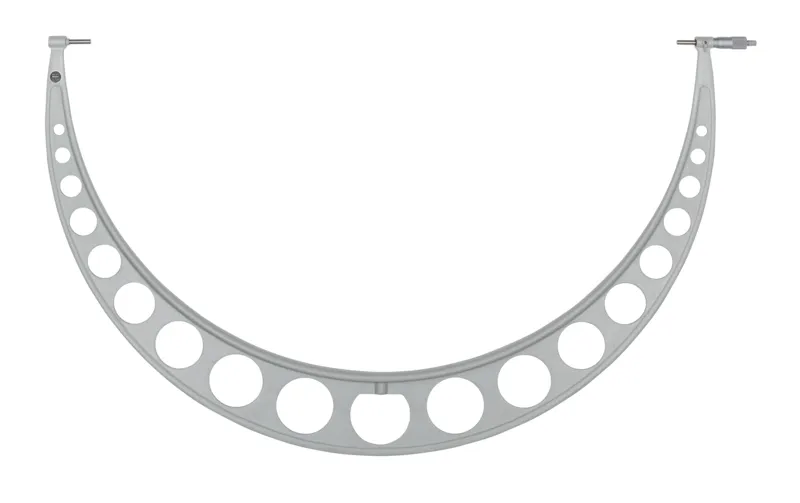

| T1 | 103-175 | 950 mm to 975 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 11 µm | -9 µm to +9 µm | - | €1,691.00 | |

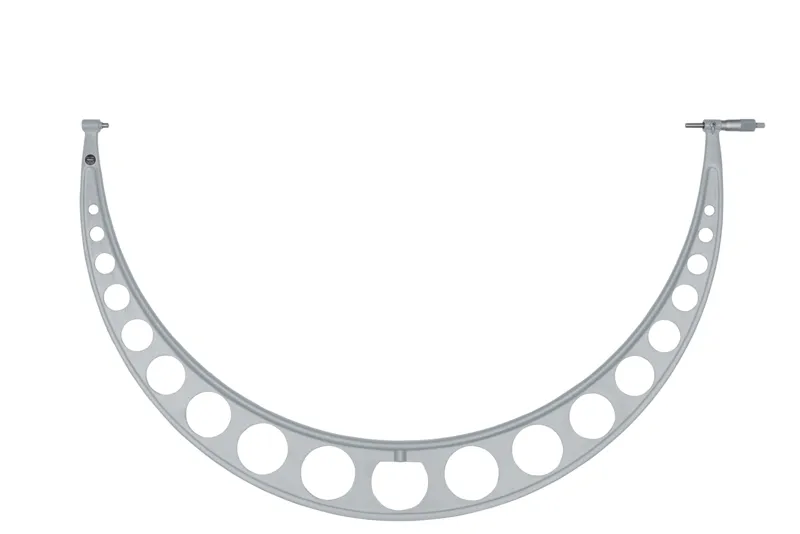

| U1 | 103-176 | 975 mm to 1000 mm | Metric | 0.01 mm | 1 µm | 10N to 15N | 12 µm | -9 µm to +9 µm | - | €1,749.00 |
