MERSEN FERRAZ PCS Series Midget Fuses, Fast-Acting
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1| Style | Model | Amps | Connection/terminal Type | Mounting Type | Ac Voltage | Mounting | Body/insulating Material | Connection/terminal Material | Speed Characteristic | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | PCS5-S | 5A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| B | PCS5-H | 5A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| C | PCS5-R | 5A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| D | PCS8-H | 8A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| E | PCS8-R | 8A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| F | PCS8-S | 8A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| G | PCS10-S | 10A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| H | PCS10-H | 10A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| I | PCS10-R | 10A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| J | PCS12-R | 12A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| K | PCS12-S | 12A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| L | PCS12-H | 12A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| M | PCS15-R | 15A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| N | PCS15-H | 15A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| O | PCS15-S | 15A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| P | PCS20-R | 20A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| Q | PCS20-H | 20A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| R | PCS20-S | 20A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| S | PCS25-S | 25A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| T | PCS25-R | 25A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| U | PCS25-H | 25A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| V | PCS30-H | 30A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| W | PCS30-S | 30A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |

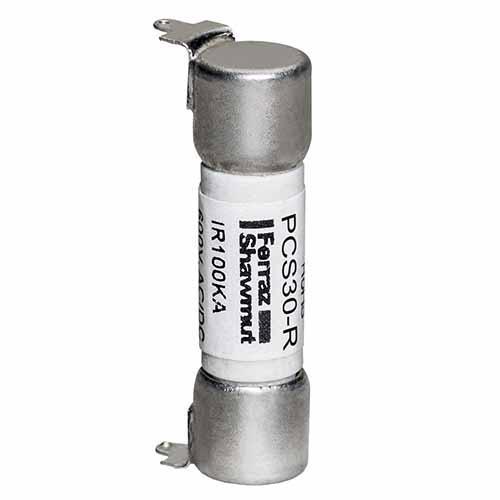

| X | PCS30-R | 30A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €8,198.52 | |
| Y | PCS35-S | 35A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €10,409.52 | |
| Z | PCS35-R | 35A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €10,409.52 | |
| A1 | PCS35-H | 35A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €10,409.52 | |
| B1 | PCS40-R | 40A | Slot Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €10,409.52 | |
| C1 | PCS40-H | 40A | Double Hole Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €10,409.52 | |
| D1 | PCS40-S | 40A | Surface Screw Mount | PC Mount | 600V AC | PC Mount | GMG | Copper | Fast Acting | 100 | €10,409.52 |
PCS Series Midget Fuses, Fast-Acting
Mersen Ferraz PCS Series midget fuses are suitable for protecting semiconductors, main frame boards and circuit breakers with low interrupting capabilities and overcurrent conditions, such as overloads and short circuits. They are used in control panels, industrial machinery, power supplies and HVAC systems. These PCS series fuses can be directly mounted on the PC board for reduced noise and strong connection. They feature fast-acting interrupt capacity for the quick response and are rated for 600VAC.
