MERSEN FERRAZ GFN Series Midget Fuses, Time-Delay
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1| Style | Model | Amps | Dia. | Voltage | Ac Voltage | Rated Voltage Ac Ul | Speed Type | Mounting | Class | Pkg. Qty. | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| A | GFN1/10 | 0.1A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| B | GFN2/10 | 0.2A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €25.97 | |
| C | GFN3/10 | 0.3A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €403.65 | |
| D | GFN4/10 | 0.4A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| E | GFN12 | 0.5A | 0.41" | - | 250V AC | - | Time Delay | Clip | Midget | 10 | €432.96 | |
| F | GFN1/2 | 0.5A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| G | GFN6/10 | 0.6A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €405.63 | |
| H | GFN8/10 | 0.8A | 10.3 mm | 250V | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €363.53 | |
| I | GFN15/100 | 0.15A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| J | GFN1/4 | 0.25A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €403.65 | |

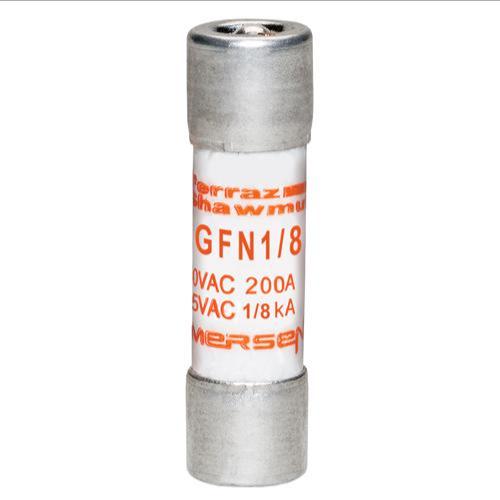

| K | GFN1/8 | 0.125A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €422.93 | |
| L | GFN1-4/10 | 1.4A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €403.65 | |
| M | GFN1-1/2 | 1.5A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €25.97 | |

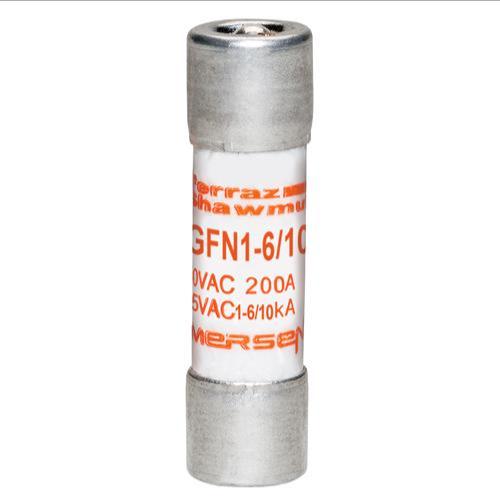

| N | GFN1-6/10 | 1.6A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €359.44 | |
| O | GFN1-8/10 | 1.8A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |

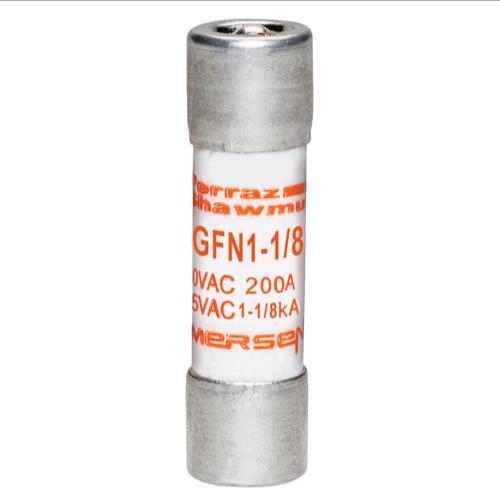

| P | GFN1-1/8 | 1.125A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |

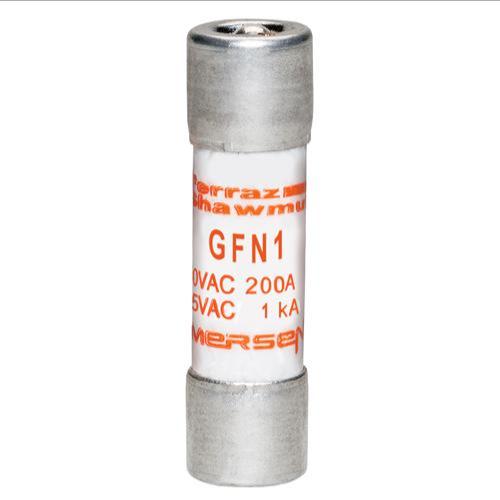

| Q | GFN1 | 1A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| R | GFN2-1/2 | 2.5A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €25.97 | |
| S | GFN2-1/4 | 2.25A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| T | GFN2 | 2A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €351.92 | |
| U | GFN1-1/4 | 3.2A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €386.76 | |
| V | GFN3-1/2 | 3.5A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| W | GFN3 | 3A | 10.3 mm | 250V | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €25.97 | |
| X | GFN4-1/2 | 4.5A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €450.25 | |
| Y | GFN4 | 4A | 10.3 mm | 250V | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €433.10 | |

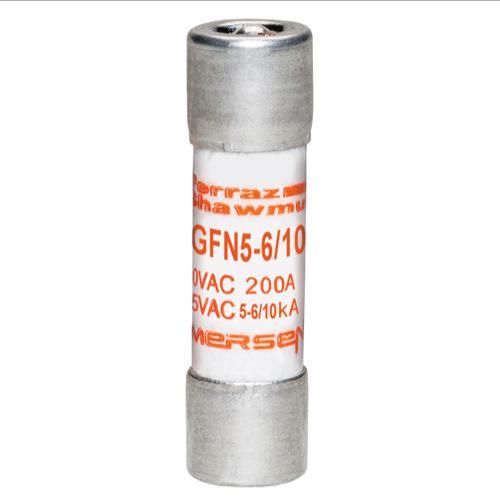

| Z | GFN5-6/10 | 5.6A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €453.82 | |
| A1 | GFN5 | 5A | 10.3 mm | 250V | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| B1 | GFN6-1/4 | 6.25A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| C1 | GFN6 | 6A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 10 | €433.10 | |
| D1 | GFN7 | 7A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |

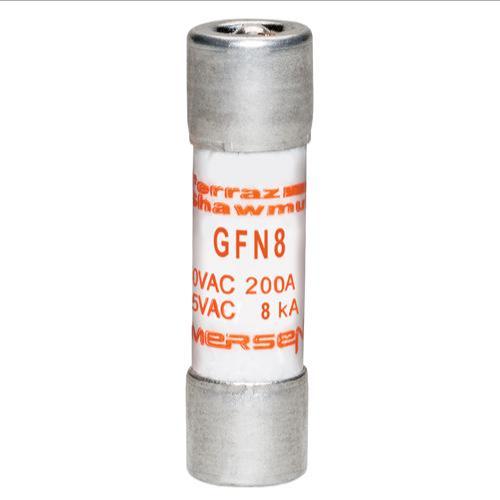

| E1 | GFN8 | 8A | 10.3 mm | - | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| F1 | GFN10 | 10A | 10.3 mm | 125V | 250V AC | 250V AC | Time Delay | Clip | Midget | 1 | €28.33 | |
| G1 | GFN15 | 15A | 10.3 mm | 125V | 125V AC | 125V | Time Delay | Clip | Midget | 1 | €28.33 | |
| H1 | GFN20 | 20A | 10.3 mm | - | 32V AC | 32V | Time Delay | Clip | Midget | 10 | €450.25 | |
| I1 | GFN25 | 25A | 10.3 mm | - | 32V AC | 32V | Time Delay | Clip | Midget | 1 | €28.33 | |
| J1 | GFN30 | 30A | 10.3 mm | - | 32V AC | 32V | Time Delay | Clip | Midget | 1 | €28.33 |
GFN Series Midget Fuses, Time-Delay
Mersen Ferraz GFN Series midget fuses are designed to protect electrical circuits from overloads and short circuits. These fuses are ideal for applications that require a time-delay characteristic to handle temporary high inrush currents without unnecessary tripping. They have a blown fuse indicator for checking their status through visual indication. These fuses can be operated at temperatures up to 80 degrees C. They come in amperage ratings of 0.8, 3, 4, 5 and 10A.
