MARTIN SPROCKET Steel Bevel Gears, 16 Diametral Pitch
Filter
A
B
C
D
E
F
G
H| Style | Model | Pitch Dia. | No. Of Teeth | Face Width | Hub Dia. | Bore Dia. | Hub Projection | Gear Ratio | Gear Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | BS1624-2 | 1 1/2" | 24 | 0.19" | 1" | 0.5" to 0.501" | 0.448" | 2:1 | Bevel | €123.04 | |
| B | BS1624-15 | 1 1/2" | 24 | 1/4" | 1 1/8" | 0.5" to 0.626" | 0.563" | 1.5:1 | Bevel | €108.48 | |
| C | BS1616-2 | 1" | 16 | 0.35" | 0.813" | 3/8" | 0.453" | 2:1 | Bevel Pinion | €75.90 | |
| D | BS1616-15 | 1" | 16 | 1/4" | 0.813" | 3/8" | 0.438" | 1.5:1 | Bevel Pinion | €75.90 | |

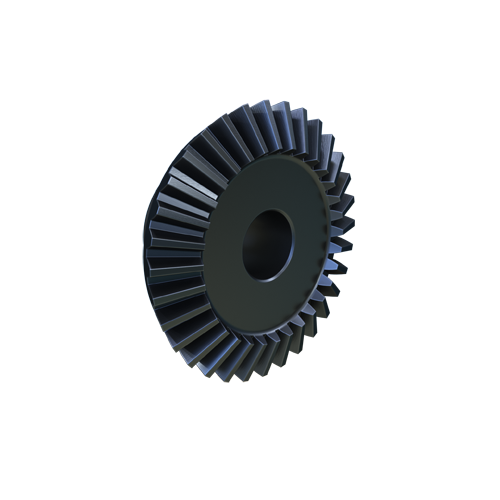

| E | BS1632-2 | 2" | 32 | 0.35" | 1 1/8" | 0.5" to 0.626" | 1/2" | 2:1 | Bevel | €129.34 | |
| F | BS1648-3 | 3" | 48 | 0.42" | 1 1/2" | 0.625" to 0.501" | 0.563" | 3:1 | Bevel | €182.93 | |
| G | BS1612-2 | 3/4" | 12 | 0.19" | 0.656" | 3/8" | 0.344" | 2:1 | Bevel Pinion | €87.37 | |
| H | BS1664-4 | 4" | 64 | 12/25" | 2 1/4" | 0.625" to 1.314" | 0.563" | 4:1 | Bevel | €234.35 |
