MARTIN SPROCKET Simplex Stock Bore B Type Metric Roller Chain Sprockets, 10B-1 Chain Number

Filter

Style	Model	Bore Dia.	Pitch Dia.	Outside Dia.	Hub Dia.	Length Through Bore	Pitch	Price
A	10B8	12 mm to 16 mm	41.483 mm	51.167 mm	21.996 mm	25 mm	15.875 mm	€68.39
A	10B9	12 mm to 19 mm	46.415 mm	56.099 mm	27 mm	25 mm	15.875 mm	€69.45
A	10B10	12 mm to 22 mm	51.373 mm	61.056 mm	32.004 mm	25 mm	15.875 mm	€76.15
B	10B11	12 mm to 25 mm	56.348 mm	66.032 mm	37.008 mm	25 mm	15.875 mm	€81.18
A	10B12	12 mm to 32 mm	61.336 mm	71.02 mm	43.002 mm	24.994 mm	15.875 mm	€84.63
C	10B13	12 mm to 33 mm	66.335 mm	76.019 mm	48.006 mm	24.994 mm	15.875 mm	€88.62
C	10B14	12 mm to 36 mm	71.342 mm	81.025 mm	53.01 mm	25 mm	15.875 mm	€92.34
C	10B15	12 mm to 38 mm	76.355 mm	86.038 mm	56.998 mm	25 mm	15.875 mm	€90.83
C	10B16	12 mm to 44 mm	81.373 mm	91.056 mm	62.992 mm	25 mm	15.875 mm	€97.66
C	10B17	12 mm to 47 mm	86.395 mm	96.079 mm	67.005 mm	24.994 mm	15.875 mm	€101.72
C	10B18	12 mm to 48 mm	91.42 mm	101.104 mm	73 mm	25 mm	15.875 mm	€111.00
C	10B22	16 mm to 51 mm	111.548 mm	121.232 mm	75.997 mm	25 mm	15.875 mm	€134.94
C	10B23	16 mm to 51 mm	116.585 mm	126.269 mm	75.997 mm	32.004 mm	15.875 mm	€143.98
D	10B24	16 mm to 51 mm	121.623 mm	131.307 mm	75.997 mm	32 mm	15.875 mm	€152.16
D	10B26	16 mm to 51 mm	131.703 mm	141.386 mm	75.997 mm	32 mm	15.875 mm	€170.46
C	10B19	16 mm to 51 mm	96.449 mm	106.133 mm	75.997 mm	24.994 mm	15.875 mm	€110.22
C	10B20	16 mm to 51 mm	101.48 mm	111.164 mm	75.997 mm	25 mm	15.875 mm	€123.26
D	10B28	19 mm to 51 mm	141.786 mm	151.47 mm	75.997 mm	32 mm	15.875 mm	€177.13
E	10B29	19 mm to 51 mm	146.829 mm	89.844 mm	75.997 mm	32 mm	15.875 mm	€180.36
F	10B27	19 mm to 53 mm	136.744 mm	146.428 mm	75.997 mm	32 mm	15.875 mm	€122.46
D	10B41	19 mm to 57 mm	207.383 mm	126.176 mm	80.797 mm	32 mm	15.875 mm	€222.13
D	10B43	19 mm to 57 mm	217.48 mm	132.234 mm	80.797 mm	32 mm	15.875 mm	€230.08
D	10B37	19 mm to 57 mm	187.192 mm	114.062 mm	80.797 mm	32 mm	15.875 mm	€211.56
D	10B36	19 mm to 57 mm	182.145 mm	111.033 mm	80.797 mm	32 mm	15.875 mm	€203.38
D	10B42	19 mm to 57 mm	212.431 mm	129.205 mm	80.797 mm	32 mm	15.875 mm	€225.57
D	10B34	19 mm to 57 mm	172.052 mm	104.978 mm	80.797 mm	32 mm	15.875 mm	€198.43
D	10B39	19 mm to 57 mm	197.287 mm	120.118 mm	80.797 mm	32 mm	15.875 mm	€218.89
G	10B35	19 mm to 57 mm	177.099 mm	108.005 mm	80.797 mm	32 mm	15.875 mm	€200.82
D	10B33	19 mm to 57 mm	167.007 mm	101.95 mm	80.797 mm	32 mm	15.875 mm	€197.57
D	10B38	19 mm to 57 mm	192.239 mm	117.09 mm	80.797 mm	32 mm	15.875 mm	€216.51
D	10B31	19 mm to 57 mm	156.917 mm	95.896 mm	80.797 mm	32 mm	15.875 mm	€188.53

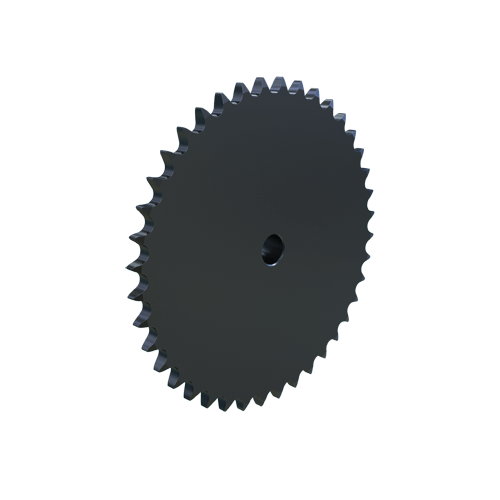

H	10B40	19 mm to 57 mm	202.335 mm	123.147 mm	80.797 mm	32 mm	15.875 mm	€219.75
D	10B32	19 mm to 57 mm	161.961 mm	98.923 mm	80.797 mm	32 mm	15.875 mm	€189.39
D	10B44	19 mm to 57 mm	222.528 mm	135.263 mm	80.797 mm	32 mm	15.875 mm	€233.74
D	10B30	19 mm to 57 mm	151.873 mm	92.87 mm	80.797 mm	32 mm	15.875 mm	€182.49
D	10B47	19 mm to 64 mm	237.676 mm	144.352 mm	93.853 mm	32 mm	15.875 mm	€243.84
D	10B46	19 mm to 64 mm	232.627 mm	141.322 mm	93.853 mm	32 mm	15.875 mm	€238.26
D	10B45	19 mm to 64 mm	227.577 mm	138.293 mm	93.853 mm	32 mm	15.875 mm	€234.81
C	10B21	24 mm to 51 mm	106.513 mm	65.654 mm	76.2 mm	25 mm	15.875 mm	€125.91
I	10B76	25 mm to 64 mm	384.15 mm	232.236 mm	93.853 mm	44 mm	15.875 mm	€414.32
D	10B59	25 mm to 64 mm	298.278 mm	180.713 mm	93.853 mm	32 mm	15.875 mm	€254.79
D	10B50	25 mm to 64 mm	252.825 mm	153.441 mm	93.853 mm	32 mm	15.875 mm	€267.30
D	10B57	25 mm to 64 mm	288.177 mm	174.652 mm	93.853 mm	32 mm	15.875 mm	€246.65
D	10B53	25 mm to 64 mm	267.975 mm	162.531 mm	93.853 mm	32 mm	15.875 mm	€271.83
D	10B48	25 mm to 64 mm	242.725 mm	147.381 mm	93.853 mm	32 mm	15.875 mm	€246.88
D	10B56	25 mm to 64 mm	283.126 mm	171.622 mm	93.853 mm	32 mm	15.875 mm	€243.13
D	10B51	25 mm to 64 mm	257.875 mm	156.471 mm	93.853 mm	32 mm	15.875 mm	€268.61
I	10B72	25 mm to 64 mm	363.944 mm	220.112 mm	93.853 mm	44 mm	15.875 mm	€373.95
D	10B49	25 mm to 64 mm	247.775 mm	150.411 mm	93.853 mm	32 mm	15.875 mm	€261.93
D	10B58	25 mm to 64 mm	293.227 mm	177.683 mm	93.853 mm	32 mm	15.875 mm	€250.16
D	10B55	25 mm to 64 mm	278.076 mm	168.592 mm	93.853 mm	32 mm	15.875 mm	€278.29
D	10B54	25 mm to 64 mm	273.025 mm	165.561 mm	93.853 mm	32 mm	15.875 mm	€273.12
D	10B60	25 mm to 64 mm	303.329 mm	183.743 mm	93.853 mm	32 mm	15.875 mm	€262.52
D	10B52	25 mm to 64 mm	262.925 mm	159.501 mm	93.853 mm	32 mm	15.875 mm	€270.12
I	10B80	25 mm to 70 mm	404.357 mm	244.361 mm	106.909 mm	44 mm	15.875 mm	€454.35
I	10B96	25 mm to 70 mm	485.191 mm	292.861 mm	106.909 mm	44 mm	15.875 mm	€610.08
I	10B84	25 mm to 70 mm	424.565 mm	256.485 mm	106.909 mm	44 mm	15.875 mm	€493.64
J	10B112	25 mm to 75 mm	566.029 mm	575.713 mm	106.934 mm	44 mm	15.875 mm	€765.40

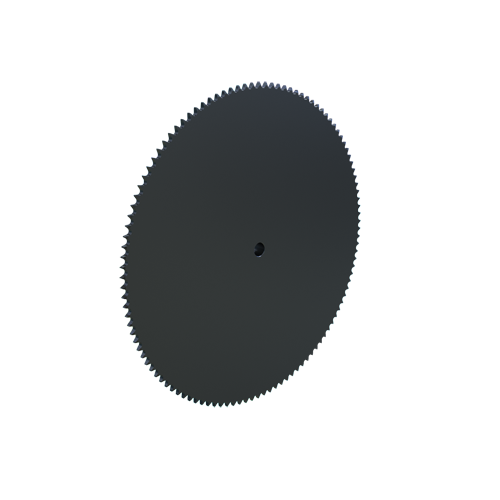

K	10B114	25 mm to 75 mm	576.134 mm	585.818 mm	106.934 mm	44 mm	15.875 mm	€756.99
