MARTIN SPROCKET Bored To Size C Type Flame Cut Sprockets, 78 Chain Number
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1| Style | Model | No. Of Teeth | Pitch Dia. | Length Through Bore | Hub Dia. | Bore Dia. | Chain Size | Key Way Size | Screw Size | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 78CS8 1 15/16 | 8 | 6.82" | 3 1/8" | 4 3/4" | 1 15/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €464.54 | |

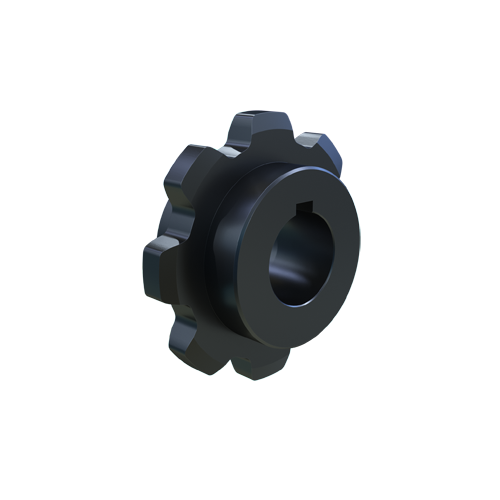

| B | 78CS8 2 7/16 | 8 | 6.82" | 3 1/8" | 4 3/4" | 2 7/16" | #78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €464.54 | |

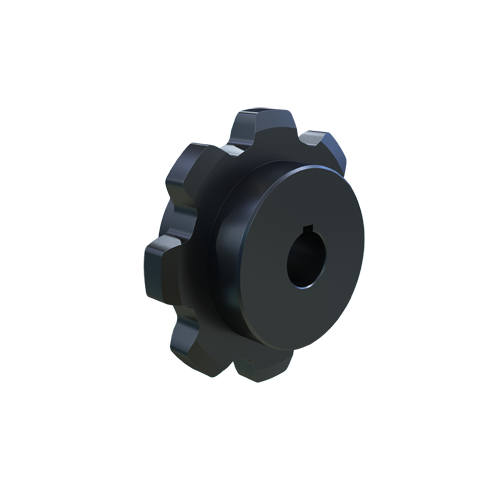

| C | 78CS8 1 7/16 | 8 | 6.82" | 3 1/8" | 4 3/4" | 1 7/16" | #78 | 3/8" x 3/16" | 3/8"-16 x 3/8" | €464.54 | |
| D | 78CS8 2 | 8 | 6.83" | 3 1/8" | 4 3/4" | 2" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €464.54 | |
| A | 78CS8 2 15/16 | 8 | 6.82" | 3 1/8" | 4 3/4" | 2 15/16" | #78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €464.54 | |
| A | 78CS8 2 3/16 | 8 | 6.82" | 3 1/8" | 4 3/4" | 2 3/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €464.54 | |
| E | 78CS9 2 15/16 | 9 | 7.63" | 3 7/8" | 5 1/4" | 2 15/16" | #78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €577.37 | |
| A | 78CS9 2 3/16 | 9 | 7.63" | 3 7/8" | 5 1/4" | 2 3/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €577.37 | |
| F | 78CS9 2 7/16 | 9 | 7.63" | 3 7/8" | 5 1/4" | 2 7/16" | 78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €577.37 | |
| A | 78CS9 2 | 9 | 7.63" | 3 7/8" | 5 1/4" | 2" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €577.37 | |
| G | 78CS9 1 15/16 | 9 | 7.63" | 3 7/8" | 5 1/4" | 1 15/16" | 78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €577.37 | |
| A | 78CS9 1 7/16 | 9 | 7.63" | 3 7/8" | 5 1/4" | 1.438" | #78 | 3/8" x 3/16" | 3/8"-16 x 3/8" | €577.37 | |
| H | 78CS10 2 15/16 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 2 15/16" | 78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €608.10 | |
| I | 78CS10 2 3/16 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 2 3/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €608.10 | |
| J | 78CS10 3 7/16 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 3 7/16" | #78 | 7/8" x 7/16" | 3/4"-10 x 3/4" | €608.10 | |
| K | 78CS10 1 7/16 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 1 7/16" | #78 | 3/8" x 3/16" | 3/8"-16 x 3/8" | €608.10 | |
| A | 78CS10 2 7/16 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 2 7/16" | #78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €608.10 | |
| L | 78CS10 2 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 2" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €608.10 | |
| M | 78CS10 1 15/16 | 10 | 8 11/25" | 3 7/8" | 5 1/4" | 1 15/16" | 78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €608.10 | |
| N | 78CS11 2 15/16 | 11 | 9.26" | 3 7/8" | 5 1/4" | 2 15/16" | #78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €642.18 | |

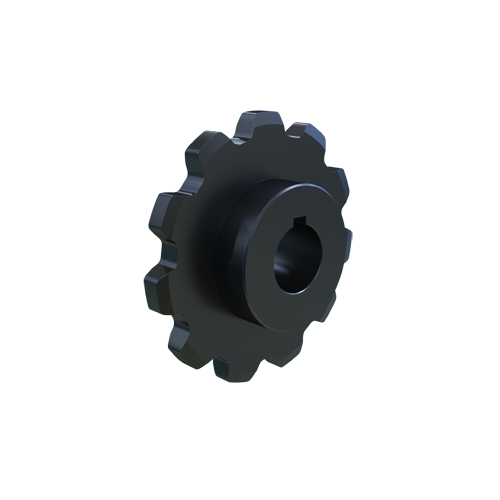

| O | 78CS11 2 7/16 | 11 | 9.26" | 3 7/8" | 5 1/4" | 2 7/16" | 78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €642.18 | |
| P | 78CS11 2 3/16 | 11 | 9.26" | 3 7/8" | 5 1/4" | 2 3/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €642.18 | |
| Q | 78CS11 1 15/16 | 11 | - | - | - | - | - | - | - | €642.18 | |
| R | 78CS11 3 7/16 | 11 | 9.26" | 3 7/8" | 5 1/4" | 3 7/16" | #78 | 7/8" x 7/16" | 3/4"-10 x 3/4" | €642.18 | |
| S | 78CS11 2 | 11 | 9.26" | 3 7/8" | 5 1/4" | 2" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €642.18 | |
| A | 78CS12 1 15/16 | 12 | 10 2/25" | 3 7/8" | 5 1/4" | 1 15/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €678.61 | |
| A | 78CS12 2 7/16 | 12 | 10 2/25" | 3 7/8" | 5 1/4" | 2 7/16" | #78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €678.61 | |
| T | 78CS12 2 | 12 | 10 2/25" | 3 7/8" | 5 1/4" | 2" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €678.61 | |

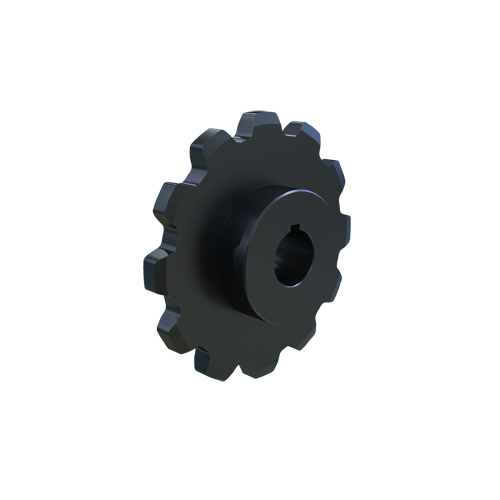

| U | 78CS12 2 3/16 | 12 | 10 2/25" | 3 7/8" | 5 1/4" | 2 3/16" | 78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €678.61 | |
| V | 78CS12 3 7/16 | 12 | 10 2/25" | 3 7/8" | 5 1/4" | 3 7/16" | #78 | 7/8" x 7/16" | 3/4"-10 x 3/4" | €678.61 | |
| A | 78CS12 2 15/16 | 12 | 10 2/25" | 3 7/8" | 5 1/4" | 2 15/16" | #78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €678.61 | |
| W | 78CS13 2 15/16 | 13 | 10.9" | 4 1/2" | 5 1/2" | 2 15/16" | #78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €784.88 | |
| X | 78CS13 3 7/16 | 13 | 10.9" | 4 1/2" | 5 1/2" | 3 7/16" | #78 | 7/8" x 7/16" | 3/4"-10 x 3/4" | €784.88 | |
| Y | 78CS13 2 3/16 | 13 | 10.9" | 4 1/2" | 5 1/2" | 2 3/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €784.88 | |
| Z | 78CS13 1 15/16 | 13 | 10.9" | 4 1/2" | 5 1/2" | 1 15/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €784.88 | |
| A | 78CS13 2 7/16 | 13 | 10.9" | 4 1/2" | 5 1/2" | 2 7/16" | #78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €784.88 | |

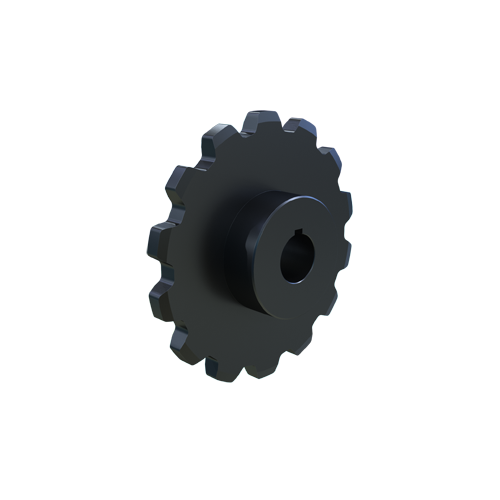

| A1 | 78CS14 2 3/16 | 14 | 11 18/25" | 4 1/2" | 5 1/2" | 2 3/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €776.22 | |
| A | 78CS14 2 7/16 | 14 | 11 18/25" | 4 1/2" | 5 1/2" | 2 7/16" | #78 | 5/8" x 5/16" | 5/8"-11 x 5/8" | €776.22 | |
| A | 78CS14 1 15/16 | 14 | 11 18/25" | 4 1/2" | 5 1/2" | 1 15/16" | #78 | 1/2" x 1/4" | 1/2"-13 x 1/2" | €776.22 | |
| B1 | 78CS14 3 7/16 | 14 | 11 18/25" | 4 1/2" | 5 1/2" | 3 7/16" | #78 | 7/8" x 7/16" | 3/4"-10 x 3/4" | €776.22 | |
| C1 | 78CS14 2 15/16 | 14 | 11 18/25" | 4 1/2" | 5 1/2" | 2 15/16" | #78 | 3/4" x 3/8" | 5/8"-11 x 5/8" | €776.22 |
