LYNDEX-NIKKEN Rotary Toolholder Retention Knobs
Filter
A
B
C
D
E| Style | Model | Angle Radius | Knob Outside Dia. | Flange Thickness | Flange To Angle Length | Neck Dia. | Coolant Fed | Flange To Knob Length | Thread Standard | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | B40-1500-MORI | 15° | 0.748" | 0.334" | 0.905" | 0.551" | Coolant Through | 1.141" | Class 4G6G Metric | €82.31 | |

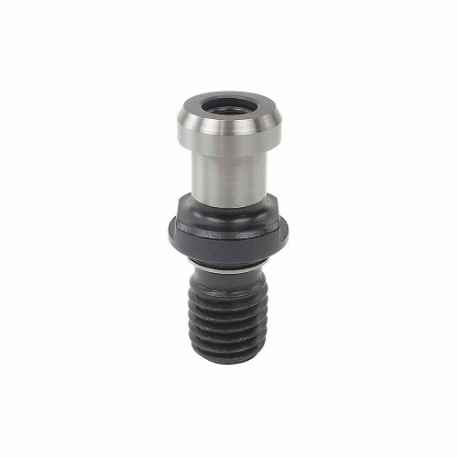

| B | C40-1500-MORI | 15° | 0.748" | 0.236" | 0.793" | 0.551" | Coolant Through | 1.029" | Class 3A UNC | €79.73 | |
| A | C40-1500(R) | 15° | 0.748" | 0.275" | 0.793" | 0.551" | Coolant Through | 1.029" | Class 3A UNC | €77.51 | |

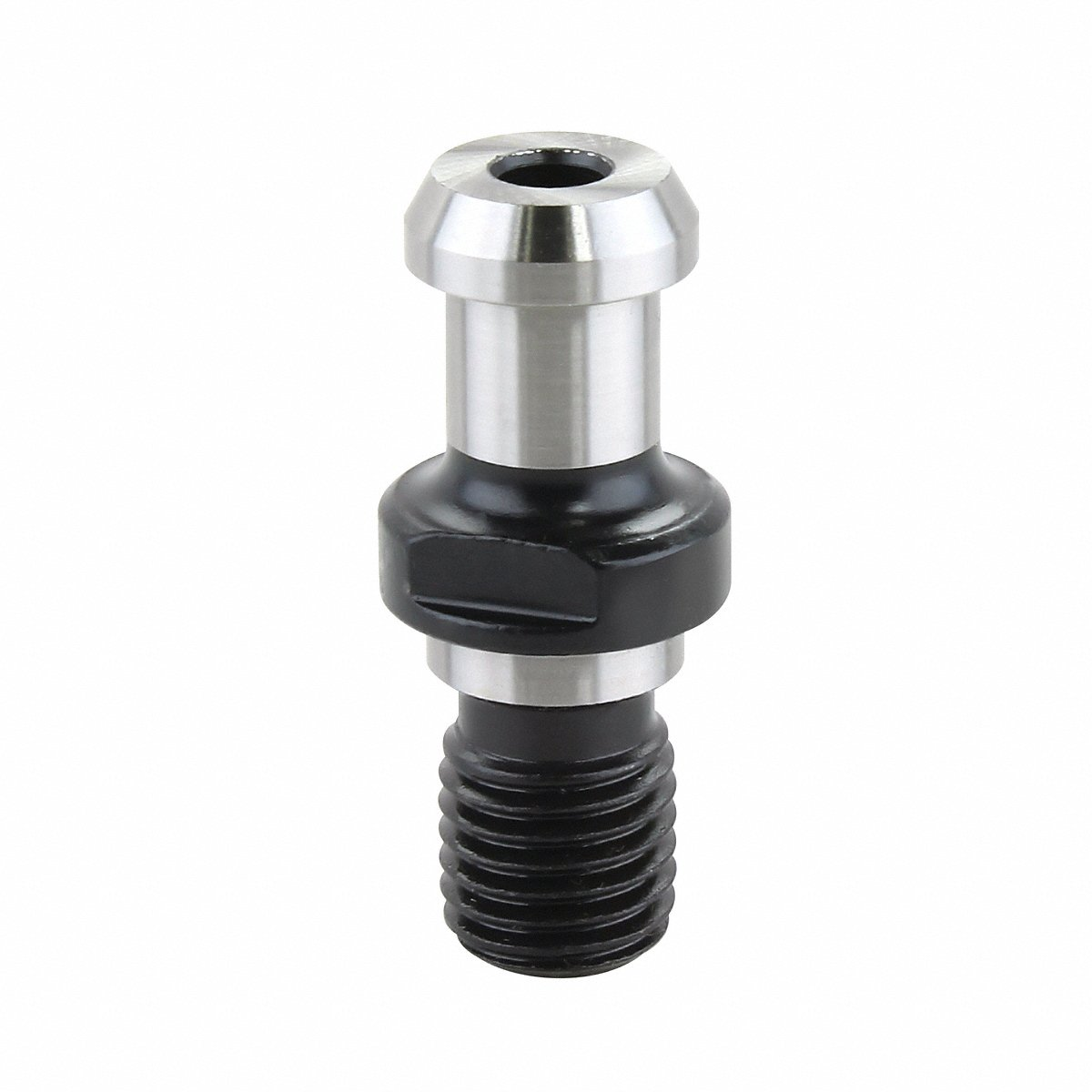

| C | B30-4500 | 45° | 0.433" | 0.196" | 0.708" | 0.275" | Non Coolant Through | 0.905" | Class 4G6G Metric | €36.56 | |

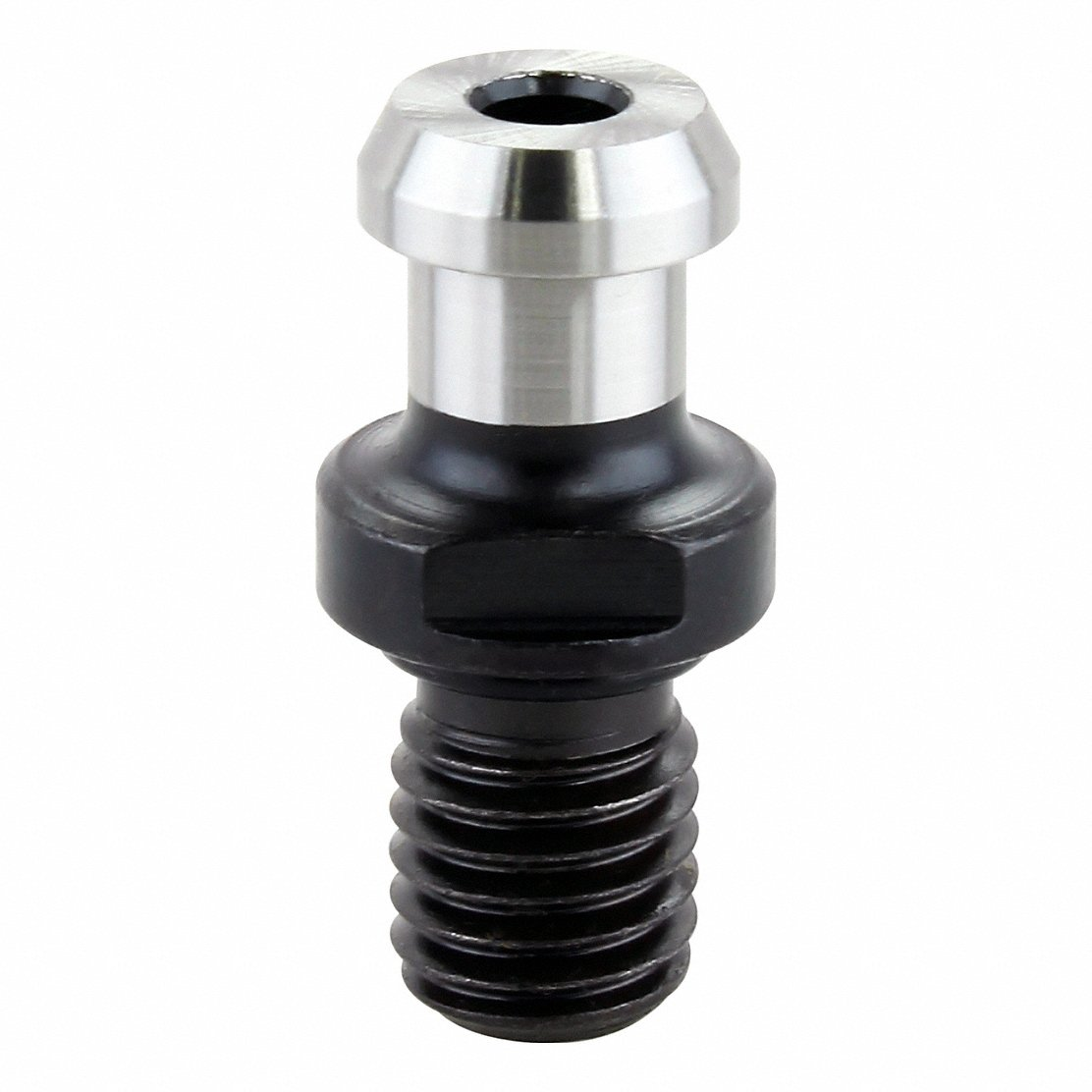

| D | C50-STD | 45° | 1.141" | 0.196" | 0.7" | 0.819" | Coolant Through | 1" | Class 3A UNC | €52.54 | |
| A | C50-4500(H) | 45° | 0.905" | 0.394" | 1.385" | 0.669" | Coolant Through | 1.779" | Class 3A UNC | €56.63 | |
| D | C40-STD | 45° | 0.74" | 0.118" | 0.433" | 0.503" | Coolant Through | 0.639" | Class 3A UNC | €44.66 | |
| A | C50-MAKINO | 45° | 0.905" | 0.393" | 1.377" | 0.669" | Coolant Through | 1.771" | Class 3A UNC | €90.69 | |
| A | C40S-4500 | 45° | 0.59" | 0.236" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €43.07 | |
| A | B50-4500 | 45° | 0.905" | 0.393" | 1.377" | 0.669" | Non Coolant Through | 1.771" | Class 4G6G Metric | €61.22 | |
| A | B50-4500(H) | 45° | 0.905" | 0.393" | 1.377" | 0.669" | Coolant Through | 1.771" | Class 4G6G Metric | €59.47 | |
| A | B40-STD | 45° | 0.74" | 0.13" | 0.433" | 0.503" | Coolant Through | 0.639" | - | €79.16 | |
| C | B40-4500(H) | 45° | 0.59" | 0.236" | 1.102" | 0.393" | Coolant Through | 1.377" | Class 4G6G Metric | €43.42 | |
| A | C50-4500(B) | 45° | 0.905" | 0.393" | 1.385" | 0.669" | Non Coolant Through | 1.779" | Class 3A UNC | €113.76 | |
| A | C50-4500 | 45° | 0.91" | 0.393" | 1.385" | 0.669" | Non Coolant Through | 1.779" | Class 3A UNC | €56.27 | |
| A | C40S-4500(H) | 45° | 0.59" | 0.236" | 0.99" | 0.393" | Coolant Through | 1.265" | Class 3A UNC | €50.40 | |
| A | C50-STD(B) | 45° | 1.141" | 0.197" | 0.7" | 0.819" | Coolant Through | 1" | Class 3A UNC | €116.82 | |
| A | C40-4500(B) | 45° | 0.59" | 0.124" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €75.07 | |
| A | C40-STD(B) | 45° | 0.74" | 0.118" | 0.433" | 0.503" | Coolant Through | 0.639" | Class 3A UNC | €89.53 | |
| A | C40-4500(H) | 45° | 0.59" | 0.124" | - | 0.393" | - | - | Class 3A UNC | - | RFQ
|
| A | B40-4500 | 45° | 0.59" | 0.236" | 1.102" | 0.393" | Non Coolant Through | 1.377" | Class 4G6G Metric | €44.66 | |

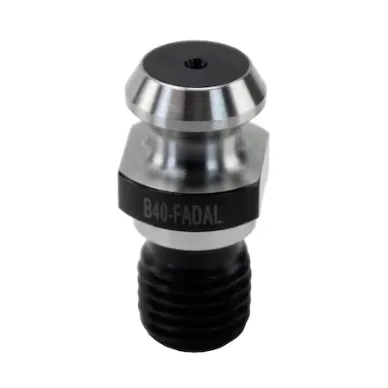

| E | B40-FADAL | 45° | 0.74" | 0.236" | 0.551" | 0.49" | Non Coolant Through | 0.751" | Class 4G6G Metric | €52.54 | |
| A | C50-6000 | 60° | 0.905" | 0.393" | 1.385" | 0.669" | Non Coolant Through | 1.779" | Class 3A UNC | €53.82 | |
| A | B35-6000 | 60° | 0.539" | 0.196" | 0.885" | 0.35" | Non Coolant Through | 1.102" | Class 4G6G Metric | €44.06 | |
| A | B40-6000 | 60° | 0.59" | 0.236" | 1.102" | 0.393" | Non Coolant Through | 1.377" | Class 4G6G Metric | €61.17 | |
| A | C50-6000(H) | 60° | 0.905" | 0.394" | 1.385" | 0.669" | Coolant Through | 1.779" | Class 3A UNC | €59.89 | |
| A | C40-6000(H) | 60° | 0.59" | 0.124" | 0.99" | 0.393" | Coolant Through | 1.265" | Class 3A UNC | €51.44 | |
| A | C40S-6000 | 60° | 0.59" | 0.236" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €42.76 | |
| A | B30-6000 | 60° | 0.433" | 0.196" | 0.708" | 0.275" | Non Coolant Through | 0.905" | Class 4G6G Metric | €47.41 | |
| D | C40-6000 | 60° | 0.59" | 0.124" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €44.00 | |
| A | B50-6000 | 60° | 0.905" | 0.393" | 1.377" | 0.669" | Non Coolant Through | 1.771" | Class 4G6G Metric | €53.60 | |
| A | B50-6000(H) | 60° | 0.905" | 0.393" | 1.377" | 0.669" | Coolant Through | 1.771" | Class 4G6G Metric | €61.93 | |
| A | C50-1500(ISO) | 75° | 1.102" | 0.197" | 0.984" | 0.826" | Coolant Through | 1.338" | Class 3A UNC | €53.72 | |
| A | B40-1500(R) | 75° | 0.748" | 0.276" | 0.905" | 0.551" | Coolant Through | 1.141" | Class 4G6G Metric | €65.94 | |
| A | C40-1500 | 75° | 0.748" | 0.276" | 0.793" | 0.551" | Coolant Through | 1.029" | Class 3A UNC | €63.62 | |
| A | B40-1500 | 75° | 0.748" | 0.196" | 0.905" | 0.551" | Coolant Through | - | Class 4G6G Metric | €63.62 | |
| A | B40-1500(ISO) | 75° | 0.748" | 0.157" | 0.905" | - | Coolant Through | 1.141" | Class 4G6G Metric | €88.58 | |
| A | C50-1500 | 75° | 1.102" | 0.276" | 0.992" | 0.826" | Coolant Through | 1.346" | Class 3A UNC | €54.82 | |
| A | C40-9000 | 90° | 0.59" | 0.124" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €42.98 | |
| A | C50-MAZAK | 90° | 0.905" | 0.69" | 1.385" | 0.669" | Non Coolant Through | 1.779" | - | €95.28 | |
| A | C40S-9000 | 90° | 0.59" | 0.236" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €44.69 | |
| A | C50-9000-MORI | 90° | 0.905" | 0.393" | 1.385" | 0.669" | Coolant Through | 1.779" | - | €94.41 | |
| A | C40-9000(H) | 90° | 0.59" | 0.124" | 0.99" | 0.393" | Coolant Through | 1.265" | Class 3A UNC | €49.74 | |
| A | B40-9000 | 90° | 0.59" | 0.236" | 1.102" | 0.393" | Non Coolant Through | 1.377" | Class 4G6G Metric | €48.40 | |
| A | C40-9000(B) | 90° | 0.59" | 0.124" | 0.99" | 0.393" | Non Coolant Through | 1.265" | Class 3A UNC | €98.17 | |
| A | C50-MITSUI | 90° | 0.944" | 0.196" | 0.905" | 0.709" | Non Coolant Through | 1.22" | Class 3A UNC | €59.37 | |
| A | B40-9000(H) | 90° | 0.59" | 0.236" | 1.102" | 0.393" | Coolant Through | - | Class 4G6G Metric | €53.42 | |
| D | C50-9000 | 90° | 0.905" | 0.394" | 1.385" | 0.669" | Non Coolant Through | 1.779" | Class 3A UNC | €58.14 | |
| D | C50-9000(H) | 90° | 0.905" | 0.394" | 1.385" | 0.669" | Coolant Through | 1.779" | Class 3A UNC | €58.04 | |
| A | B50-9000 | 90° | 0.905" | 0.39" | 1.377" | 0.669" | Non Coolant Through | 1.771" | Class 4G6G Metric | €61.93 |
