LYNDEX-NIKKEN Keyless Drill Chuck
Lyndex-Nikken keyless drill chucks are efficient and convenient tooling accessories that eliminate the need for a key or wrench to tighten or loosen drill bits, providing quick & hassle-free bit changes. These drill chucks are ideal for woodworking, metalworking, machine tool fabrication an...d utility projects.Read more
Filter
A
B
C
D
E| Style | Model | Mounting Size | Mounting Type | Max. Capacity | Min. Capacity | Drill Bit Shank Capacity (fractional Inch) | For Max. Drill Bit Shank Size | Drill Bit Shank Capacity (decimal Equivalent) | Max. Drill Capacity | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

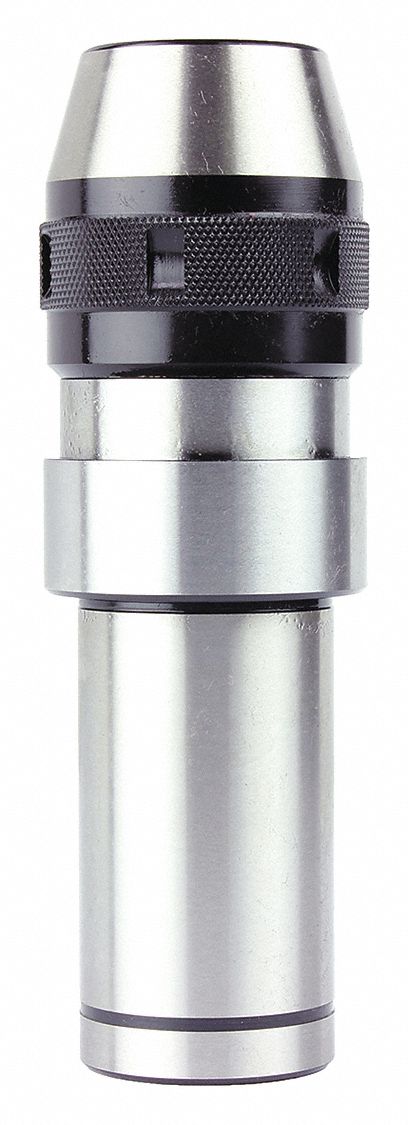

| A | D1.1/4-NPU13-6.35 | 6.35" | Integrated Straight Shank | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €1,838.19 | |

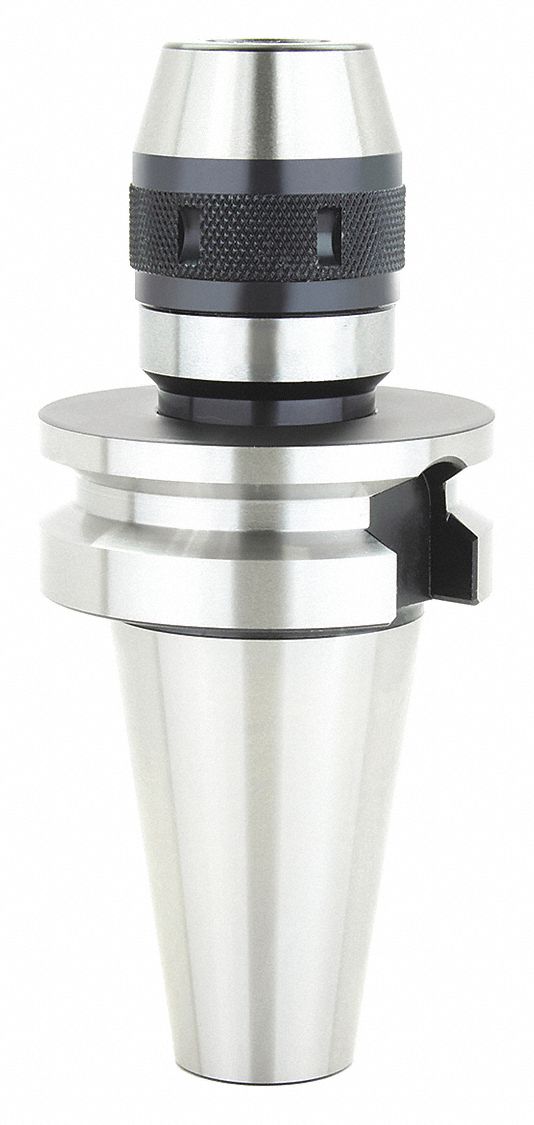

| B | BT30-NPU8-70 | BT30 | Integrated Bt Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €761.78 | |
| B | BT30-NPU13-95 | BT30 | Integrated Bt Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €778.06 | |
| B | BT40-NPU8-70 | BT40 | Integrated Bt Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €745.71 | |
| B | BT40-NPU13-80 | BT40 | Integrated Bt Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €819.79 | |
| B | BT50-NPU13-90 | BT50 | Integrated Bt Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €1,615.13 | |
| C | CAT40-NPU8-80U | CAT40 | Integrated Cat Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €925.11 | |
| C | CAT50-NPU13-90U | CAT50 | Integrated Cat Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €1,081.75 | |
| C | CAT50-NPU8-80U | CAT50 | Integrated Cat Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €1,153.39 | |
| C | CAT40-NPU13-105U | CT40 | Integrated Cat Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €1,004.57 | |
| C | CAT40-NPU13-130U | CT40 | Integrated Cat Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €1,030.04 | |
| C | CAT40-NPU8-110U | CT40 | Integrated Cat Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €997.56 | |

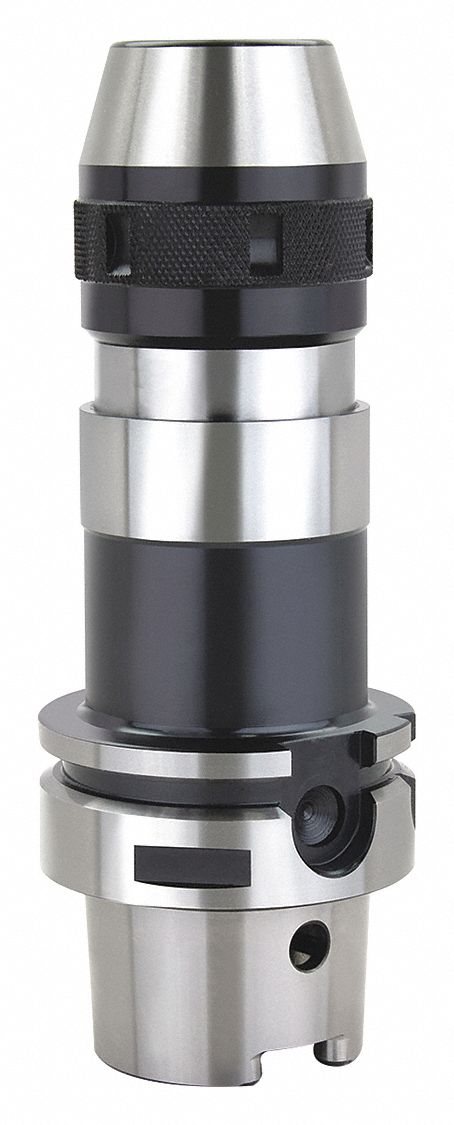

| D | HSK40A-NPU8-114 | HSK40A | Integrated Hsk Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €1,610.85 | |
| D | HSK63A-NPU13C-135 | HSK63A | Integrated Hsk Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €925.44 | |
| D | HSK100A-NPU13C-145 | HSK100A | Integrated Hsk Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €966.86 | |
| E | NMTB40-NPU13-86 | NMTB40 | Integrated Nmtb Taper | 1/2" | 0.094" | 3/32" to 1/2" | 1/2" | 0.0938 to 0.5 | 1/2" | €885.77 | |

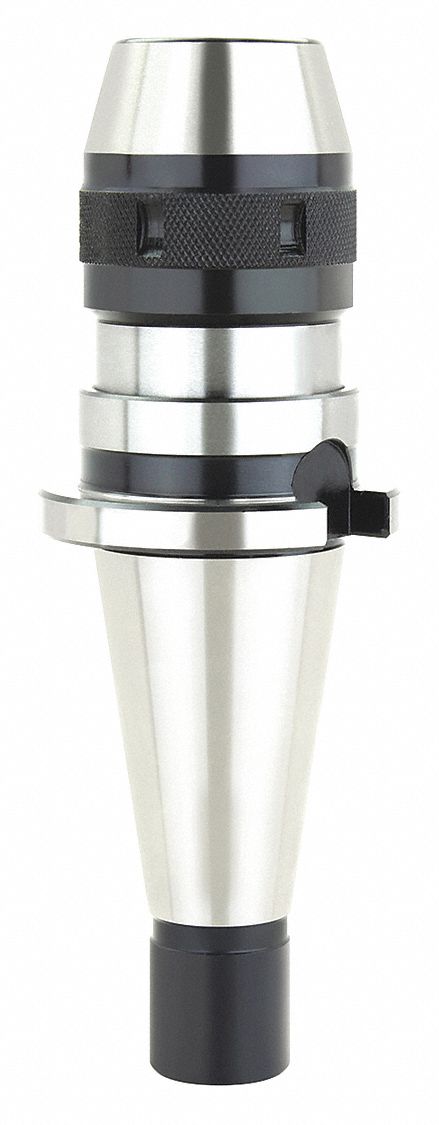

| E | NMTB40-NPU8-76 | NMTB40 | Integrated Nmtb Taper | 0.312" | 0.0" | 5/16" | 5/16" | 0.3125 | 5/16" | €867.65 |
Features
- These keyless drill chucks are made of hard-speed steel for high cutting speed & strength.
- They maintain stability while spinning at speeds up to 12000 rpm.
- These keyless drill chucks can drill holes with a diameter of 3/32 inches.
- They have a small head that tightly holds the drill bit to prevent it from slipping or moving while drilling, ensuring accurate and safe drilling.
- These keyless drill chucks allow fast and easy bit changes without a key or any tools.
Frequently Asked Questions
What factors should I consider while choosing a drill chuck for my application?
- Chuck type
- Chuck size and capacity
- Material
- Mounting type
How do I change a drill bit in a keyless drill chuck?
- Hold the drill with one hand and firmly grip the chuck sleeve or collar with your other hand.
- Rotate the chuck sleeve or collar counterclockwise to loosen the chuck jaws.
- Insert the new drill bit into the chuck jaws and ensure it is centred. Hold the chuck sleeve or collar and rotate it clockwise to tighten the chuck jaws securely around the drill bit.
- Give the chuck a final twist by hand to ensure it is tightly secured.
