LEGRIS Compression Fittings
Filter
A
B
C
D
E
F
G
H
I
J| Style | Model | Max. Operating Pressure | Max. Operating Temp. | Min. Operating Temp. | Hex Size | Fitting Side B Tube Outer Diameter | Overall Length | Specific Fitting Shape | Fitting Side A Connection Type | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|

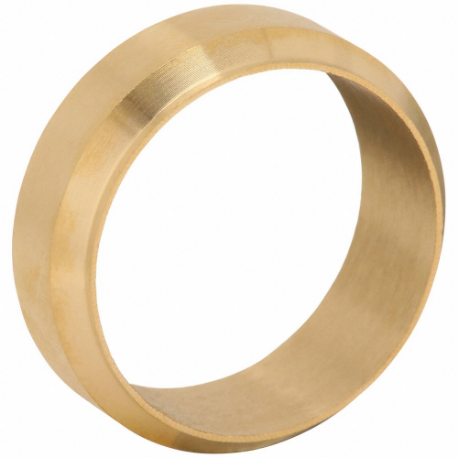

| A | 0124 28 00 | 360 psi | 100°C | -40°C | - | - | 28 mm | Ferrule | - | €11.84 | |
| B | 0105 28 34 | 362 psi | 100°C | -40°C | 41 mm, 42 mm | 28 mm | 11 mm | Straight Connector | BSPT | €217.20 | |

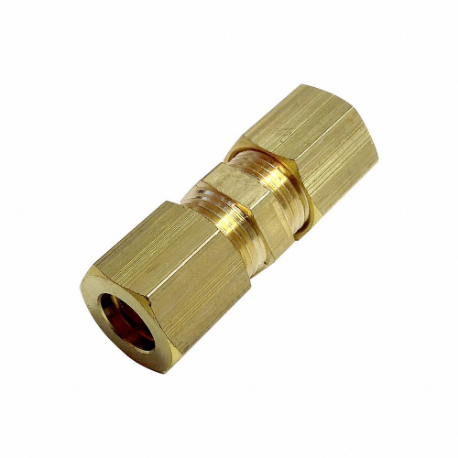

| C | 0106 28 00 | 362 psi | 100°C | -40°C | 41 mm, 42 mm | 28 mm | 2 17/32" | Straight Connector | Compression | €170.88 | |

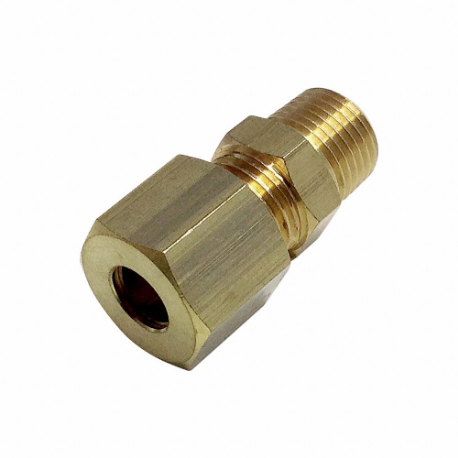

| B | 0105 25 34 | 362 psi | 100°C | -40°C | 36 mm | 25 mm | 11 mm | Straight Connector | BSPT | €111.40 | |
| C | 0106 22 00 | 435 psi | 100°C | -40°C | 32 mm, 36 mm | 22 mm | 2 3/8" | Straight Connector | Compression | €117.91 | |
| B | 0105 22 21 | 435 psi | 100°C | -40°C | 32 mm, 36 mm | 22 mm | 11 mm | Straight Connector | BSPT | €82.87 | |
| B | 0105 22 27 | 435 psi | 100°C | -40°C | 32 mm, 36 mm | 22 mm | 11 mm | Straight Connector | BSPT | €80.43 | |

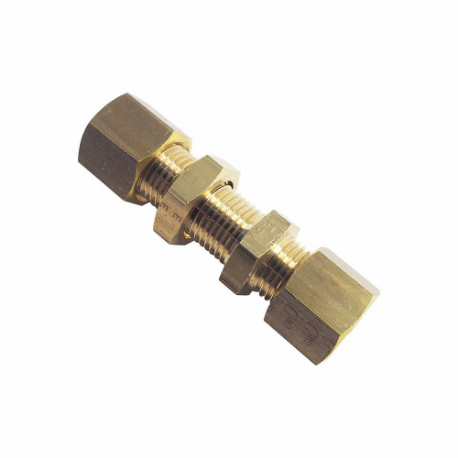

| D | 0116 22 00 | 435 psi | 100°C | -40°C | 36 mm | 22 mm | 2 29/32" | Straight Connector | Compression | €195.07 | |
| E | 0109 22 27 | 435 psi | 100°C | -40°C | 36 mm | 22 mm | - | - | BSPT | €212.10 | |
| C | 0106 20 00 | 507 psi | 100°C | -40°C | 30 mm, 32 mm | 20 mm | 2 7/32" | Straight Connector | Compression | €100.13 | |
| B | 0105 18 21 | 536 psi | 100°C | -40°C | 27 mm, 30 mm | 18 mm | 10.5 mm | Straight Connector | BSPT | €64.02 | |
| E | 0109 18 21 | 536 psi | 100°C | -40°C | 30 mm | 18 mm | 21.5 mm | Elbow Adapter | BSPT | €91.32 | |
| C | 0106 18 00 | 536 psi | 100°C | -40°C | 27 mm, 30 mm | 18 mm | 2 3/32" | Straight Connector | Compression | €89.39 | |
| F | 0101 18 21 | 536 psi | 100°C | -40°C | 27 mm, 30 mm | 18 mm | 1 21/32" | Straight Connector | BSPP | €57.81 | |
| D | 0116 18 00 | 536 psi | 100°C | -40°C | 27 mm, 30 mm | 18 mm | 2 3/4" | Straight Connector | Compression | €111.83 | |
| G | 0101 18 82 | 536 psi | 100°C | -40°C | 27 mm, 30 mm | 18 mm | 1 9/16" | Straight Connector | Metric | €70.99 | |
| B | 0105 18 27 | 536 psi | 100°C | -40°C | 27 mm, 30 mm | 18 mm | 10.5 mm | Straight Connector | BSPT | €63.26 | |
| D | 0116 15 00 | 580 psi | 100°C | -40°C | 24 mm | 15 mm | 2 3/8" | Straight Connector | Compression | €80.79 | |
| E | 0109 16 27 | 580 psi | 100°C | -40°C | 27 mm | 16 mm | 23 mm | Elbow Adapter | BSPT | €103.00 | |
| B | 0105 15 17 | 580 psi | 100°C | -40°C | 22 mm, 24 mm | 15 mm | 8 mm | Straight Connector | BSPT | €33.42 | |
| B | 0105 16 17 | 580 psi | 100°C | -40°C | 24 mm, 27 mm | 16 mm | 9.5 mm | Straight Connector | BSPT | €42.10 | |
| C | 0106 16 00 | 580 psi | 100°C | -40°C | 24 mm, 27 mm | 16 mm | 1 29/32" | Straight Connector | Compression | €70.85 | |
| B | 0105 16 21 | 580 psi | 100°C | -40°C | 24 mm, 27 mm | 16 mm | 9.5 mm | Straight Connector | BSPT | €53.50 | |
| B | 0105 16 13 | 580 psi | 100°C | -40°C | 24 mm, 27 mm | 16 mm | 9.5 mm | Straight Connector | BSPT | €53.89 | |
| D | 0116 16 00 | 580 psi | 100°C | -40°C | 27 mm | 16 mm | 2 17/32" | Straight Connector | Compression | €93.39 | |
| B | 0105 15 21 | 580 psi | 100°C | -40°C | 22 mm, 24 mm | 15 mm | 9 mm | Straight Connector | BSPT | €61.19 | |
| E | 0109 16 21 | 580 psi | 100°C | -40°C | 27 mm | 16 mm | 21 mm | Elbow Adapter | BSPT | €75.99 | |
| C | 0106 15 00 | 580 psi | 100°C | -40°C | 22 mm, 24 mm | 15 mm | 1 25/32" | Straight Connector | Compression | €52.00 | |
| G | 0101 16 17 | 580 psi | 100°C | -40°C | 22 mm, 27 mm | 16 mm | 1 1/2" | Straight Connector | BSPP | €46.96 | |
| G | 0101 16 82 | 580 psi | 100°C | -40°C | 27 mm | 16 mm | 1 15/32" | Straight Connector | Metric | €78.87 | |
| F | 0101 16 21 | 580 psi | 100°C | -40°C | 27 mm | 16 mm | 1 17/32" | Straight Connector | BSPP | €67.71 | |
| E | 0109 16 17 | 580 psi | 100°C | -40°C | 27 mm | 16 mm | 21 mm | Elbow Adapter | BSPT | €78.35 | |
| D | 0116 14 00 | 652 psi | 100°C | -40°C | 24 mm, 27 mm | 14 mm | 2 3/8" | Straight Connector | Compression | €75.43 | |
| C | 0106 14 00 | 652 psi | 100°C | -40°C | 22 mm, 24 mm | 14 mm | 1 25/32" | Straight Connector | Compression | €55.63 | |
| G | 0101 14 78 | 652 psi | 100°C | -40°C | 22 mm, 24 mm | 14 mm | 1 11/32" | - | Metric | €59.59 | |
| F | 0101 14 21 | 652 psi | 100°C | -40°C | 24 mm, 27 mm | 14 mm | 1 15/32" | Straight Connector | BSPP | €42.81 | |
| B | 0105 14 17 | 652 psi | 100°C | -40°C | 22 mm, 24 mm | 14 mm | - | Straight Connector | BSPT | €35.83 | |
| B | 0105 14 13 | 652 psi | 100°C | -40°C | 22 mm, 24 mm | 14 mm | 8 mm | Straight Connector | BSPT | €31.39 | |
| F | 0101 14 17 | 652 psi | 100°C | -40°C | 22 mm, 24 mm | 14 mm | 1 7/16" | Straight Connector | BSPP | €35.64 | |
| B | 0105 14 21 | 652 psi | 100°C | -40°C | 22 mm, 24 mm | 14 mm | 9 mm | Straight Connector | BSPT | €39.00 | |
| G | 0101 14 80 | 652 psi | 100°C | -40°C | 24 mm | 14 mm | 1 3/8" | Straight Connector | Metric | €47.95 | |
| B | 0105 14 27 | 652 psi | 100°C | -40°C | 24 mm, 27 mm | 14 mm | 10 mm | Straight Connector | BSPT | €65.48 | |
| E | 0109 14 17 | 652 psi | 100°C | -40°C | 24 mm | 14 mm | 18 mm | Elbow Adapter | BSPT | €60.68 | |
| D | 0116 12 00 | 797 psi | 100°C | -40°C | 22 mm | 12 mm | 2 9/32" | Straight Connector | Compression | €69.14 | |

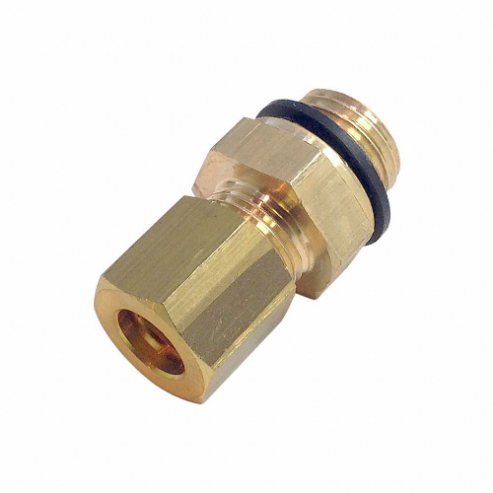

| H | 0101 12 21 | 797 psi | 100°C | -40°C | 22 mm, 27 mm | 12 mm | 1 7/16" | Straight Connector | BSPP | €41.48 | |
| G | 0101 12 75 | 797 psi | 100°C | -40°C | 19 mm, 22 mm | 12 mm | 1 5/16" | Straight Connector | Metric | €31.92 | |
| G | 0101 12 78 | 797 psi | 100°C | -40°C | 22 mm | 12 mm | 1 5/16" | Straight Connector | Metric | €33.42 | |
| F | 0101 12 13 | 797 psi | 100°C | -40°C | 19 mm, 22 mm | 12 mm | 1 9/32" | Straight Connector | BSPP | €32.11 | |
| G | 0101 10 78 | 1067 psi | 100°C | -40°C | 19 mm, 22 mm | 10 mm | 1 5/16" | Straight Connector | Metric | €38.37 | |
| D | 0116 10 00 | 1067 psi | 100°C | -40°C | 19 mm, 22 mm | 10 mm | 2 9/32" | - | - | €70.53 | |
| B | 0105 10 14 | 1067 psi | 100°C | -40°C | 17 mm, 19 mm | 10 mm | 9 mm | Straight Connector | NPT | €26.26 | |
| F | 0101 10 17 | 1067 psi | 100°C | -40°C | 19 mm, 22 mm | 10 mm | 1 3/8" | Straight Connector | - | €29.41 | |
| F | 0101 10 13 | 1067 psi | 100°C | -40°C | 17 mm, 19 mm | 10 mm | 1 9/32" | Straight Connector | MBSPP | €23.29 | |
| G | 0101 10 70 | 1067 psi | 100°C | -40°C | 17 mm, 19 mm | 10 mm | 1 9/32" | Straight Connector | Metric | €26.54 | |
| B | 0105 10 22 | 1067 psi | 100°C | -40°C | 19 mm, 22 mm | 10 mm | 10 mm | Straight Connector | NPT | €47.76 | |
| B | 0105 10 18 | 1067 psi | 100°C | -40°C | 17 mm, 19 mm | 10 mm | 9 mm | Straight Connector | NPT | €51.87 | |
| E | 0109 10 14 | 1087 psi | 100°C | -40°C | 19 mm | 10 mm | 14.5 mm | Elbow Adapter | NPT | €97.58 | |
| I | 0101 08 13 | 1450 psi | 100°C | -40°C | 14 mm, 17 mm | 8 mm | 1 3/32" | Straight Connector | BSPP | €16.97 | |
| E | 0109 08 11 | 1450 psi | 100°C | -40°C | 14 mm | 8 mm | 15 mm | Elbow Adapter | NPT | €64.95 | |
| I | 0101 08 10 | 1450 psi | 100°C | -40°C | 13 mm, 14 mm | 8 mm | 1" | Straight Connector | BSPP | €13.67 | |
| J | 0101 08 17 | 1450 psi | 100°C | -40°C | 14 mm, 22 mm | 8 mm | 1 7/32" | Straight Connector | - | €22.30 |
