LEESON Exhaust Ventilator Motors, Single Phase, Dripproof, C Face Footless, Single Speed


Marathon exhaust ventilator motors deliver low to moderate starting torque and provide smooth start-ups for HVAC systems that must gradually come to speed.

Filter
LEESON 5KH36MN137A

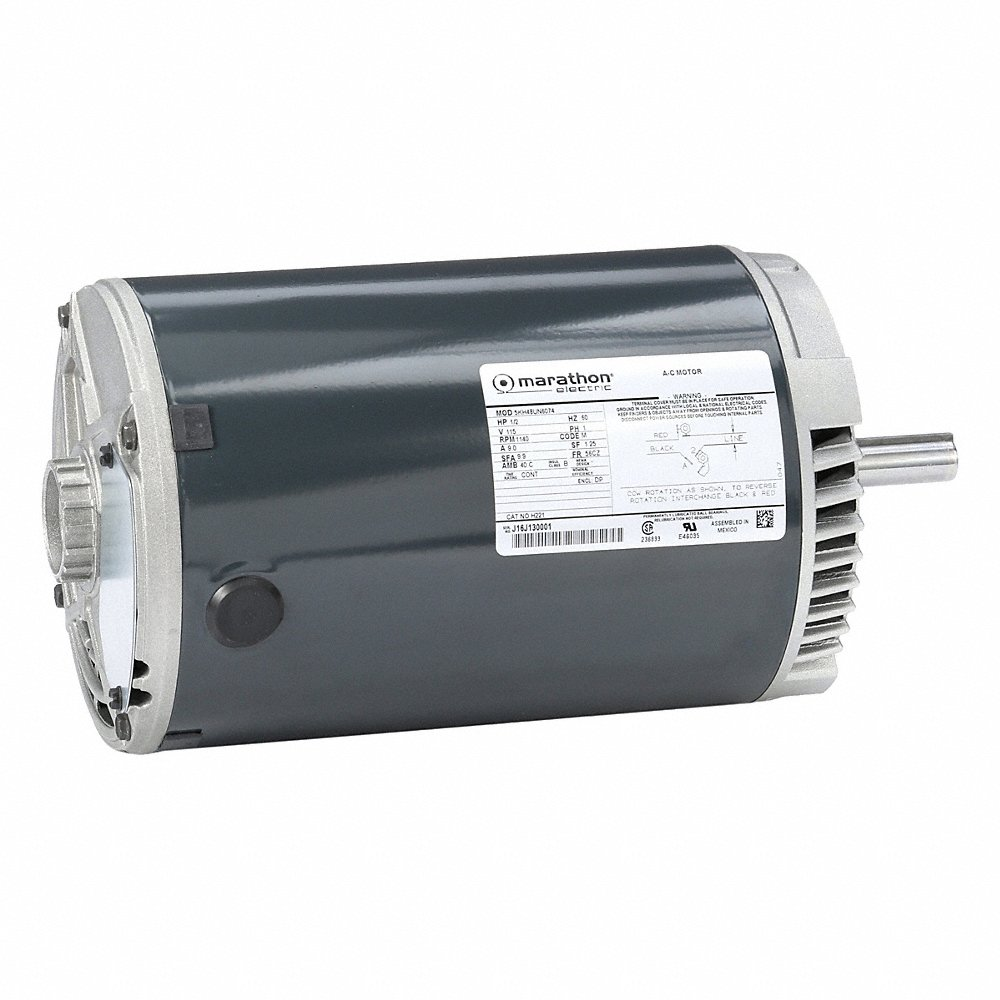

LEESON 5KH48UN6074B

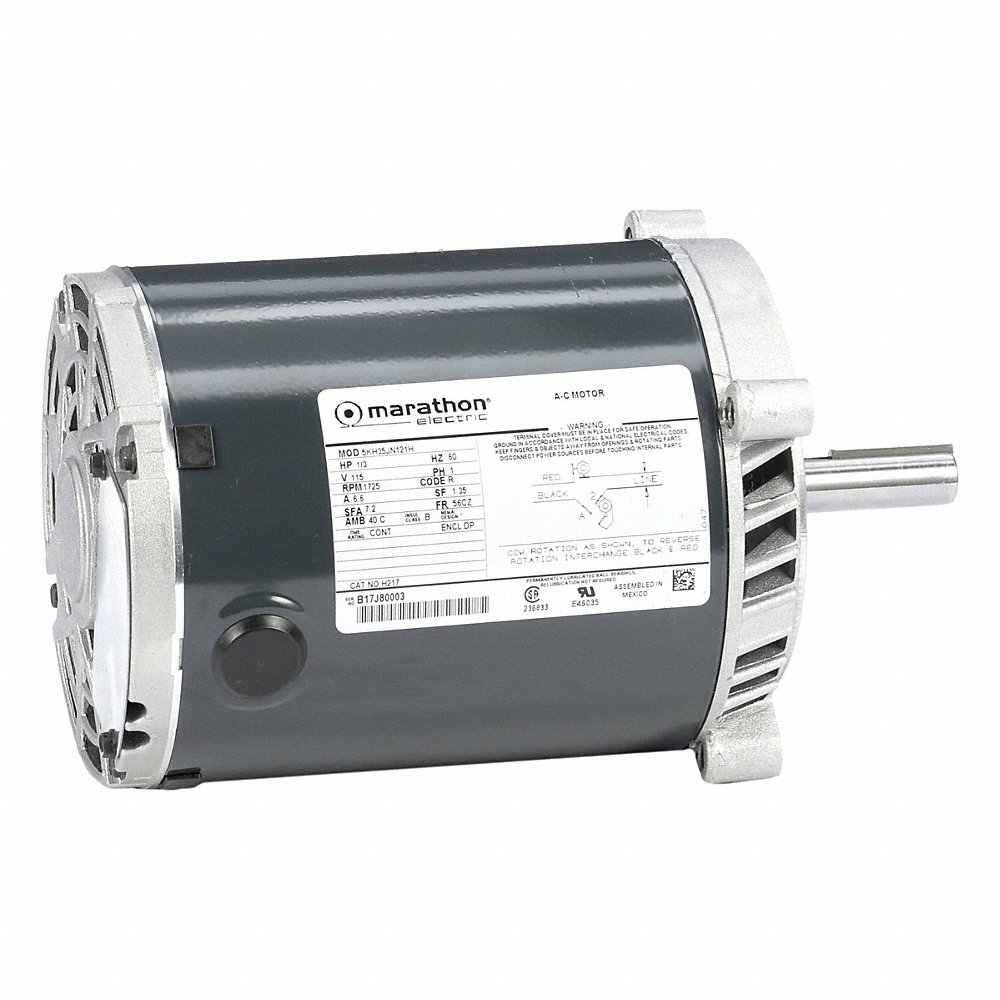

LEESON 5KH35JN121C

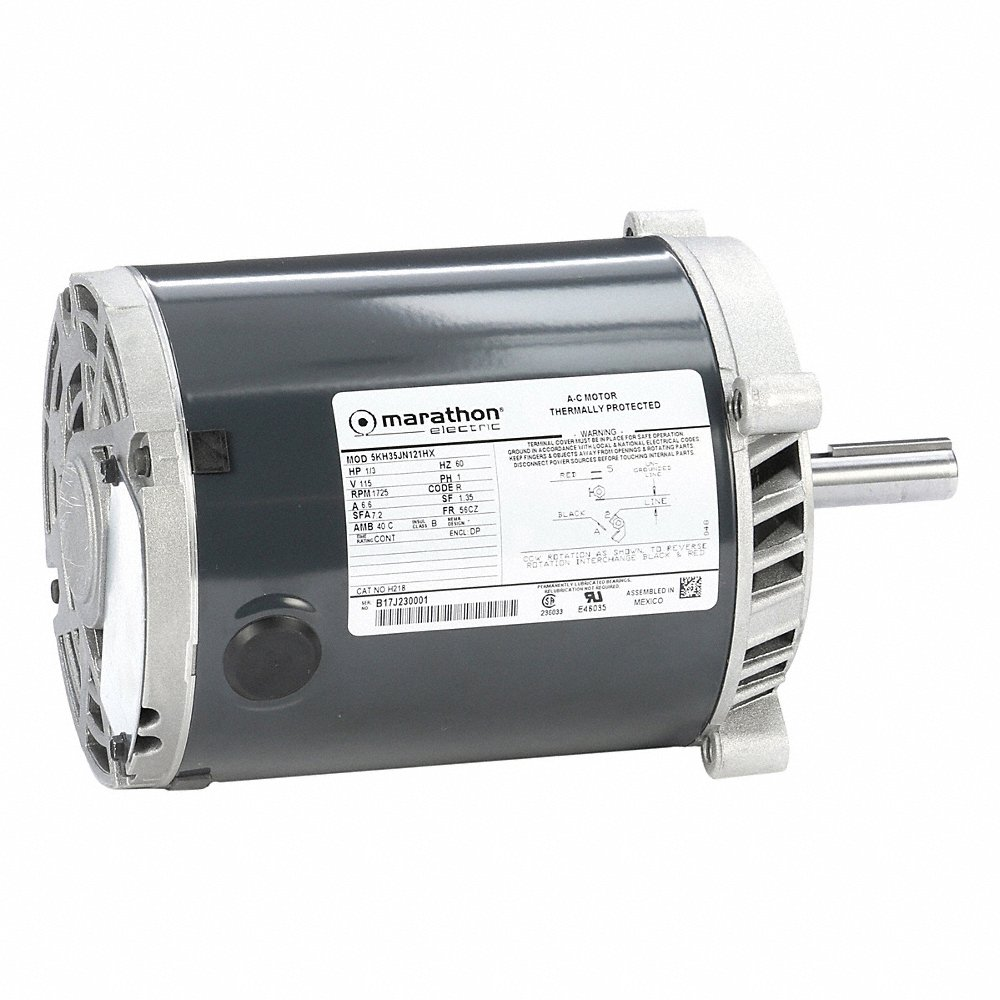

LEESON 5KH35JN121XD

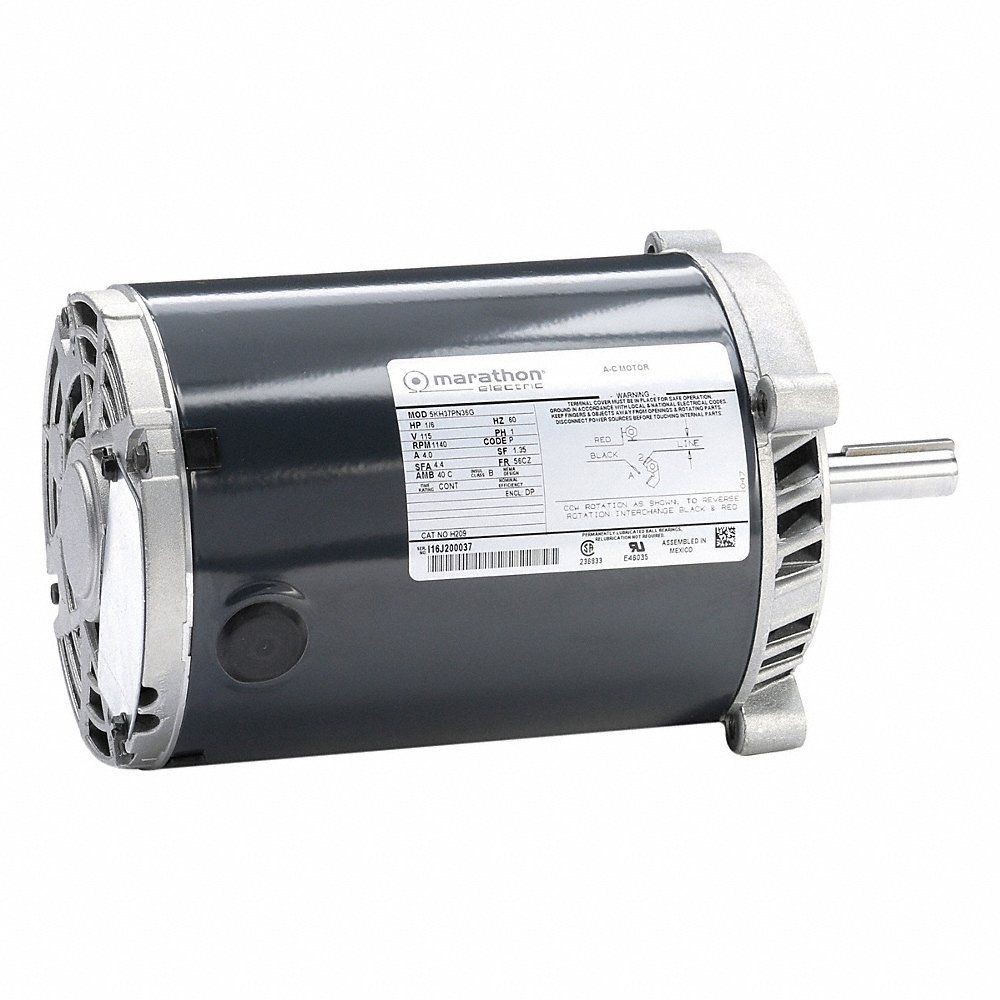

LEESON 5KH37PN36E

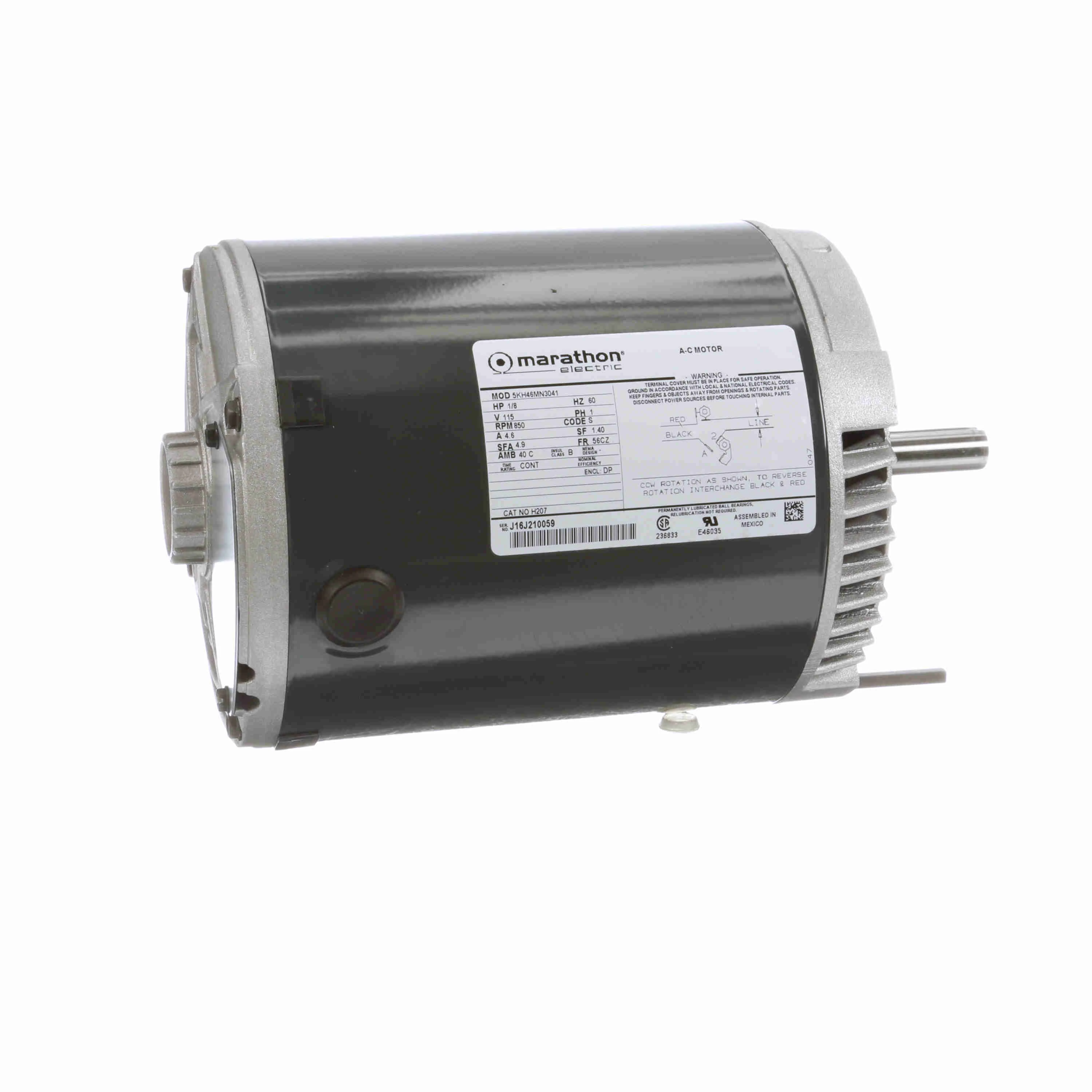

LEESON 5KH46MN3041F

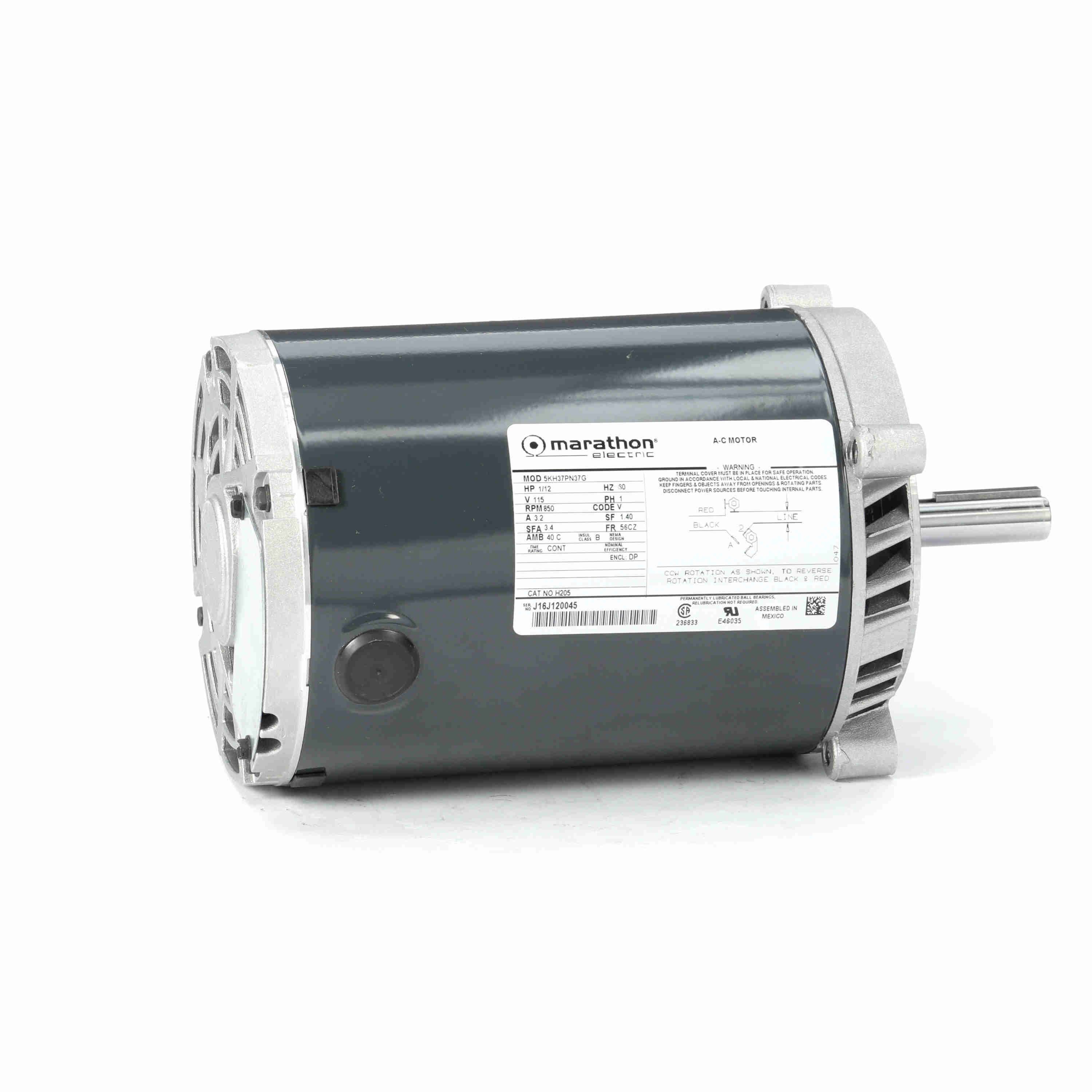

LEESON 5KH37PN37G
StyleModelHpNameplate RpmThermal ProtectionVoltageMotor Mounting TypeMotor Mounting PositionFramePhasePrice
A
5KH36MN137		1/2 hp1725 RPMNone115V ACC Face, FootlessAll Angle56CZ1€550.48
B
5KH48UN6074		1/2 hp1140 RPMNone115V ACC Face, FootlessAll Angle56CZ1€853.17
C
5KH35JN121		1/3 hp1725 RPMNone115V ACC Face, FootlessAll Angle56CZ1€415.32
D
5KH35JN121X		1/3 hp-Automatic115V ACC Face, FootlessAll Angle56CZ1€455.60
E
5KH37PN36		1/6 hp1140 RPMNone115V ACC Face, FootlessAll Angle56CZ1€527.21
F
5KH46MN3041		1/8 hp850 RPMNone115V ACC Face, FootlessAll Angle56CZ1€133.79
G
5KH37PN37		1/12 hp850 RPMNone115V ACC Face, FootlessAll Angle56CZ1€624.76

Features

  • These motors have dripproof enclosures to permit the flow of external air over and around the motor windings to keep it cool during the operation.
  • They feature rolled steel construction for enhanced rigidity and ball bearings for smooth movement of internal parts.
  • Models, such as 5KH36KN112X H287 HVAC Motor offers thermal protection, detecting overheating conditions and disconnect the motor power.
  • The split-phase motor design of these motors delivers speeds ranging from 850 to 1725 rpm and can be mounted in either horizontal / vertical orientation.

Standards and Approvals

  • UL
  • CSA
  • CE

Frequently Asked Questions

How to maintain the motor?

In order to keep the motor running smoothly, use permanently lubricated sealed bearings to protect against contamination and friction loss.

What is the purpose of continuous duty motors?

Continuous duty (or induction) motors are rated for continuous operation within the stipulated temperature range, wherein, the motor runs with a constant load for a long duration to reach thermal equilibrium.

What are single-phase motors?

Single-phase motors use a capacitor to provide additional power during motor startup. These motors are ideal for equipment and machines that are smaller in size and need lower horsepower.
