KIPP Toggle Clamps

Filter

Style	Model	Max. Holding Capacity	Holding Capacity	Overall Height	Overall Depth	Height Under Arm	Mounting Holes Center To Center (long Side)	Handle Orientation	Mounting Holes Center To Center (short Side)	Price
A	K0660.008001	-	-	-	2.91"	-	-	-	-	€80.59
A	K0660.010001	-	-	-	3.73"	-	-	-	-	€130.21
B	K0660.008101	-	-	-	2.91"	-	-	-	-	€141.41
B	K0660.006101	-	-	-	2.51"	-	-	-	-	€122.83
A	K0660.006001	-	-	-	2.51"	-	-	-	-	€69.19
C	K0660.104001	56 lbf.	-	-	28.7 mm	11.7 mm	16 mm	Horizontal	16 mm	€82.67
A	K0660.004001	56 lbf.	-	-	28.7 mm	11.7 mm	16 mm	Horizontal	16 mm	€49.77
D	K0661.105001	123 lbf.	-	-	52.2 mm	26.2 mm	8.1 mm	Horizontal	18 mm	€94.29
C	K0660.105001	123 lbf.	-	-	43.4 mm	17.2 mm	16.8 mm	Horizontal	18 mm	€92.34
E	K0661.005001	123 lbf.	124 lbf.	2 1/25"	-	1.02"	18 mm	Horizontal	-	€50.60
A	K0660.005001	123 lbf.	-	-	43.4 mm	17.2 mm	16.8 mm	Horizontal	18 mm	€56.50
F	K0662.005001	139 lbf.	-	-	107.4 mm	3/4"	24 mm	Vertical	14 mm	€46.07
G	K0662.105001	139 lbf.	-	-	107.4 mm	18 mm	24 mm	Vertical	16 mm	€86.49
H	K0663.005001	139 lbf.	-	-	119.2 mm	29.8 mm	16 mm	Vertical	8.1 mm	€46.19
I	K0663.105001	139 lbf.	-	-	119.2 mm	29.8 mm	16 mm	Vertical	8.1 mm	€86.49
J	K0660.106101	161 lbf.	-	-	63.7 mm	25.4 mm	28 mm	Horizontal	26 mm	€209.71
K	K0661.106101	161 lbf.	-	-	75.2 mm	36.9 mm	26 mm	Horizontal	14.1 mm	€188.78
L	K0661.006101	161 lbf.	-	-	75.2 mm	36.9 mm	26 mm	Horizontal	14.1 mm	€122.83
D	K0661.106001	161 lbf.	-	-	75.2 mm	36.9 mm	26 mm	Horizontal	14.1 mm	€108.01
E	K0661.006001	161 lbf.	-	-	186.6 mm	36.9 mm	26 mm	Horizontal	14.1 mm	€77.28
C	K0660.106001	161 lbf.	-	-	63.7 mm	25.4 mm	28 mm	Horizontal	26 mm	€119.70
J	K0660.108101	186 lbf.	-	-	73.9 mm	32.2 mm	31 mm	Horizontal	26 mm	€223.44
K	K0661.108101	186 lbf.	-	-	88.2 mm	46.5 mm	26 mm	Horizontal	14.1 mm	€252.48
L	K0661.008101	186 lbf.	-	-	88.2 mm	46.5 mm	26 mm	Horizontal	14.1 mm	€140.09
C	K0660.108001	186 lbf.	-	-	73.9 mm	32.2 mm	31 mm	Horizontal	26 mm	€143.71
E	K0661.008001	186 lbf.	-	-	223.1 mm	46.5 mm	26 mm	Horizontal	14.1 mm	€94.74
D	K0661.108001	186 lbf.	-	-	88.2 mm	46.5 mm	26 mm	Horizontal	14.1 mm	€162.39
M	K0662.106101	207 lbf.	-	-	163 mm	24.9 mm	27 mm	Vertical	14 mm	€194.92
H	K0663.006001	207 lbf.	-	-	169 mm	37.6 mm	14 mm	Vertical	10.2 mm	€67.68
N	K0663.106101	207 lbf.	-	-	175.7 mm	37.6 mm	10.2 mm	Vertical	14 mm	€194.92
F	K0662.006001	207 lbf.	-	-	156.3 mm	0.97"	27 mm	Vertical	12 mm	€67.68
I	K0663.106001	207 lbf.	-	-	169 mm	37.6 mm	14 mm	Vertical	10.2 mm	€93.81
O	K0662.006101	207 lbf.	-	-	163 mm	24.9 mm	27 mm	Vertical	14 mm	€89.86
G	K0662.106001	207 lbf.	-	-	156.3 mm	24.9 mm	27 mm	Vertical	14 mm	€127.16
P	K0663.006101	207 lbf.	-	-	175.7 mm	37.6 mm	14 mm	Vertical	10.2 mm	€89.86

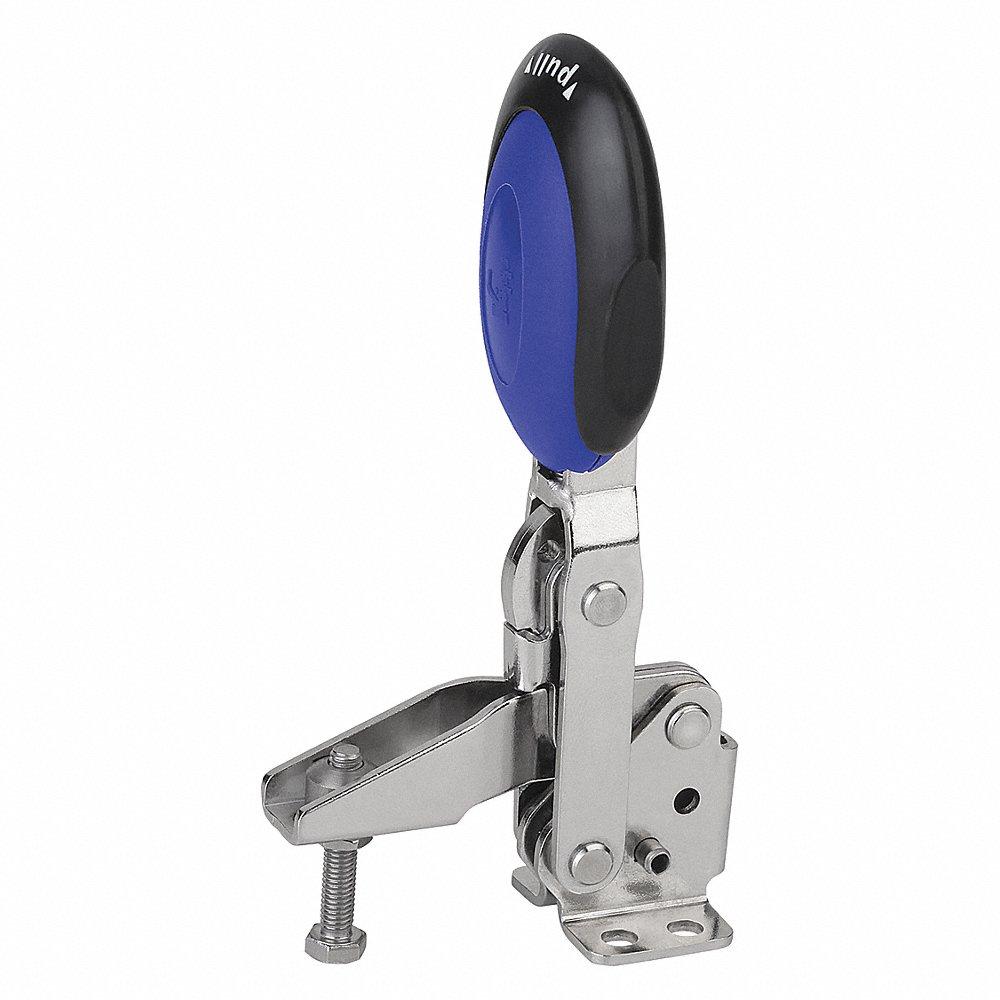

M	K0662.108101	211 lbf.	-	-	191.4 mm	32.7 mm	32 mm	Vertical	21 mm	€250.90

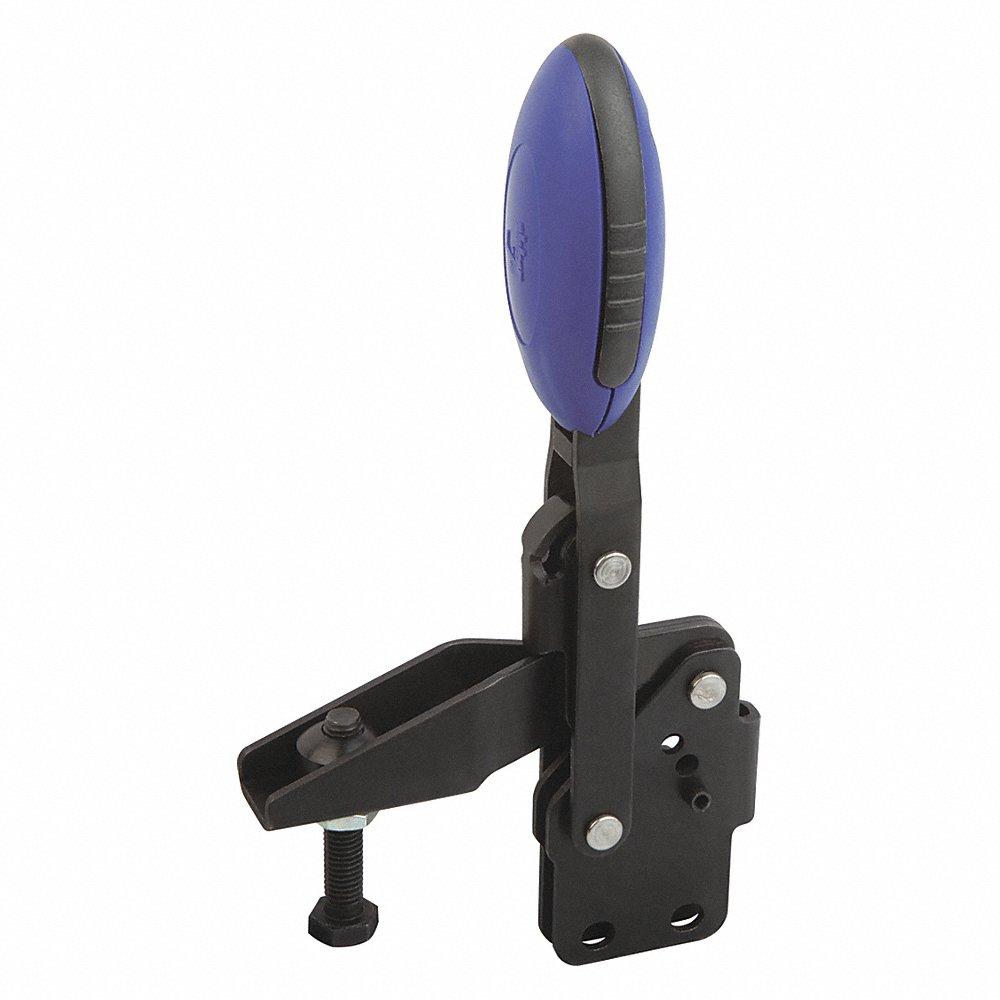

H	K0663.008001	211 lbf.	-	-	200.4 mm	49 mm	21 mm	Vertical	10.2 mm	€79.27
P	K0663.008101	211 lbf.	-	-	207.6 mm	49 mm	21 mm	Vertical	10.2 mm	€107.09
N	K0663.108101	211 lbf.	211 lbs.	8.17"	207.6 mm	1.93"	10.2 mm	Vertical	-	€262.16

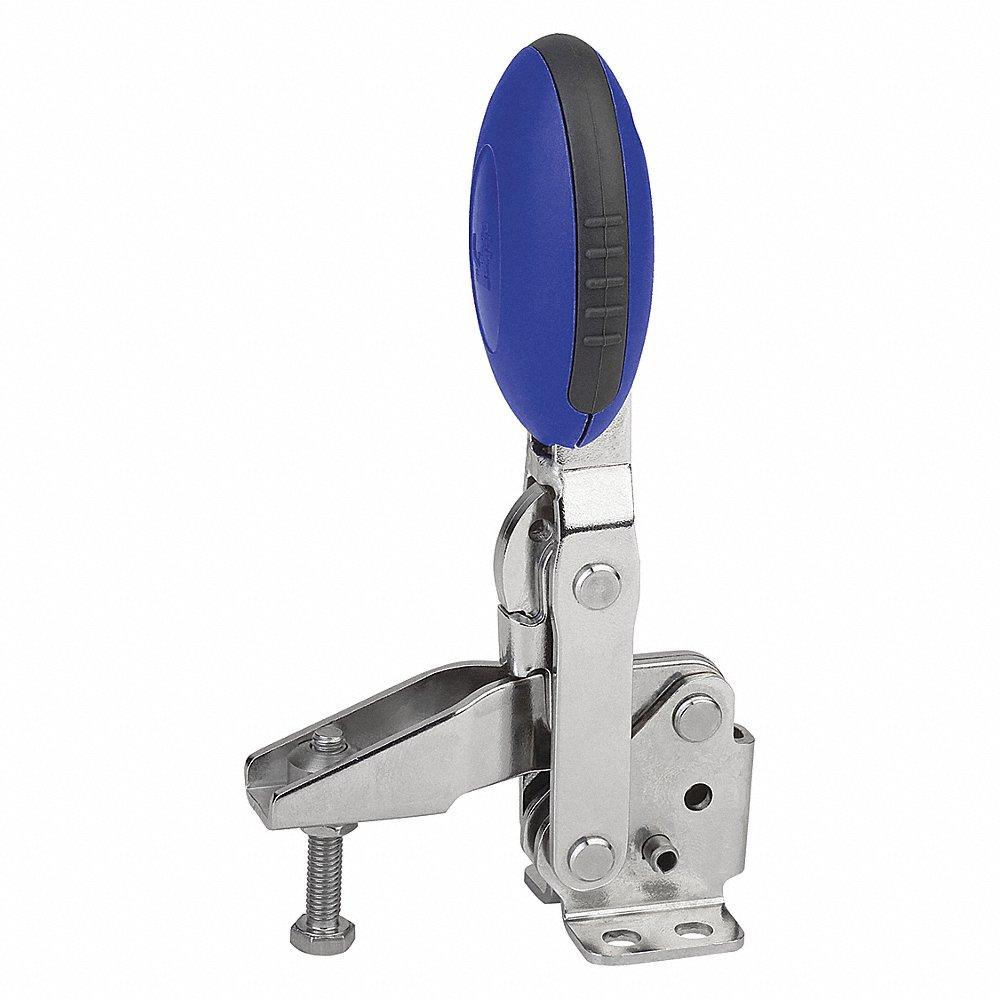

G	K0662.108001	211 lbf.	-	-	184.2 mm	32.7 mm	32 mm	Vertical	21 mm	€149.83

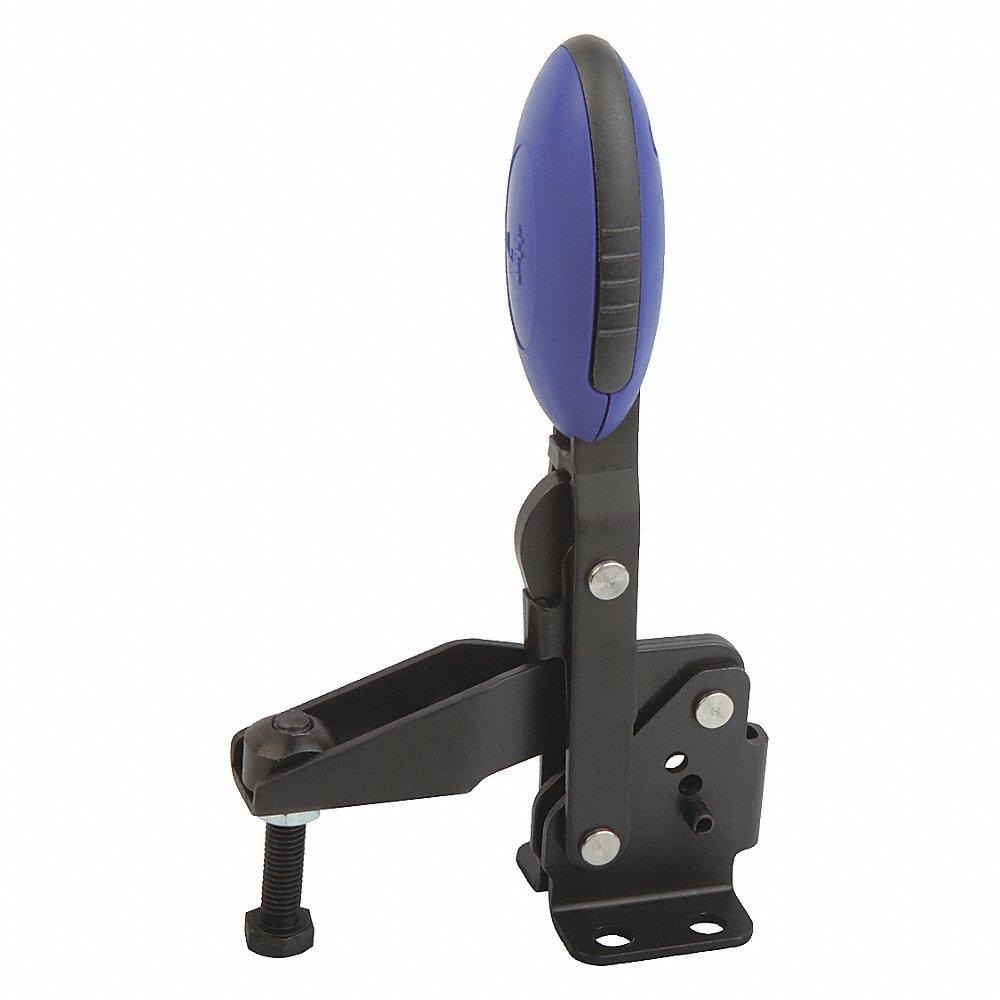

F	K0662.008001	211 lbf.	-	-	184.2 mm	1.29"	32 mm	Vertical	19 mm	€86.06
O	K0662.008101	211 lbf.	-	-	191.4 mm	32.7 mm	32 mm	Vertical	21 mm	€122.00

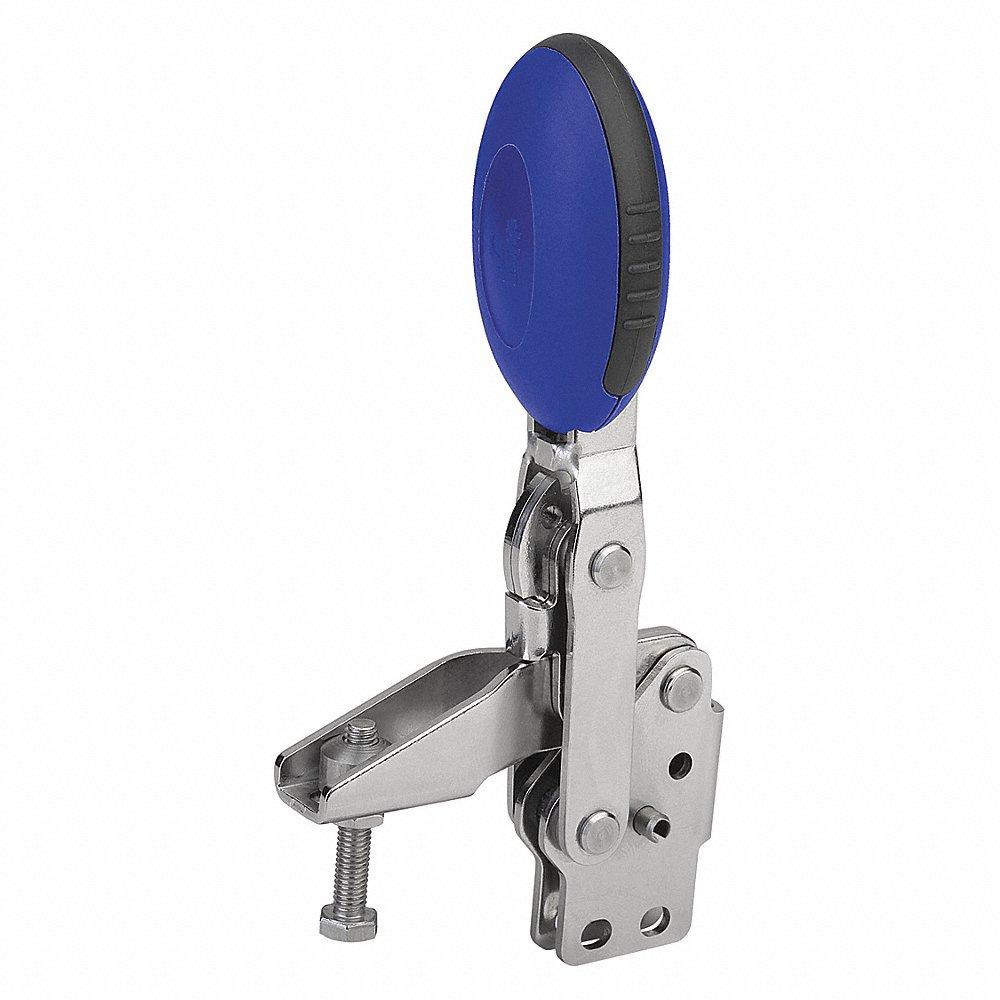

I	K0663.108001	211 lbf.	-	-	200.4 mm	49 mm	21 mm	Vertical	10.2 mm	€169.30
L	K0661.012101	224 lbf.	-	-	128.4 mm	75.9 mm	44 mm	Horizontal	16.2 mm	€162.72
B	K0660.012101	224 lbf.	-	-	104.8 mm	52.3 mm	44 mm	Horizontal	42 mm	€162.72
A	K0660.012001	224 lbf.	225 lbf.	4.13"	104.8 mm	2.06"	44 mm	Horizontal	-	€168.47
E	K0661.012001	224 lbf.	-	-	314.7 mm	75.9 mm	44 mm	Horizontal	16.2 mm	€126.10
E	K0661.010001	269 lbf.	-	-	279.4 mm	59.6 mm	41.5 mm	Horizontal	16.2 mm	€117.25
B	K0660.010101	269 lbf.	-	-	94.8 mm	40 mm	43 mm	Horizontal	41.5 mm	€173.08
L	K0661.010101	269 lbf.	-	-	114.3 mm	59.6 mm	41.5 mm	Horizontal	16.2 mm	€159.45
H	K0663.012001	315 lbf.	-	-	265.5 mm	69.8 mm	32 mm	Vertical	14.1 mm	€143.59
O	K0662.012101	315 lbf.	-	-	249.1 mm	46.7 mm	45 mm	Vertical	32 mm	€162.70

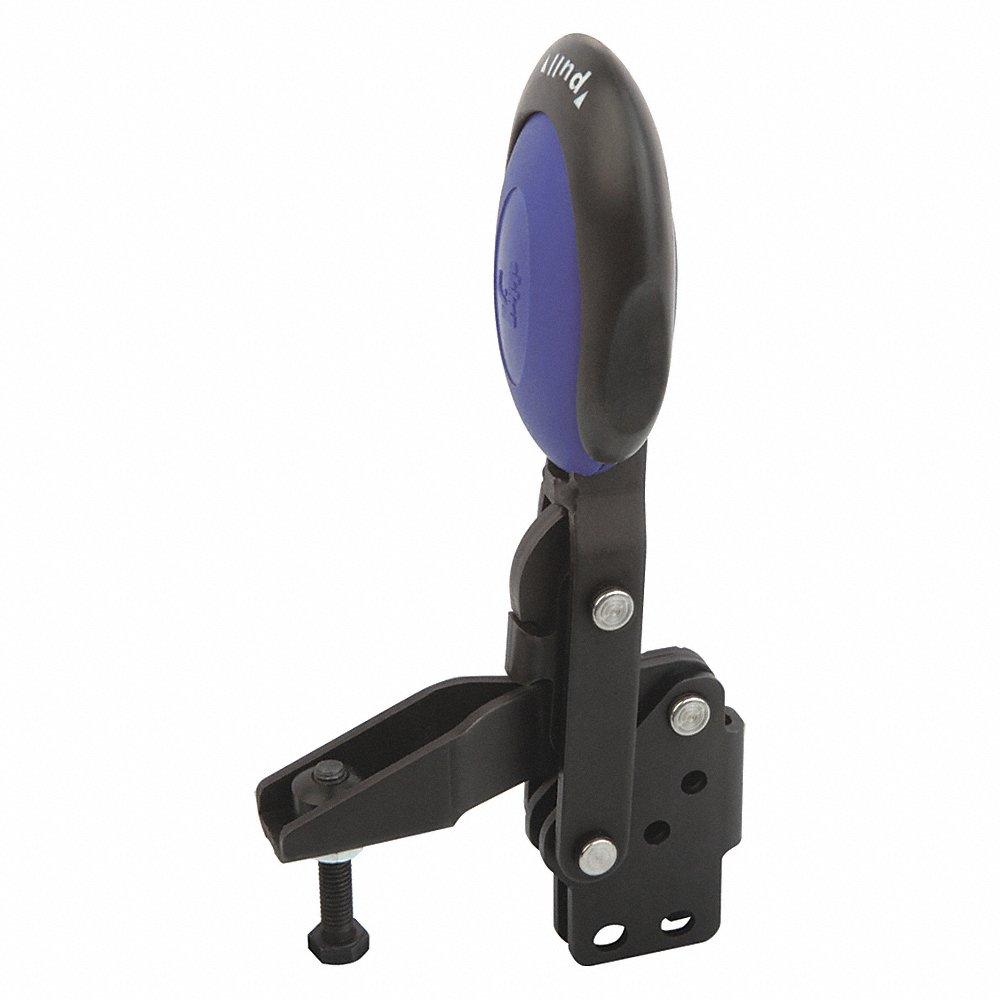

P	K0663.012101	315 lbf.	-	-	272.1 mm	69.8 mm	32 mm	Vertical	14.1 mm	€162.70
F	K0662.012001	315 lbf.	-	-	242.4 mm	1.84"	45 mm	Vertical	32 mm	€127.08
H	K0663.010001	337 lbf.	-	-	247.4 mm	62.3 mm	32 mm	Vertical	14.1 mm	€138.11
O	K0662.010101	337 lbf.	-	-	230.5 mm	38.7 mm	45 mm	Vertical	32 mm	€161.50
F	K0662.010001	337 lbf.	-	-	223.9 mm	1.52"	45 mm	Vertical	27 mm	€123.52
P	K0663.010101	337 lbf.	-	-	254 mm	62.3 mm	32 mm	Vertical	14.1 mm	€161.50
