INSIZE Digital Outside Micrometers
Filter
A
B
C
D
E
F
G
H| Style | Model | Range | Spindle Dia. | Max. Measurement | Min. Measurement-inch | Min. Measurement | Ip Rating | Accuracy | Rotating Spindle | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 3108-1 | 0" to 1" | 0.256" | 1" | 0" | 0 mm | IP65 | -0.0001" to +0.0001" | Yes | €309.53 | |
| B | 3101-25FE | 0" to 1" | 0.256" | 1" | 0" | 0 mm | IP65 | -0.00008" to +0.00008" | Yes | €481.60 | |
| B | 3101-25E | 0" to 1" | 0.256" | 1" | 0" | 0 mm | IP65 | -0.00008" to +0.00008" | Yes | €428.81 | |
| C | 3109-25A | 0" to 1" | 6.5 mm | 1" | 0" | 0 mm | Not Rated | -2 µm to +2 µm | Yes | €256.31 | |
| D | 3108-25A | 0" to 1" | 6.5 mm | 1" | 0" | 0 mm | IP65 | -2 µm to +2 µm | Yes | €330.17 | |
| A | 3108-1F | 0" to 1" | 0.256" | 1" | 0" | 0 mm | IP65 | -0.0001" to +0.0001" | Yes | €331.34 | |
| E | 3661-30 | 0" to 1.18", 0 mm to 30 mm | 2 mm | 30 mm | 0.0005" | 0.001 mm | IP65 | -0.00012" to +0.00012" | No | €1,745.54 | |
| E | 3661-55 | 0.98" to 2.17" | 2 mm | 55 mm | 0.98" | 25 mm | IP65 | -0.00012" to +0.00012" | No | €1,877.07 | |
| B | 3101-50E | 1" to 2" | 0.256" | 2" | 1" | 25 mm | IP65 | -0.00008" to +0.00008" | Yes | €517.40 | |
| A | 3108-2 | 1" to 2" | 0.256" | 2" | 1" | 25 mm | IP65 | -0.0001" to +0.0001" | Yes | €399.40 | |
| F | 3109-50E | 1" to 2" | 0.256" | 2" | 1" | 25 mm | Not Rated | -0.00015" to +0.00015" | - | €305.52 | |
| C | 3109-50A | 1" to 2" | 6.5 mm | 2" | 1" | 25 mm | Not Rated | -2 µm to +2 µm | Yes | €306.87 | |
| D | 3108-50A | 1" to 2" | 6.5 mm | 2" | 1" | 25 mm | IP65 | -2 µm to +2 µm | Yes | €408.67 | |
| E | 3661-80 | 1.97" to 3.15" | 2 mm | 80 mm | 1.97" | 50 mm | IP65 | -0.00016" to +0.00016" | No | €2,002.06 | |
| B | 3101-75E | 2" to 3" | 0.256" | 3" | 2" | 50 mm | IP65 | -0.00012" to +0.00012" | Yes | €574.31 | |
| A | 3108-3 | 2" to 3" | 0.256" | 3" | 2" | 50 mm | IP65 | -0.00015" to +0.00015" | Yes | €466.85 | |
| G | 3109-75E | 2" to 3" | 0.256" | 3" | 2" | 50 mm | Not Rated | -0.00015" to +0.00015" | Yes | €365.15 | |
| E | 3661-105 | 2.95" to 4.13" | 2 mm | 105 mm | 2.95" | 75 mm | IP65 | -0.00016" to +0.00016" | No | €2,203.16 | |
| A | 3108-4 | 3" to 4" | 0.256" | 4" | 3" | 75 mm | IP65 | -0.00015" to +0.00015" | Yes | €510.14 | |
| F | 3109-100E | 3" to 4" | 0.256" | 4" | 3" | 75 mm | Not Rated | -0.00015" to +0.00015" | Yes | €395.89 | |
| B | 3101-100E | 3" to 4" | 0.256" | 4" | 3" | 75 mm | IP65 | -0.00012" to +0.00012" | Yes | €622.64 | |
| E | 3661-130 | 3.94" to 5.12" | 2 mm | 130 mm | 3.94" | 100 mm | IP65 | -0.0002" to +0.0002" | No | €2,413.29 | |
| A | 3108-5 | 4" to 5" | 0.256" | 5" | 4" | 100 mm | IP65 | -0.00015" to +0.00015" | Yes | €580.38 | |
| B | 3101-125E | 4" to 5" | 0.256" | 5" | 4" | 100 mm | IP65 | -0.00012" to +0.00012" | Yes | €665.21 | |
| E | 3661-155 | 4.92" to 6.1" | 2 mm | 155 mm | 4.92" | 125 mm | IP65 | - | No | €2,585.49 | |

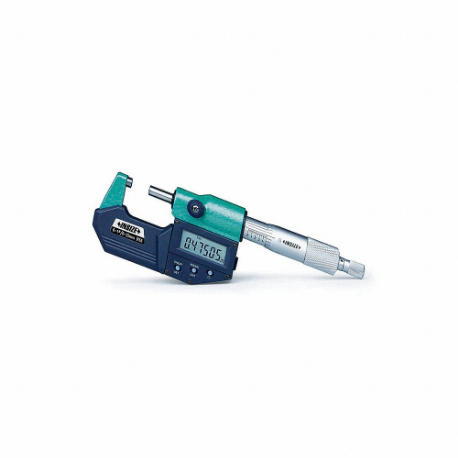

| H | 3101-150E | 5" to 6" | 0.256" | 6" | 5" | 125 mm | IP65 | -0.00012" to +0.00012" | Yes | €705.82 | |
| A | 3108-7 | 6" to 7" | 0.256" | 7" | 6" | 150 mm | IP65 | -0.0002" to +0.0002" | Yes | €687.39 | |
| B | 3101-175E | 6" to 7" | 0.256" | 7" | 6" | 150 mm | IP65 | -0.00016" to +0.00016" | Yes | €754.57 | |
| B | 3101-200E | 7" to 8" | 0.256" | 8" | 7" | 175 mm | IP65 | -0.00016" to +0.00016" | Yes | €821.51 | |
| A | 3108-8 | 7" to 8" | 0.256" | 8" | 7" | 175 mm | IP65 | -0.0002" to +0.0002" | Yes | €751.62 | |
| B | 3101-225E | 8" to 9" | 0.256" | 9" | 8" | 200 mm | IP65 | -0.00016" to +0.00016" | Yes | €975.54 | |
| B | 3101-250E | 9" to 10" | 0.256" | 10" | 9" | 225 mm | IP65 | -0.00016" to +0.00016" | Yes | €926.08 | |
| B | 3101-275E | 10" to 11" | 0.256" | 11" | 10" | 250 mm | IP65 | -0.0002" to +0.0002" | Yes | €1,027.81 | |
| B | 3101-300E | 11" to 12" | 0.256" | 12" | 11" | 275 mm | IP65 | -0.0002" to +0.0002" | Yes | €1,101.48 | |
| A | 3108-6 | 125 mm to 150 mm | 0.256" | 6" | 5" | 125 mm | IP65 | -0.00015" to +0.00015" | Yes | €645.32 |
