HUBBELL WIRING DEVICE-KELLEMS Mechanical Interlocks
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q| Style | Model | Amps | Phase | Voltage | No. Of Poles | Wire Size | Overall Height | Overall Width | Circuit Breaker Amps | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | HBL420MI7W | 20A | 3 | 480V AC | 3 | 14 AWG to 10 AWG | 10.12" | 7 3/4" | 20A | €1,992.12 | |
| B | HBL420MI9W | 20A | 3 | 240V AC | 3 | 14 AWG to 10 AWG | 10.12" | 7 3/4" | 20A | €2,034.54 | |
| C | HBL420MI5W | 20A | 3 | 600V AC | 3 | 14 AWG to 10 AWG | 10.12" | 7 3/4" | 20A | €1,901.51 | |
| D | HBL420MI12W | 20A | 1 | 120/240V AC | 3 | 14 AWG to 10 AWG | 10.12" | 7 3/4" | 20A | €2,028.40 | |
| E | HBL430MI12W | 30A | 1 | 120/240V AC | 3 | 12 AWG to 8 AWG | 10.12" | 7 3/4" | 30A | €1,936.44 | |
| F | HBL530MI5W | 30A | 3 | 347/600V AC | 4 | 12 AWG to 8 AWG | 10.12" | 7 3/4" | 30A | €2,536.97 | |

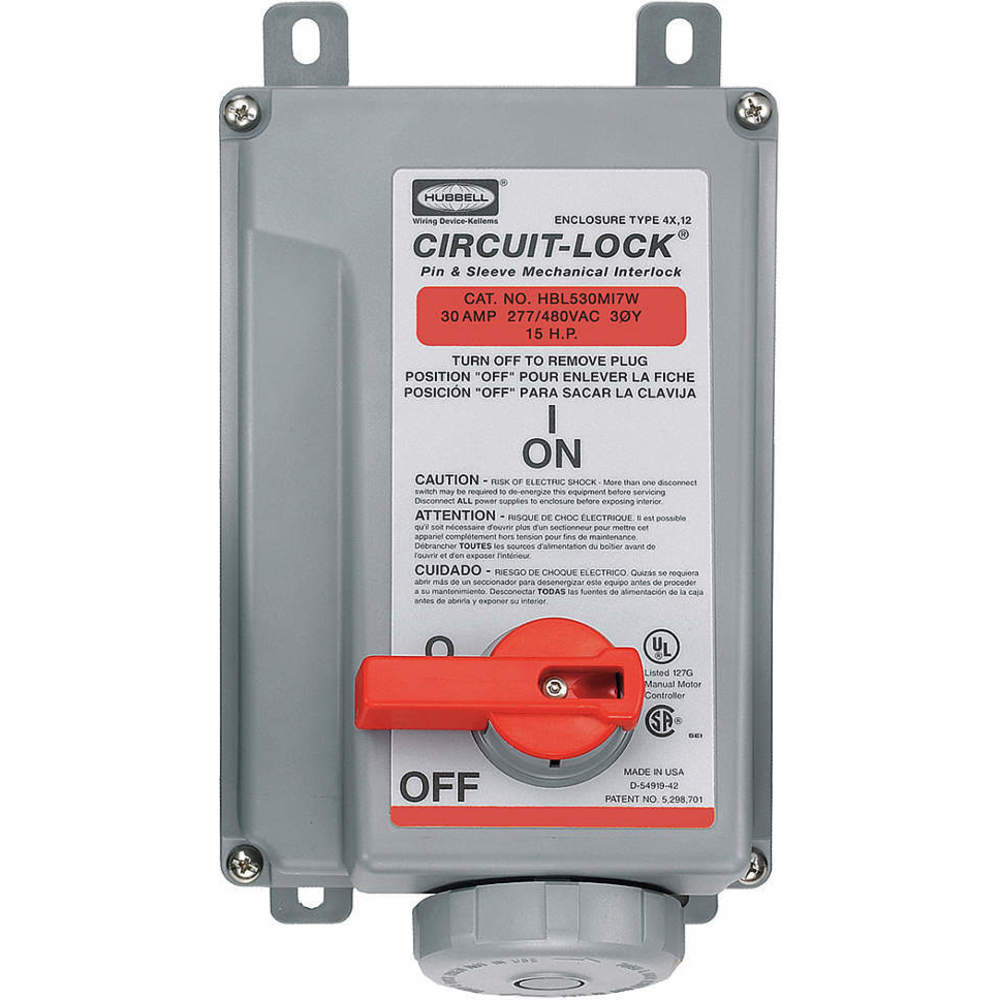

| G | HBL530MI7W | 30A | 3 | 277/480V AC | 4 | 12 AWG to 8 AWG | 11 1/2" | 7 3/4" | 30A | €2,266.98 | |
| H | HBL430MIFS2W | 30A | 1, 3 | 600V AC/250V DC | 3 | 12 AWG to 8 AWG | 15.36" | 10.18" | 30A | €3,732.61 | |
| I | HBL430MIS2W | 30A | 1, 3 | 600V AC/250V DC | 3 | 12 AWG to 8 AWG | 15.36" | 10.18" | 30A | €2,002.12 | |
| H | HBL460MIS2W | 60A | 1, 3 | 600V AC/250V DC | 3 | 8 AWG to 2 AWG | 15.36" | 10.18" | 60A | €2,895.24 | |
| J | HBL360MI7W | 60A | 1 | 480V AC | 2 | 8 AWG to 2 AWG | 11.87" | 7 3/4" | 60A | €2,847.09 | |

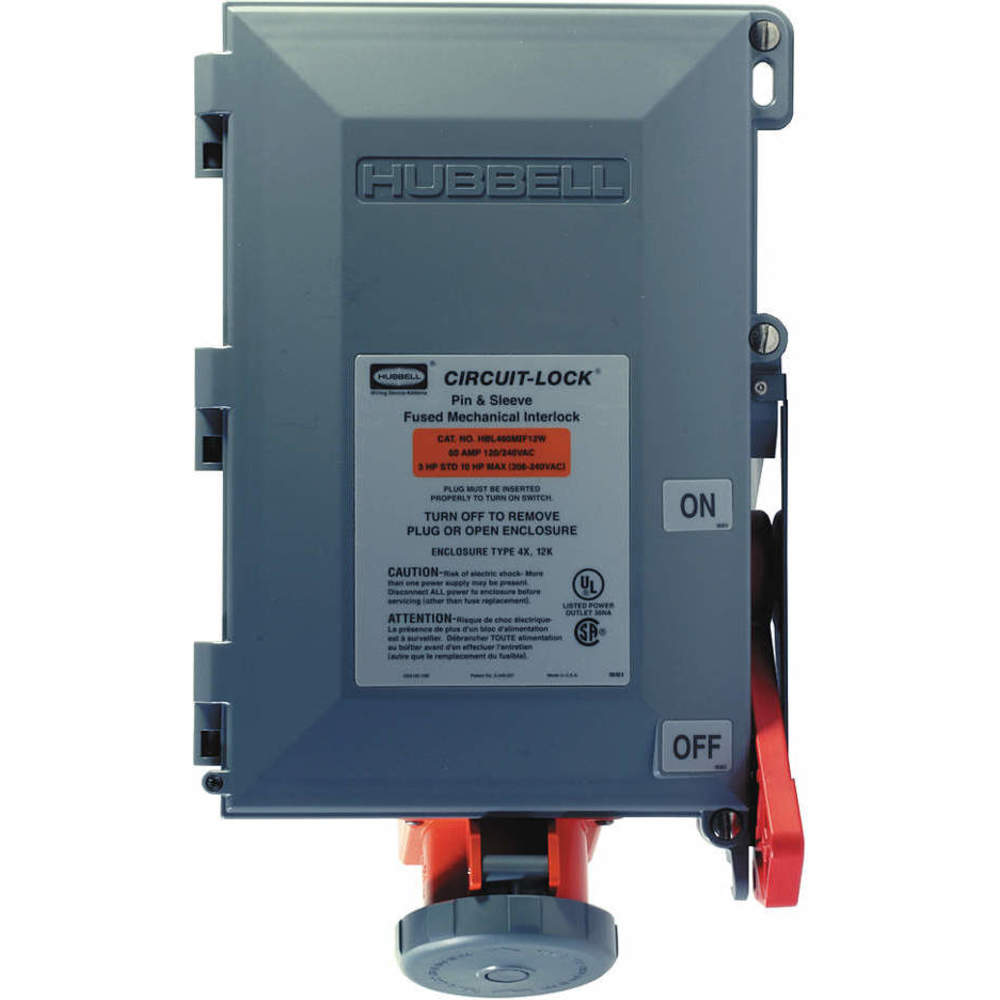

| K | HBL460MIF12W | 60A | 1 | 120/240V AC | 3 | 8 AWG to 2 AWG | 15.36" | 10.18" | 60A | €3,900.75 | |
| H | HBL460MIFS2W | 60A | 1, 3 | 600V AC/250V DC | 3 | 8 AWG to 2 AWG | 15.36" | 10.18" | 60A | €3,796.65 | |
| L | HBL460MI12W | 60A | 1 | 120/240V AC | 3 | 8 AWG to 2 AWG | 10.12" | 7 3/4" | 60A | €2,854.80 | |
| M | HBL460MI9W | 60A | 3 | 240V AC | 3 | 8 AWG to 2 AWG | 10.12" | 7 3/4" | 60A | €2,901.54 | |
| N | HBL4100MI9W | 100A | 3 | 240V AC | 3 | #3 AWG to #1/0 AWG | 11.87" | 7 3/4" | 100A | €3,082.97 | |

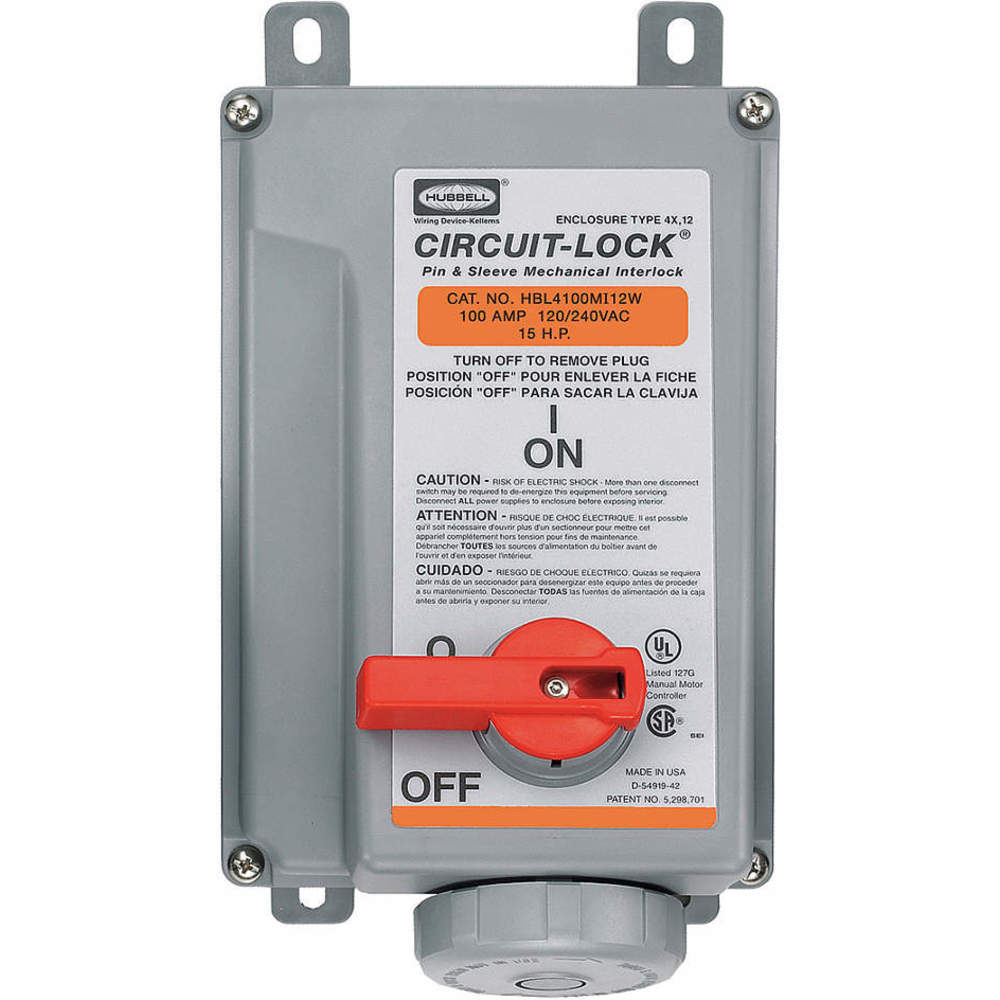

| O | HBL4100MI12W | 100A | 1 | 120/240V AC | 3 | #3 AWG to #1/0 AWG | 11.87" | 7 3/4" | 100A | €3,759.86 | |
| P | HBL4100MI5W | 100A | 3 | 600V AC | 3 | #3 AWG to #1/0 AWG | 11.87" | 7 3/4" | 100A | €3,263.75 | |
| Q | HBL5100MI9W | 100A | 3 | 120/208V AC | 4 | #3 AWG to #1/0 AWG | 11.87" | 7 3/4" | 100A | €3,668.14 |
Mechanical Interlocks
Hubbell Wiring Device-Kellems mechanical interlocks are used for preventing haphazard connections and breaking / making circuits under loads. These interlocking devices feature plugs which cannot be removed till the switch is turned Off and a lockable handle meeting OSHA lockout / tagout regulations. These UL listed & CSA certified interlocks have shaft seals made of neoprene to provide high thermal stability and are capable of being operated at voltages up to 600VAC (RMS). Choose from a wide range of these mechanical interlocks, available in 2, 3 & 4 pole configurations
Raptor Supplies also offers circuit-lock mechanical interlocksfeaturing Plug-Check mechanism for detecting the presence of plugs.
