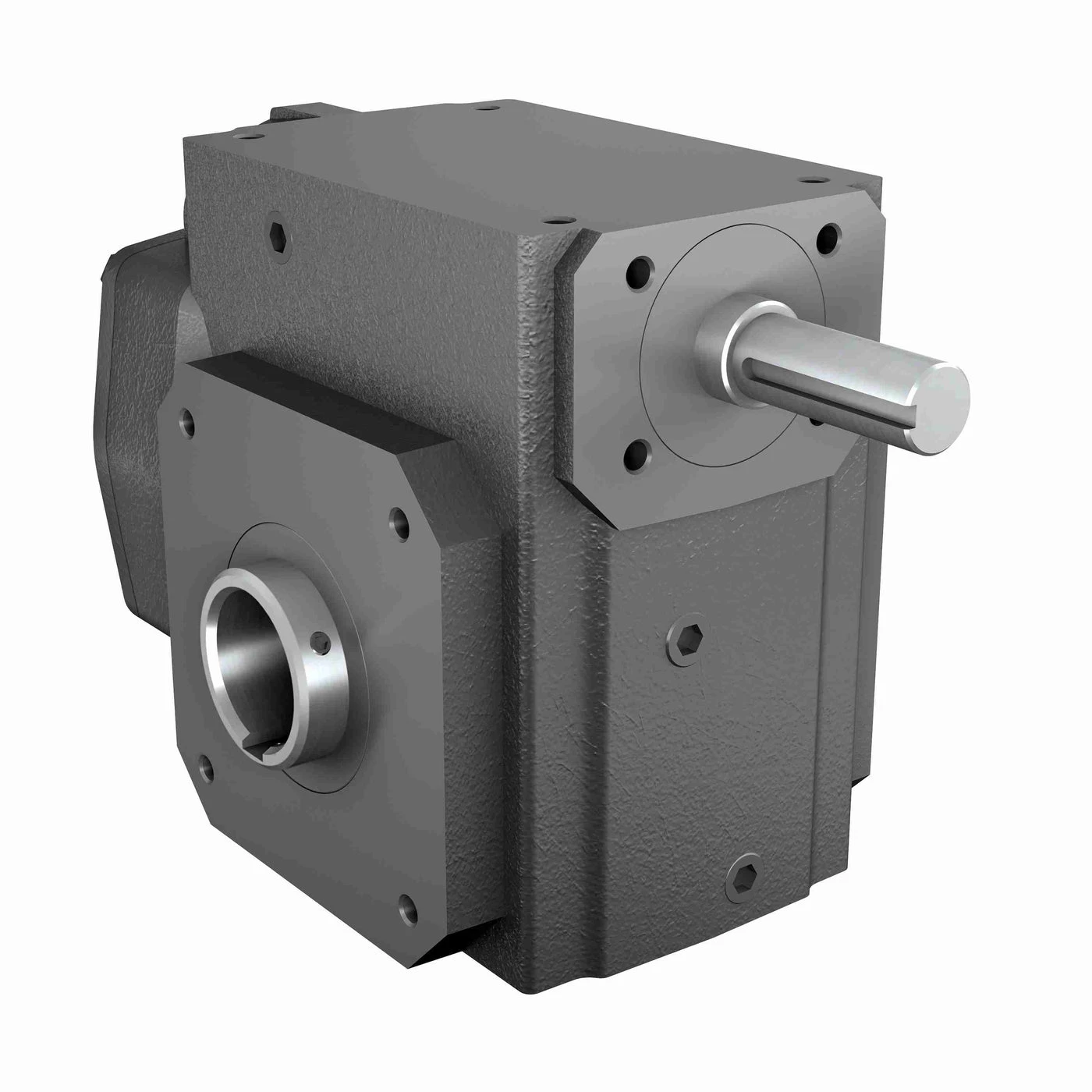

HUB CITY HERA55 Series Helical Hypoid Reducers, AS Type, Cast Iron
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M| Style | Model | max. input hp | ratio | output | output torque | mounting type | center distance | input style | housing material | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-55452 | - | 58.92:1 | 29.7 RPM | 2500 lbs.-in. to 5000 lbs.-in. | AS | 3.675" | Shaft | Cast Iron | €2,469.23 | |
| B | 0250-55462 | - | 10.77:1 | 162.5 RPM | 2500 lbs.-in. to 5000 lbs.-in. | AS | 3.675" | Shaft | Cast Iron | €1,987.01 | |
| C | 0250-55449 | - | 30.14:1 | 58.1 RPM | 2500 lbs.-in. to 5000 lbs.-in. | AS | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| D | 0250-55450 | - | 43.97:1 | 39.8 RPM | 2500 lbs.-in. to 5000 lbs.-in. | AS | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| E | 0250-55364 | 2 9/25 hp | 58.92:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| F | 0250-55332 | 2 9/25 hp | 58.92:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| G | 0250-55330 | 3 4/25 hp | 43.97:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| H | 0250-55362 | 3 4/25 hp | 43.97:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| I | 0250-55417 | 4.61 hp | 30.14:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| J | 0250-55329 | 4.61 hp | 30.14:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| K | 0250-55361 | 4.61 hp | 30.14:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 | |
| L | 0250-55398 | 12.89 hp | 10.77:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €1,987.01 | |
| M | 0250-55357 | 13 hp | 7.94:1 | - | 2500 lbs.-in. to 5000 lbs.-in. | - | 3.675" | Shaft | Cast Iron | €2,954.13 |
