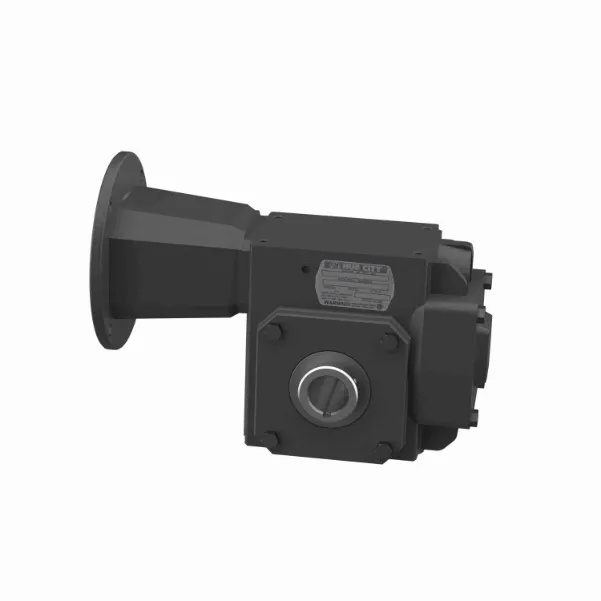

HUB CITY HERA45 Series Helical Hypoid Reducers, PS Type, Cast Iron
Filter
A
B
C
D
E
F
G
H
I
J
K
L
M
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
A1
B1
C1
D1
E1
F1
G1
H1
I1
J1
K1
L1
M1
N1
O1
P1
Q1
R1
S1
T1
U1
V1
W1
X1
Y1
Z1
A2
B2
C2
D2
E2
F2
G2
H2
I2| Style | Model | Input Dia. | Max. Input Hp | Output Dia. | Output Torque | Output Speed | Input Hp @ 1750 Rpm | Frame Size | Hp | Price | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| A | 0250-54151 | 0.626" | 1.53 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| B | 0250-54176 | 0.626" | 1 17/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 29.3 RPM | 1 17/50 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| C | 0250-54183 | 0.626" | 1.53 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| D | 0250-54145 | 0.626" | 8 1/2 hp | 1" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 56C | 7 1/2 hp to 10 hp | €1,788.13 | |
| E | 0250-54152 | 0.626" | 1 17/50 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 29.3 RPM | 1 17/50 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| F | 0250-54147 | 0.626" | 5 7/50 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| G | 0250-54175 | 0.626" | 1.53 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| H | 0250-54187 | 0.626" | 5 7/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| I | 0250-54189 | 0.626" | 2 43/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| J | 0250-54190 | 0.626" | 2.01 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| K | 0250-54192 | 0.626" | 1 17/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 29.3 RPM | 1 17/50 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| L | 0250-54148 | 0.626" | 4.11 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 56C | 3 hp to 5 hp | €1,788.13 | |
| M | 0250-54146 | 0.626" | 7 3/50 hp | - | 2500 lbs.-in. to 5000 lbs.-in. | 154 RPM | 7 3/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| N | 0250-54174 | 0.626" | 2.01 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| O | 0250-54150 | 0.626" | 2.01 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| P | 0250-54170 | 0.626" | 7 3/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 154 RPM | 7 3/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| Q | 0250-54149 | 0.626" | 2 43/50 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| R | 0250-54171 | 0.626" | 5 7/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| S | 0250-54188 | 0.626" | 4.11 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 56C | 3 hp to 5 hp | €1,788.13 | |
| T | 0250-54186 | 0.626" | 7 3/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 154 RPM | 7 3/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| U | 0250-54177 | 0.626" | 8 1/2 hp | 1.438" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 56C | 7 1/2 hp to 10 hp | €1,788.13 | |
| V | 0250-54172 | 0.626" | 4.11 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 56C | 3 hp to 5 hp | €1,788.13 | |
| W | 0250-54173 | 0.626" | 2 43/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| X | 0250-54185 | 0.626" | 8 1/2 hp | 1 1/2" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 56C | 7 1/2 hp to 10 hp | €1,788.13 | |
| Y | 0250-54178 | 0.626" | 7 3/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | - | 7 3/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| Z | 0250-54179 | 0.626" | 5 7/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 56C | 5 hp to 7 1/2 hp | €1,788.13 | |
| A1 | 0250-54180 | 0.626" | 4.11 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 56C | 3 hp to 5 hp | €1,788.13 | |
| B1 | 0250-54181 | 0.626" | 2 43/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| C1 | 0250-54182 | 0.626" | 2.01 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 56C | 2 hp to 3 hp | €1,788.13 | |
| D1 | 0250-54184 | 0.626" | 1 17/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 29.3 RPM | 1 17/50 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| E1 | 0250-54191 | 0.626" | 1.53 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 56C | 1 hp to 1 1/2 hp | €1,788.13 | |
| F1 | 0250-54169 | 0.626" | 8 1/2 hp | 1 1/4" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 56C | 7 1/2 hp to 10 hp | €1,788.13 | |
| G1 | 0250-54233 | 0.876" | 8 1/2 hp | 1 1/2" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 140TC | 7 1/2 hp to 10 hp | €1,788.13 | |
| H1 | 0250-54227 | 0.876" | 5 7/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| I1 | 0250-54219 | 0.876" | 5 7/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| J1 | 0250-54239 | 0.876" | 1.53 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 140TC | 1 hp to 1 1/2 hp | €1,788.13 | |
| K1 | 0250-54218 | 0.876" | 7 3/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 154 RPM | 7 3/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| L1 | 0250-54231 | 0.876" | 1.53 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 140TC | 1 hp to 1 1/2 hp | €1,788.13 | |
| M1 | 0250-54229 | 0.876" | 2 43/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 140TC | 2 hp to 3 hp | €1,788.13 | |
| N1 | 0250-54213 | 0.876" | 2 43/50 hp | 1.188" | 2500 lbs.-in. to 5000 lbs.-in. | - | 2 43/50 hp | 140TC | 2 hp to 3 hp | €1,285.43 | |
| O1 | 0250-54235 | 0.876" | 5 7/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| P1 | 0250-54226 | 0.876" | 7 3/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 154 RPM | 7 3/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| Q1 | 0250-54237 | 0.876" | 2 43/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 140TC | 2 hp to 3 hp | €1,788.13 | |
| R1 | 0250-54196 | 0.876" | 4.11 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 140TC | 3 hp to 5 hp | €1,788.13 | |
| S1 | 0250-54230 | 0.876" | 2.01 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 140TC | 2 hp to 3 hp | €1,788.13 | |
| T1 | 0250-54198 | 0.876" | 2.01 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 140TC | 2 hp to 3 hp | €1,788.13 | |
| U1 | 0250-54234 | 0.876" | 7 3/50 hp | 1 1/2" | 2500 lbs.-in. to 5000 lbs.-in. | 154 RPM | 7 3/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| V1 | 0250-54223 | 0.876" | 1.53 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 140TC | 1 hp to 1 1/2 hp | €1,788.13 | |
| W1 | 0250-54193 | 0.876" | 8 1/2 hp | 1" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 140TC | 7 1/2 hp to 10 hp | €1,788.13 | |
| X1 | 0250-54232 | 0.876" | 1 17/50 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 29.3 RPM | 1 17/50 hp | 140TC | 1 hp to 1 1/2 hp | €1,788.13 | |
| Y1 | 0250-54220 | 0.876" | 4.11 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 140TC | 3 hp to 5 hp | €1,788.13 | |
| Z1 | 0250-54211 | 0.876" | 5 7/50 hp | 1.188" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,285.43 | |
| A2 | 0250-54199 | 0.876" | 1.53 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 33.3 RPM | 1.53 hp | 140TC | 1 hp to 1 1/2 hp | €1,788.13 | |
| B2 | 0250-54200 | 0.876" | 1 17/50 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 29.3 RPM | 1 17/50 hp | 140TC | 1 hp to 1 1/2 hp | €1,788.13 | |
| C2 | 0250-54195 | 0.876" | 5 7/50 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 112.2 RPM | 5 7/50 hp | 140TC | 5 hp to 7 1/2 hp | €1,788.13 | |
| D2 | 0250-54217 | 0.876" | 8 1/2 hp | 1 1/4" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 140TC | 7 1/2 hp to 10 hp | €1,788.13 | |
| E2 | 0250-54197 | 0.876" | 2 43/50 hp | 1" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 140TC | 2 hp to 3 hp | €1,788.13 | |
| F2 | 0250-54228 | 0.876" | 4.11 hp | 1.438" | 2500 lbs.-in. to 5000 lbs.-in. | 89.7 RPM | 4.11 hp | 140TC | 3 hp to 5 hp | €1,788.13 | |
| G2 | 0250-54225 | 0.876" | 8 1/2 hp | 1.438" | 1000 lbs.-in. to 2500 lbs.-in. | 224.4 RPM | 8 1/2 hp | 140TC | 7 1/2 hp to 10 hp | €1,788.13 | |
| H2 | 0250-54222 | 0.876" | 2.01 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 43.8 RPM | 2.01 hp | 140TC | 2 hp to 3 hp | €1,788.13 | |
| I2 | 0250-54221 | 0.876" | 2 43/50 hp | 1 1/4" | 2500 lbs.-in. to 5000 lbs.-in. | 62.5 RPM | 2 43/50 hp | 140TC | 2 hp to 3 hp | €1,788.13 |
